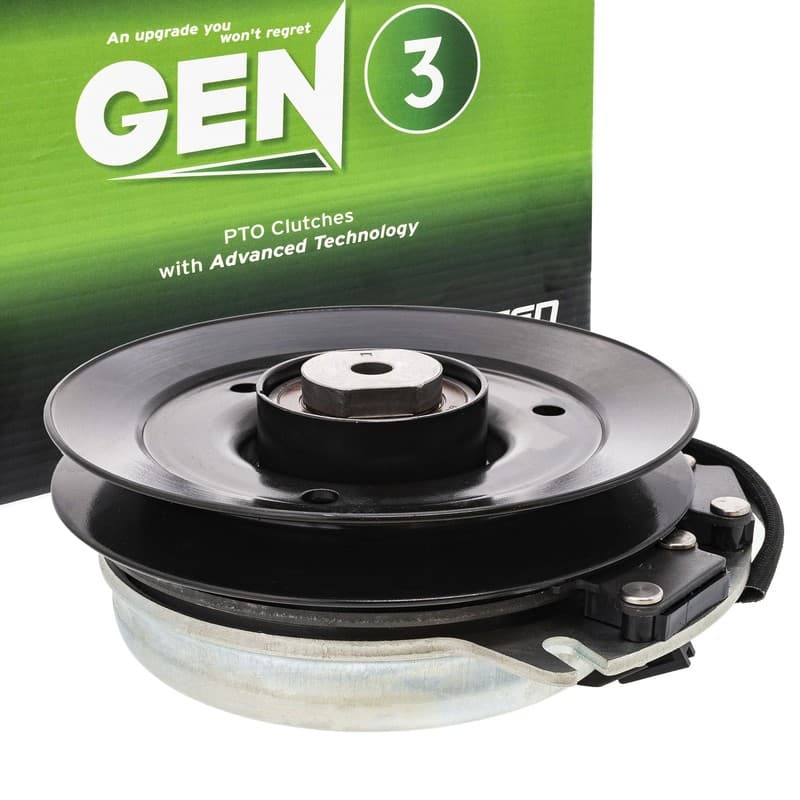

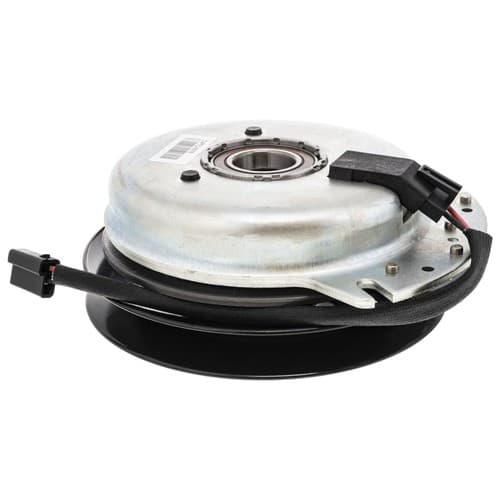

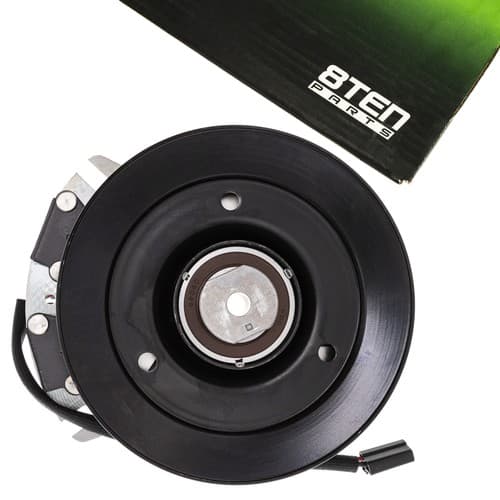

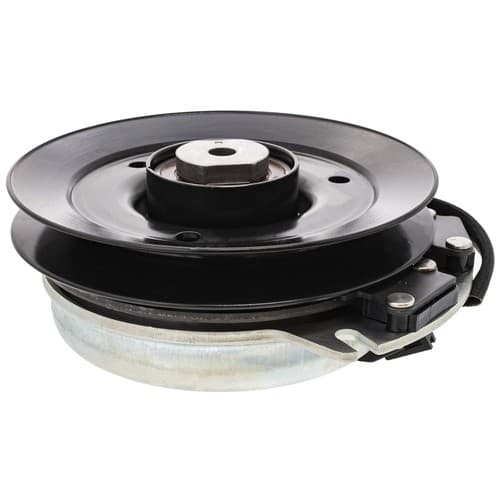

Name: Electric PTO Clutch for Exmark HP Z Lazer CT 523 103-0690 109-9276 109-2916
Brand: 8Ten
SKU: APH-298039981208
Price: 231.15 USD
Availability: InStock

A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!

PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F

Unique Specs:
Torque: 280Nm (205ft-lb)
Resistance at 70F: 2.0+-0.1

Electric PTO Clutch for Exmark HP Z Lazer CT 523 103-0690 109-9276 109-2916

Description

Direct Replacement for the Following OEM Part Numbers:

103-0690, 109-9276, 109-2916, 653048, 1-653048, 1-653292, 105-3630, 653292, 109-7036

Fits The Following OEM Models:

Toro Z-Master Z453 52 inch Turbo Force, Toro Z-Master Z453 48 inch Turbo Force, Toro Z-Master Z450 52 inch Turbo Force, Toro Z-Master Z450 48 inch Turbo Force, Toro Z-Master Z449 52 inch Turbo Force, Toro Z-Master Z449 48 inch Turbo Force, Toro Z-Master Z441 52 inch Turbo Force, Toro Z-Master Z441 48 inch Turbo Force, Toro Z-Master Z400 52 inch Turbo Force, Toro Z-Master Z400 52 inch 7-Gauge, Toro Z-Master Z400 48 inch Turbo Force, Toro Z-Master Z400 48 inch 7-Gauge, Toro Z-Master Z153 52 inch SFS, Toro Z-Master Z150 52 inch SFS, Toro Z-Master Z150 44 inch SFS, Toro Z-Master Z149 52 inch SFS, Toro Z-Master Z147 44 inch SFS, Toro Z-Master Z147 42 inch SFS, Exmark Lazer Z HP 56 inch, Exmark Lazer Z HP 52 inch, Exmark Lazer Z HP 50 inch, Exmark Lazer Z HP 49 inch, Exmark Lazer Z HP 48 inch, Exmark Lazer Z HP 46 inch, Exmark Lazer Z HP 44 inch, Exmark Lazer Z CT 60 inch, Exmark Lazer Z CT 52 inch, Exmark Lazer Z CT 48 inch

WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Warranty

8TEN Parts have a 810-Day Limited Warranty. This 8TEN Parts 810-Day Limited Warranty is your sole remedy with respect to any 8TEN Part.

Please contact us for full warranty details, certain exclusions and restrictions may apply.

Shipping

All items are carefully packed and properly protected for shipment. We use several different carriers and choose the most economical for the item and destination based on the estimated handling and transit time.

This item is subject to a handling time of 1 Business Day(s) from the time of order until the item is expected to ship from our facility!!!

Please make every attempt possible to verify that part/product being purchased is correct for your application

In the event of shipping damage, improper fitment, or a desire to return the product, or any other questions related to a past or future order please feel to contact us.
