Caltric
Drive Sheave Plates w/Spacer Damper & Weight for Arctic Cat Wildcat 1000 2012-13
No reviews yet
$251.58
NEWIn Stock
SKU: APH-295533232501
MPN: PSK119-14A
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (8)
- Arctic Cat 650 4x4 H1 MudPro Automatic — 2010-2011
- Arctic Cat 700 4x4 H1 MudPro EFI — 2011
- Arctic Cat MudPro 700 Limited — 2016-2017
- Arctic Cat Wildcat 1000 -- — 2013
- Arctic Cat Wildcat 1000 GT HO — 2012
- Arctic Cat Wildcat 1000 Limited — 2013
Specifications
- Type
- Primary Sheave
- Brand
- Caltric
- Color
- Gray
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Length
- 190 mm
- Vintage Part
- No
- Items Included
- Primary Sheave
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 0823-272, 0823-156, 0830-116, 0830-011, 3402-441, 0830-174, 0830-012, 0823272, 0823156, 0830116, 0830011, 3402441, 0830174, 0830012
Description
Premium Quality Replacement Part
Stationary Primary Clutch Sheave & Face Drive Moveable Plate w/ Spacer Damper Clutch Weight
Stationary Primary Clutch Sheave & Face Drive Moveable Plate w/ Spacer Damper Clutch Weight
For Arctic Cat Models:
Alterra 700 Mud Pro Ltd 2018-2019
650 H1 4x4 Mud Pro 2010-2011
700 EFI H1 4x4 Auto Mud Pro 2011
Mud Pro 700 LTD 2012-2017
Mud Pro 700i 2012
Wildcat 1000 2012-2013
Wildcat 1000 LTD 2013

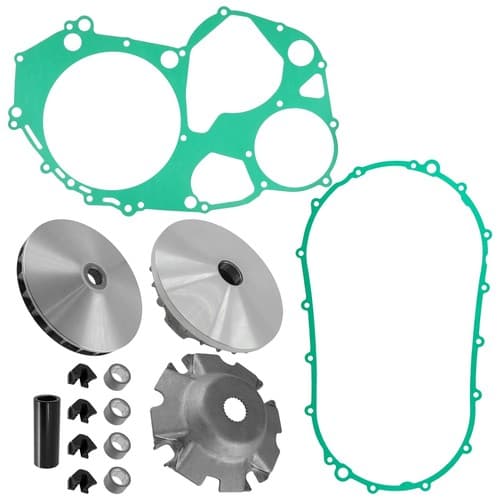

Order Includes:
1 x Stationary Drive Sheave : 0823-272 0823-156
1 x Primary Clutch Sheave Plate : 0823-273 0823-159
1 x Face Drive Moveable Plate : 0823-276
1 x Transmission Spacer : 0823-271
4 x Clutch Slider Damper : 0823-277
4 x Roller Clutch Weight : 0823-295
1x Gasket : 0830-116, 0830-011, 3402-441
1x Gasket : 0830-174, 0830-012
Dimensions & Measurements :

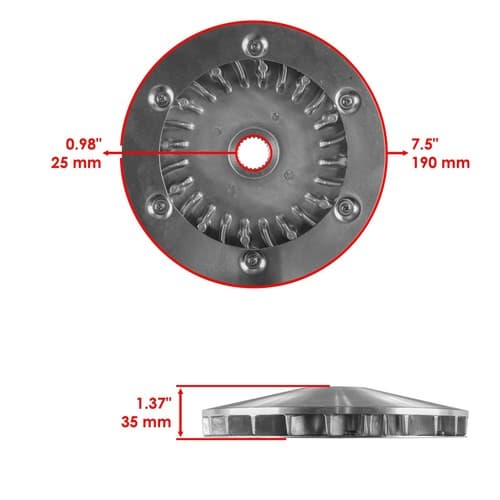

Stationary Drive Sheave
Inner Diameter : 25mm | 0.98"
Outer Diamter : 190mm | 7.5"
Height : 35mm | 1.37"

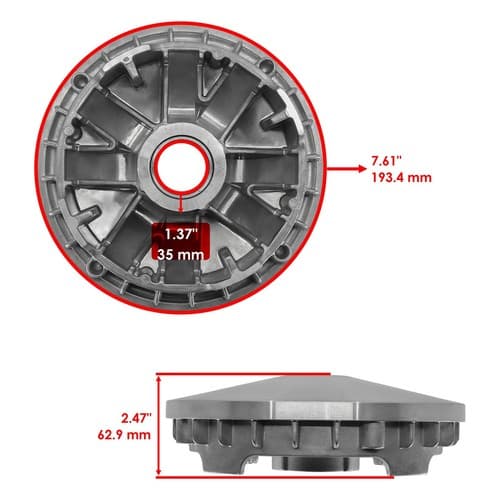

Primary Clutch Sheave Plate
Height : 62.9 mm | 2.47"
Inner Diameter : 35.0 mm | 1.37"
Outer Diameter : 193.4 mm | 7.61"

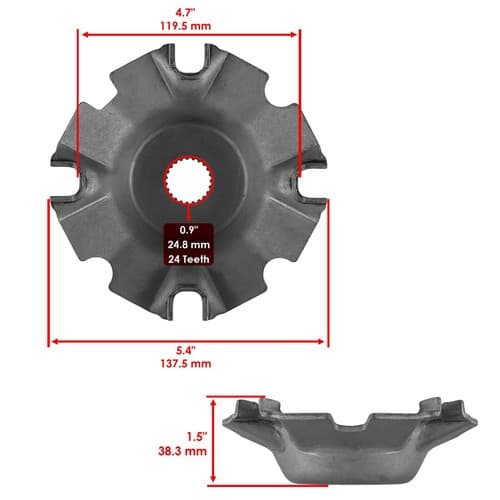

Face Drive Moveable Plate
Height : 38.3 mm | 1.5"
Diameter : 137.5 mm | 5.4"
Inner Diameter : 24.8 mm | 0.9"
Teeth : 24 Teeth

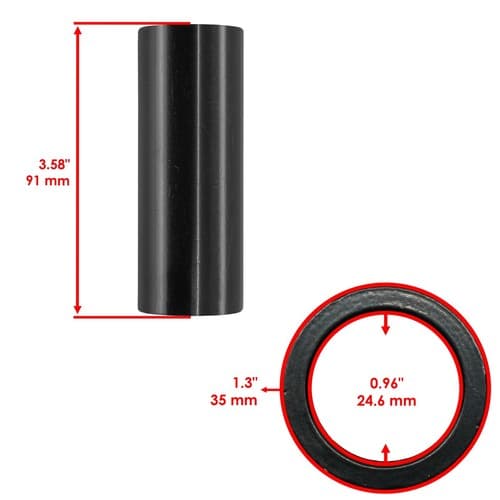

Transmission Spacer
Height : 91.0 mm | 3.58"
Inner Diameter : 24.6 mm | 0.96"
Outer Diameter : 35.0 mm | 1.3"
Clutch Slider Damper
Width : 15.0 mm | 0.59"
Length : 25.0 mm | 0.98"

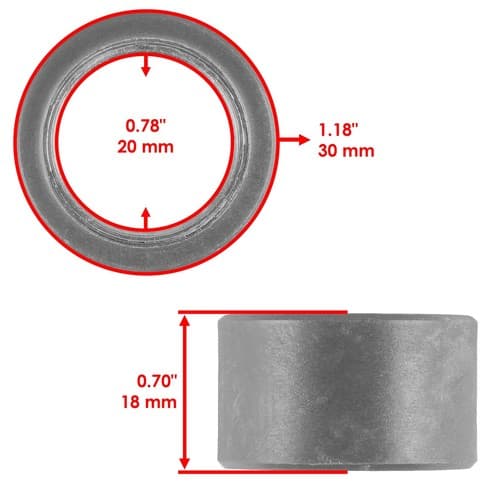

Roller Clutch Weight
Inner Diameter : 20mm | 0.78"
Outer Diameter : 30mm | 1.18"
Width : 18mm | 0.70"
