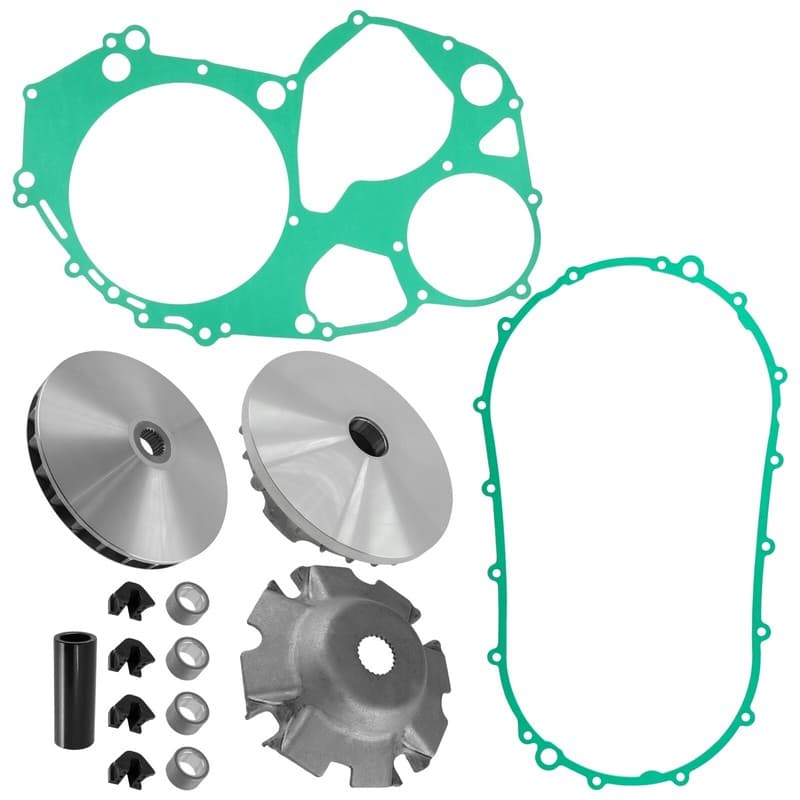

Drive Sheave Plates w/Spacer Damper Weight for Arctic Cat MudPro 700 LTD 2012-17

For Arctic Cat Models:

Alterra 700 Mud Pro Ltd 2018-2019
650 H1 4x4 Mud Pro 2010-2011
700 EFI H1 4x4 Auto Mud Pro 2011
Mud Pro 700 LTD 2012-2017
Mud Pro 700i 2012
Wildcat 1000 2012-2013
Wildcat 1000 LTD 2013

Order Includes:
1 x Stationary Drive Sheave : 0823-272  0823-156
1 x Primary Clutch Sheave Plate : 0823-273  0823-159
1 x Face Drive Moveable Plate : 0823-276
1 x Transmission Spacer : 0823-271
4 x Clutch Slider Damper : 0823-277
4 x Roller Clutch Weight : 0823-295
1x Gasket : 0830-116, 0830-011, 3402-441
1x Gasket : 0830-174, 0830-012

Dimensions & Measurements :

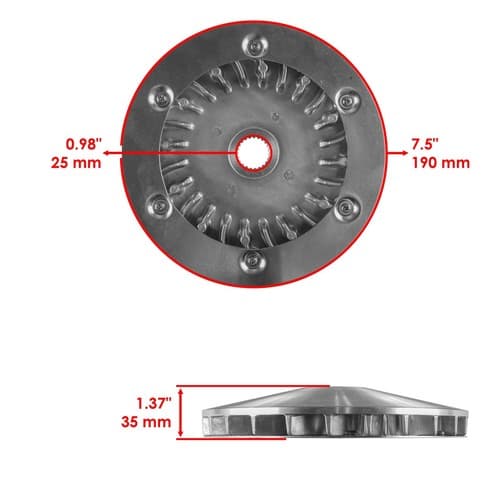

Stationary Drive Sheave
Inner Diameter : 25mm  |  0.98"
Outer Diamter : 190mm  |  7.5"
Height : 35mm  |  1.37"

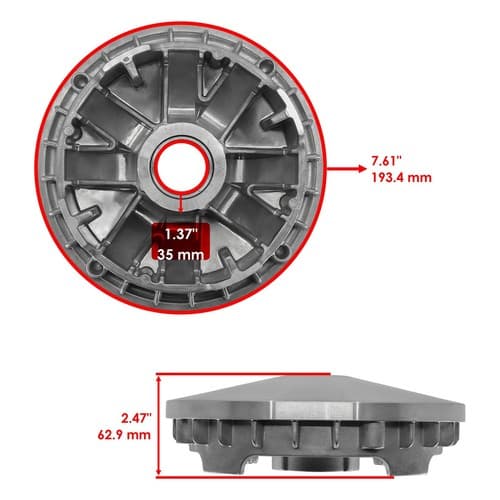

Primary Clutch Sheave Plate
Height : 62.9 mm  |  2.47"
Inner Diameter : 35.0 mm  |  1.37"
Outer Diameter : 193.4 mm  |  7.61"

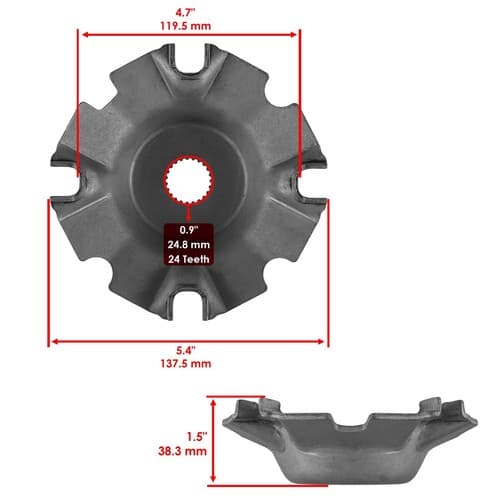

Face Drive Moveable Plate
Height : 38.3 mm  |  1.5"
Diameter : 137.5 mm  |  5.4"
Inner Diameter : 24.8 mm  |  0.9"
Teeth : 24 Teeth

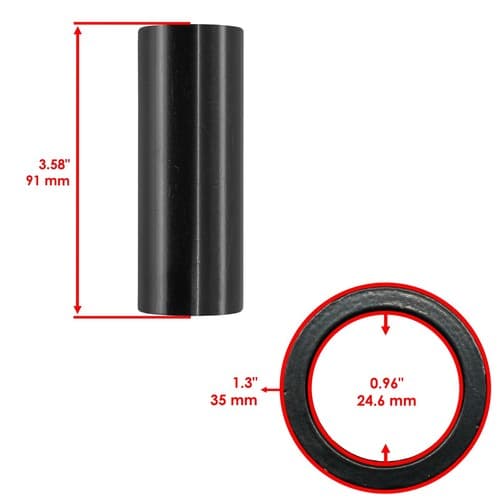

Transmission Spacer
Height : 91.0 mm  |  3.58"
Inner Diameter : 24.6 mm  |  0.96"
Outer Diameter : 35.0 mm  |  1.3"

Clutch Slider Damper
Width : 15.0 mm  |  0.59"
Length : 25.0 mm  |  0.98"

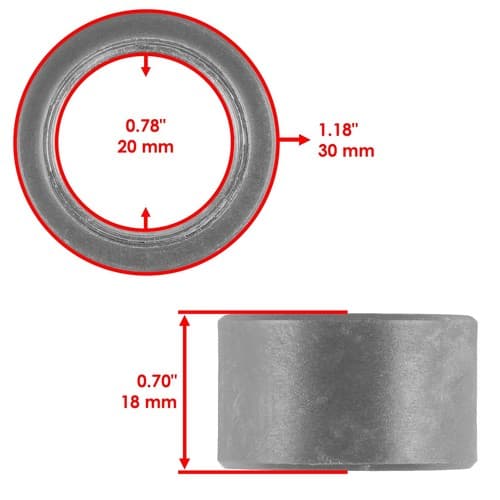

Roller Clutch Weight
Inner Diameter : 20mm  |  0.78"
Outer Diameter : 30mm  |  1.18"
Width : 18mm  |  0.70"
