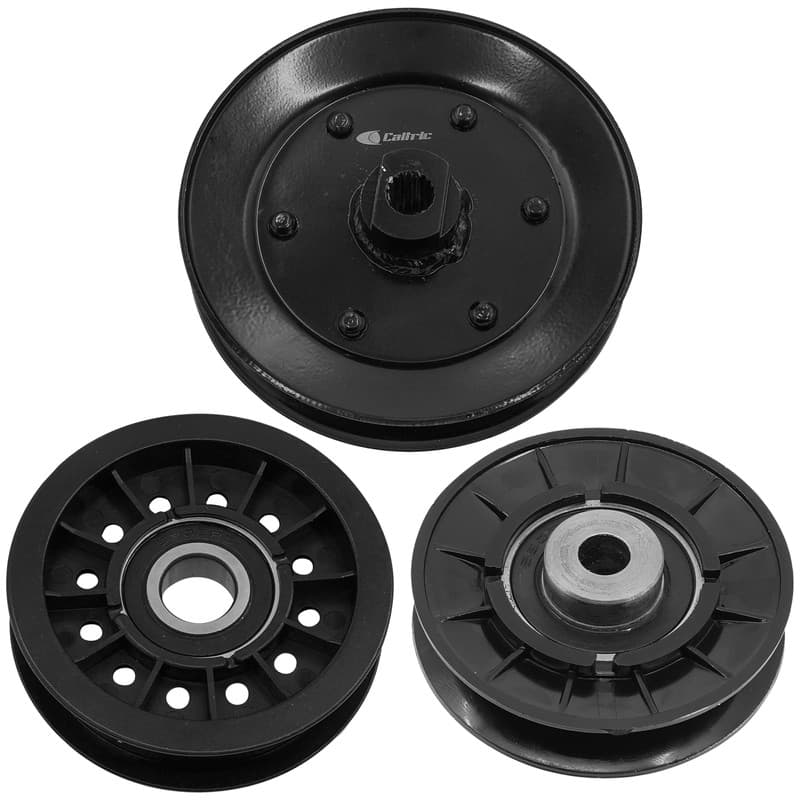

Drive Pulleys For John Deere LX277 LX279 LX280 LX172 LX173 LX176 LX178 LX186

Power Train Drive Pulleys

For John Deere Models:

LX277 and LX279 Lawn Tractors - PC2718
LX280 Lawn Tractor, Mower Deck and MCS - PC9329
LX172, LX173, LX176, LX178, LX186 and LX188 Lawn Tractors - PC2317
LX255 Lawn Tractor - PC2717
LX266 Lawn Tractor - PC9074
LX288 Lawn Tractor - PC2719 [S/N 090001-]
LX289 Lawn Tractor, Mower Deck and MCS - PC9330
SABRE 1842GV, 1842HV, 1848GV and 1848HV Yard Tractors - PC2655
SABRE 2048HV Garden Tractor - PC2656
SABRE 2148HV Garden Tractor - PC2809
SABRE 2254HV Garden Tractor - PC2698
SABRE 2554HV Garden Tractor - PC2657
G100 Lawn and Garden Tractor - PC9292
SABRE 1948GV and 1948HV Yard Tractors - PC2808 [S/N 015001-]
SABRE 2354HV Garden Tractor - PC2810 [S/N -030000]
Scotts S2048 Yard Tractor - PC2741
SCOTTS S2348 Yard Tractor - PC2811

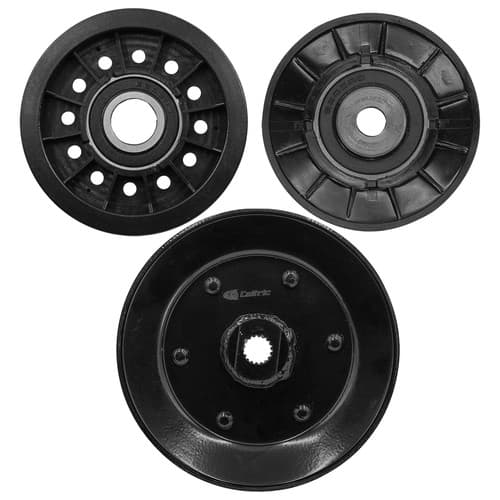

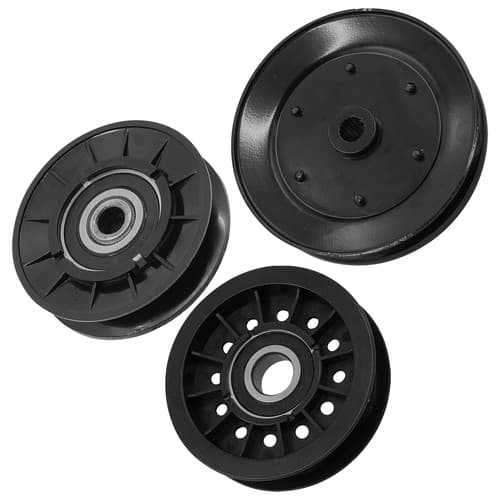

Order Includes:

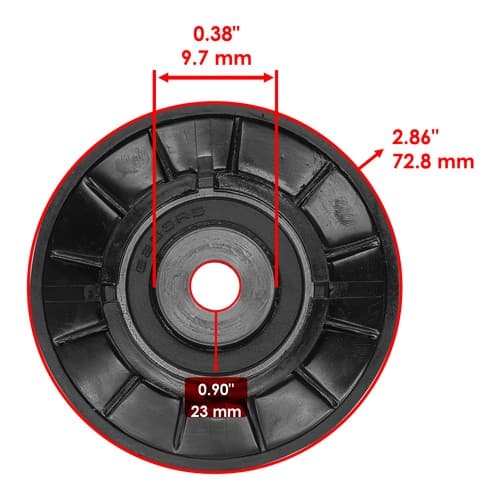

1 x Idler Pulley: AM115460, 280-683, 280683

Width: 21․7mm - 0․85"
Inner Diameter: 23mm - 0․90"
Outer Diameter: 72․8mm - 2․86"
Material: Steel
Weight: 4oz

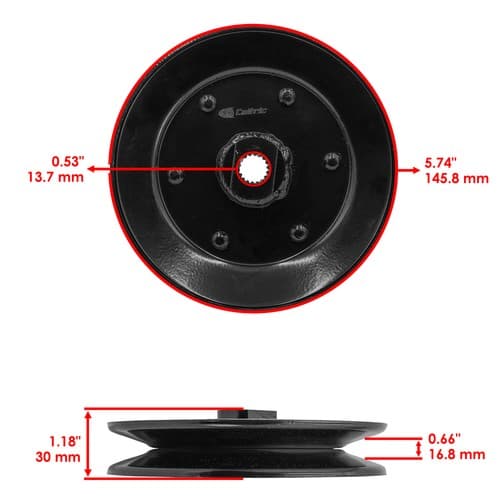

1 x Transmission Drive Pulley: AM126129

Width: 30 mm - 1․18"
Inner Diameter: 13․7 mm - 0․53"
Outer Diameter: 145․8 mm - 5․74
Weight: 1lbs 9․5oz

1 x Drive Pulley: AM128646, AM115459

Width: 23․1 mm - 0․90"
Inner Diameter: 16.8 mm - 0․66"
Outer Diameter: 88․2 mm - 3․47"
Material: Steel
Weight: 3․7oz
