Deck Wheels w/ Arms for John Deere X465 X475 X485 X495 X575 X585 X595 48" 54 62"

Gauge Wheel w/ Wheel Arm & Hub

Compatible with John Deere Models:

X465,X475,X485,X495,X575,X585,X595,X700,X720,X724,X728,X740,X744,X748 Tractors - 48" 54" 62" - Serial Number ( 050614- ) & ( 090001- )
FH601V Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )
GX335 Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )
GX345 Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )
FD611V Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )
GX355 Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )
2V78C Lawn and Garden Tractor - 54" - Serial Number - ( 090001- )

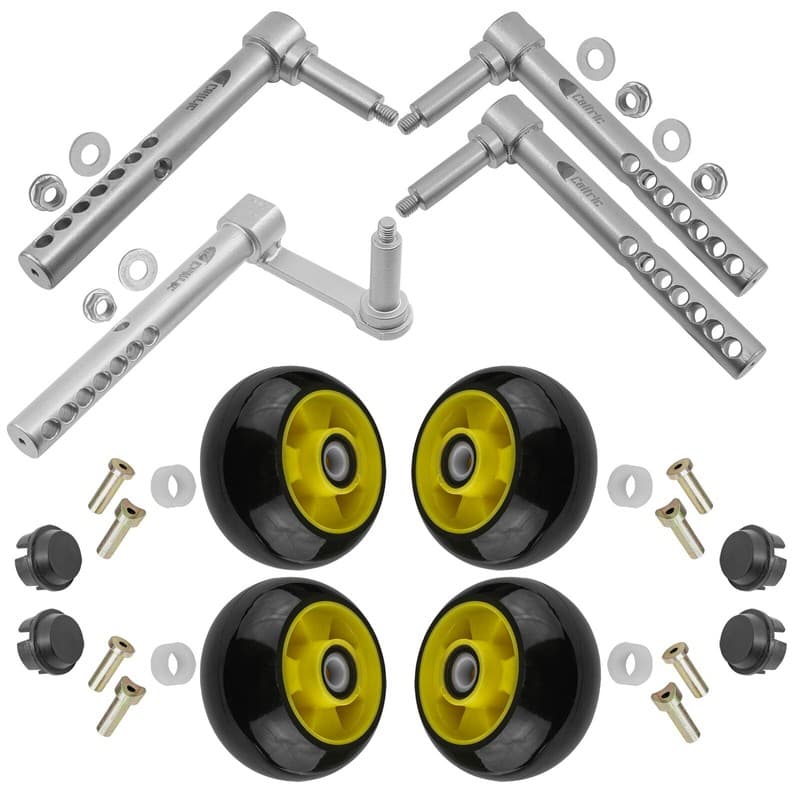

Order Includes:

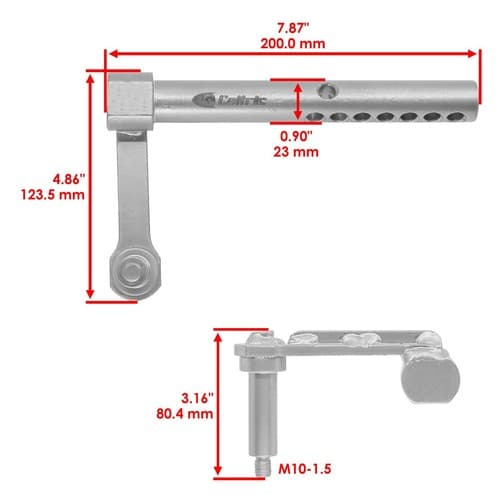

1 x Gauge Wheel Arm : AM137264

Width : 80.4mm - 3.16 in - M10-1.5
Height : 123.5mm - 4.86 in
Length : 200.0mm -  7.87 in
Shaft Thickness : 23 mm - 0.90 in

2 x Gauge Wheel Arm : AM137395

Height : 92.8mm - 3.65 in
Length : 201.0mm - 7.91 in
Shaft Thickness : 23 mm - 0.90 in

1 x Gauge Wheel Arm : AM137396

Length : 201.0mm -  7.91 in
Height : 92.8mm  - 3.65 in
Shaft Thickness : 23 mm - 0.90 in

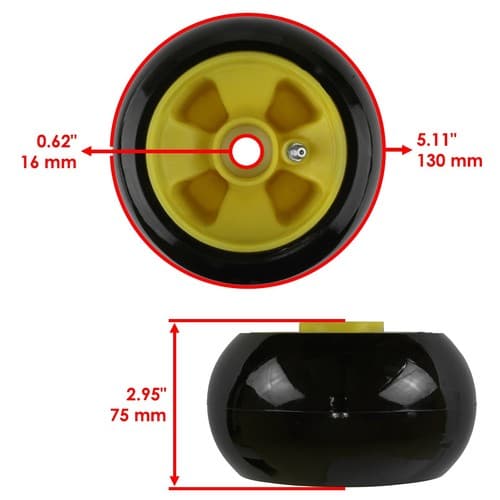

4 x Wheel : AM115488

Width : 75mm - 2.95 in
Inner Diameter : 16mm - 0.62 in
Outer Diameter : 130mm - 5.11 in

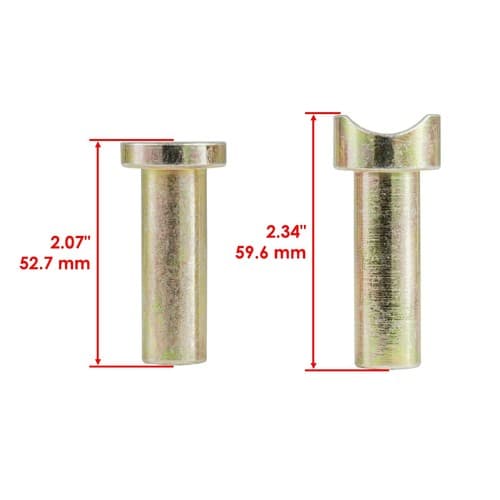

Bolt Height : 52.7mm - 2.07 in

4 x Hub : M145727

Width : 18.4mm - 0.72 in
Inner Diameter : 20.1mm  - 0.79 in
Outer Diameter : 28.7mm - 1.12 in

Note :

Installs On Location (A) (B) (C) (D) In Second Picture
Please check the Wheel Arm Mounting Diameter, early and late models size may differ.
