Deck Wheel w/ Arm for John Deere 120 140 300 312 314 316 317 318 322 60"

Deck Wheel w/ Arm

Compatible with John Deere Models :

1023E ( -MY17) (PIN: - 1LV1023EHHH108480)(PIN: - 1LV1023ECHH300601) (SN: 080001-_) - 60"

1025R ( -MY17) (PIN: - 1LV1025RHHH137459) (PIN: - 1LV1025RCHH300900) (SN: 080001- ) - 60"

1026R ( -MY17) (PIN: -1LV1026RHHH201417) (PIN: -1LV1026RHGE510675) (SN: 080001- ) - 60"

2025R (MY18 - MY22)(PIN: 1LV2025RAHJ100101 - 1LV2025RVNN141283) - 60"

2026R  (MY18 - MY22) (PIN: 1LV2026RVHJ200101 - 1LV2026RENN203607) - 60"

120, 140, 300, 312, 314, 316, 317, 318, 322, 330, 332, 425, 445, 455 60"

X465,X475,X485,X495,X575,X585,X595,X700,X720,X724,X728,X740,X744,X748 (SN: 050001 - ) - 60"

X710, X730, X734, X738, X739, X750 - 60" (SN: - 050000)

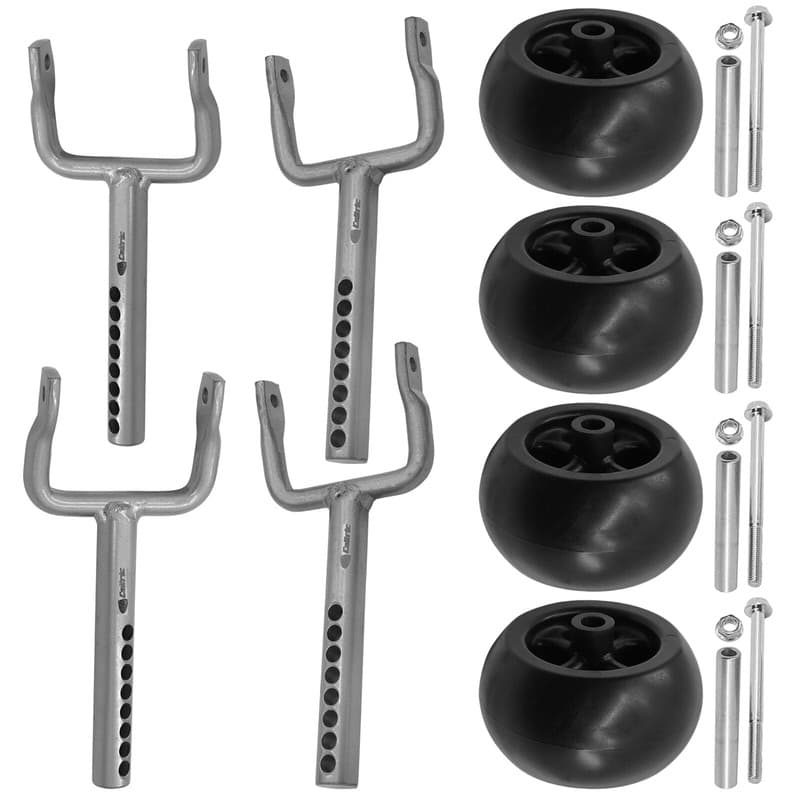

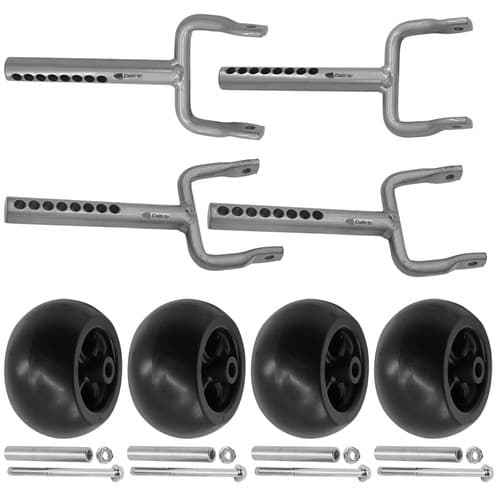

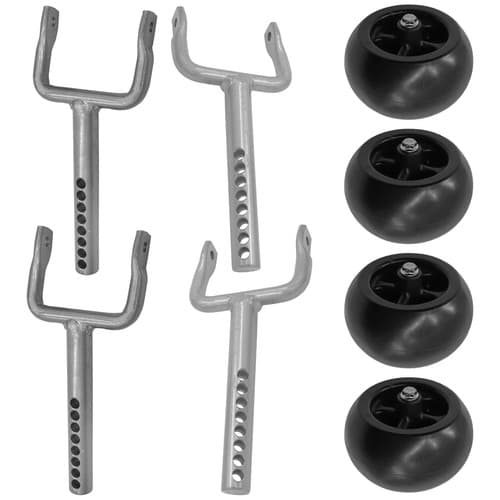

Order Includes :

2 x Gauge Wheel Arm : AM145268

Width : 123.3mm - 4.85in

Length : 273.3mm - 10.75in

1 x Wheel Arm : AM145269, LVA16505

Width : 123mm - 4.84in

Length : 273mm - 10.7in

1 x Wheel Arm : AM145270

Width : 122.5mm - 4.82in

Length : 267mm - 10.51in

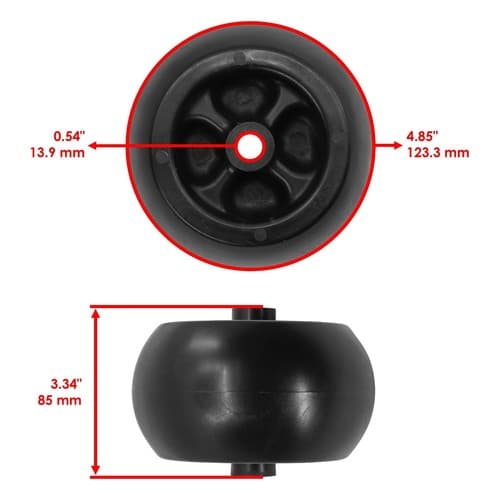

4 x Wheel : 09253700 , 022-5234-00, UC28193, TCA22703, TCU18744

Inner Diameter : 13.9 mm - 0.54in

Outer Diameter : 123.3 mm - 4.85in

Height : 85 mm - 3.34in

Note :

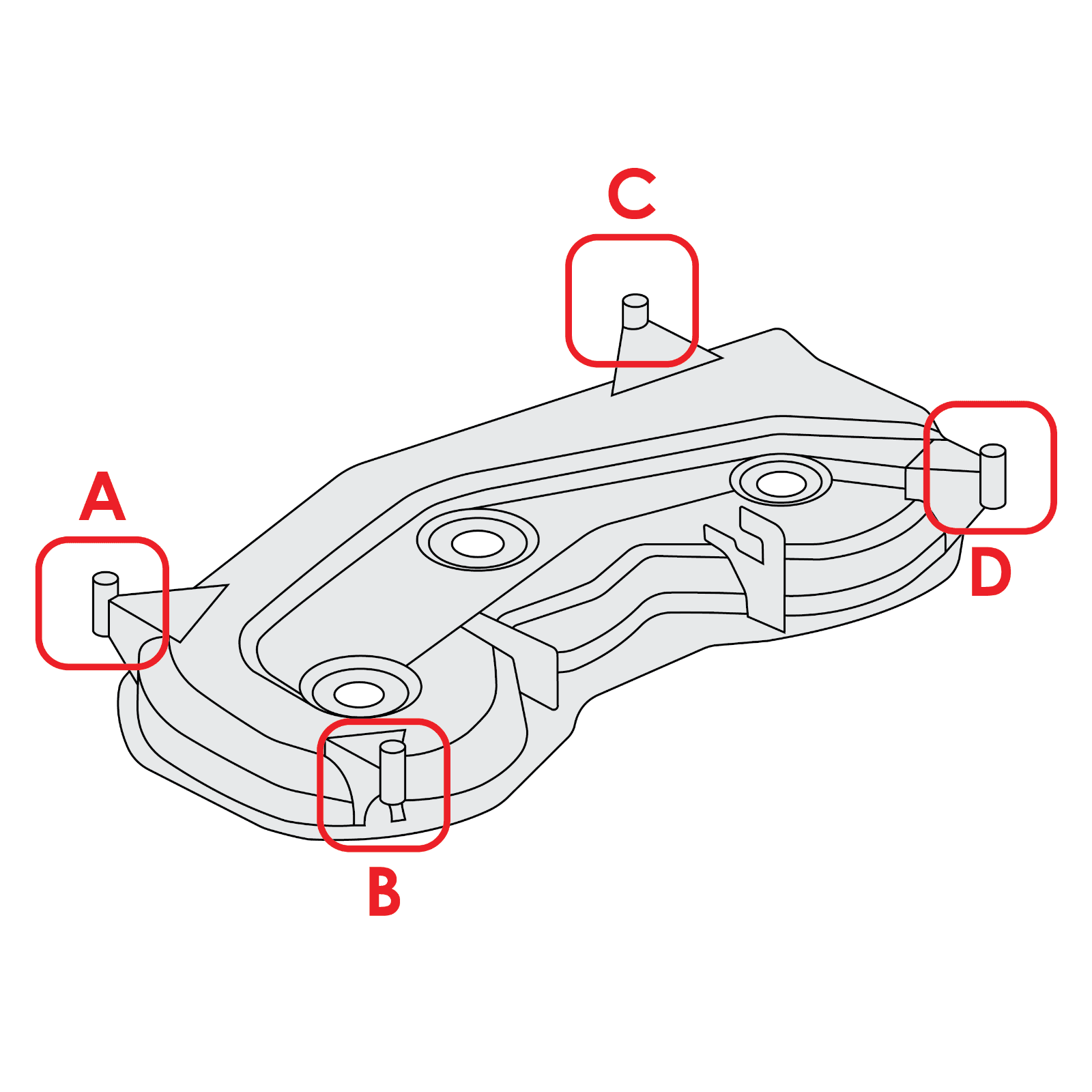

Installs On Location (A) (B) (C) (D) In Second Picture

Please check the Wheel Arm Mounting Diameter, early and late models size may differ.
