Deck Wheel Roller w/ Bolt Kit for Dixie Chopper X2003 X2400 6024 B-278 67240

Deck Wheel Roller and Carriage Bolt / Nyloc Nut / Washer Kit

Compatible with Dixie Chopper Models:

3360 (2008)

3372 (2008)

5018 Magnum (1983-1988)

5020 Sidewinder (1983-1988)

6024 Sidewinder (1983-1988)

Classic 2550 (2008-2009)(2011)

Classic 2750 (2008-2009)(2011)

Classic 2750HP (2008-2011)

Classic 2760 (2009-2011)

Classic 3060HP (2008-2011)

Classic 3360HP (2008-2011)

Classic 3372HP (2009-2011)

Classic 2750 (2013-2014)

Classic 2760 (2013-2014)

Classic 2960EFI (2013-2014)

Classic 3360HP (2013-2014)

Classic 3372HP (2013-2014)

Classic (2015-2018)

Classic Rev1 (2016)

LP3000-60 (2006-2008)

LP3000-72 (2006-2008)

LT1800-34 (2007)

LT1800-44 (2007)

LT2000-36 36" 44" (2005)

LT2000-44 (S/N 6057252 & Up) (2006)

LT2000-44 (S/N SE5000001 & Up) (2005)

LT2000-50 (2004)

LT2000-50 (S/N SE3000001 & Up) (2003)

LT2200-34 (S/N 6057252 & Up) (2006)

LT2300-50D (2007)

LT2400-44D (S/N SE5000001 & Up) (2005)

LT2400-50D (S/N SE5043301 & Up) (2005)

LT2500-44D (S/N 6057252 & Up) (2006)

LT2500-50D (S/N 6057252 & Up) (2006)

LT2700-60D (S/N 6057252 & Up) (2006)

LT2700-60D (S/N SE5043301 & Up) (2005)

LX2000-60 (1997)

LX2000-42 60" (S/N 8916618-8919915) (1998)

LX2001-60 (1997)

LX2001-42 (S/N 8916618-8919915) (1998)

LX2400-42 (S/N 8916618-8919915) (1998)

LX2401-42 (S/N 8916618-8919915) (1998)

LX2401-60 (1997)

LX2400-60 (1997)

RB2700-34 (2006)

RB2700-44 (2006)

RB2700-50 (2004-2006)

RT2760 (2008)

SE2550 (2008-2012)

SE2750 (2008-2012)

SE2760HP (2008-2012)

SP2800-60 (S/N 6057560 & Up) (2006)

SP2800-72 (S/N 4043976 & Up) (2004)

SP3200-72 (2004)

SP3000-72 S/N 4043976 & Up (2004)

The Pup (2000-2005)

X2000 (1997)

X2000-50 S/N 8916618-8919915 (1998)

X2001-50 S/N 3039028 & Up (2003)

X2001-50 S/N 4044008 & Up (2004)

X2001-60 S/N 4043076 & Up (2004)

X2003-50 S/N 5051479 & Up (2005)

X2303-50 (2007)

X2400 (1997)

Zee 2 (2142, 2348, 2354) (2013-2014)

Zee 2 HP (2348HP, 2354HP) (2014)

Zee 2 (2015-2018)

Zee 2 Rev1 (2016)

Zee 1 (2012)

Silver Eagle (2012-2017)

Silver Eagle 2550 (2013)

Silver Eagle 2744 (2013-2014)

Silver Eagle 2750 (2013-2014)

Silver Eagle 2760 (2013-2014)

Silver Eagle 2760KW (2013-2014)

Silver Eagle 2960EFI (2013)

Silver Eagle 2660EFI (2014)

RZT Pro Series (2017)

ZT Pro 3172EFI (2017)

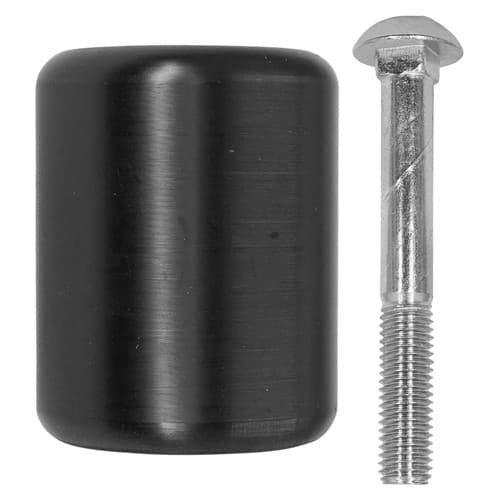

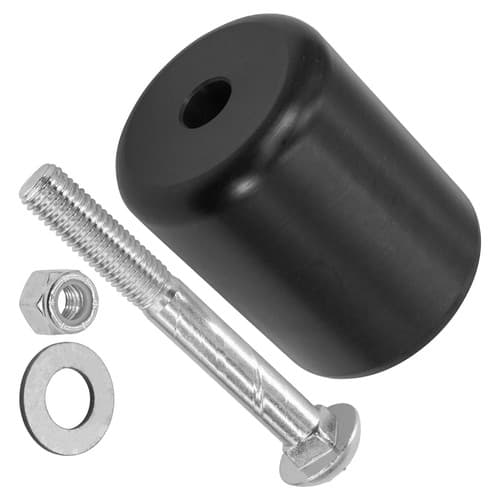

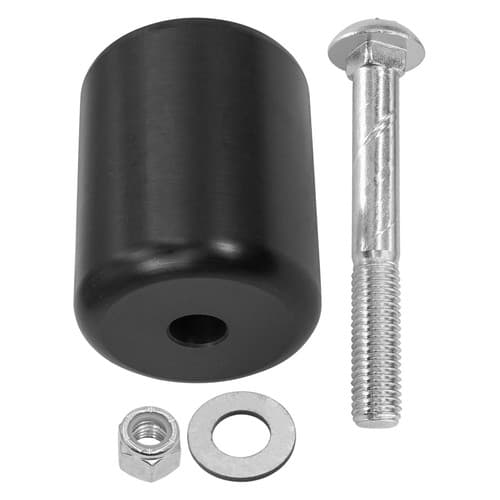

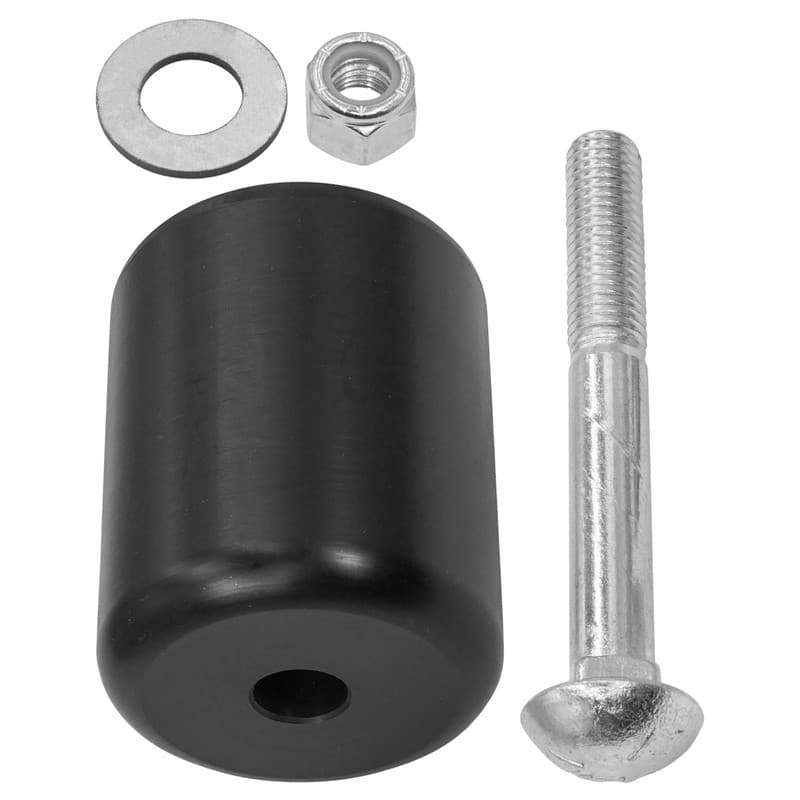

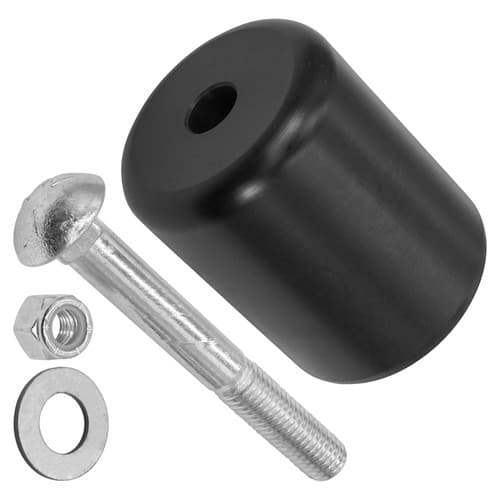

Order Includes :

1 x Deck Wheel Roller : 67240, 210-175

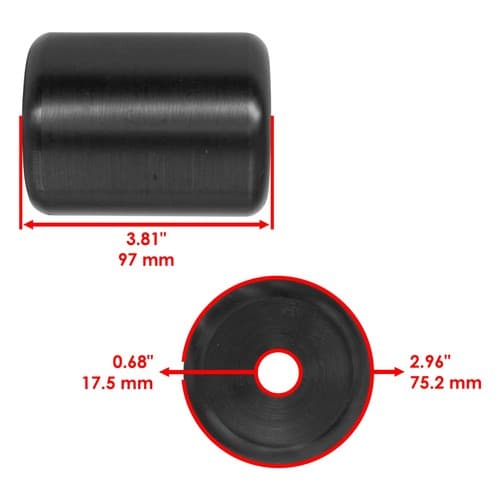

Inner Diameter: 0.68 in - 17.5 mm

Outer Diameter: 2.96 in - 75.2 mm

Width: 3.81 in - 97 mm

1 x (5/8-11 x 5 in) Carriage Bolt with Nyloc Nut and Washer:

B-278, N-115, N-156, W-194

Overall Length: 5.35 in - 136 mm

Thread Length: 2.0 in - 51 mm

Head Diameter: 1.29 in - 32.9 mm

Thread Size: 5/8-11
