Specifications
- MPN
- 461663, 46020, 46400, 483282, 482877, 43591 43279 43235, 0400141 04001-41
- Mpn
- 461663, 46020, 46400, 483282, 482877, 43591 43279 43235, 0400141 04001-41
- Type
- Deck Spindles And Pulleys With Blades
- Brand
- Caltric
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Deck Size
- 48"
- More Info
- For More Information Reffer to Description and Compatibilty Table
- Item Width
- 127 mm
- Item Height
- 184.15 mm
- Item Weight
- 17lb 19oz
Description
Premium Quality Replacement Part

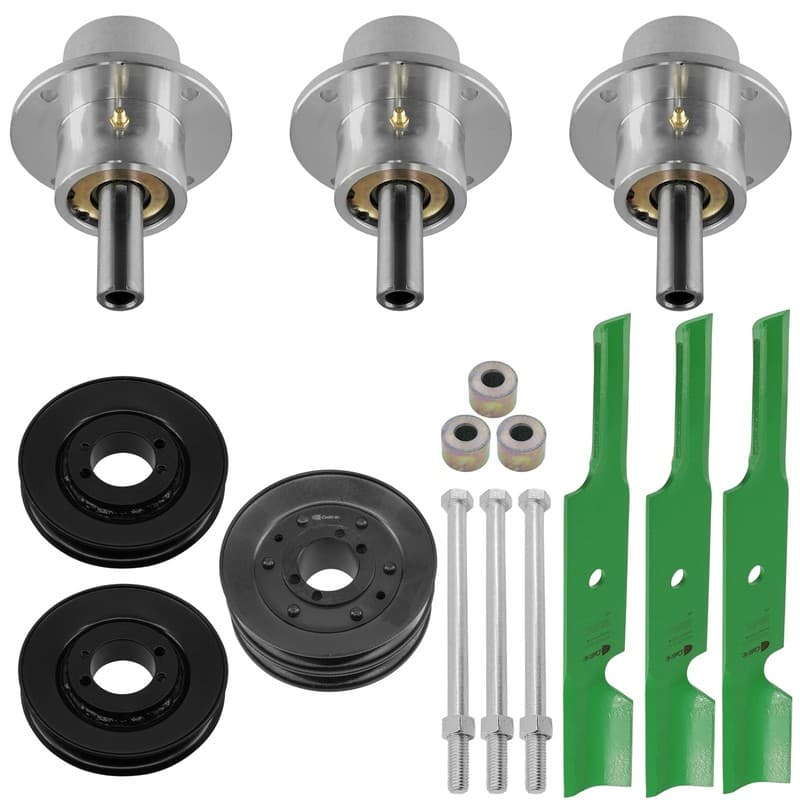

Deck Spindles And Pulleys With Blades
For Scag Models:
SCZ48V-22FX - Scag Cheetah 48" Zero-Turn Mower, 22hp Kawasaki (SN: J9600001 - J9699999)
SCZ48V-22FX - Scag Cheetah 48" Zero-Turn Mower, 22hp Kawasaki (SN: L6100001 - L6199999)
SCZ48V-23CV-EFI - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: L6200001 - L6299999)
SCZ48V-23CV - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: J9700001 - J9799999)
SCZ48V-25CV - Scag Cheetah 48" Zero-Turn Mower, 25hp Kohler (SN: H6800001 - H6899999)
SCZ48V-26BS - Scag Cheetah 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: K4400001 - K4499999)
SCZ48V-28BS - Scag Cheetah 48" Zero-Turn Mower, 28hp Briggs & Stratton (SN: H6900001 - H6999999)
SCZ48V-691FX - Scag Cheetah 48" Zero-Turn Mower, Kawasaki 691FX (SN: H6700001 - H6799999)
SCZ52V-23FX - Scag Cheetah 52" Zero-Turn Mower, 23hp Kawasaki (SN: J9900001 - J9999999)
SCZ52V-23FX - Scag Cheetah 52" Zero-Turn Mower, 23hp Kawasaki (SN: L6300001 - L6399999)
SCZ52V-25CV-EFI - Scag Cheetah 52" Zero-Turn Mower, 25hp Kohler (SN: K0100001 - K0199999)
SCZ52V-25CV-EFI - Scag Cheetah 52" Zero-Turn Mower, 25hp Kohler (SN: L6400001 - L6499999)
SCZ52V-25CV - Scag Cheetah 52" Zero-Turn Mower, 25hp Kohler (SN: K0000001 - K0099999)
SCZ52V-26BS - Scag Cheetah 52" Zero-Turn Mower, 26hp Briggs & Stratton (SN: K0200001 - K0299999)
SCZ52V-27CV - Scag Cheetah 52" Zero-Turn Mower, 27hp Kohler (SN: H7100001 - H7199999)
SCZ52V-28BS - Scag Cheetah 52" Zero-Turn Mower, 28hp Briggs & Stratton (SN: H7200001 - H7299999)
SCZ52V-730FX - Scag Cheetah 52" Zero-Turn Mower, Kawasaki 730FX (SN: H7000001 - H7099999)

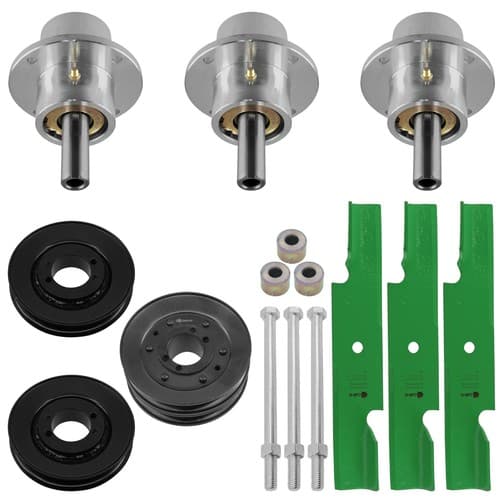

Order Includes :

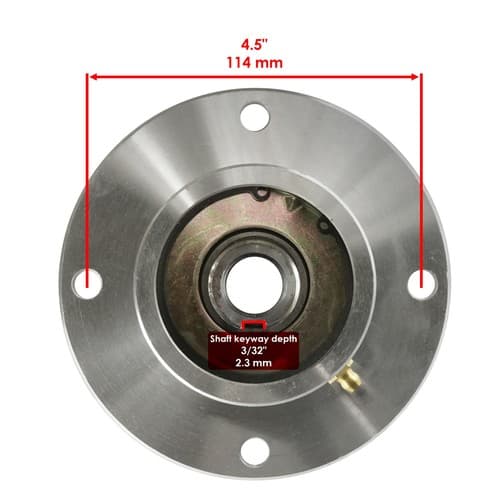

3x Spindle : 461663 46020 46400
Mounting Hole Distance : 114 mm | 4.5 "
Item Height : 184.15 mm | 7.25 "

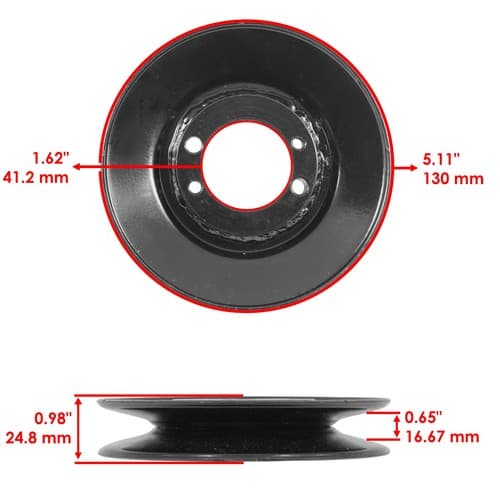

2x Pulley : 483282
Inner Diameter : 41.2 mm | 1.62 "
Outer Diameter : 130 mm | 5.11 "
Width : 24.8 mm | 0.98 "
1x Pulley : 483285
Inner Diameter : 38 mm | 1.49 "
Outer Diameter : 145.7 mm | 5.73 "
Width : 57.5 mm | 2.26 "

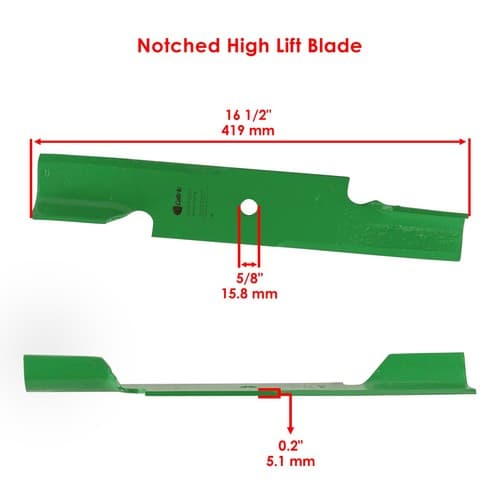

3x Blade : 482877
Length : 419.1 mm | 16.5 "
Height : 63. 2 mm | 2.49
Width : 5.1 mm | 0.20
3 x Blade Bolt - 04001-41 0400141
Length: 250.82 mm - 9.87"
Stud Diameter: 15.7mm - 0.61"
Threads: 5/8-11 X 9-1/2

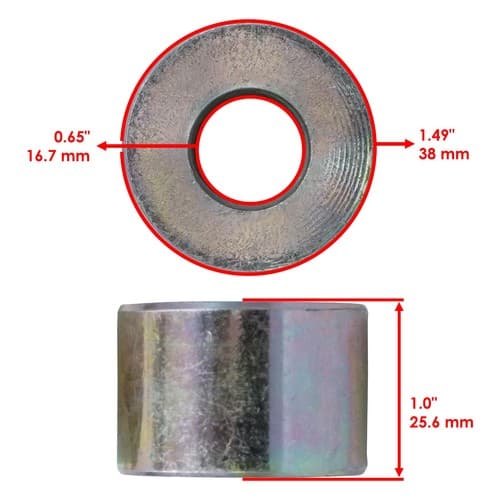

3 x Spindle Bottom Spacer : 43591 43279 43235
Width: 25.6 mm - 1.0"
Inner Diameter: 16.7mm - 0.65"
Outer Diameter: 38mm - 1.49"
