Specifications
- MPN
- 482745, 48753, 48926, 48378-03, 48141, 4837803, 461663, 46631, 41001, 41007, 41008, 43644, 43294
- Mpn
- 482745, 48753, 48926, 48378-03, 48141, 4837803, 461663, 46631, 41001, 41007, 41008, 43644, 43294
- UPC
- Does not apply
- Type
- Spindle
- Brand
- Caltric
- Color
- Black
- Model
- For Scag: 461663, 46631, 41001, 43644, 43294, 482745, 48926
- Gtin13
- Does not apply
- Voltage
- 12 V
- Material
- Iron, Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
Description
Premium Quality Replacement Part

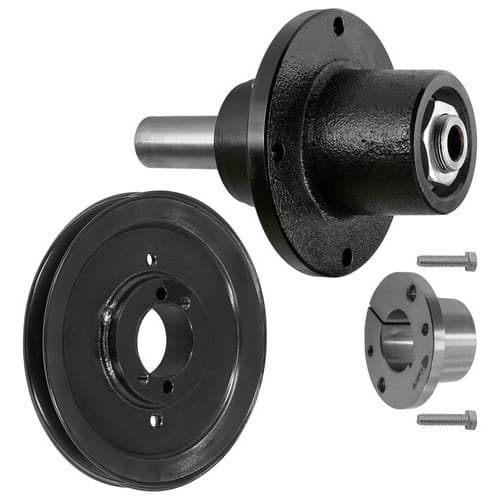

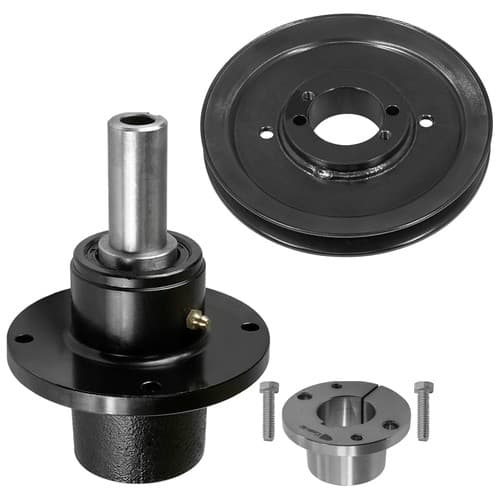

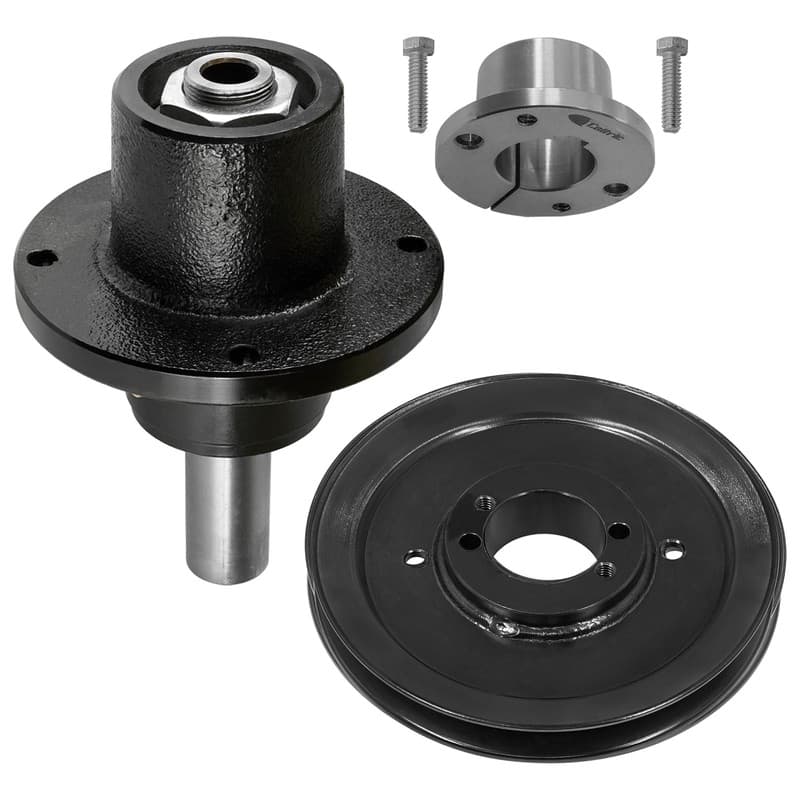

Deck Spindle with Pulley and Tapered Hub
Compatible with Scag Models:
Three-Wheel Riding Mower
Mag-61 Magnum Iii 61" (Sn: 60000 - 79999)
Cougar Zero-Turn Mower
(Sn: 5350001 - 5359999)
(Sn: 6410001 - 6419999), (Sn: 7510001 - 7519999)
(Sn: 6460001 - 6469999), (Sn: 7540001 - 7549999)
(Sn: 7550001 - 7559999)
(Sn: 7560001 - 7569999)
(Sn: 7570001 - 7579999)
(Sn: 8280001 - 8289999), (Sn: 9230001 - 9239999)
(Sn: A4000001 - A4099999)
Scr48-25ch 25hp Koh. 48" (Sn: 5590001 - 5599999)
Scr48-27ka 48" 27hp Kw. (Sn: 6450001 - 6459999)
Scr52-25ch 52" 25hp Koh. (Sn: 6480001 - 6489999)
Scr52-27ka 52" 27hp Kw. (Sn: 7160001 - 7169999)
Sm-61 61" (Sn: 4170001 - 4179999)
Sm-61a Advantage 61" (Sn: 5370001 - 5379999)
Sm-61b 61" (Sn: 4190001 - 4199999)
Sm-61e 61" (Sn: 5350001 - 5359999)
Velocity Plus 61"
(Sn: C5400001 - C5499999)
(Sn: D8900001 - D8999999)
Sm-61v (Sn: B3700001 - B3799999)
Sabre Tooth Tiger
(Sn: 6850001 – 6859999)
(Sn: 7810001 – 8609999)
(Sn: 9470001 – 9459999)
(Sn: 9480001 – 9489999)
(Sn: A7500001 – A7599999)
(Sn: A7600001 – A7699999)
(Sn: B7900001 – B7999999)
Smst-61 61" (Sn: 4840001 – 5559999)
Smst-61a 61" (Sn: 4850001 – 5569999)
Smst-61v 61" (Sn: B7800001 – B7899999)
Smst-72 72" (Sn: 4860001 – 5579999)
Smst-72a 72" (Sn: 4870001 – 5589999)
Turf Tiger
(Sn: A7200001 – A7299999)
(Sn: A7300001 – A7399999)
(Sn: A7600001 – A7699999)
(Sn: B7600001 – B7699999)
(Sn: B7900001 – B7999999)
(Sn: C9000001 – C9099999)
(Sn: D9500001 – D9599999)
(Sn: D9900001 – D9999999)
(Sn: E0000001 – E0099999)
Smst-72a 72" (Sn: 9480001 – 9489999)
Smt-52a 61" (Sn: A7100001 – A7199999)
Smt-61a 61" (Sn: 9450001 – 9459999)
Smt-61v 61" (Sn: B7500001 – B7599999)
Super Z Zero-Turn Mower
Ssz4216bv 42" 16hp Van. (Sn: 40000 - 49999)
Ssz4816bv 48" 16hp Vang. (Sn: 40000 - 49999)
Ssz4818cv 48" 18hp Koh. (Sn: 40000 - 49999)
STZ Zero-Turn Mower
Stz-20kh 20hp Koh. (Sn: 30000 - 39999)
Stz52-20kh 52" 20hp Koh.
Order Includes:

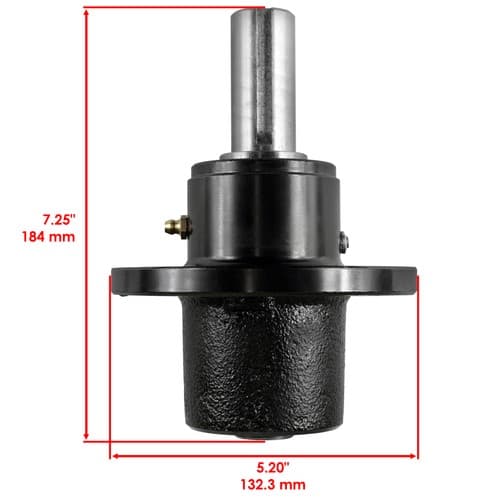

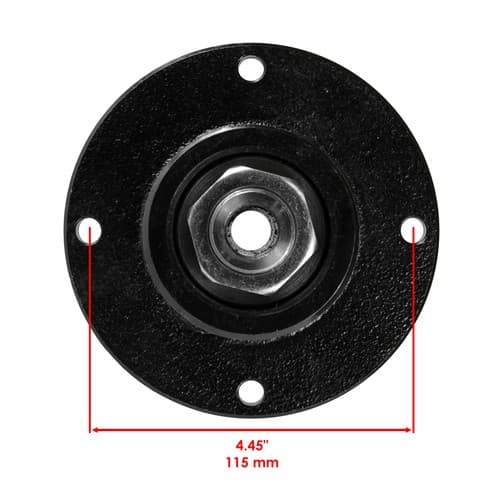

1x Spindle: 461663, 46631, 41001, 41007, 41008, 43644, 43294
Length: 7.25 in - 184 mm,
Height: 5.25 in - 132.3 mm,
Width: 5.25 in - 132.3 mm

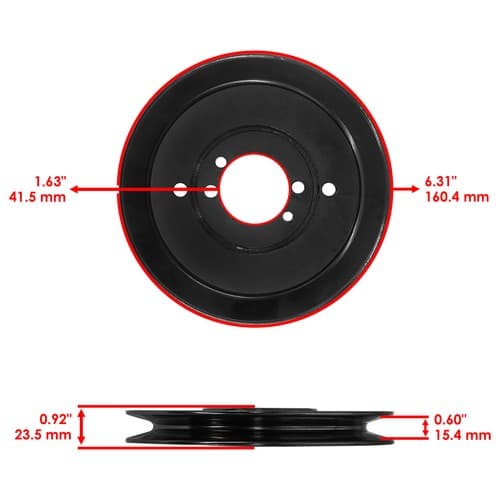

1x Pulley: 482745, 48753
Inner Diameter: 1.63 in - 41.5 mm,
Outer Diameter: 6.31 in - 160.4 mm,
Width: 0.92 in - 23.5 mm

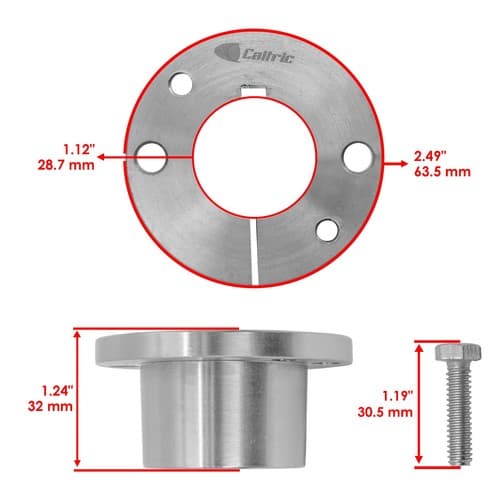

1x Tapered Hub: 48926. 48378-03, 48141
Inner Diameter: 1.12 in - 28.7 mm,
Outer Diameter: 2.49 in - 63.5 mm,
Height: 1.24 in -32 mm
