Specifications
- MPN
- AM128048, AM126112, 285-314, 285314, M82408, AM100946, B1JD5101, 330-300, 330300, M126536, 265-638, 265638, AM124346, 280-954, 280954, AM106627, AM121602, AUC16698, 280-906, 280906, AM118447, 280-309, 280309
- Mpn
- AM128048, AM126112, 285-314, 285314, M82408, AM100946, B1JD5101, 330-300, 330300, M126536, 265-638, 265638, AM124346, 280-954, 280954, AM106627, AM121602, AUC16698, 280-906, 280906, AM118447, 280-309, 280309
- Type
- Spindle
- Brand
- Caltric
- Color
- Gray
- Model
- For John Deere AM128048, AM126112, M82408, AM100946, M126536
- Voltage
- 12 V
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Deck Size 38", Low-Lift Blade Powder Coated
Description
Premium Quality Replacement Part

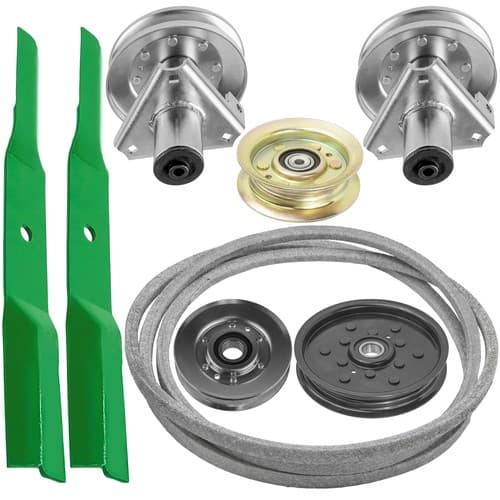

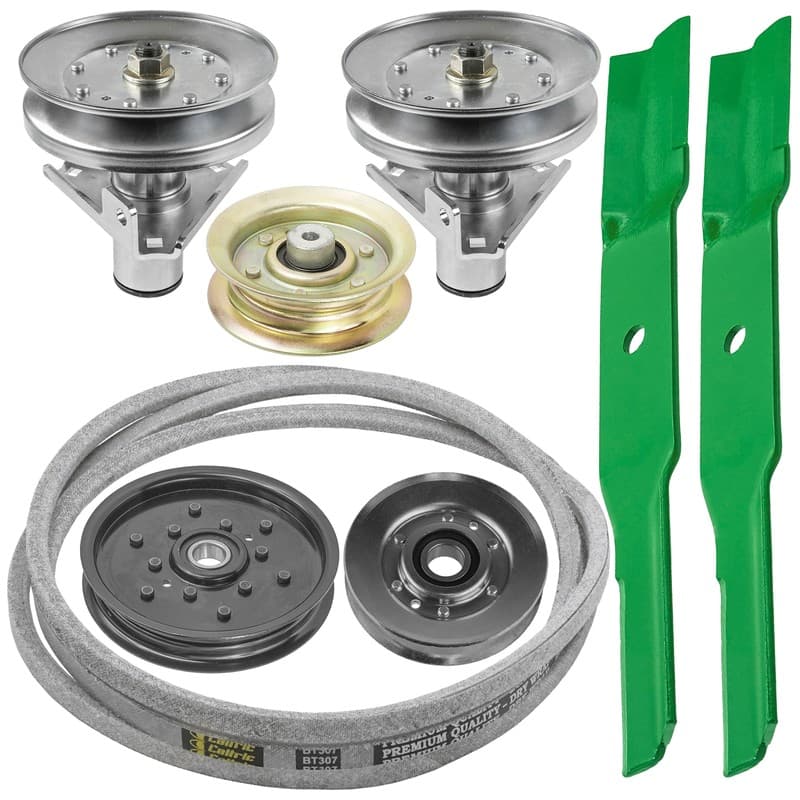

Mower Deck Spindle Assembly with Low-Lift Blade Pulleys & belt
Compatible with John Deere:
Lawn Tractor 38"
LT133, LT150, LT155
LT160, LT166, LT180
Order Includes:

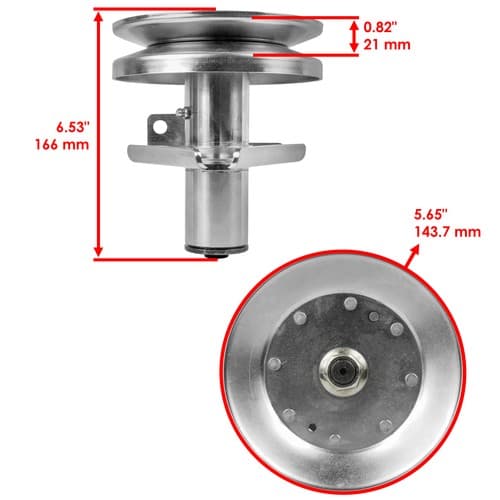

2 x Spindle Assembly: AM128048, AM126112, 285-314
Height : 166 mm - 6․53 in
Pulley Diameter: 143.7 mm - 5․65 in

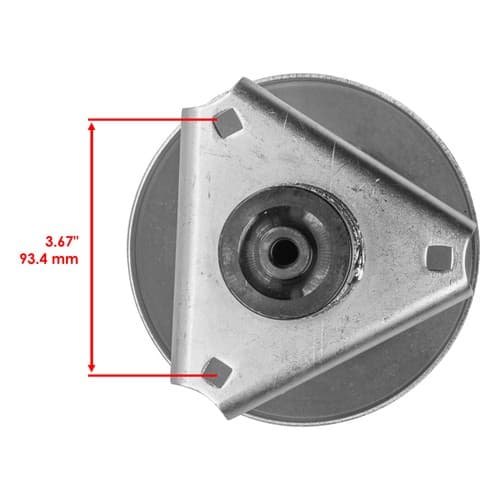

Mounting Hole Distance: 93.4 mm - 3.67 in
Material: Aluminum

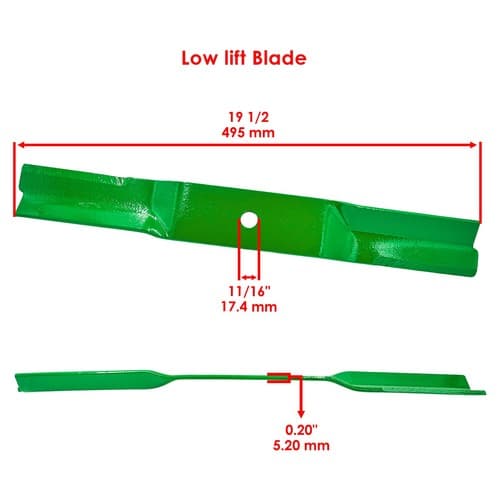

2 x Deck Blade: M82408, AM100946, B1JD5101, 330-300
Length: 492 mm - 19.37 in
Width: 62.8 mm - 2.47 in
Thickness: 5.2 mm - 0.2 in
Hole Diameter: 17.6 mm - 0․69 in
Type: Low-Lift, Powder Coated

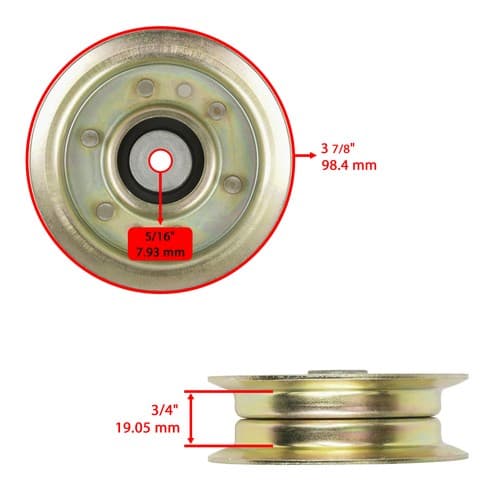

1 x Idler Pulley: AM124346, 280-954
Width: 19․05mm - 3/4 in
Inner Diameter: 7․93mm - 5/16 in
Outer Diameter: 98․4mm - 3 7/8 in
Material: Steel

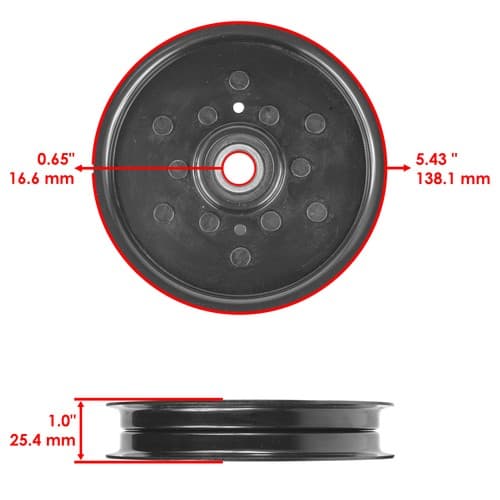

1 x Idler Pulley: AM106627, AM121602, AUC16698, 280-906
Width: 25․4 mm - 1 in
Inner Diameter: 16․6mm - 0․65 in
Outer Diameter: 138․1mm - 5․43 in
Material: Steel

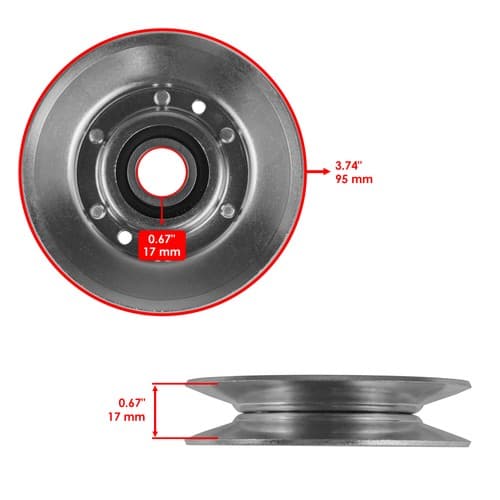

1 x Idler Pulley: AM118447, 280-309
Width: 17 mm - 0․67 in
Inner Diameter: 17mm - 0․67 in
Outer Diameter: 95mm - 3․74 in
Material: Steel
1 x V-Belt: M126536, 265-638
Overall Length: 2902 mm - 114․25 in
Width: 12․7mm - 0․5 in
Thickness: 8 mm - 0.31 in
Material: Polyester
