Deck Pulley For Gravely Pro Master 320XDZ 890018 Rapid XZ 890100 Pro Turn 60"

 Premium Quality Replacement Part

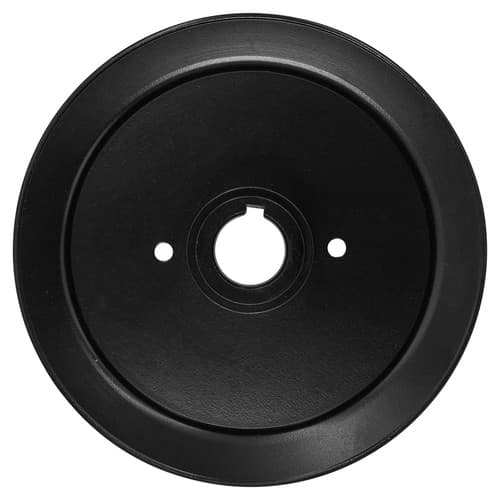

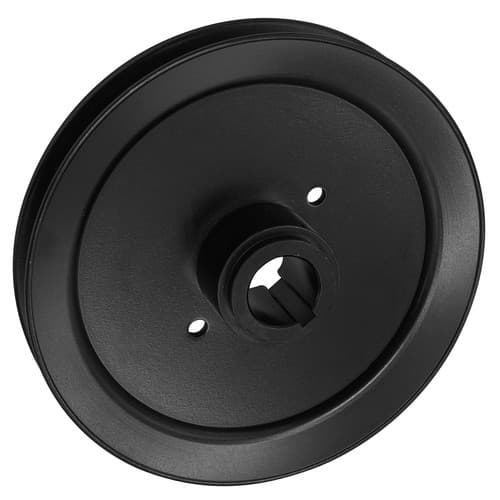

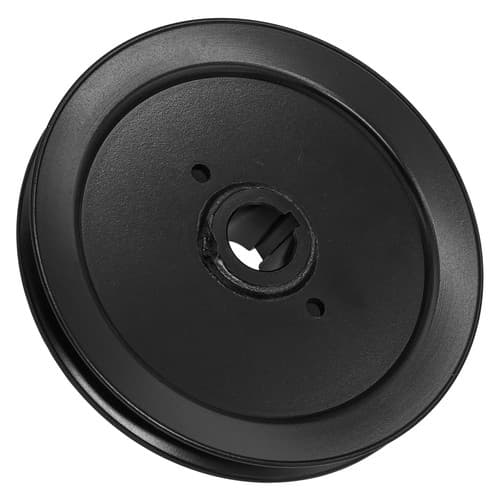

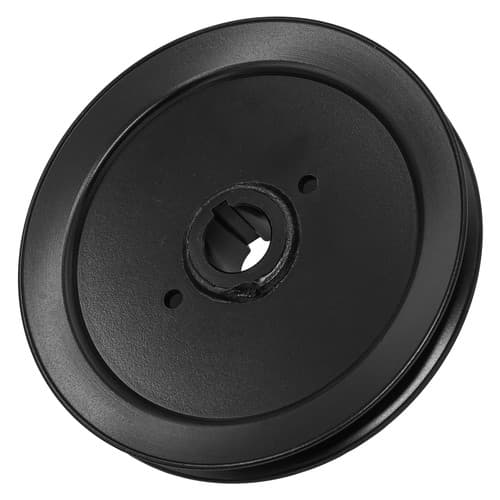

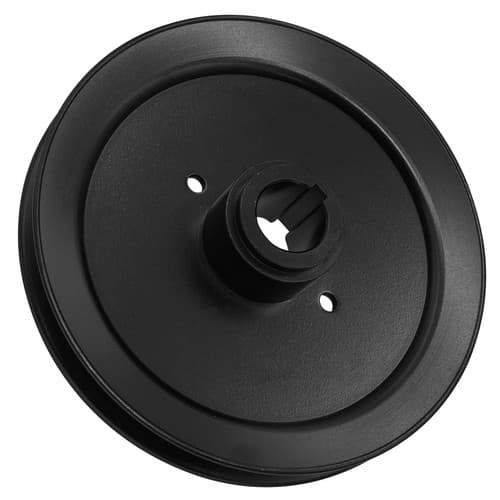

Mower Deck Idler Pulley

Compatible with Ariens Models:

991074 - Max-Zoom HD 52" Zero-Turn Mower, 24hp Kaw. (SN: 000101 & Above)

991075 - Max-Zoom HD 60" Zero-Turn Mower, 24hp Kaw. (SN: 000101 & Above)

991086 - Max-Zoom 52" Zero-Turn Mower, 24hp Kaw. (SN: 000101 - 009999)

991086 - Max-Zoom 52" Zero-Turn Mower, 24hp Kaw. (SN: 010000 - 019999)

991086 - Max-Zoom 52" Zero-Turn Mower, 24hp Kaw. (SN: 020000 - 029999)

991086 - Max-Zoom 52" Zero-Turn Mower, 24hp Kaw. (SN: 030000 - 044999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 000101 - 009999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 010000 - 019999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 020000 - 029999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 030000 - 044999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 045000 - 049999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 050000 - 059999)

991087 - Max-Zoom 60" Zero-Turn Mower, 24hp Kaw. (SN: 060000 & Above)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 000101 - 000412)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 000413 - 014999)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 015000 - 024999)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 025000 - 034999)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 035000 - 039999)

991155 - Apex 52" Zero-Turn Mower, Kohl. (SN: 040000 & Above)

991159 - Apex 52" Zero-Turn Mower, 23hp Kaw. FR (SN: 040000 - 049999)

991159 - Apex 52" Zero-Turn Mower, 23hp Kaw. FR (SN: 050000 - 059999)

991159 - Apex 52" Zero-Turn Mower, 23hp Kaw. FR (SN: 060000 - 094999)

991159 - Apex 52" Zero-Turn Mower, 23hp Kaw. FR (SN: 095000 & Above)

991175 - Apex 52" Zero-Turn Mower, Kohl., CARB (SN: 000101 - 014999)

991175 - Apex 52" Zero-Turn Mower, Kohl., CARB (SN: 015000 & Above)

Compatible with Gravely Models:

890018 - 60" Deck for Pro-Master 320XDZ Mower (SN: 001000 - 019999)

890018 - 60" Deck for Pro-Master 320XDZ Mower (SN: 020000 & Above)

890100 - 60" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above)

890101 - 52" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above)

991069 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 000101 & Above)

991070 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 000101 & Above)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 000101 - 019999)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 020000 - 020999)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 021000 - 029999)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 030000 - 039999)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 040000 - 040999)

991081 (Pro-Turn 160) - Pro-Turn 60" Zero-Turn Mower, Kaw. (SN: 041000 & Above)

991083 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 000101 - 009999)

991083 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 010000 - 019999)

991083 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 020000 - 029999)

991083 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 030000 - 034999)

991083 (ZT 52 HD) - 52" Zero-Turn Mower, Kaw. (SN: 035000 - 044999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 000101 - 009999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 010000 - 019999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 020000 - 029999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 030000 - 034999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 035000 - 044999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 045000 - 049999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 050000 - 059999)

991084 (ZT 60 HD) - 60" Zero-Turn Mower, Kaw. (SN: 060000 & Above)

Order Includes:

1x Mower Deck Idler Pulley: Ariens: 59211600, 07328967, 07300022,

Gravely: 59211600, 07328967, 07300022

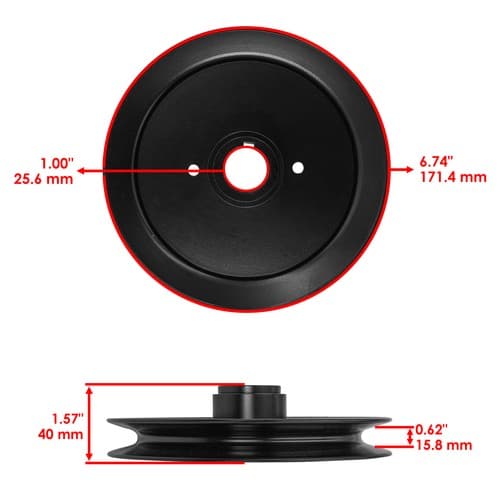

Outer Diameter: 171.4 mm - 6.74 in

Inner Diameter: 25.6 mm - 1 in

Pulley Flat Width: 15.8 mm - 0.62 in

Height: 40 mm - 1.57 in
