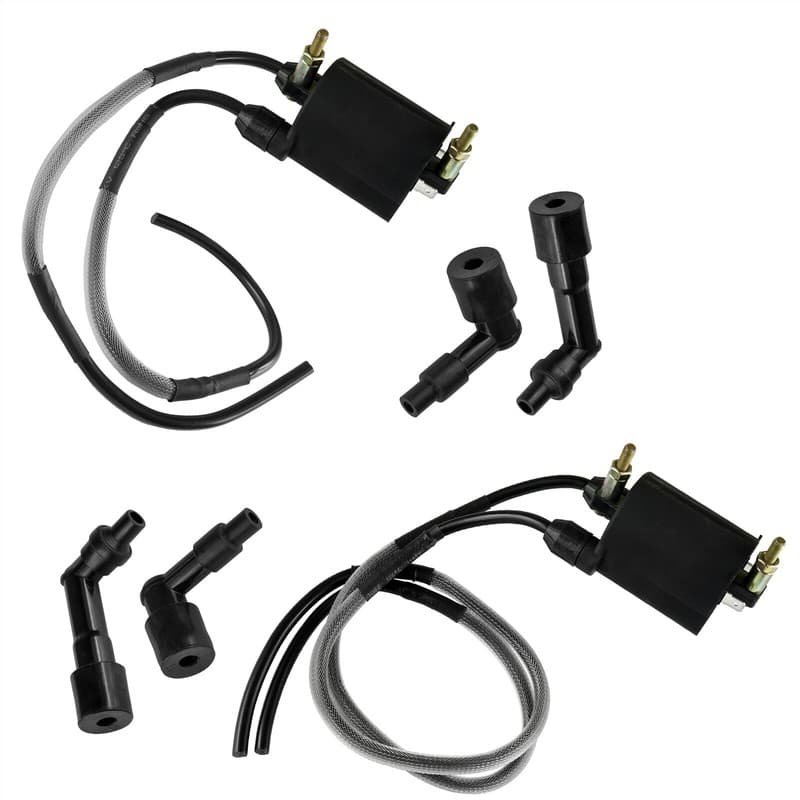

Complete Ignition Coil Wire Cap Kit for Kawasaki Vulcan 1600 Nomad 2005-2008

Premium Quality Replacement Part

Complete Ignition Coil Wire Cap Kit for Kawasaki Vulcan 1600 Nomad 2008-2008

Vulcan Models come with 2 identical ignition coils that have different length plug wire.
This listing contains both the short 16" Length and the long 23" Length.
One of each type of cap should be installed on each ignition coil.

Plug Cap Information
Threaded post terminal
5K Resistance
Includes Rubber Insulators

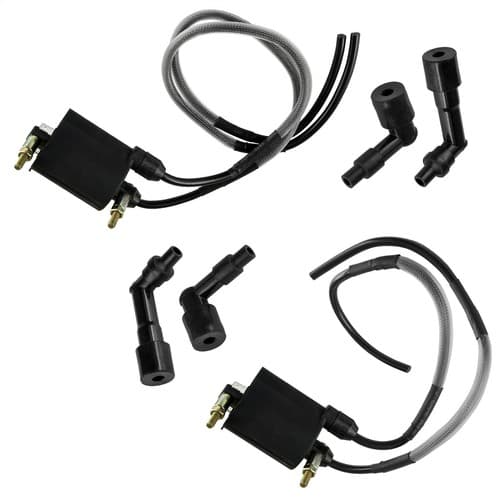

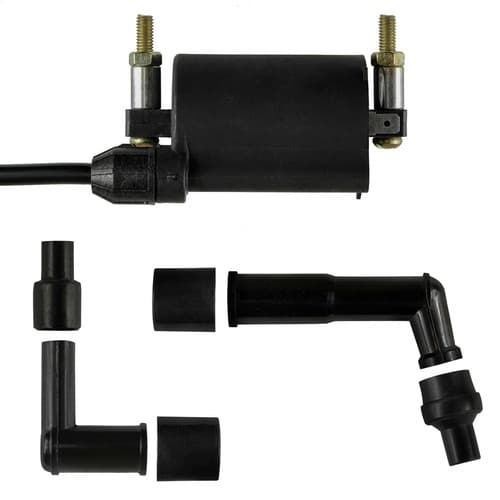

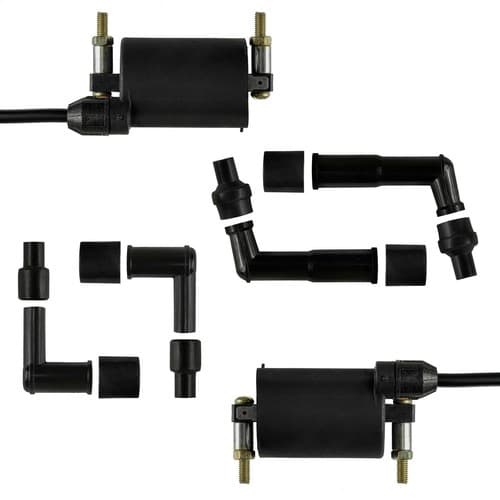

Order Includes
1x Dual Ignition Coil w/ 23" Wire
1x Dual Ignition Coil w/ 16" Wire
1x 90 Degree Spark Plug Cap
1x 120 Degree Spark Plug Cap

Fits the Following KAWASAKI Models
VULCAN 1500 CLASSIC  1997-2008
VULCAN 1500 CLASSIC FI 2000-2002
VULCAN 1500 DRIFTER 1999-2005
VULCAN 1500 MEAN STREAK 2002-2003
VULCAN 1500 NOMAD FI 2000-2004
Vulcan 1500 1997-2008
VULCAN 1600 CLASSIC 2003-2008
VULCAN 1600 MEAN STREAK 2004-2008
VULCAN 1600 NOMAD 2005-2008
VULCAN NOMAD 1999-2001
Z125 PRO 2017-2021
ZR550 1991-1993
ZR-7 2000
ZR750 1991-1993
ZR-7S 2001-2005
BAYOU 220 1992-2002
BAYOU 250 2003-2011

Replaces KAWASAKI Part Numbers
Ignition Coil   |   21121-1258
Spark Plug Boot/Cap   |  21160-1085
Spark Plug Boot/Cap   |  21160-1091
Rubber Insulator Grommet 1   |  92071-1184
Rubber Insulator Grommet 2   |  21131-005

Dimensions & Measurements

IGNITION COIL
Bolt Spacing   |   80mm

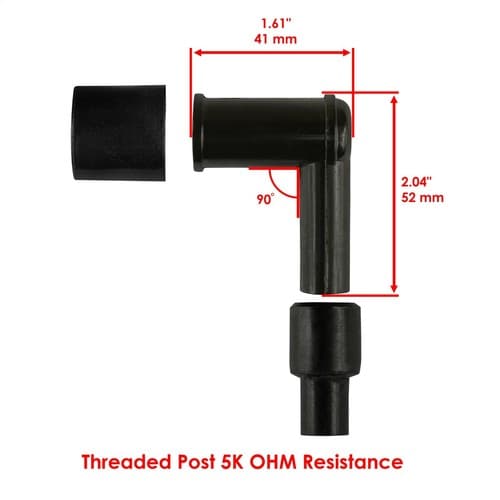

SPARK CAP 1
BEND   |   90 Degree
PLUG SIDE LENGTH   |   41mm
WIRE SIDE LENGTH   |   52mm
CAP TYPE   |   Threaded Post
RESISTANCE   |   5K OHM

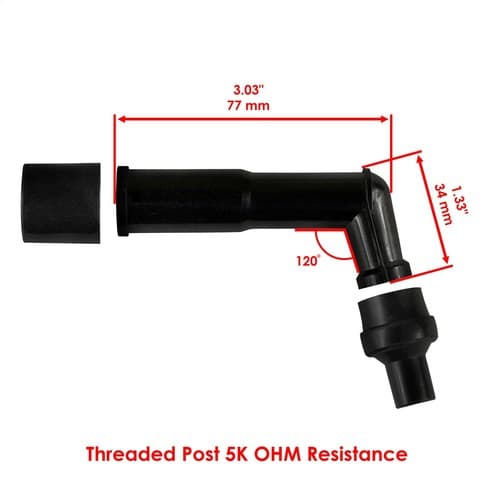

SPARK CAP 2
BEND   |   120 Degree
PLUG SIDE LENGTH   |   77mm
WIRE SIDE LENGTH   |   34mm
CAP TYPE   |   Threaded Post
RESISTANCE   |   5K OHM


**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**

**SHIPS FROM USA**
