Caltric

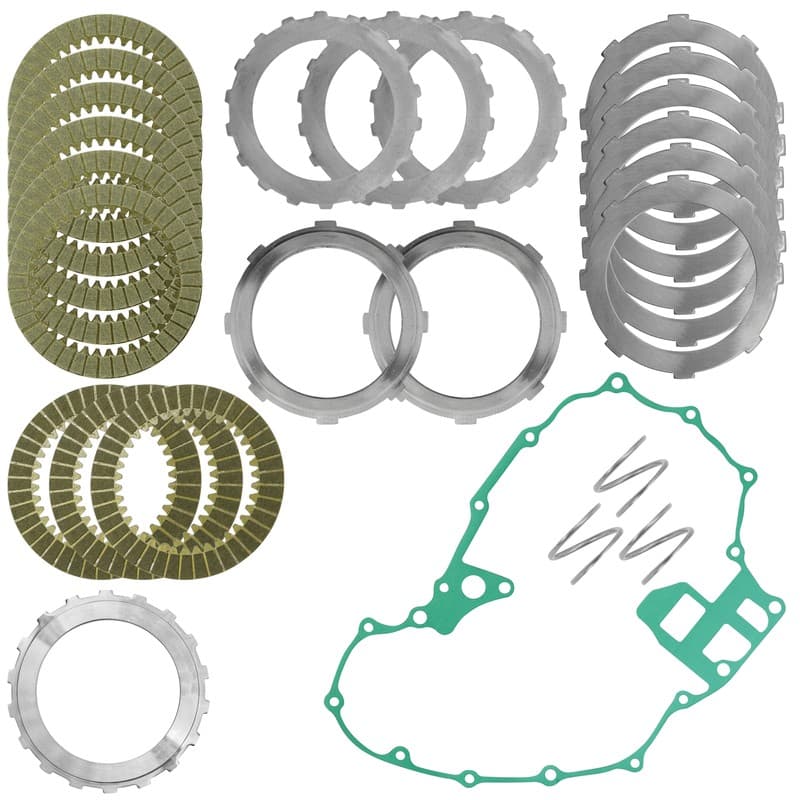

Clutch Plates Kit for Honda Pioneer 700 SXS700 2014-25 Big Red 700 MUV700 09-14
No reviews yet
$107.30
NEWOut of Stock
SKU: APH-276391883777
MPN: FX189A2015MD
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Honda Big Red 700 MUV700 — 2009-2013
- Honda DN-01 -- — 2009
- Honda Pioneer 700 SXS700M2 — 2017-2023
- Honda Pioneer 700 SXS700M2 Forest — 2023
- Honda Pioneer 700 SXS700M2D Deluxe — 2018-2023
Specifications
- UPC
- Does not apply
- Type
- Clutch Plate Set
- Brand
- Caltric
- Gtin13
- Does not apply
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- For More Information Refer to Description and Compatibility Table
- Vintage Part
- No
- Items Included
- Clutch Friction Plates, Clutch Steel Plates, Springs, Clutch Cower Gasket
- Number in Pack
- 25
- Performance Part
- No
- Country of Origin
- China
Description
Premium Quality Replacement Part
Clutch Friction with Steel Plates and Springs / Gasket Kit
Clutch Friction with Steel Plates and Springs / Gasket Kit
Compatible With Honda Models:
Rincon 680 TRX680FA 2008-2023
Rincon 680 TRX680FGA 2008-2009
DN-01 NSA700 2009
Big Red 700 MUV700 2009-2014
Pioneer 700 SXS700M2 2014-2025
Pioneer 700 SXS700M4 2017-2025
Pioneer 700-4 SXS700M2 2014-2016
Pioneer 700-4 SXS700M4 2014-2016
Pioneer 700 SXS700M2D 2017-2025
Pioneer 700 SXS700M4D 2017-2025

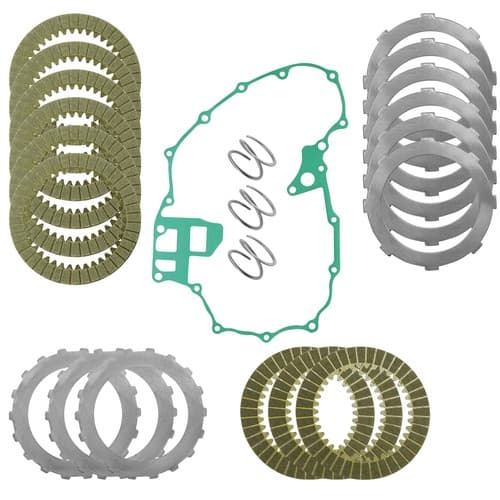

Order Includes:

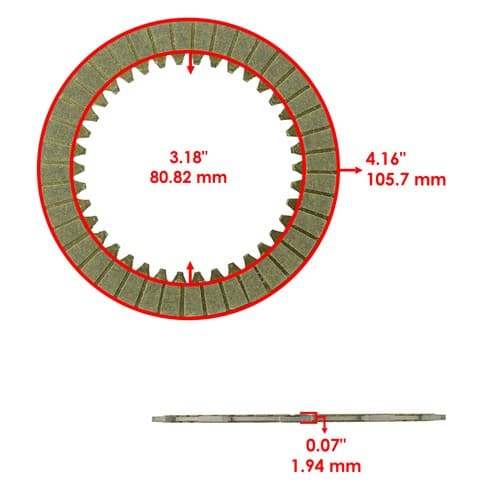

6 x Clutch Friction Plates: 22545-HN8-B41
Outer Diameter : 105.7 mm - 4.16 in
Inner Diameter : 80.32 mm - 3.18 in
Thickness : 1.95 mm - 0.07 in
38 Tooth
3 x Clutch Friction Plates: 22544-PLX-003 22544-PLX-A01 22544-HN8-B41
Outer Diameter : 109.87 mm - 4.32 in
Inner Diameter : 80.38 mm - 3.16 in
Thickness : 1.92 mm - 0.07 in

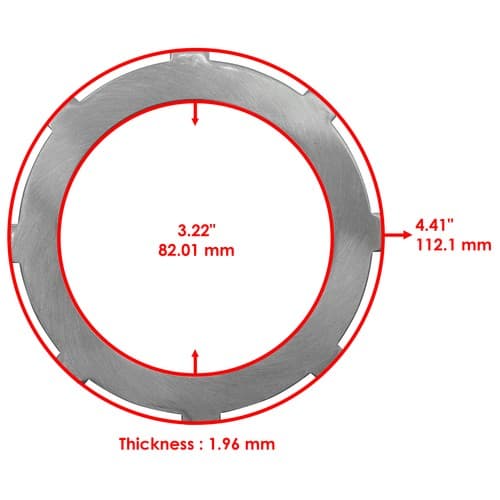

6 x Clutch Steel Plate: 22543-PA9-000
Inner Diameter : 82.01 mm - 3.22 in
Outer Diameter : 112.1 mm - 4.41 in
Thickness : 1.96 mm

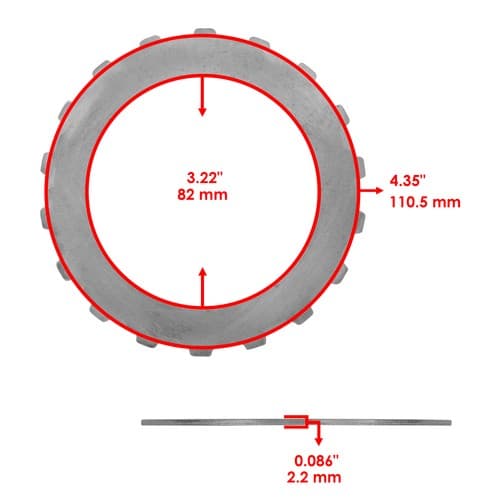

3 x Clutch Steel Plate: 22643-P4R-003
Inner Diameter : 82 mm - 3.22 in
Outer Diameter : 110.5 mm - 4.35 in
Thickness : 2.2 mm - 0.086 in

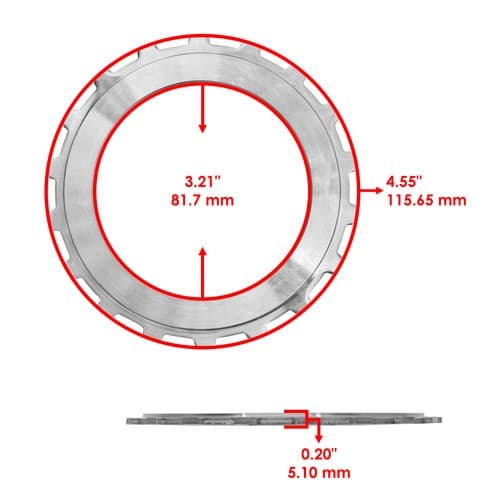

1 x Clutch Steel Plate End: 22551-P4R-003 22553-P4R-003
Inner Diameter : 81.7 mm - 3.21 in
Outer Diameter : 115.65 mm - 4.55 in
Thickness : 5.10 mm - 0.20 in

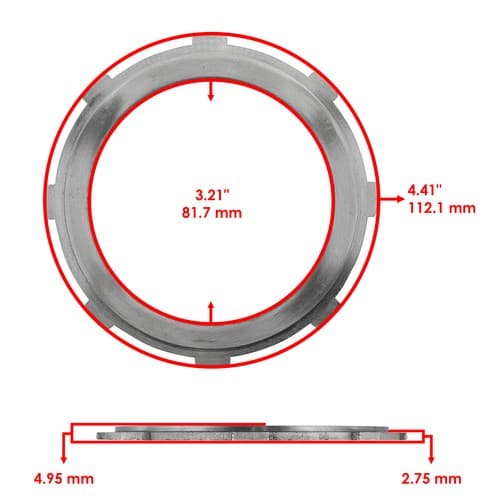

2 x Clutch Steel Plate End: 22563-PA9-010
Inner Diameter : 81.7 mm - 3.21 in
Outer Diameter : 112.1 mm - 4.41 in
Thickness : 4.95 mm - 2.75 mm
3 x Clutch Spring: 22541-HN8-003
Height : 35.5 mm - 1.39 in
Width : 65 mm - 2.55 in
Item Thickness : 5.3 mm - 0.20 in
1 x Clutch Cover Gasket: 11345-HN8-000
