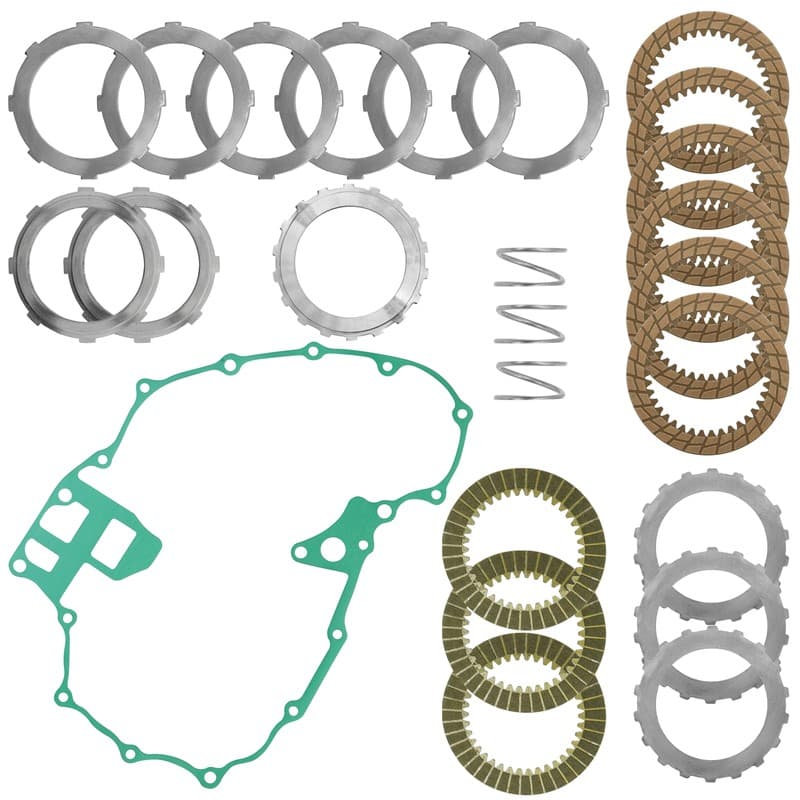

Clutch Friction Plates Kit For Honda Fourtrax Rincon 650 TRX650FA 2003 - 2005

For Honda Models:

Rincon 650 TRX650FA 2003-2005

Rincon 650 TRX650FGA 2004-2005

Rincon 680 TRX680FA 2006-2007

Rincon 680 TRX680FGA 2006-2007

Order Includes:

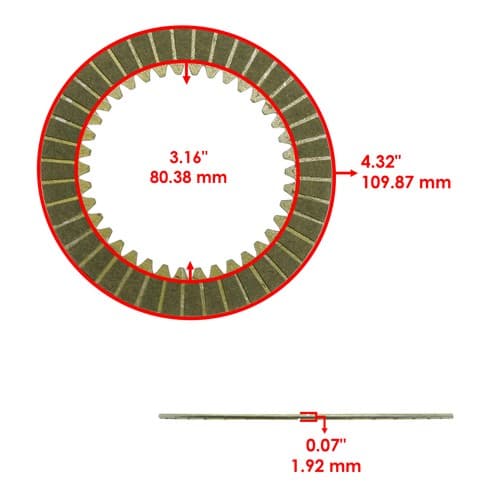

3 x Clutch Friction Plate | 22544-PLX-003 22544-PLX-A01

Inner Diameter : 80.38 mm | 3.16"
Outer Diameter : 109.87 mm  | 4.32"

Thickness : 1.92 mm | 0.07"

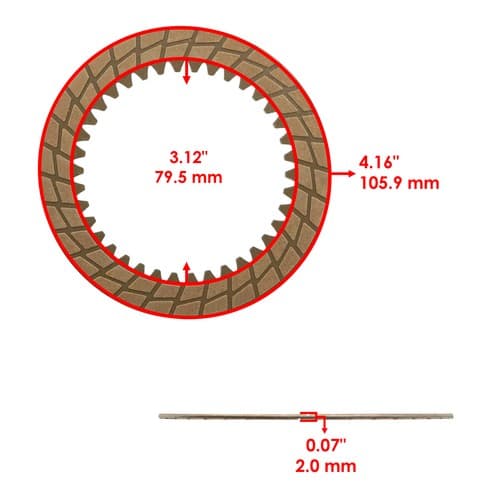

6 x Clutch Friction Plate | 22544-HN8-000

Inner Diameter : 79.5 mm | 3.12"
Outer Diameter : 105.9 mm  | 4.16"

Thickness : 2.0 mm | 0.07"

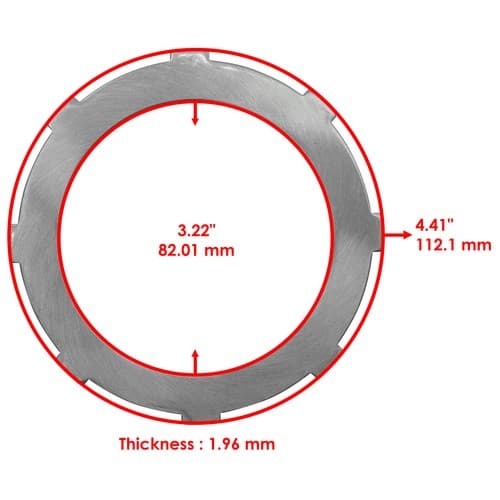

6 x Clutch Steel Plate | 22543-PA9-000

Inner Diameter : 82.01 mm | 3.22"
Outer Diameter : 112.1 mm  | 4.41"

Thickness : 1.96 mm

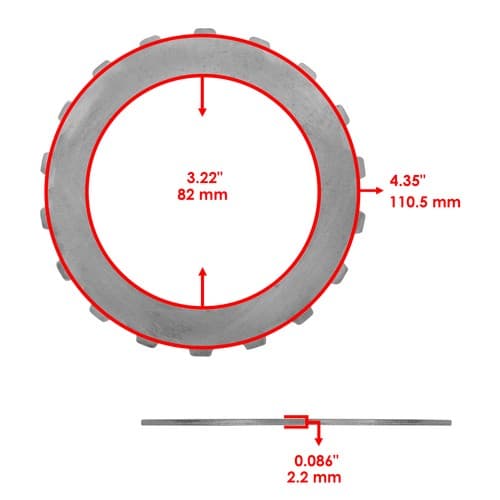

3 x Clutch Steel Plate | 22643-P4R-003

Inner Diameter : 82 mm | 3.22"
Outer Diameter : 110.5 mm  | 4.35"

Thickness : 2.2 mm | 0.086"

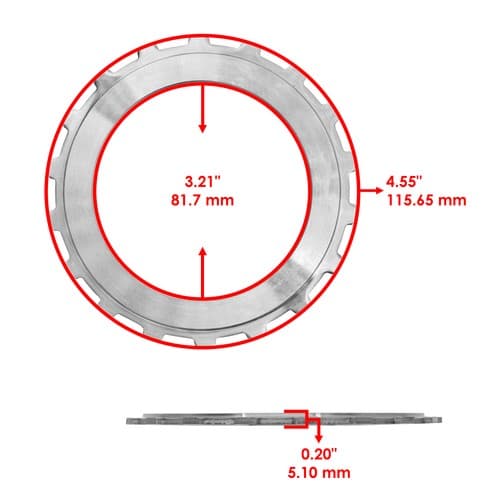

1 x Clutch Steel Plate End | 22551-P4R-003

Inner Diameter : 81.7 mm | 3.21"
Outer Diameter : 115.65 mm  | 4.55"

Thickness : 5.10 mm | 0.20"

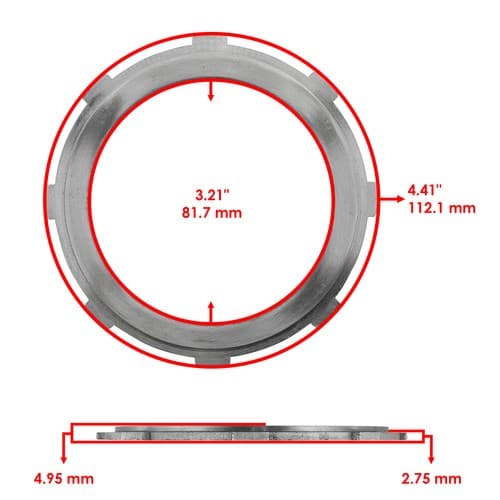

1 x Clutch Steel Plate End | 22563-PA9-010

Inner Diameter : 81.7 mm | 3.21"
Outer Diameter : 112.1 mm  | 4.41"

Thickness : 4.95 mm | 2.75 mm

3 x Clutch Spring | 22541-HN8-003

Height : 35.5 mm  |  1.39"

Width : 65 mm  |  2.55"

Item Thickness : 5.3 mm  |  0.20"

1 x Clutch Cover Gasket | 11345-HN8-000
