Caltric Swing Arm Bushing Kit For Yamaha Blaster 200 YFS200 1988-2006 Rear
No reviews yet
$83.25
NEWIn Stock
SKU: APH-285384964613
MPN: ZP117+ZP120+ZA141*2+ZE161*2+ZG114*2+ZG115
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (19)
- Yamaha Blaster 200 YFS200 — 1988-2006
Specifications
- Type
- Swingarm
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (A) & (B) In Second Picture
- Item Width
- 14.9 mm - 0.58 in
- Item Height
- 12.3 mm - 0.48 in
- Item Length
- 91.5 mm - 3.20 in
- Machine Type
- ATV
- Vintage Part
- No
- Items Included
- Bolts, Bushing, Nut, Seal, Bearing, Thrusts, Washer
Description
Premium Quality Replacement Part
Rear Swing Arm Bushing Kit
Compatible with Yamaha Models:
Blaster 200 YFS200 1988-2006

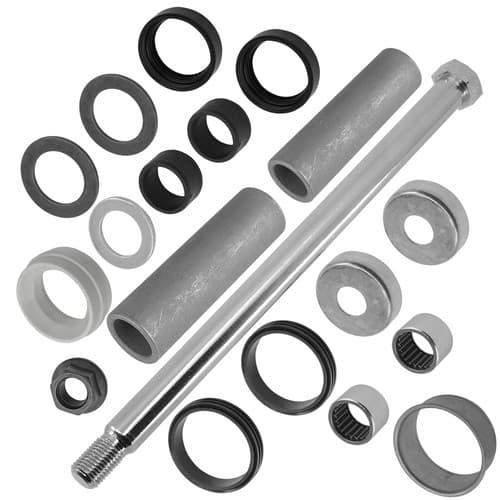

Order Includes:
1 x Pivot Shaft Bushing Long: 2XJ-22124-00-00, 2XJ221240000
Rear Swing Arm Bushing Kit
Compatible with Yamaha Models:
Blaster 200 YFS200 1988-2006
Order Includes:
1 x Pivot Shaft Bushing Long: 2XJ-22124-00-00, 2XJ221240000
Length: 91.5 mm - 3.20 in
Inner Diameter: 16.0 mm - 0.63 in
Outer Diameter: 22.0 mm - 0.86 in
Material: Steel

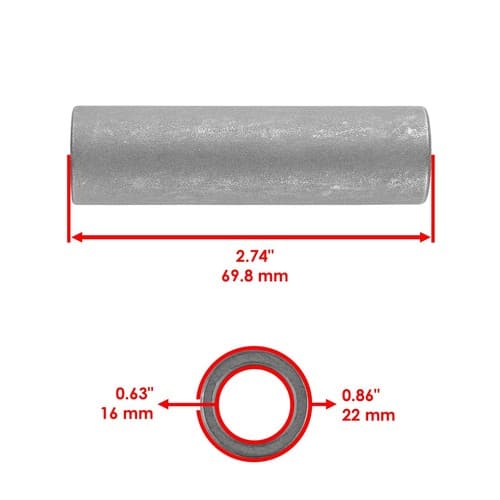

1 x Pivot Shaft Bushing Short: 2XJ-22123-00-00, 2XJ221230000
Length: 69.8 mm - 2.74 in
Inner Diameter: 16.0 mm - 0.63 in
Outer Diameter: 22.0 mm - 0.86 in
Material: Steel

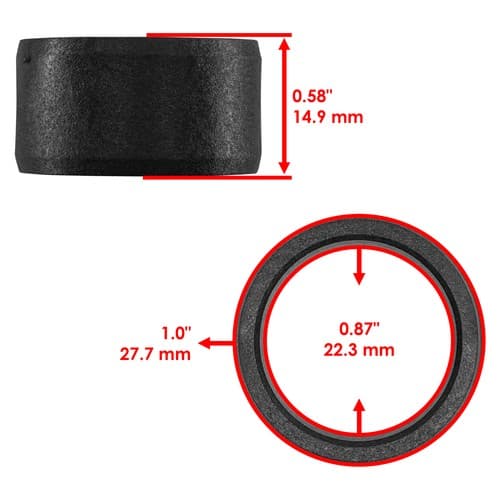

2 x Solid Bushing: 90380-22111-00, 903802211100
Width: 14.9 mm - 0.58 in
Inner Diameter: 22.3 mm - 0.87 in
Outer Diameter: 27.7 mm - 1.0 in
Material: Plastic

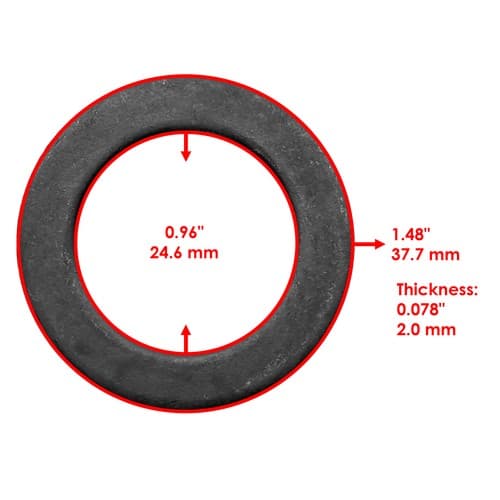

2 x Washer: 90201-247L2-00, 90201-244A9-00
Thickness : 2.0mm - 0.078 in
Inner Diameter : 24.6mm - 0.96 in
Outer Diameter : 37.7mm - 1.48 in
Material: Steel

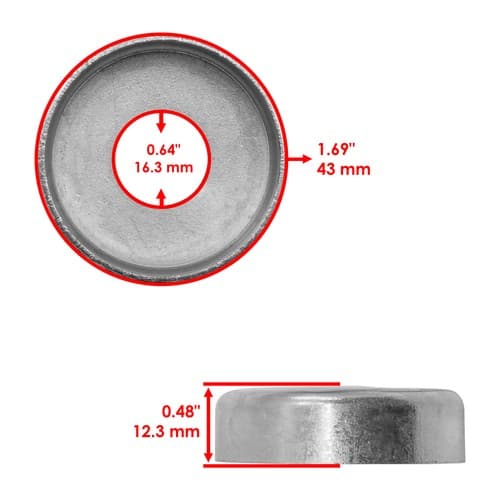

2 x Thrusts: 2K6-22128-01-00 2K6221280100
Height : 12.3 mm - 0.48 in
Inner Diameter: 16.3 mm - 0.64 in
Outer Diameter: 43 mm - 1.69 in
Material: Metal

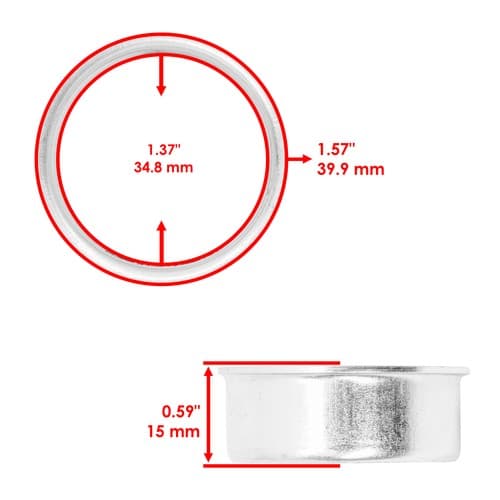

1 x Pipe: 2GU-22155-00-00 2GU221550000
Width: 15 mm - 0.59 in
Inner Diameter: 34.8 mm - 1.37 in
Outer Diameter: 39.9 mm - 1.57 in
Material: Metal

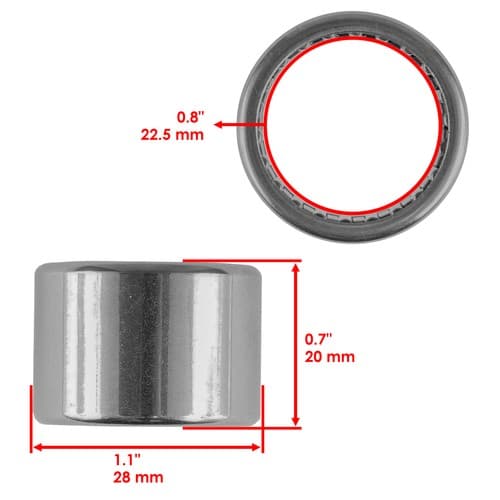

2 x Needle Bearing: 93317-32231-00, 933173223100
Width: 20.0 mm - 0.7 in
Inner Diameter: 22.5 mm - 0.8 in
Outer Diameter: 28.0 mm - 1.1 in
Material: Steel

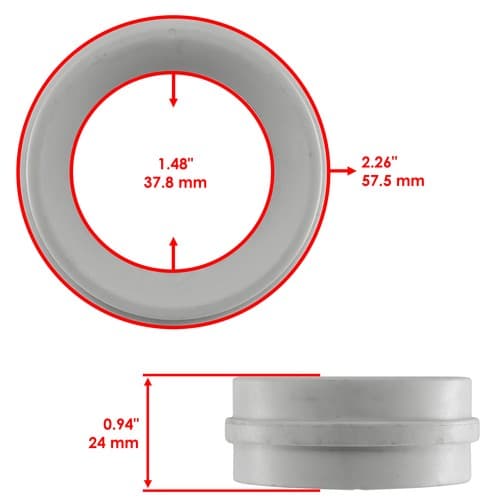

1 x Seal Guard: 2GU-22151-10-00, 2GU221511000
Width: 24 mm - 0.94 in
Inner Diameter: 37.8 mm - 1.48 in
Outer Diameter: 57.5 mm - 2.26 in
Material: Plastic

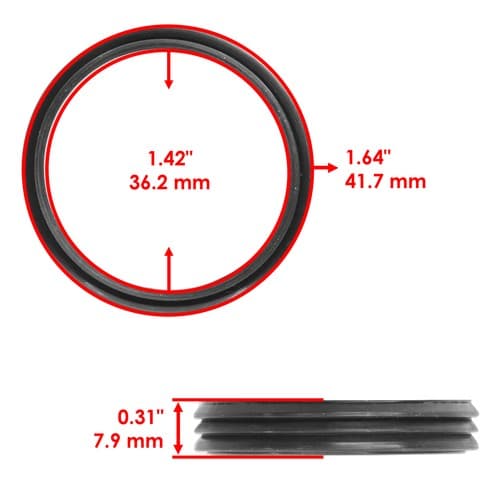

2 x Seal: 93108-35004-00, 931083500400
Width: 7.9 mm - 0.31 in
Inner Diameter: 36.2 mm - 1.42 in
Outer Diameter: 41.7 mm - 1.64 in
Material: Rubber

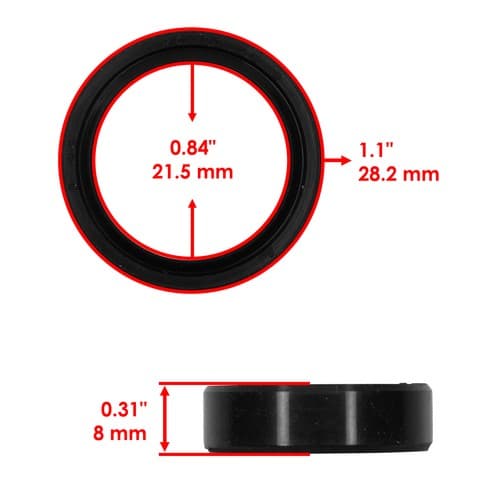

2 x Oil Seal: 93106-22019-00, 931062201900
Width: 8.0 mm - 0.31 in
Inner Diameter: 21.5 mm - 0.84 in
Outer Diameter: 28.2 mm - 1.1 in
Material: Rubber

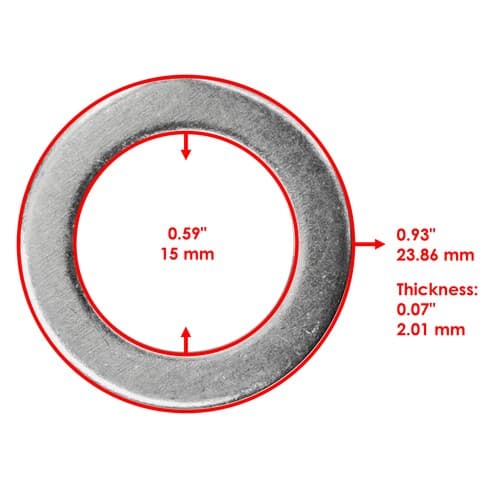

1 x Washer Plate: 90201-14215-00, 148-27219-00-00, 902011421500, 148272190000
Inner Diameter: 15 mm - 0.59"
Outer Diameter: 23.86 mm - 0.93"
Thickness: 2.01 mm - 0.07"
Material: Steel
1 x Pivot Shaft Bolt: 2JN-22141-00-00, 2JN221410000
Height: 267.8mm - 10.5 in
Thread Size: M11x1.5
Material: Iron

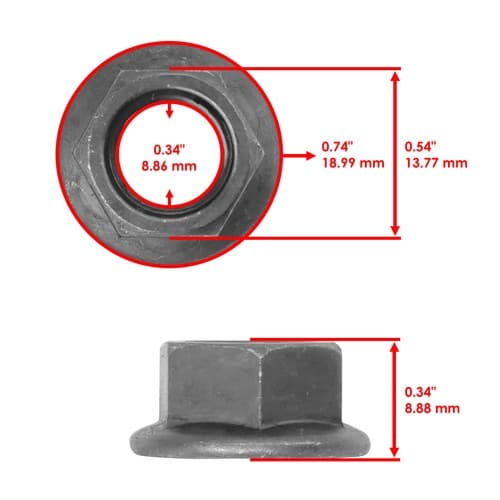

1 x Self Locking Nut: 90185-14070-00, 901851407000
Width: 8.88 mm - 0.34 in
Inner Diameter: 8.86 mm - 0.34 in
Outer Diameter: 18.99 mm - 0.74 in
Head Diameter: 13.77 mm - 0.54 in
Material: Iron

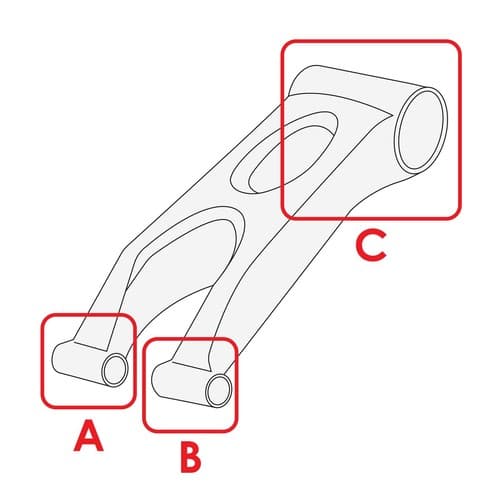

Note: Installs On Location (A) & (B) In Second Picture
Swing Arm Part Number: 2XJ-22110-00-35, 5VM-22110-10-00, 5VM-22110-00-00, 2XJ221100035, 5VM221101000, 5VM221100000
