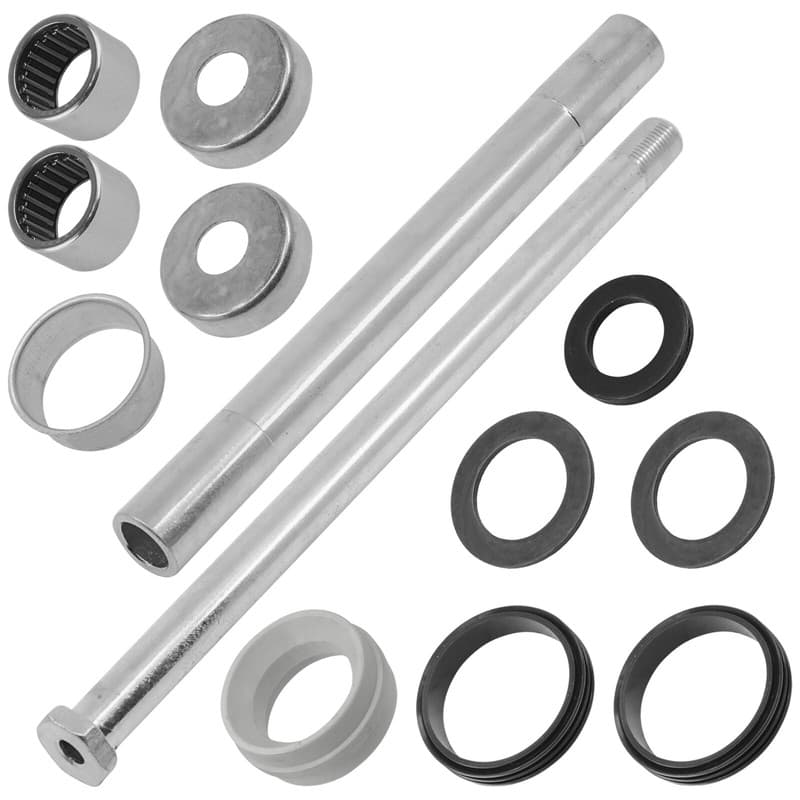

Caltric Swing Arm Bushing Kit For Yamaha Banshee 350 YFZ350 1987-2006 Rear

For Yamaha Models:

Banshee 350 YFZ350 1987-2006

Order Includes:

1 x Pivot Shaft | 2GU-22184-00-00 2GU221840000

Inner Diameter: 16 mm | 0.62 "

Outer Diameter: 22 mm | 0.86 "

Length: 225.6 mm | 8.88 "

1 x Pivot Shaft | 2GU-22141-00-00 38W-22141-00-00 2GU221410000 38W221410000

Length: 282.4 mm | 11.1 "

Head Diameter: 22 mm | 0.86 "

2 x Needle Bearing | 93317-32231-00 93317-32231-00 933173223100 933173223100

Inner Diameter : 22.5 mm | 0.8"

Length : 28 mm | 1.1"

Height : 20 mm | 0.7"



2 x Cover Thrusts | 2K6-22128-01-00 2K6221280100

Inner Diameter: 16.3 mm | 0.64 "

Outer Diameter: 43 mm | 1.69 "

Height: 12.3 mm | 0.48 "

1x Seal Guard | 2GU-22151-10-00 2GU221511000

Inner Diameter: 37.8 mm | 1.48 "

Outer Diameter: 57.5 mm | 2.26 "

Height: 24 mm | 0.94 "

1 x Plate Washer | 90201-160F6-00 90201160F600

Inner Diameter: 16.5 mm | 0.64 "

Outer Diameter: 26.7 mm | 1.05 "

Height: 3.5 mm | 0.13 "


2 x Seal | 93108-35004-00 931083500400

Width: 7.9 mm | 0.31"

Inner Diameter: 36.2 mm | 1.42"

Outer Diameter: 41.7 mm | 1.64"

1 x Pipe  | 2GU-22155-00-00 2GU221550000

Width: 15 mm | 0.59"

Inner Diameter: 34.8 mm | 1.37"

Outer Diameter: 39.9 mm | 1.57"

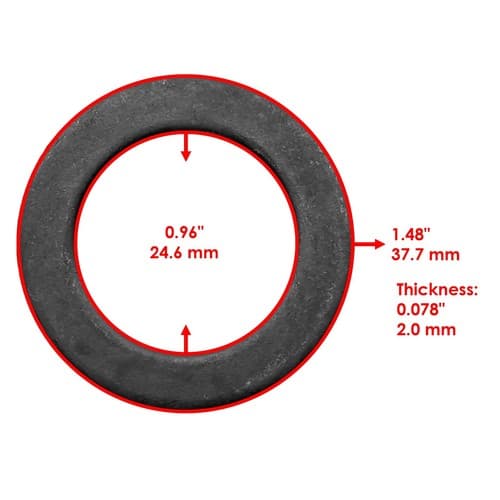

2 x Washer  |  90201-247L2-00  90201-244A9-00

Thickness : 2.0mm  |  0.078"

Inner Diameter : 24.6mm  |  0.96"

Outer Diameter : 37.7mm  |  1.48"

Note: Installs On Locations (A) & (B)
Swing Arm Part Number: 2GU-22110-00-UJ 3GG-22110-00-35 3GG-22110-00-P0


**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
