Caltric

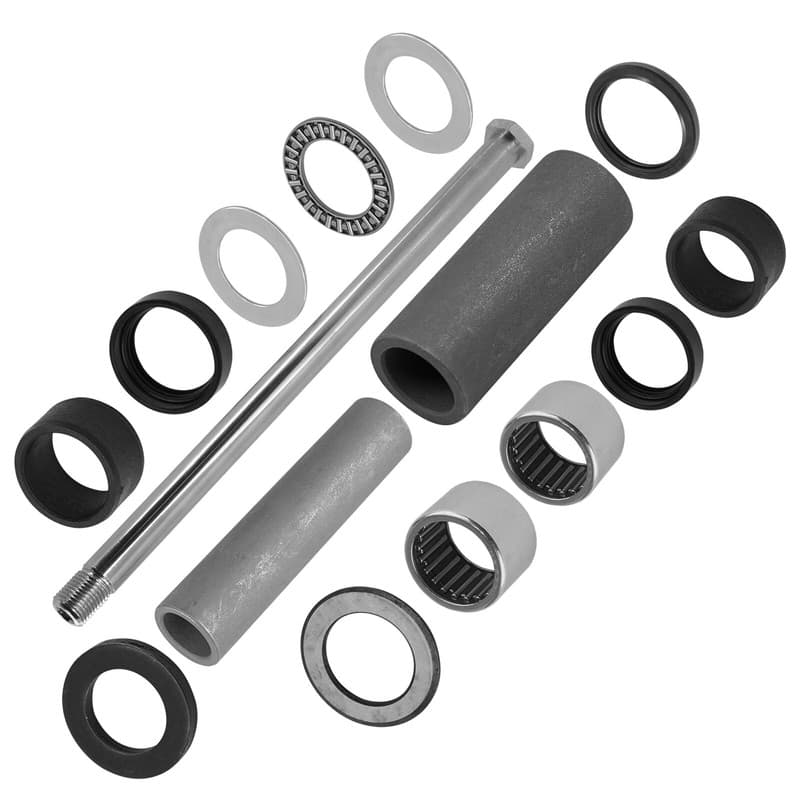

Caltric Swing Arm Bushing & Bearing Kit For Yamaha Raptor 660R YFM660R LE 2002
No reviews yet
$75.83
NEWIn Stock
SKU: APH-285221933025
MPN: ZK118A2003
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (8)
- Yamaha Raptor 660R YFM660R — 2001-2005
- Yamaha Raptor 660R YFM660R Limited Edition — 2002-2004
- Yamaha Raptor 660R YFM660RSE Special Edition — 2005
Specifications
- Type
- Swingarm Bushing
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info

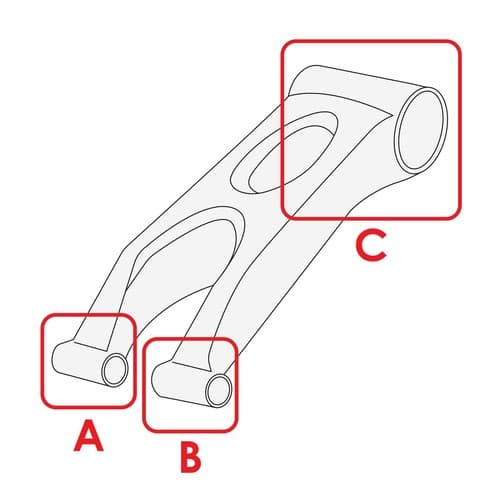

- Installs On Location ( A ) & ( B ) In Second Picture
- Item Length
- 225.6mm
- Vintage Part
- No
- Item Diameter
- 16X22mm
- Items Included
- 1x Bushing
- Compatible Make
- Yamaha
- Compatible Year
- 2002
Description
Premium Quality Replacement Part
Rear Swing Arm Bushing
Rear Swing Arm Bushing
For Yamaha Models:
For Yamaha Raptor 660R YFM660R LE 2002
Note : Installs On Location ( B ) In Second Picture
Swing Arm Part Number : 5LP-22110-10-00
Order Includes:

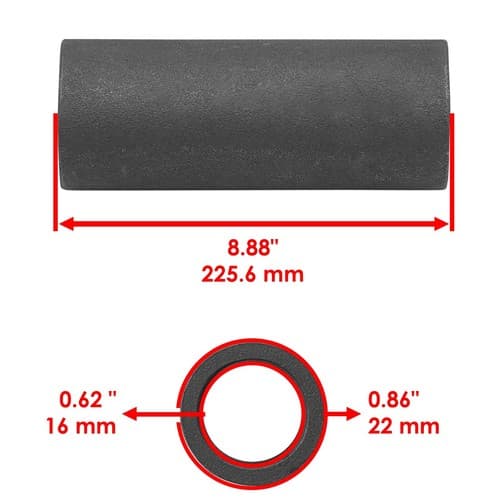

1x Swing Arm Bushing : 5LP-22123-00-00
Diameter : 16X22mm
Length : 225.6mm
1x Long Pivot Shaft | 5LP-22184-00-00
Length: 94mm
Inner Diameter: 16mm
Outer Diameter: 22mm

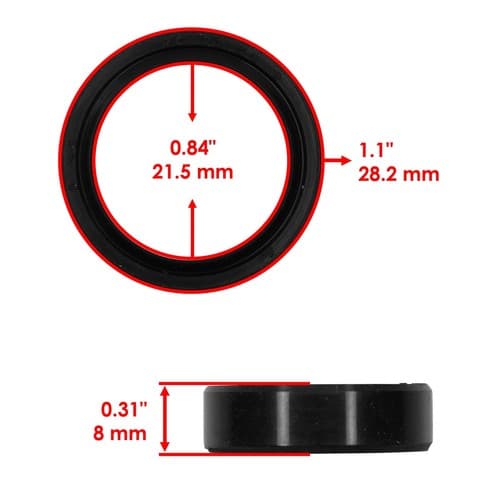

2 x Oil Seal: 93106-22019-00
Width: 8.0 mm
Inner Diameter: 21.5 mm
Outer Diameter: 28.2 mm

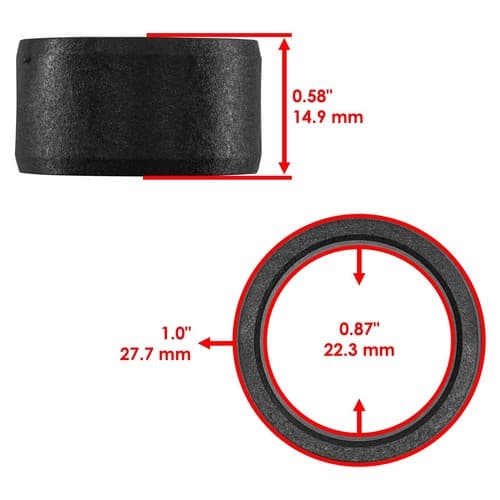

2 x Solid Bushing: 90380-22111-00
Width : 14.9 mm
Inner Diameter: 22.3 mm
Outer Diameter: 27.7 mm

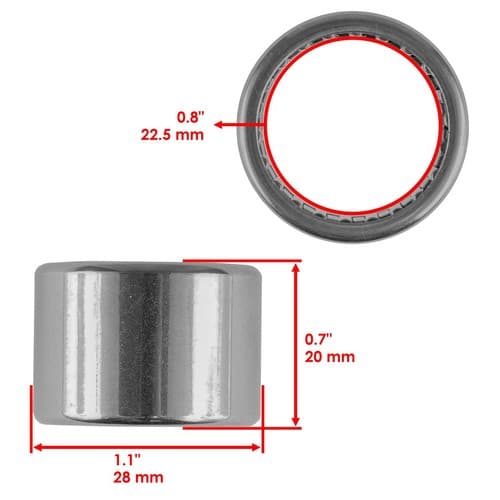

2 x Needle Bearing : 93317-32231-00 93317-22237-00
Width : 20.0 mm
Length: 28.0 mm
Inner Diameter: 22.5 mm

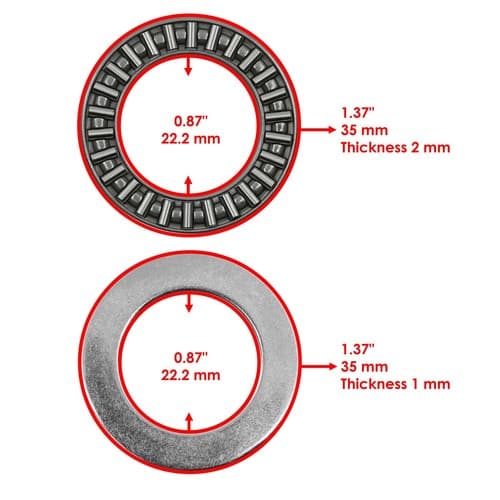

1 x Bearing: 93342-22217-00
Inner Diameter: 22.2 mm
Outer Diameter: 35.0 mm
Bearing Thickness: 2 mm
Washer Thickness: 1 mm

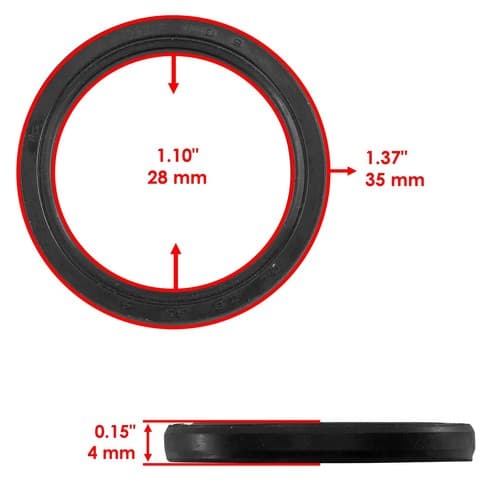

1 x Oil Seal: 93109-28043-00
Width: 4.0 mm
Inner Diameter: 28.0 mm
Outer Diameter: 35.0 mm

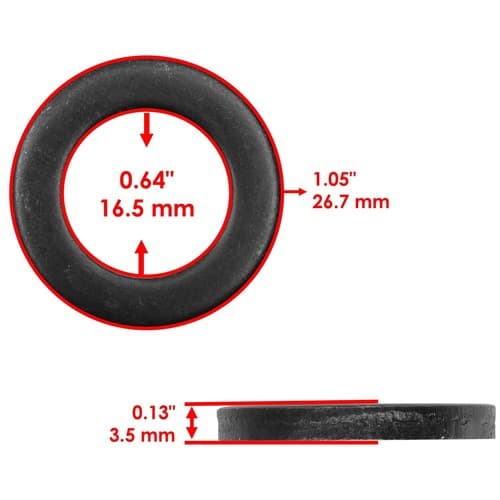

1x Washer : 90201-160F6-00
Inner Diameter: 16.5mm
Outer Diameter: 26.7mm
Thickness: 3.5mm

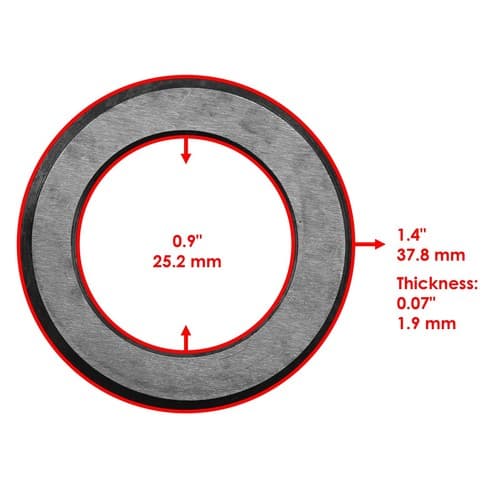

1x Washer : 3YF-22149-00-00, 90201-244A8-00
Inner Diameter: 25.2mm
Outer Diameter: 37.8mm
1 x Pivot Shaft Bolt | 5LP-22141-00-00
Height : 291.6mm
M11 x 1.5
**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
