Caltric Rear Knuckle Bushing Kit For Polaris RZR 4 800 10-2012 / S 800 2009-2013
No reviews yet
$51.78
NEWIn Stock
SKU: APH-296716279499
MPN: ZP107+ZP111+ZA108*2+ZA109*2+ZA163*2+ZE146*2+NU113*2
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (17)
- Polaris RZR 4 800 -- — 2012
- Polaris RZR 4 800 Robby Gordon Edition — 2010-2012
- Polaris RZR 4 800 Robby Gordon Edition EPS — 2011-2012
- Polaris RZR 800 EFI — 2010-2012
- Polaris RZR 800 EFI EPS — 2010-2012
- Polaris RZR S 800 EFI — 2009-2013
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (D) & (E) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 5138798, 5136101, 5136100, 5437229, 5439878, 5439874, 5436832, 5436505, 5136102, 7556153, 7547333, 7519043, 7518560, 7519042, 5134984, 5134985
- Placement on Vehicle
- Left, Lower, Rear, Right, Upper, Inner
- Manufacturer Warranty
Description
Premium Quality Replacement Part
Rear Knuckle Upper & Lower Left or Right Bushing Kit
Compatible with Polaris Models:
RZR 800 EFI 2010-2012
RZR 4 800 Robby Gordon Edition EPS 2010-2012
RZR S 800 EFI 2009-2013

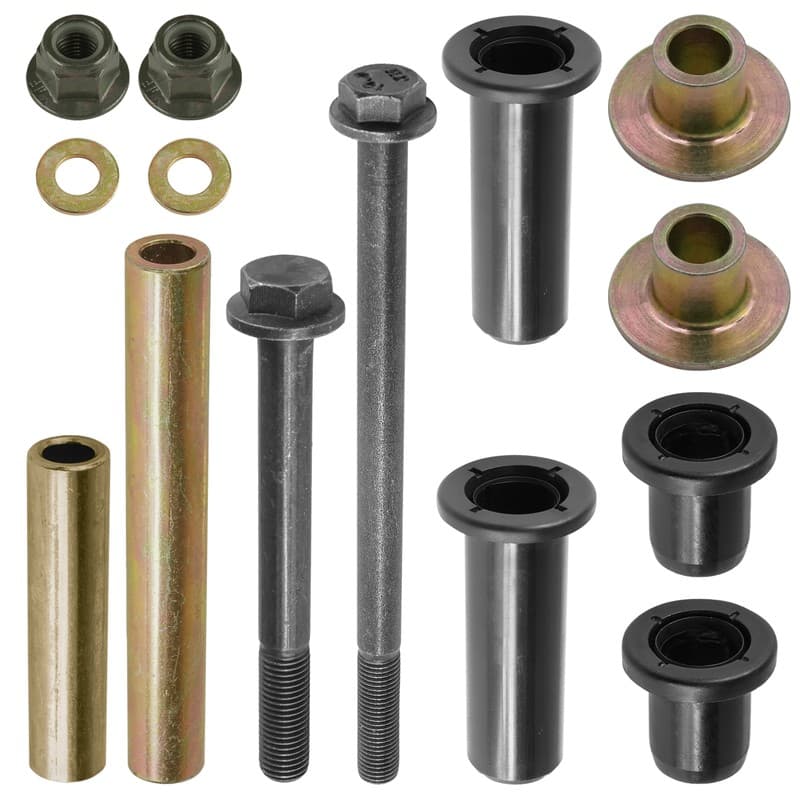

Order Includes:

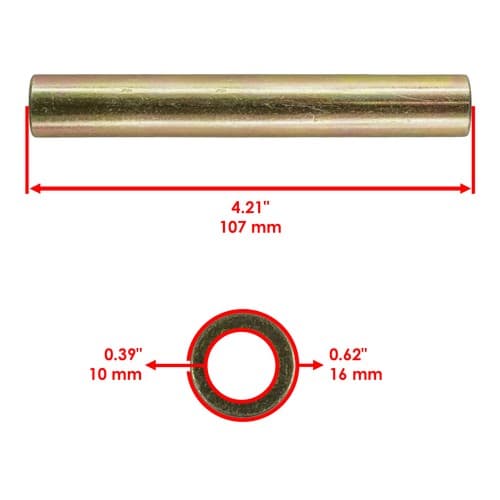

1 x Long Pivot Shaft: 5138798, 5136101
Length: 107mm - 4․21 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

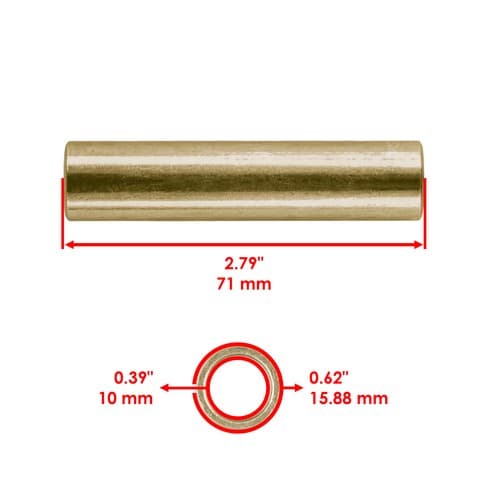

1 x Short Pivot Shaft: 5136100
Length: 71mm - 2․79 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 15․88mm - 0․62 in
Material: Steel

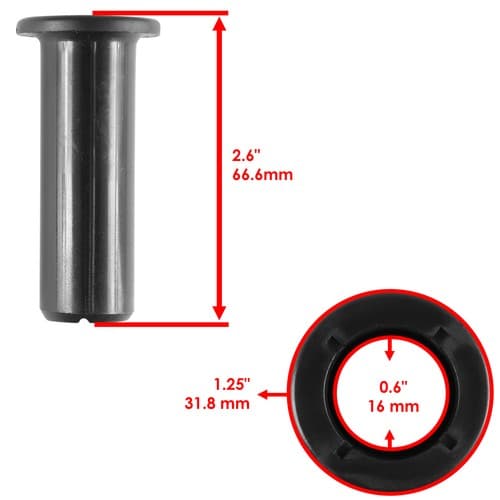

2 x Long Bushing: 5437229, 5439878
Length: 66․6mm - 2․6 in
Inner Diameter: 16mm - 0․6 in
Outer Diameter: 31․8mm - 1․25 in
Material: Plastic

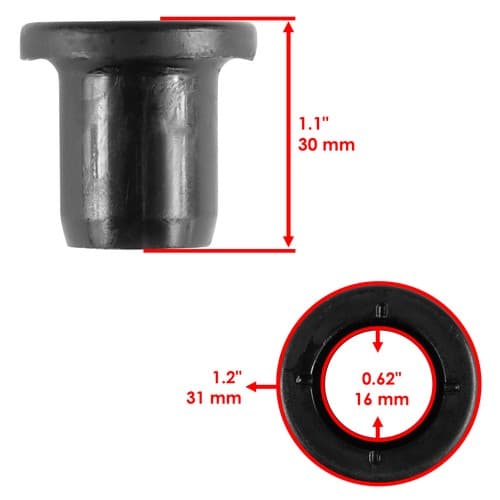

2 x Short Bushing: 5439874, 5436832, 5436505
Length: 30mm - 1․1 in
Inner Diameter: 16mm - 0․62 in
Outer Diameter: 31mm - 1․2 in
Material: Plastic

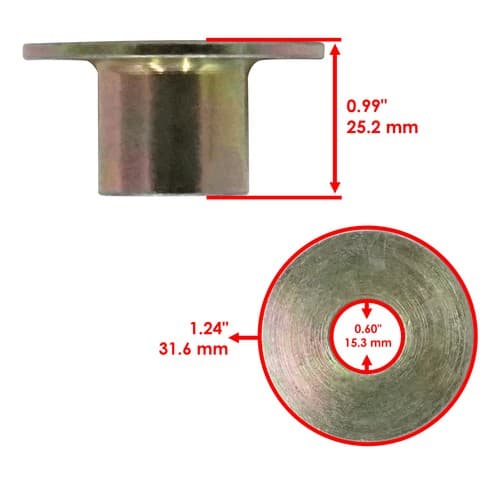

2 x Bushing: 5136102
Width: 25.2 mm - 0.99 in
Inner Diameter: 15.3 mm - 0․6 in
Outer Diameter: 31.6 mm - 1.24 in

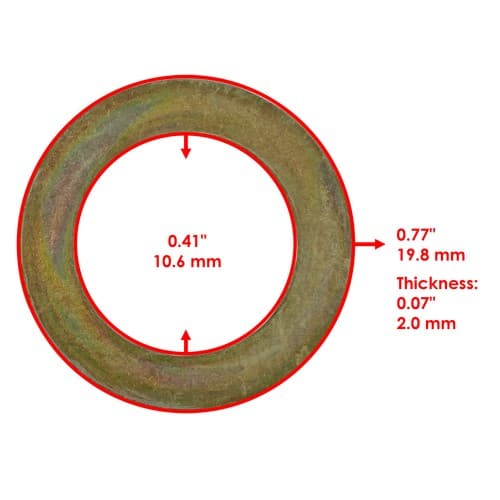

2 x Flange Washer: 7556153
Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

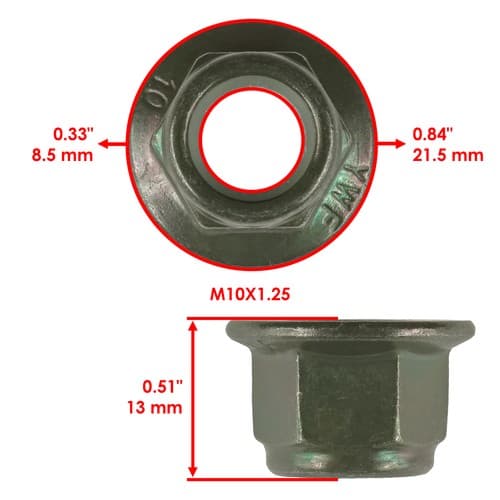

2 x Nut: 7547333
Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron
1 x Bolt: 7519043, 7518560
Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron
1 x Bolt: 7519042
Length: 175mm - 6.88 in
Stud Length: 36․7mm - 1.44 in
Head Diameter: 21․1mm - 0.83 in
Threads Size: M10-1․25
Material: Iron

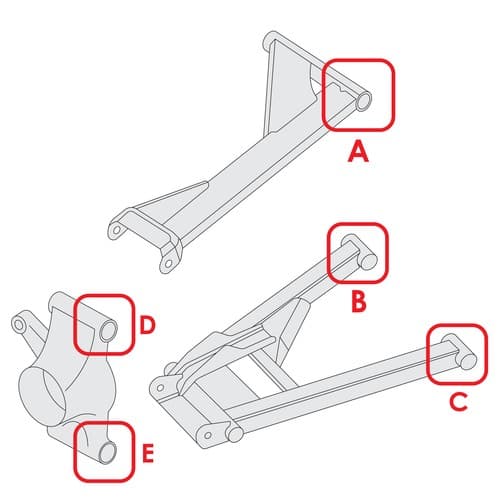

Note: Installs On Location (D) & (E) In Second Picture
Rear Upper Control Arm Part Number:
Left & Right: 1016474-385, 1018188-385, 1016474-458
1017579-458, 1018188-458, 1015450-458, 1018187-458
Rear Lower Control Arm Part Number:
Left: 1016475-385, 1018217-385, 1016475-458, 1018217-133
1018217-458, 1015451-458, 1018207-458
Right: 1016476-385, 1018218-385, 1016476-458, 1018218-133
1018218-458, 1015452-458, 1018208-458
Rear Knuckle Part Number:
Left: 5134984
Right: 5134985
