Caltric Rear A-Arm Bushing Kit for Polaris RZR S 1000 2020 Lower Left & Right

Rear Lower Left Right A-Arm Kit

For Polaris Models:

RZR S 1000 2020

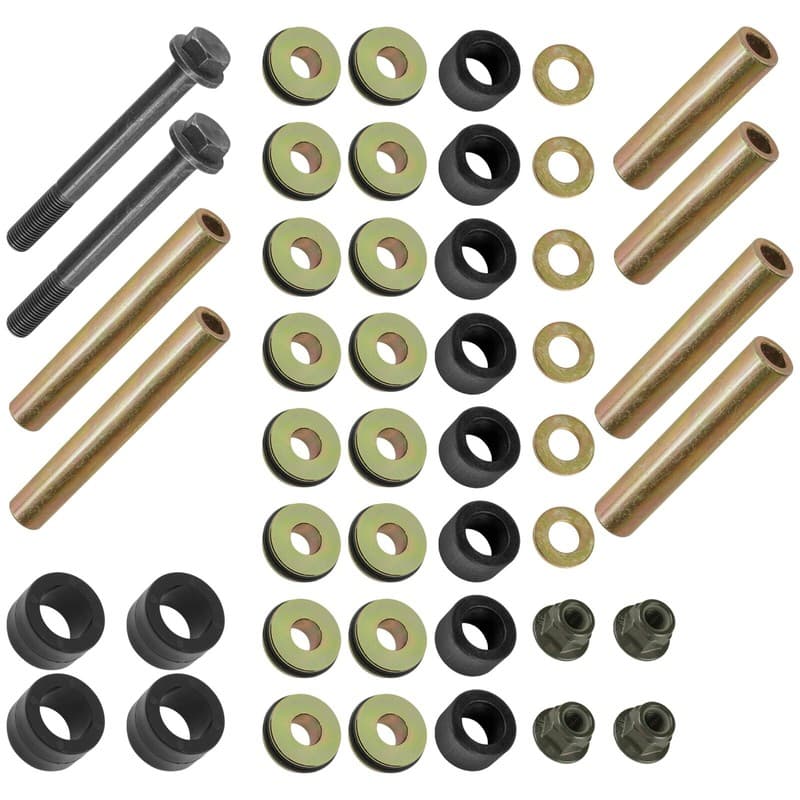

Order Includes:

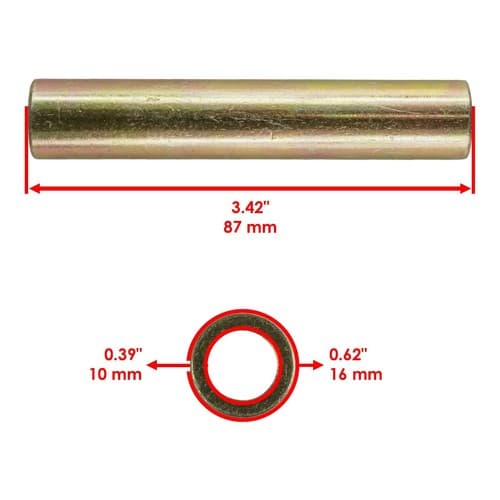

2 x Long Pivot Shaft  |  5139967

Length : 87mm  |  3.42"

Inner Diameter : 10mm  |  0.39"

Outer Diameter : 16mm  |  0.62"

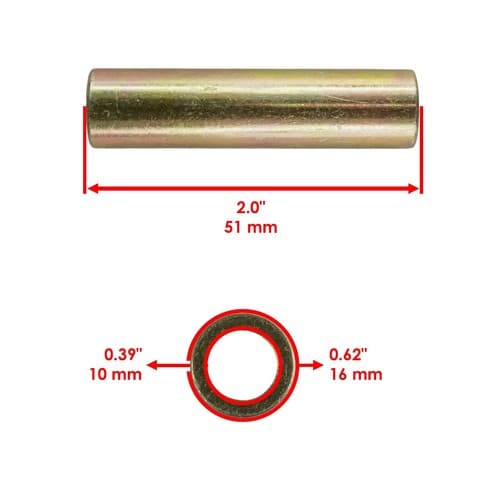

2 x Short Pivot Shaft  |  5139966

Length : 51mm  |  2.0"

Inner Diameter : 10mm  |  0.39"

Outer Diameter : 16mm  |  0.62"

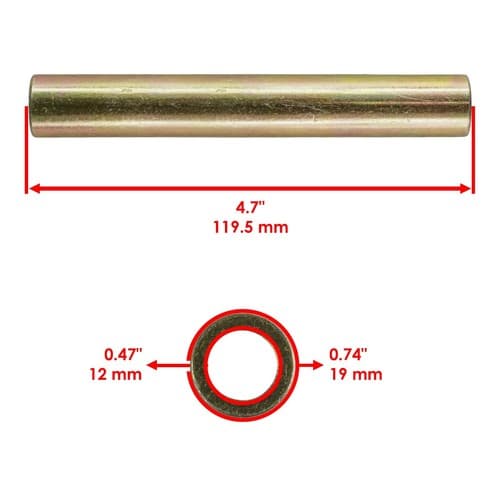

2 x Pivot Shaft  |  5139991

Length : 119.5mm  |  4.7"

Inner Diameter : 12mm  |  0.47"

Outer Diameter : 19mm  |  0.74"

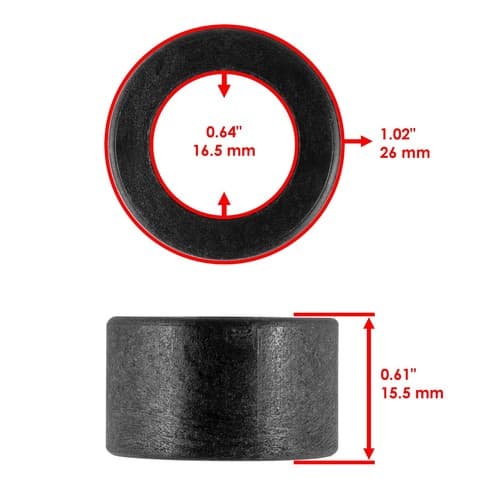

8 x Bushing   |  5452233

Width : 15.5mm  |  0.61"

Inner Diameter : 16.5mm  |  0.64"

Outer Diameter : 26mm  |  1.02"

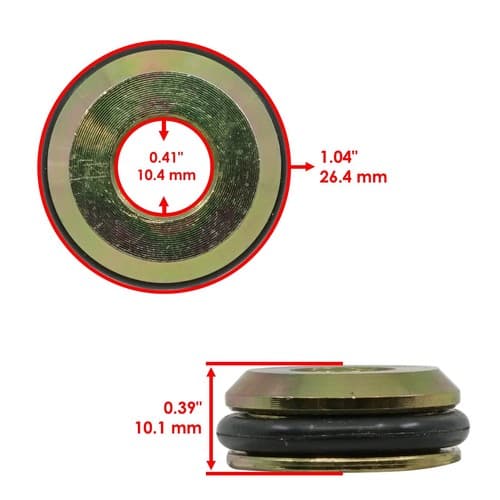

12 x Sealed Pivot Cap  |  1543611 1543612

Width : 10.1mm  |  0.39"

Inner Diameter : 10.4mm  |  0.41"

Outer Diameter : 26.4mm  |  1.04"

6 x Washer  |  7556153

2 x Bolt  |  7519043 7518560

Height : 104mm  |  4.09"

Length : 15mm  |  0.59"

M10-1.25

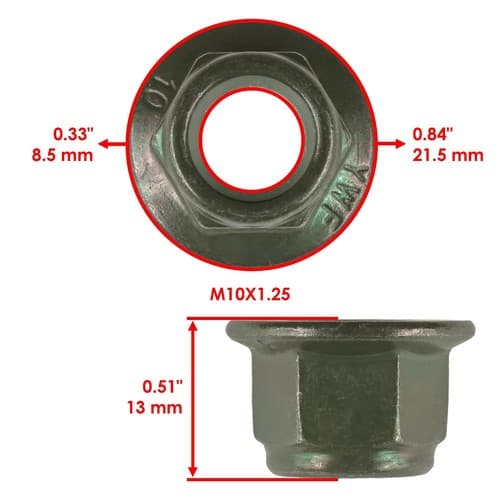

4 x Nut  |  7547333

Width : 13mm  |  0.51"  |  M10x1.25

Inner Diameter : 8.5mm  |  0.33"

Outer Diameter : 21.5mm  |  0.84"

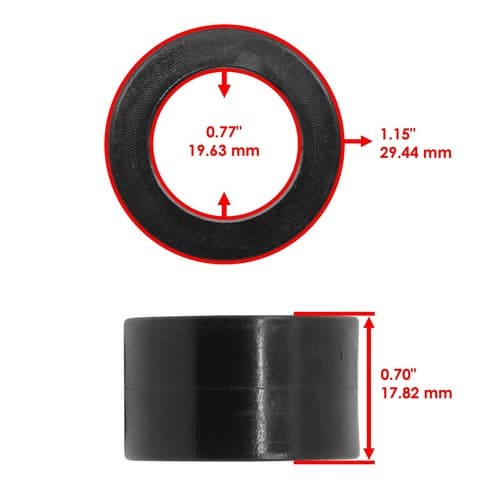

4 x Bushing  |  5452271

Width : 17.82mm  |

Inner Diameter : 19.63mm  |  0.77"

Outer Diameter : 29.44mm  |  1.15"

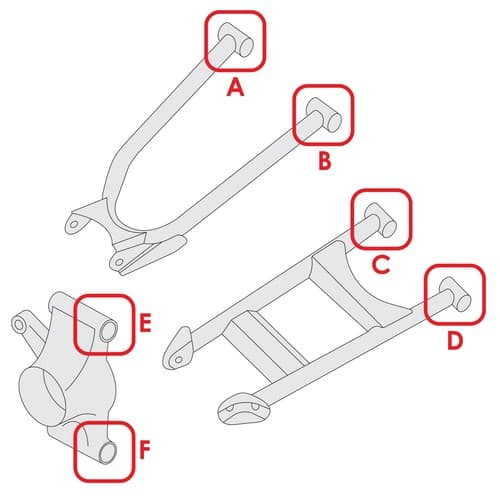

Note : Installs On Location (A) (B) (F) In Second Picture

Rear Lower Left A-Arm Part Number : 1021414-458

Rear Lower Right A-Arm Part Number :  1021415-458

Rear Right Bearing Carrier : 5139980

Rear Left Bearing Carrier : 5139979

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
