Specifications
- MPN
- 618-04608A, 618-04608, 618-0671, 618-0671B, 618-0671D, 918-04608A, 918-0671, 942-04053C, 753-08068A, 753-08171, 756-04129, 756-04129B, 756-04129C, 956-04129, 956-04129C, 112-0314, 112-6277, 954-0642, 754-0642, 607162, 485636, 485845, 112-0933
- Mpn
- 618-04608A, 618-04608, 618-0671, 618-0671B, 618-0671D, 918-04608A, 918-0671, 942-04053C, 753-08068A, 753-08171, 756-04129, 756-04129B, 756-04129C, 956-04129, 956-04129C, 112-0314, 112-6277, 954-0642, 754-0642, 607162, 485636, 485845, 112-0933
- Type
- Spindle
- Brand
- Caltric
- Color
- Gray
- Voltage
- 12 V
- Material
- Aluminium
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 8 HP
- Item Width
- 147.3 mm
Description
Premium Quality Replacement Part
Spindle Blade Pulley Belt
For White Outdoor Models :
GT-954 (14AA815K790) - White Outdoor 54" Garden Tractor (2007)
Q 816 K (14AQ816K597) - Columbia 54" Garden Tractor (2008)
Q 81 GK (14AQ81GK897) - Columbia 54" Garden Tractor (2009)
For Troy-Bilt Models :
14AQ81TK766 - Troy-Bilt Big Red 54" Garden Tractor (2006)
For MTD Models :
14AP805K730 - Huskee Garden Tractor (2006) (Tractor Supply) - 54"
14AA815K004 - MTD Gold Garden Tractor (2008) (Ace Hardware) - 54"
14AA815K004 - MTD Gold Garden Tractor (2009) - 54"
For Cub Cadet Models :
GT 1554 (14AK13BK709) - Cub Cadet 54" Garden Tractor (2005 - 2007)
GT 1554 (14AK13BK710) - Cub Cadet 54" Garden Tractor (2005 - 2007)
GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007)
GT 1554 (14RK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007)
LGT 1054 (13AK92AK056) - Cub Cadet 54" Lawn Tractor (2013)
LGT 1054 (13W793AK009) - Cub Cadet 54" Lawn Tractor (2014)
LGT 1054 (13W793AK056) - Cub Cadet 54" Lawn Tractor (2014)
LGT 1054 (13WK92AK009) - Cub Cadet 54" Lawn Tractor (2013)
LGT 1054 (13WK92AK010) - Cub Cadet 54" Lawn Tractor (2013)
LGT 1054 (13WK92AK010) - Cub Cadet 54" Lawn Tractor (2014)
LGTX 1054 (13AZ92AK056) - Cub Cadet 54" Lawn Tractor (2013)
LGTX 1054 (13YZ92AK010) - Cub Cadet 54" Lawn Tractor (2013)
LGTX 1054 (13YZ92AK056) - Cub Cadet 54" Lawn Tractor (2013)

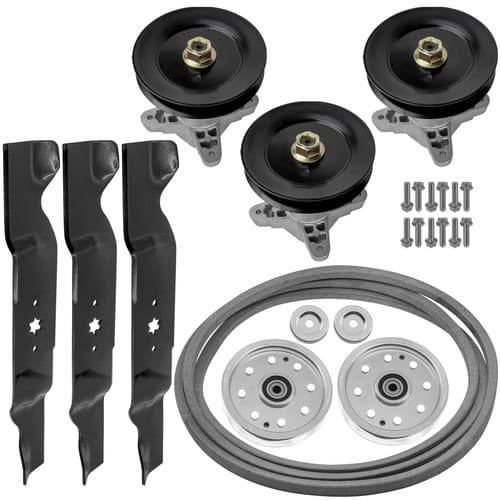

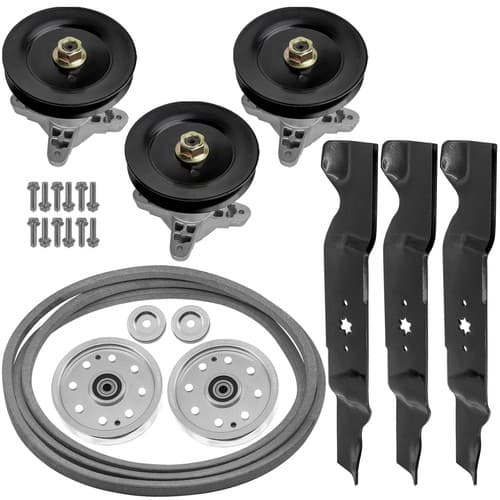

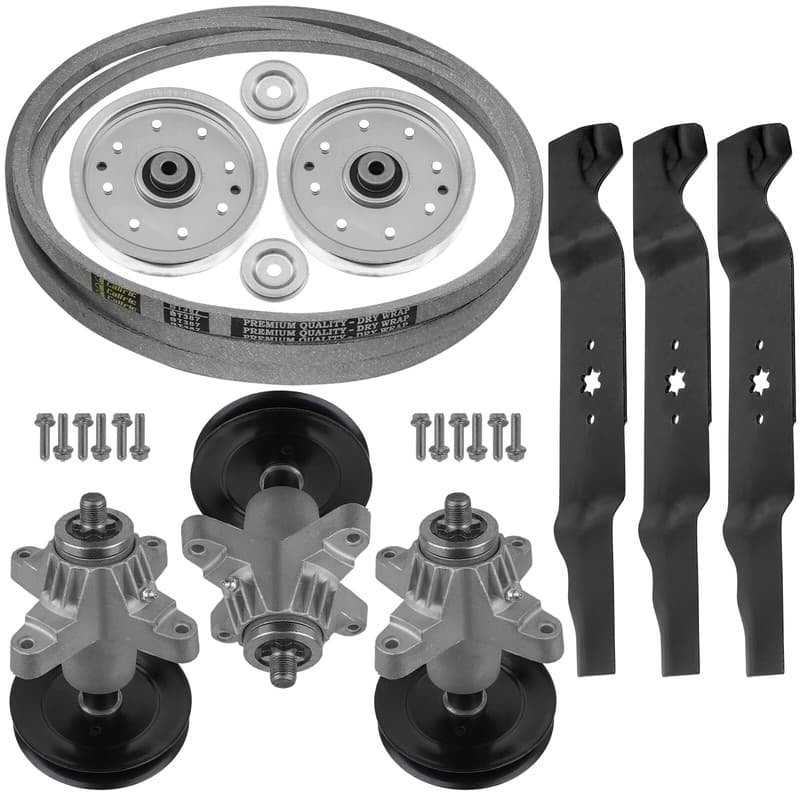

Order Includes:

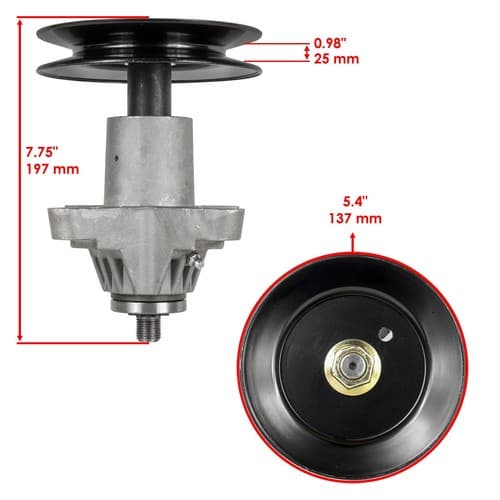

3 x Spindle : 618-04608A 618-04608 618-0671 618-0671B 618-0671D 918-04608A
918-0671 918-0671B 918-0671D 742-04053B 942-04053C 285-859
Height : 197mm
Pulley Width : 25mm
Pulley Outer Diameter : 137mm

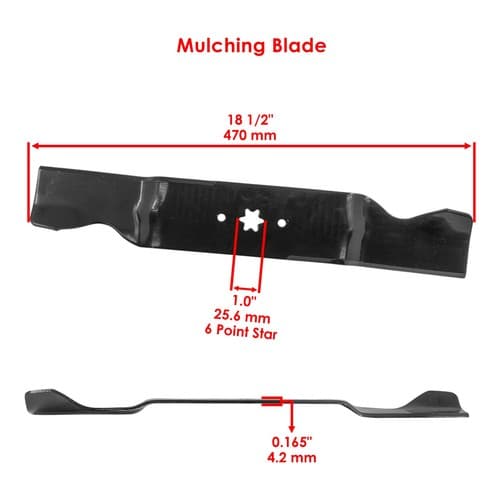

3 x Blade : 490-110-M117 742-0677 742-0677A 742-0677B
942-0677 942-0677A 942-0677B 112-0931 98024 335-855
Height : 79.3mm
Length : 466.7mm
Width : 4.2mm
Hole Distance : 2.6mm

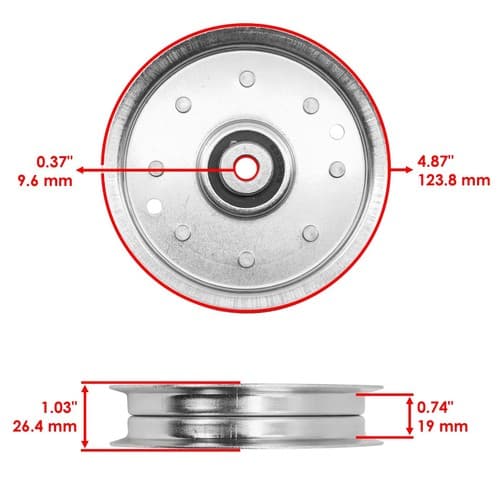

2 x Pulley : 753-08068A 753-08171 756-04129 756-04129B 756-04129C 956-04129
956-04129C 756-05042 280-646
Width : 26.4mm
Inner Diameter : 9.6mm
Outer Diameter : 123.8mm
1 x Belt : 954-0642 754-0642 112-0933 265-264
Height : 11.81mm
Width : 15.87mm
Overall Length : 3505.2mm
