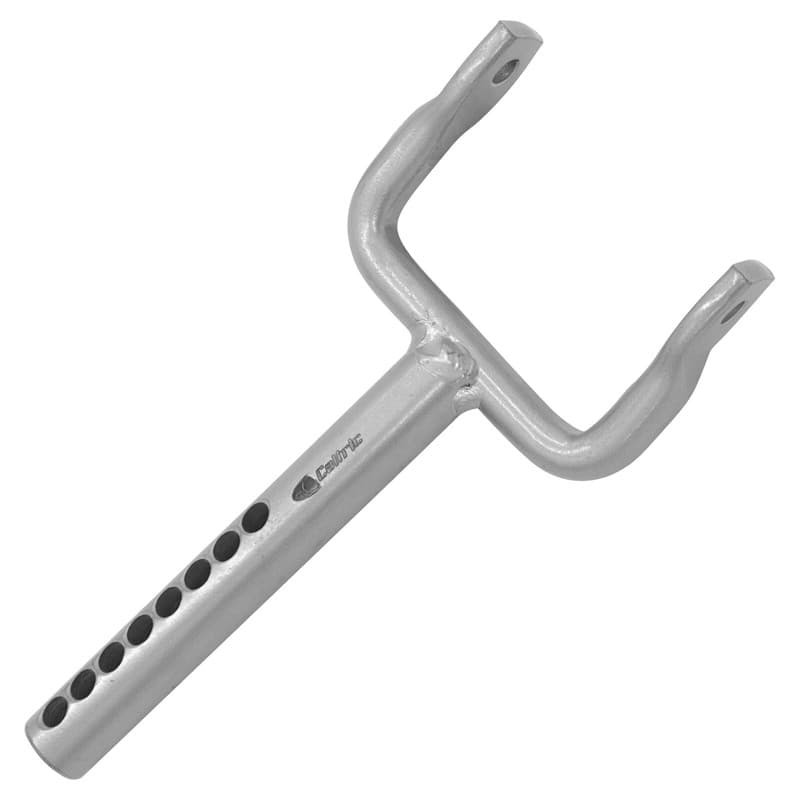

Caltric AM145269 LVA16505 Wheel Arm for John Deere X720 X724 X740 1025R 2038R

Rear Right Gauge Wheel Arm

Compatible with John Deere Models :

1023E ( -MY17) (PIN: - 1LV1023EHHH108480)(PIN: - 1LV1023ECHH300601) - 60"

1025R ( -MY17) (PIN: - 1LV1025RHHH137459) (PIN: - 1LV1025RCHH300900) - 60"

1025R (MY18-MY22)(PIN: 1LV1025RVHJ137501-1LV1025RALK199999) - 60"

1026R ( -MY17) (PIN: -1LV1026RHHH201417) (PIN: -1LV1026RHGE510675) - 60"

1026R (MY18 - MY22) (PIN: 1LV1026RKHJ201501 - 1LV1026RHNN207263) - 60"

2025R (MY18 - MY22)(PIN: 1LV2025RAHJ100101 - 1LV2025RVNN141283) - 60"

2026R (MY18 - MY22) (PIN: 1LV2026RVHJ200101 - 1LV2026RENN203607)- 60"

X710, X730, X734, X738, X739 - (SN: 020001-050000) - 60"

X750, X754, X758 - (SN: 020001-070000) - 60"

2032R (MY17 - MY19)(PIN: 1LV2032RTGH100008 - 1LV2032RELK119197) - 72"

2032R (MY23- )(PIN: 1LV2032RCNP125418- )(PIN: 1LV2032RPNP200761- ) - 72"

2036R (MY17- )(PIN: 1LV2036RHGH200101 - )(PIN: 1LV2036RVHH300101 - ) - 72"

2038R (MY17 - MY19)(PIN: 1LV2038RPGH100101 - 1LV2038RELK108823) - 72"

2038R (MY20 - MY22) (PIN: 1LV2038RJLL108824 - 1LV2038RLNN114880) - 72"

2038R (PIN: 1LV2038RLNP114981- )(PIN: 1LV2038RTNP201396- ) - 72"

3033R  (PIN: - 1LV3033RTHH102720)(PIN: - 1LV3033RCHH200175) - 72"

3033R (MY18-MY19)(PIN:1LV3033REHJ103100-ELK106291) - 72"

3038R (1LV3038REHJ200001- ) - 72"

3039R ( -MY17) (PIN: - 1LV3039RKHH102100)(PIN: - 1LV3039RLHH402095) - 72"

3039R (MY18-MY19)(PIN:1LV3039RCHJ102201-1LV3039RELK105228) - 72"

3039R (MY20-MY22)(PIN:1LV3039RJLL105229-KPN108608)(PIN:1LV3039RJLL200101-HPN200570) - 72"

3039R (MY24- )(PIN: 1LV3039RJPR108652 - )(PIN: 1LV3039RCPR408640 - ) - 72"

3045R (1LV3045RKHJ200001- ) - 72"

3046R (MY18-MY19)(PIN:1LV3046RHHJ101301-1LV3046RTKK405184) - 72"

3046R (PIN: - 1LV3046RAHH101240)(PIN: - 1LV3046RCHH402130)(PIN: - 1LV3046RJHH500210) - 72"

3120, 3320, 3520, 3720, 3038R - 72"

120, 140, 300, 312, 314, 316, 317, 318, 322, 330, 332, 425, 445, 455 -  (SN: 020001 - 050000) - 48" 54" 60"

X465,X475,X485,X495,X575,X585,X595,X700,X720,X724,X728,X740,X744,X748 - (SN: 030001 - ) - 48"

2305 and 2X20/3X20/4X20 - 72"  (SN: 040001-)

2305 and 2X20/3X20/4X20 - 60"

Order Includes :

1 x Gauge Wheel Arm : AM145269, LVA16505

Width : 123mm - 4.84in

Length : 273mm - 10.7in

Shaft Thickness : 25.4 mm - 1.00 in

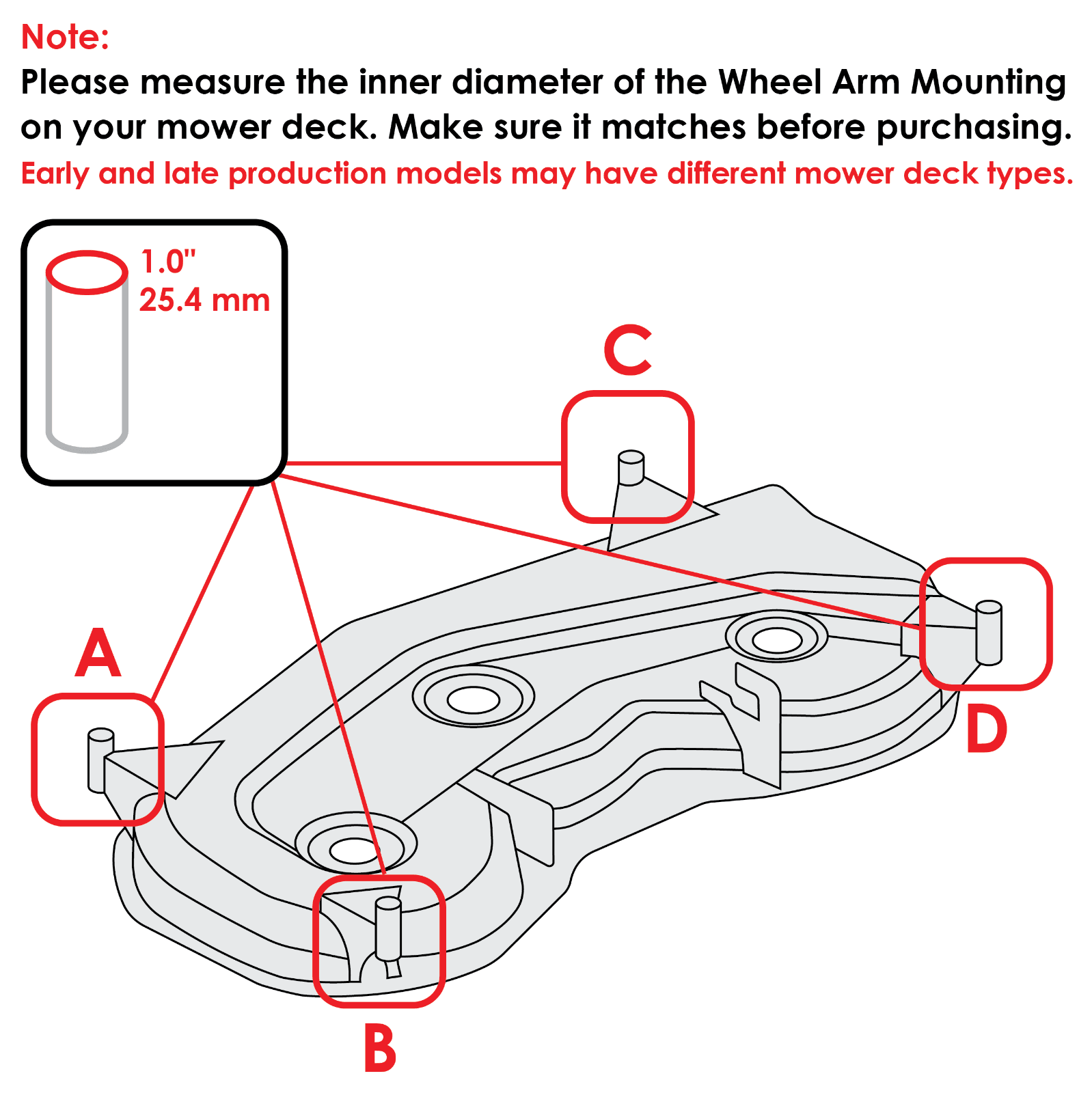

Note : Installs On Location (D) In Second Picture

Please check the Wheel Arm Mounting Diameter, early and late models size may differ.
