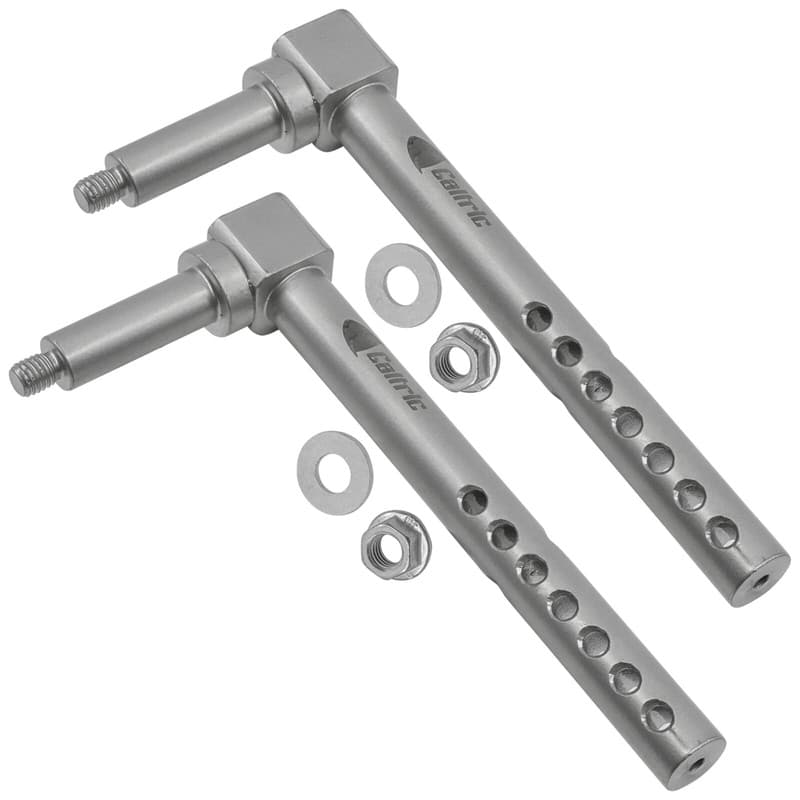

Caltric AM136328 Deck Wheel Arm for John Deere X500 X520 48" 54" Front Rear 2x

Gauge Wheel Arm

For John Deere Models:

X300 Select Series Tractor - 48"

X304 Select Series Tractor - 48"

X310 - Tractor , Lawn and Garden - 48"

FS600V-BS21R - Tractor , Lawn and Garden - 48"

X320 - Tractor , Lawn and Garden - 48" - Serial Number (- 020001)

X324 - Tractor , Lawn and Garden - 48" - Serial Number (- 020001)

X340 - Tractor , Lawn and Garden - 48" - Serial Number (- 020001)

X360 - Tractor , Lawn and Garden - 48" 54" - Serial Number (- 045000-)

FS651V - Tractor , Lawn and Garden - 48" 54" - Serial Number (- 045000-)

FH661V - Tractor , Lawn and Garden - 48" 54" - Serial Number (- 045000-)

X500 Multi-Terrain Tractor - 48" 54" - Serial Number (- 020001)

X520 Multi-Terrain Tractor - 48" 54" - Serial Number (- 020001)

X530 Tractor Multi-Terrain Series with 54-inch Mower Deck - 48" 54" - Serial Number (- 020001)

X534 Multi-Terrain Tractor with 48-inch or 54-inch Mower Deck - 48" 54" - Serial Number (- 020001)

X540 Multi-Terrain Tractor - 48" 54" - Serial Number (- 020001)

X590 Lawn and Garden Tractor - 48" 54"

Order Includes:

2 x Gauge Wheel Arm : AM136328

Height : 93.0mm - 3.66 in

Length : 200.0mm - 7.87 in

Shaft Thickness : 19 mm - 0.74 in

Note :

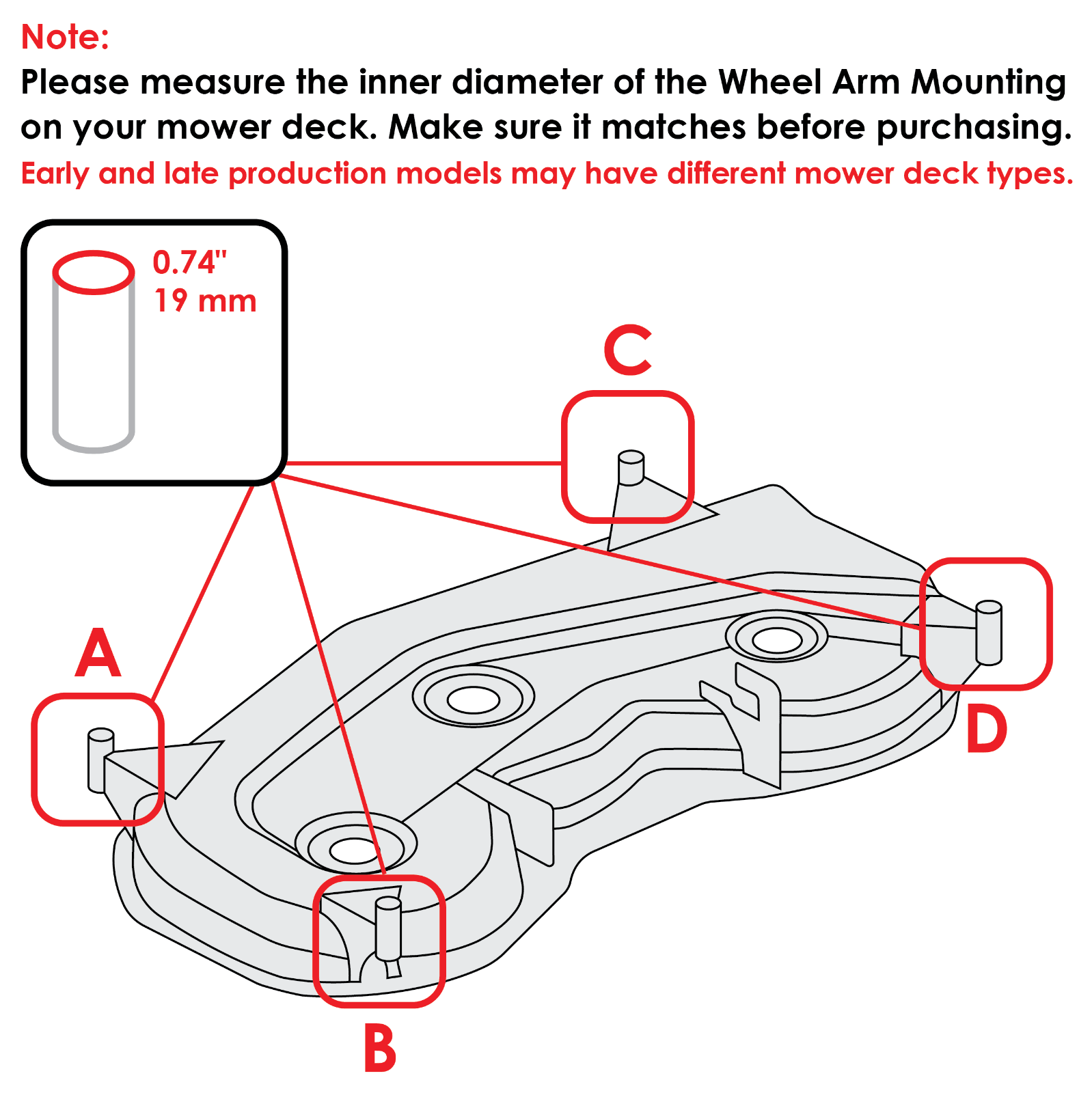

All Models Installs On Location (A) (D) In Second Picture

Only X590 Installs On Location (A) (B) In Second Picture

Please check the Wheel Arm Mounting Diameter, early and late models size may differ.
