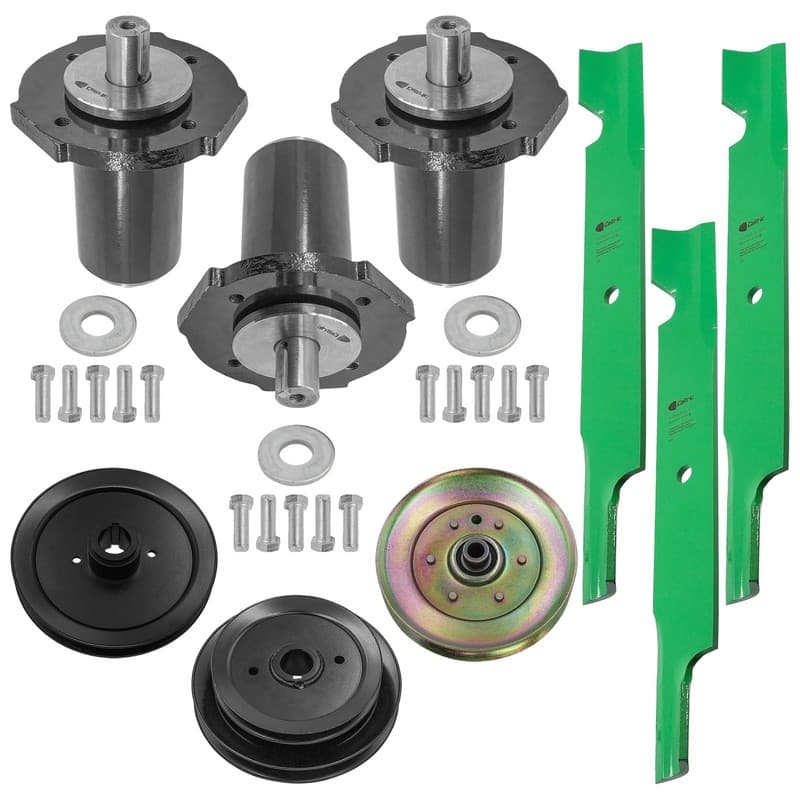

Name: Caltric 59215400 09081200 07300527 Deck Spindle Blade Pulley Kit For Gravely
Brand: Caltric
SKU: APH-296332216986
Price: 425.5 USD
Availability: OutOfStock

Specifications

MPN: 58810800 59202600 59225700 59215400 69219700, 08899100 08979600 09081200 025124 046999 08781800, 08781851 08899100 089046 08904651 08979600 090812, 09081200 46999 48864 89796 8979651, 07340400 59211600 07328967 07300527
Mpn: 58810800 59202600 59225700 59215400 69219700, 08899100 08979600 09081200 025124 046999 08781800, 08781851 08899100 089046 08904651 08979600 090812, 09081200 46999 48864 89796 8979651, 07340400 59211600 07328967 07300527
Type: Spindle Blade & Pulley Kit
Brand: Caltric
Material: Maintenance-Free Aluminum
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
More Info: For More Information Reffer to Description
Item Height: 188.3mm
Item Diameter: 8mm x 132.5mm
Number in Pack

Description

Premium Quality Replacement Part

Spindle Assembly Maintenance-Free Aluminum with High Lift Blade & Pulleys

For Gravely Models:

991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 021000 - 029999)
991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 030000 - 039999)
991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 040000 - 040999)
991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 041000 & Above)
991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999)
991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999)
991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 040000 - 040999)
991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 041000 & Above)
991104 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 021000 - 029999)
991104 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 030000 - 039999)
991104 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 040000 - 040999)
991104 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 041000 & Above)
991117 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 040000 - 040999)
991117 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 041000 & Above)
991121 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above)
991124 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above)
991126 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above)

Order Includes:

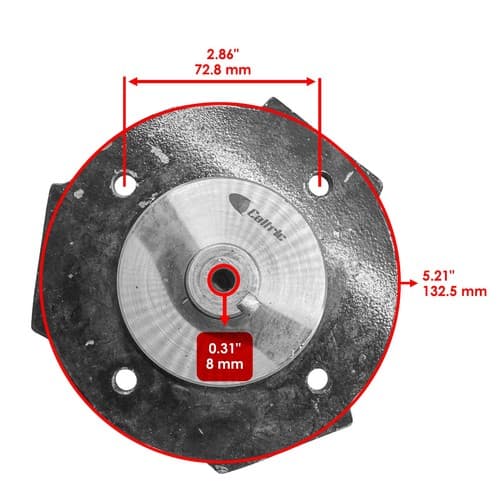

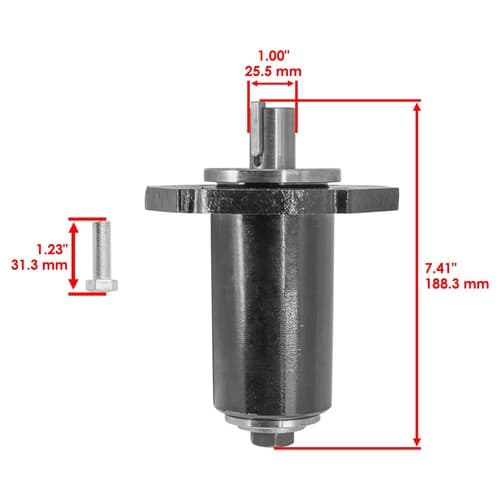

3 x Spindle: 58810800 59202600 59225700 59215400 69219700

Height : 188.3mm
Bolt Length: 31.1mm
Inner Diameter : 8mm
Outer Diameter : 132.5mm
Mouting Hole Distance : 72.8mm

3 x High Lift Blade: 08899100 08979600 09081200 025124 046999 08781800 08781851 08899100 089046 08904651 08979600 090812 09081200 46999 48864 89796 8979651

Width: 7.01mm
Length : 523.9mm
Hole: 15.9mm
Thickness: 7.01mm

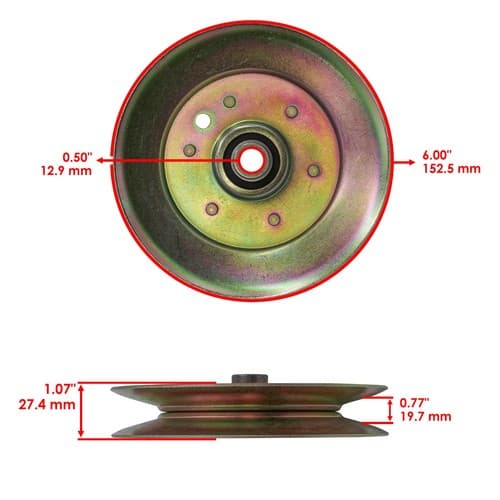

1 x Idler Pulley: 07300527

Width: 27․4mm
Inner Diameter: 12․9 mm
Outer Diameter: 152․5 mm

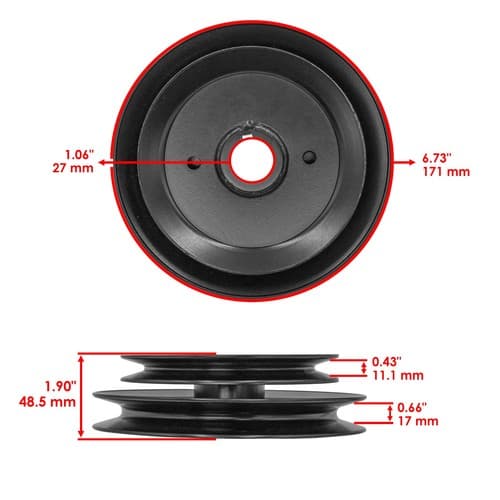

1 x Idler Pulley: 07340400

Width: 48․5mm
Inner Diameter: 27mm
Outer Diameter: 171mm

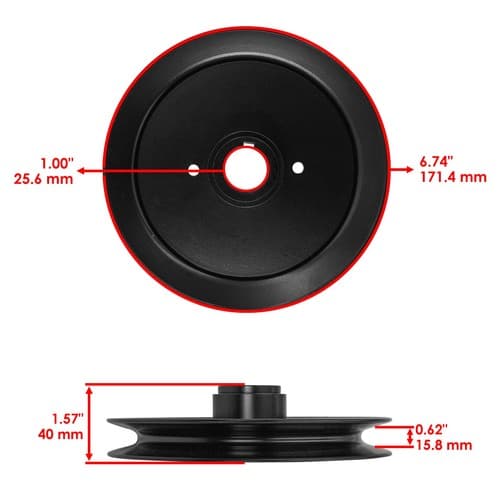

1 x Idler Pulley: 59211600 07328967

Width: 40mm
Inner Diameter: 25․6mm
Outer Diameter: 171․4mm
