Caltric 5136473 5135270 5437651 7518466 Rear A-Arm Bushing Kit For Polaris Lower

Rear A-Arm Bushing Kit Lower Inner Outer Left & Right

For Polaris Models:
Sportsman 550 2010
Sportsman X2 550 2010
Sportsman XP 550 2010
Sportsman 850 Touring 2010
Sportsman XP 850 2010

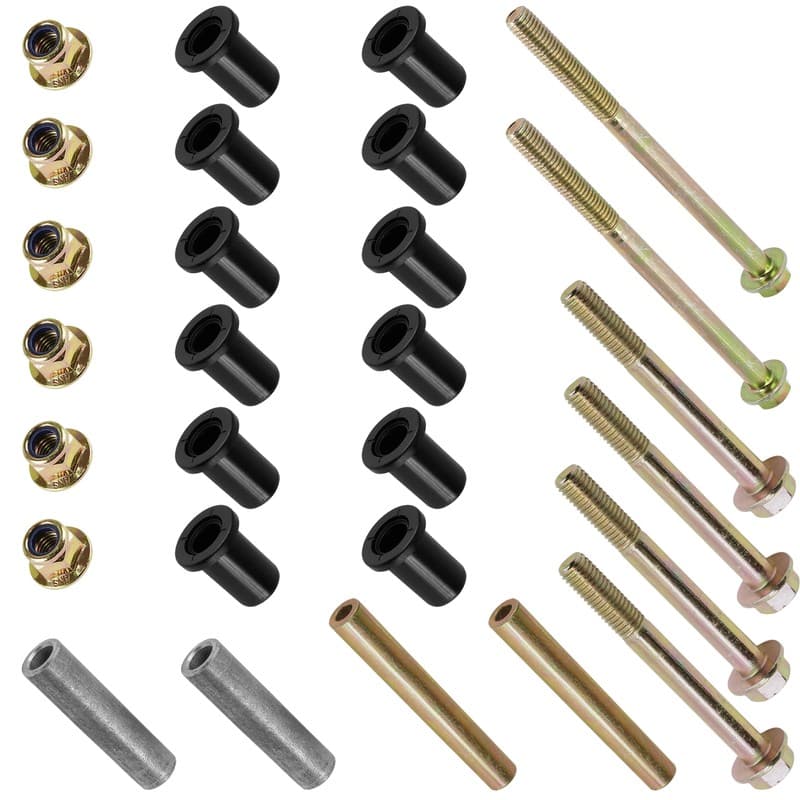

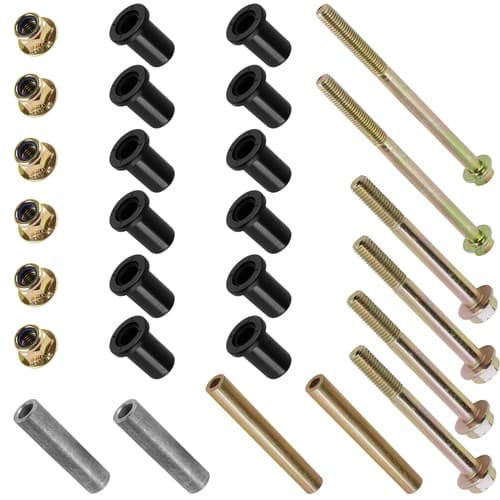

  Order Includes:

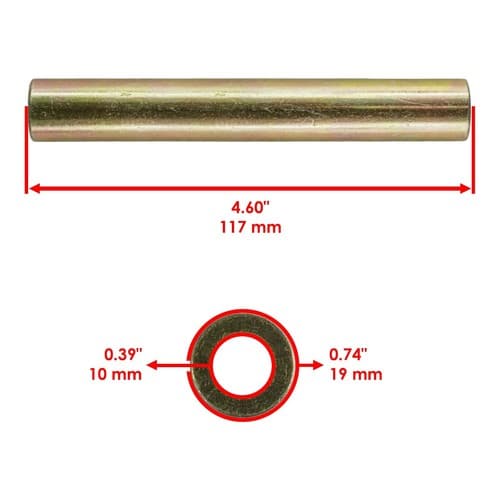

2 x Pivot Shaft | 5136473
Length: 117mm | 4.60"
Inner Diameter: 10mm | 0.39"
Outer Diameter: 19mm | 0.74"

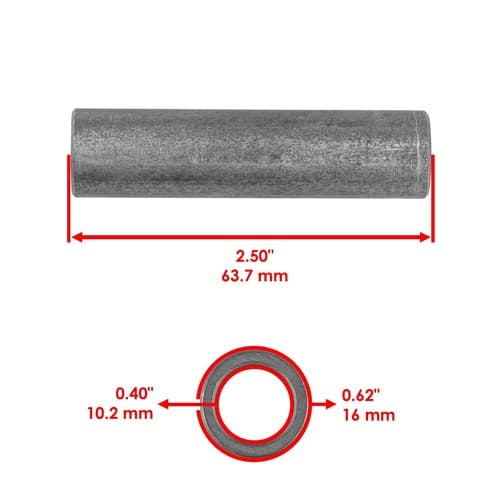

4 x Pivot Shaft | 5135270
Length : 63.7mm | 2.50"
Inner Diameter: 10.2mm | 0.40"
Outer Daimeter: 16mm | 0.62"

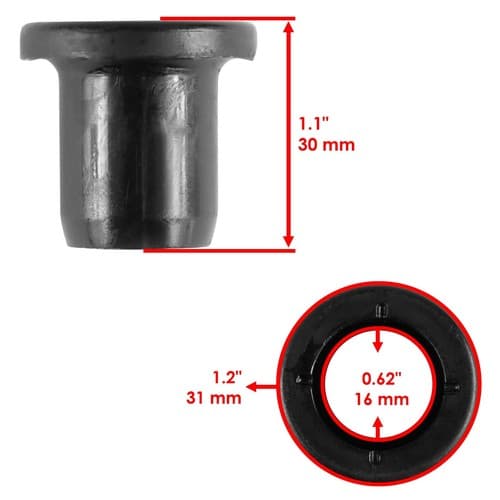

8 x Short Bushing | 5439874 5436832 5436505
Length: 30 mm | 1.1"
Inner Diameter: 16 mm | 0.62"
Outer Daimeter: 31mm | 1.2"

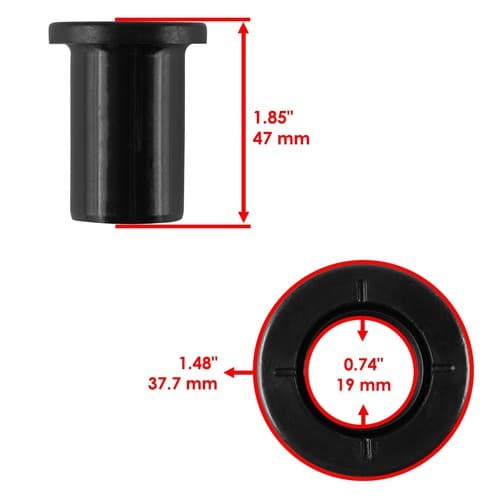

4 x Long Bushing | 5437651
Length: 47mm | 1.85"
Inner Diameter: 19mm | 0.74"
Outer Daimeter: 37.7mm | 1.48"

2 x Bolt | 7518467
Length: 150mm | 5.90"
Thread size : M10X1.5

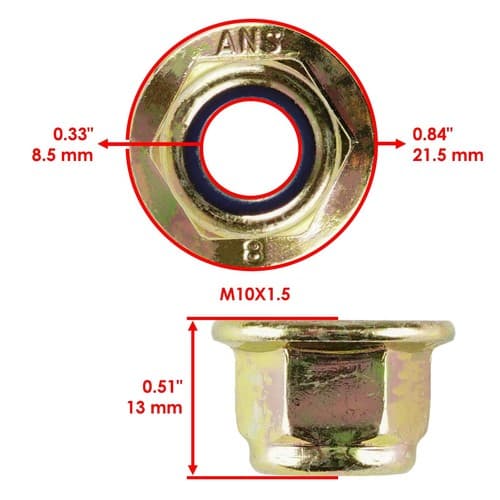

6 x Nut | 7547313
Height: 13mm | 0.51"
Inner Diameter: 8.5 mm | 0.33"
Outer Diameter: 21.5mm | 0.84"
Thread Size : M10X1.5

4 x Bolt | 7518466
Length: 94 mm | 3.7"
Across Corners: 15 mm | 0.59"
Thread Length: 29 mm | 1.14"
Thread Size: M10x1.5

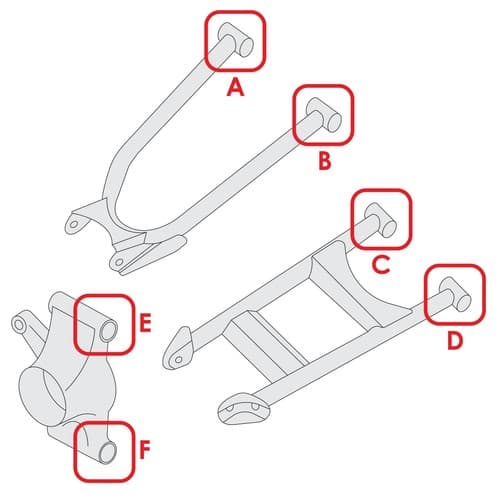

Note : Installs On Location (C) (D) (F) In Second Picture
Rear Lower Left A-Arm: 1017154-067 1019410-067 1017256-067
Rear Lower Right A-Arm: 1017155-067 1019411-067 1017257-067

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
