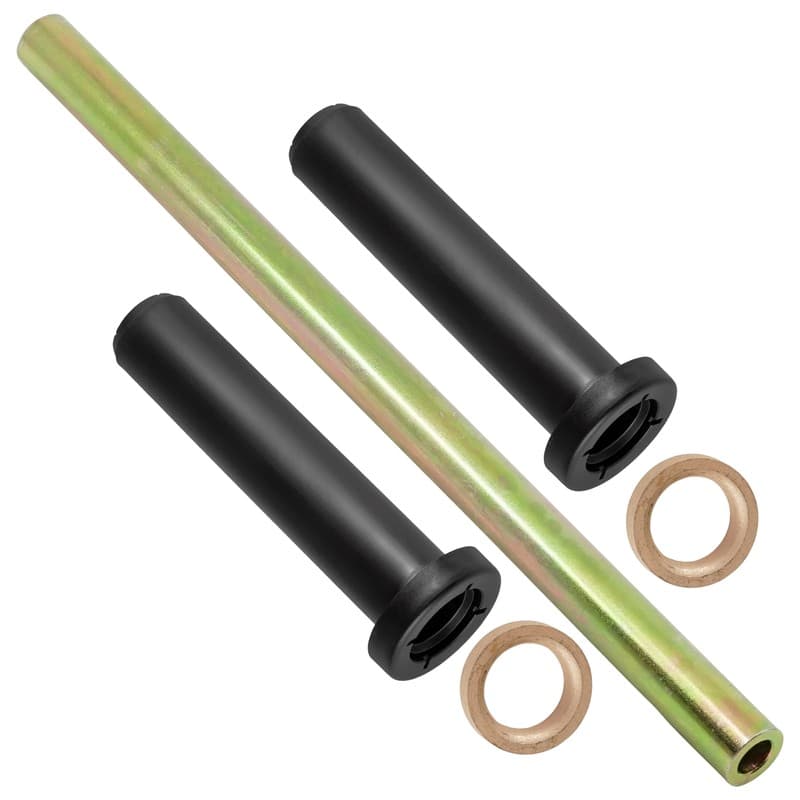

Caltric 5133806 5436973 5434551 5020677 Front A Arm Bushing Kit For Polaris

Compatible with Polaris Models:
ATP 330 4x4 2004-2005
ATP 500 4x4 2004-2005
Scrambler 400 1995-2002
Scrambler 500 2x4 4x4 1997-2012
Trail Blazer 250 1996-2006
Trail Blazer 330 2008-2013
Trail Blazer 400 2003
Trail Boss 250 4x4 6x6 1993
Trail Boss 325 2000-2002
Trail Boss 330 2003-2013
Sport 400 1999
Sport 400L 1994-1999
Sportsman 335 1999-2000
Sportsman 400 1993-1996 2001-2005 2011-2014
Sportsman 400L 1997
Sportsman 450 2006-2007
Sportsman 500 4x4 6x6 1996-2013
Sportsman 570 2014-2015
Sportsman X2 570 2015
Sportsman 600 2003-2005
Sportsman 700 2002-2007
Sportsman 800 2005-2015
Sportsman ACE 325 2014-2015
Sportsman ACE 570  2015
Sportsman ETX 2015
Sportsman MV7 2005
Magnum 325 2000-2002
Magnum 330 2x4 4x4 2003-2006
Magnum 425 2x4 4x4 6x6 1995-1998
Magnum 500 4x4 1999-2003
XPRESS 300 1996-1999
XPRESS 400L 1996-1997
XPEDITION 325 2000-2002
XPEDITION 425 2000-2002
Big Boss 400L 6x6 1995-1997
Big Boss 500 6x6 1998-1999
XPLORER 250 4x4 2000-2002
XPLORER 300 1995-1999
XPLORER 400 1999-2002
XPLORER 400L 1996-1998
XPLORER 500 1997
Worker 335 1999
Worker 500 1999 2001
Hawkeye 400 HO 2x4 2011-2014
Hawkeye 325 2x4 2015
300 4x4 6x6 1994-1995
400L 4x4 6x6 1994-1996

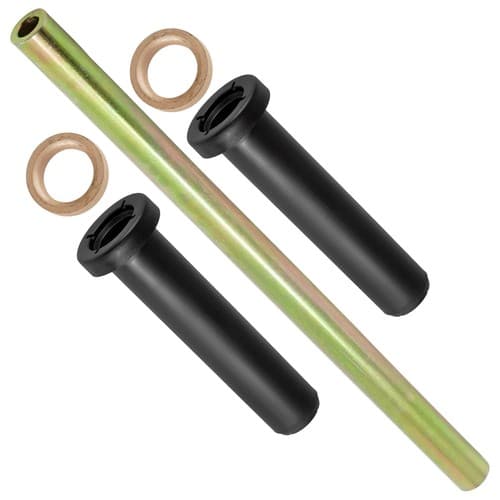

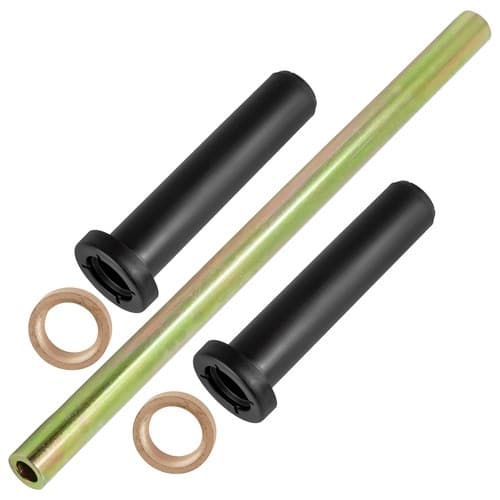

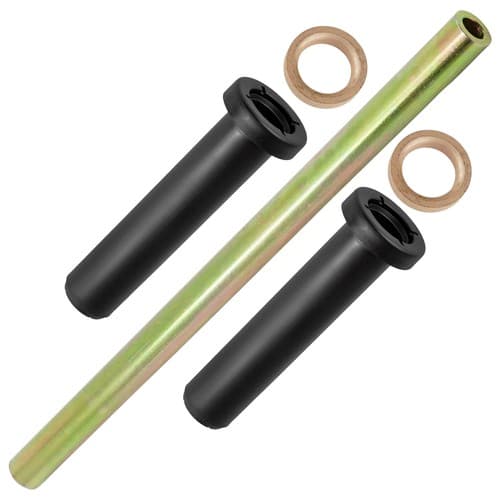

Order Includes:
1 x Long Pivot Shaft : 5133806, 5020681, 5020964

Length : 282.6 mm - 11.12 in
Inner Diameter : 8.4 mm - 0.33 in
Outer Diameter : 16.2 mm - 0.63 in
Material: Steel

2 x Bushing: 5436973, 5431596, 5433066, 5434551, 5436220

Length : 102mm - 4 in
Tube Diameter: 21mm - 0․82 in
Material: Plastic

2 x Spacer: 5020677

Inner Diameter: 21mm - 0․82 in
Outer Diameter: 31․2mm - 1․22 in
Thickness: 6․25mm - 0․24 in
Material: Metal

Note: Installs On Location (A) & (B) In Second Picture
Front Lower A Arm Part Number:
Left-2202284-067, 2202280, 2202276, 2202276-067, 2202276-385, 2201601, 2200560
2201609, 2202282, 2202274,  2201601, 2200627, 2202274, 2200483, 1580068-067
2200531, 2201157, 2202284-067, 2202284-385, 2201611, 2202284-216, 1580056-067
2202906, 2202865, 1542656-067, 2205079, 2200736, 2202278, 2200481, 1580033-067

Right: 2202285-067, 2202281, 2202277, 2202277-067, 2202277-385, 2201602
2200561, 2201610, 2202283, 2202275, 2200532, 2201602, 2200628, 2202275
2201158, 2202285-067, 2202285-385, 2201612, 2202285-216, 2202285-293
1580057-067 2200482, 2202907, 2202866, 1542657-067, 2205080, 2200737
2202279, 2200482, 1580034-067, 2200484, 1580069-067
