Name: Caltric 1S3-22184-00-00 90380-22111-00 Rear Swing Arm Bushing Kit For Yamaha
Brand: Caltric
SKU: APH-285176825272
Price: 71.37 USD
Availability: InStock

Caltric 1S3-22184-00-00 90380-22111-00 Rear Swing Arm Bushing Kit For Yamaha

No reviews yet

$71.37

NEWIn Stock

SKU: APH-285176825272

MPN: ZP115*2+ZA141*2+ZG109*2+NB110*2+SL423*2+YW113+YW114*2+BL182 - VS

Delivery: 3-7 business days

Check Vehicle Fitment

View all compatible vehicles (20)

Yamaha Raptor 700 YFM700 — 2013-2023
Yamaha Raptor 700 YFM700R — 2007-2014
Yamaha Raptor 700 YFM700RSE Special Edition — 2009-2012
Yamaha Raptor 700 YFM700RSE2 Special Edition II — 2007
Yamaha Raptor 700 YFM700RSP Special Edition — 2008
Yamaha Raptor 700 YFM700RSP2 Special Edition II — 2008

Specifications

Type

Swingarm

Brand

Caltric

Material

Steel

Condition

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab

Item Width

14.9 mm - 0.58 in

Item Height

311.15mm - 12.25 in

Item Length

85.3 mm - 3.35 in

Machine Type

ATV

Vintage Part

Items Included

Bushing, Seal, Washer, Bolt, Thrust Cover

Performance Part

Description

Premium Quality Replacement Part

Rear Swing Arm Bushing Kit

Compatible with Yamaha Models:
Raptor 700 YFM700 2006-2023
Raptor 700R YFM700R 2009 2011-2023

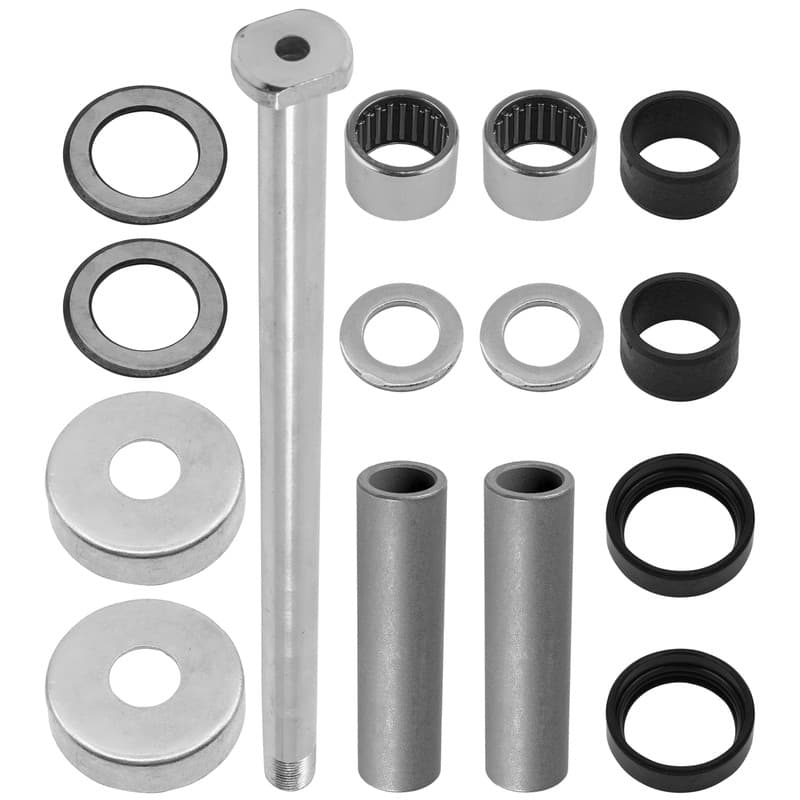

Order Includes:
2 x Pivot Shaft Bushing: 1S3-22184-00-00, 1S3221840000

Length: 85.3 mm - 3.35 in
Inner Diameter: 16.0 mm - 0.63 in
Outer Diameter: 22.0 mm - 0.86 in
Material: Steel

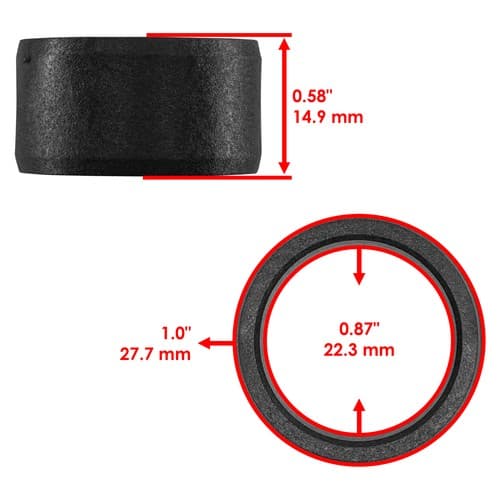

2 x Solid Bushing: 90380-22111-00, 903802211100

Width: 14.9 mm - 0.58 in
Inner Diameter: 22.3 mm - 0.87 in
Outer Diameter: 27.7 mm - 1.0 in
Material: Plastic

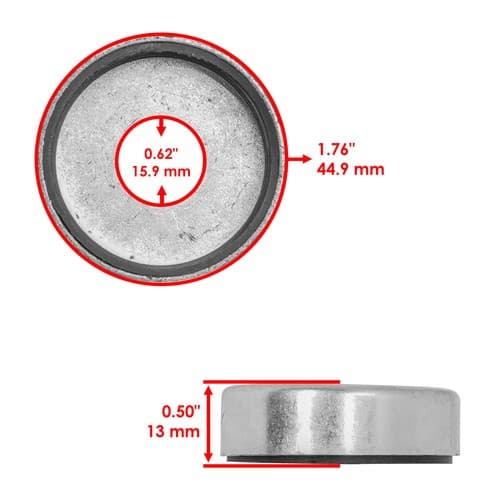

2 x Thrust Cover: 4X7-22129-00-00, 4X7221290000

Width: 13 mm - 0.5 in
Inner Diameter: 15.9 mm - 0.62 in
Outer Diameter: 44.9 mm - 1.76 in
Material: Metal

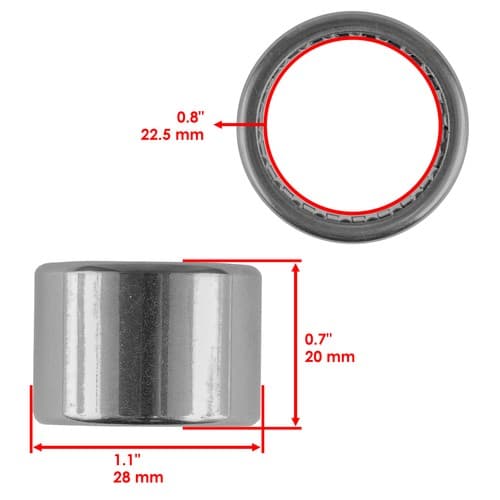

2 x Needle Bearing: 93317-32231-00, 933173223100

Width: 20.0 mm - 0.7 in
Inner Diameter: 22.5 mm - 0.8 in
Outer Diameter: 28.0 mm- 1.1 in
Material: Steel

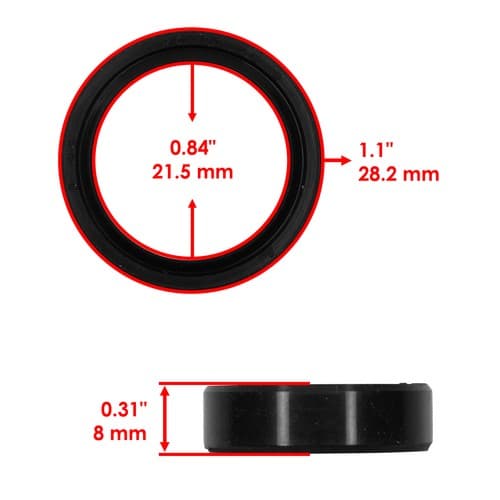

2 x Oil Seal: 93106-22019-00, 931062201900

Width: 8.0 mm - 0.31 in
Inner Diameter: 21.5 mm - 0.84 in
Outer Diameter: 28.2 mm - 1.1 in
Material: Rubber

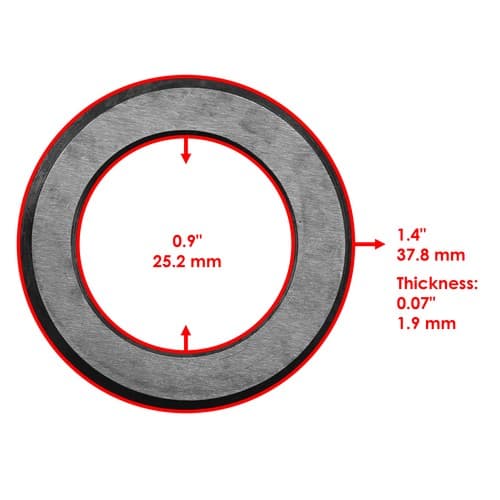

2 x Washer: 3YF-22149-00-00 90201-244A8-00, 3YF221490000, 90201244A800

Inner Diameter: 25.2mm - 0.9 in
Outer Diameter: 37.8mm - 1.4 in
Thickness: 1.9 mm - 0.07 in
Material: Steel

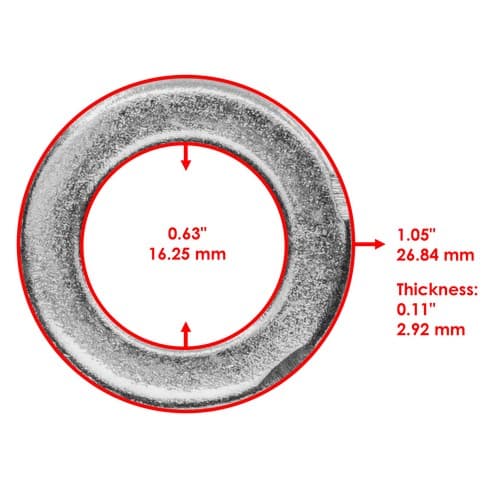

1 x Washer: 90201-16018-00, 902011601800

Inner Diameter: 16.25 mm - 0.63 in
Outer Diameter: 26.84 mm - 1.05 in
Thickness: 2.92 mm - 0.11 in
Material: Steel

1 x Bolt: 1S3-22141-00-00, 1S3221410000

Height: 311.15mm - 12.25 in
Length: 27.3mm - 1.07 in
Thread Spec : 5/8-18
Material: Iron

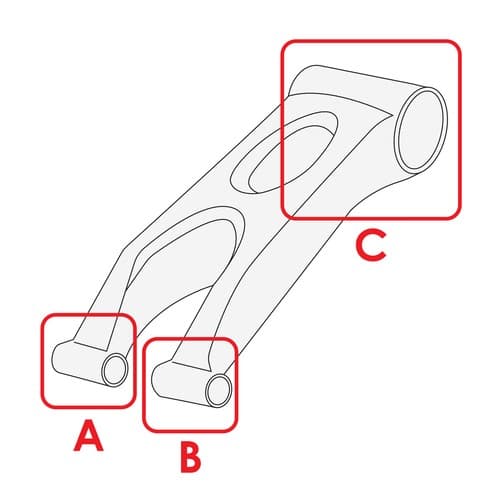

Note: Installs On Location (A) & ( B ) In Second Picture
Swing Arm Part Number: 1S3-22110-00-00, 1S3221100000
