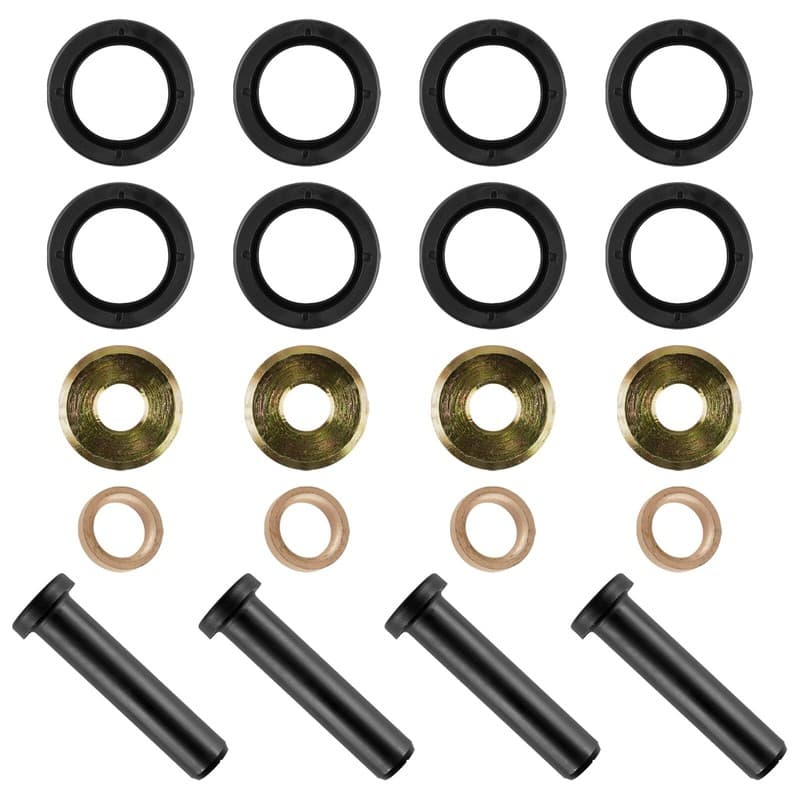

Caltric 1012718-067 1012717-067 Rear Lower A Arm Bushing Kit For Polaris

Rear Lower A Arm  Bushing Kit

Note : This Listing Only Outer Bushing Kit For Rear A-Arm / Control Arm
This is The Bushing Kit Where the lower A-Arm connects To Bottom Of the Bearing Carrier.

1 Kit Require Per Arm
This Kit Does Not Contain An A-Arm

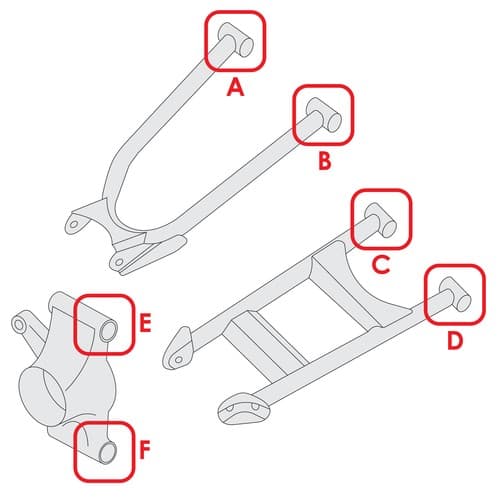

Note: Installs On Location (F) In Second Picture

For Polaris Models :

Sportsman 500 1996-2001

Sportsman 500 Duse 2001

Sportsman 500 HO 2001

Sportsman 500 RSE 1999-2001

Sportsman 335 1999-2000

Sportsman 400 2001

Sportsman 700 Twin 2002

Xplorer 500 1997

Worker 500 1999

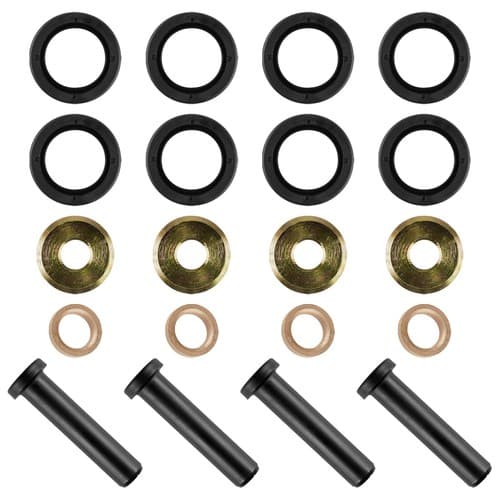

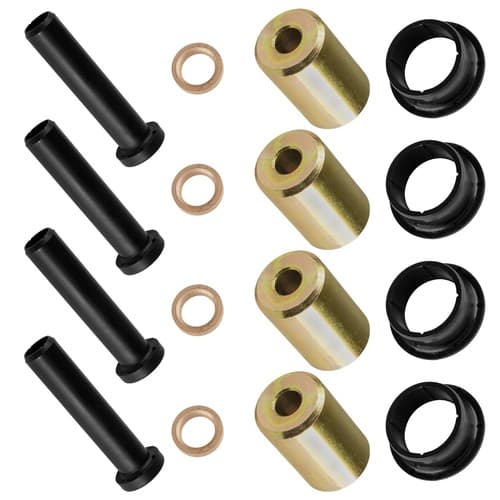

Order Includes :

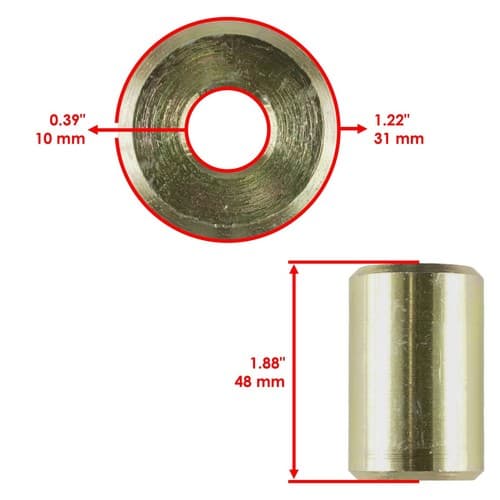

4x Pivot Shaft : 5131883 5020825

Length : 48mm
Inner Diameter : 10mm
Outer Diameter : 31mm

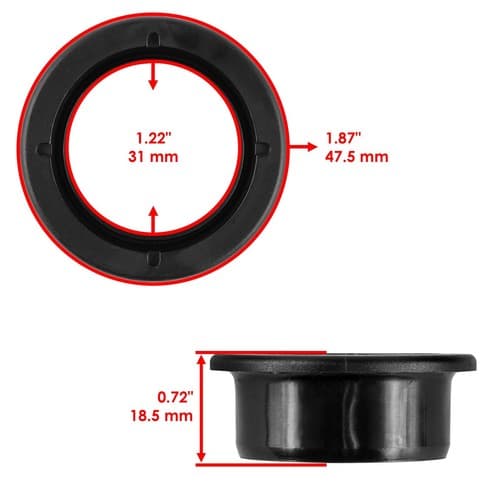

8x Bushing : 5438902 5433065 5432092 5434550

Height : 18.5mm
Inner Diameter : 31mm
Outer Diameter : 47.5mm

4x Bushing : 5436973, 5431596, 5433066, 5434551, 5436220

Height : 102mm | 4.0 "

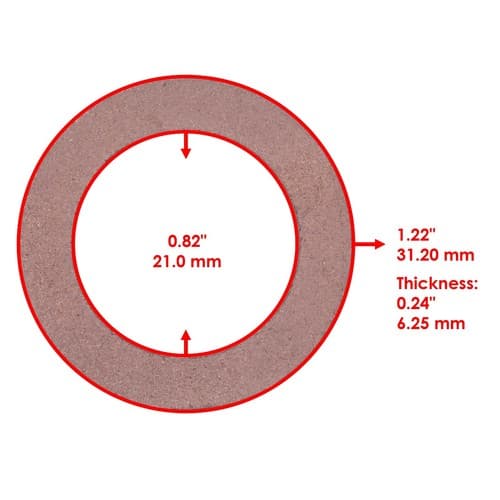

4x Spacer : 5020677
