Specifications
- MPN
- 1-303514 / 130-3514 / E303514, 1-303044
- Mpn
- 1-303514 / 130-3514 / E303514, 1-303044
- Type
- Bushing
- Brand
- Caltric
- Color
- Silver
- Model
- For Lawn Boy Exmark Toro
- Voltage
- 12 V
- Material
- Metal
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 23 HP
- Item Width
- 38.3 mm
- Item Height
Description
Premium Quality Replacement Part
Flanged Bearing
Flanged Bearing
Compatible with Ariens Models:
994300 (1948 FL) - Pro-Stance 48" Stand-On (SN: 000101 & Above)
994301 (1934 FX) - Pro-Stance 34" Stand-On (SN: 000101 & Above)
Compatible with Toro Models:
136 E (RZT 420 H) - Hayter 42" Zero-Turn (SN: 136E280000001 - 136E290999999) (2008-2009)
30150, 30161 - ProLine Walk-Behind (SN: 240000001 - 240999999) (2004)
30164, 30171 - ProLine Walk-Behind (SN: 200000001 - 210999999) (2000-2001)
30171 - ProLine Walk-Behind (SN: 230000001 - 230999999) (2003)
30178 - ProLine Walk-Behind (SN: 230000001 - 250999999) (2003)
30184, 30197 - ProLine Walk-Behind (SN: 089000001 - 200999999) (1998-2000)
30193, 30194, 30196 - ProLine Walk-Behind (SN: 089000001 - 210999999) (1998-2001)
30193 - ProLine Walk-Behind (SN: 230005001 - 230999999) (2003)
30194, 30196, 30521 - ProLine Walk-Behind (SN: 220000001 - 220999999) (2002)
30519, 30530 - ProLine Walk-Behind (SN: 250000001 - 250999999) (2005)
30523 - ProLine Walk-Behind (SN: 230000001 - 230005000) (2003)
30632 - Walk-Behind (SN: 310000001 - 999999999)
30634 - Walk-Behind (SN: 312000001 - 314999999) (2012-2014)
30672 - Walk-Behind (SN: 313000001 - 313999999 400000000 - 410299999)
30674 - Walk-Behind (SN: 311000001 - 311999999) (2011)
74360, 74380 (Z 4200) - TimeCutter Zero-Turn (SN: 270000001 - 310999999) (2007-2010)
74363 (Z 4220) - TimeCutter Zero-Turn (SN: 280000001 - 290999999) (2008-2009)
74365, 74366 (Z 4235) - TimeCutter Zero-Turn (SN: 310000001 - 310999999) (2010)
74370 (Z 5000) - TimeCutter Zero-Turn (SN: 270000001 - 280999999) (2007-2008)
74372 (Z 5020) - TimeCutter Zero-Turn (SN: 270000001 - 270999999) (2007)
74374 (Z 5040) - TimeCutter Zero-Turn (SN: 270000001 - 280999999) (2007-2008)
74375 (Z 5060) - TimeCutter Zero-Turn (SN: 280000001 - 280999999) (2008)
74381 (Z 4202) - TimeCutter Zero-Turn (SN: 280000001 - 290000210) (2008-2009)
Compatible with Exmark Models:
EX20KC - Explorer Zero-Turn (SN: 130000 - 149999) (1997)
EXS-18KO / EXS-18KO-2 - Explorer Zero-Turn (SN: 060000 - 079999) (1991-1992)
EXS-18KO/ EXS-18KO-2 - Explorer Zero-Turn (SN: 080000 - 089999) (1993)
EXS-20KC - Explorer Zero-Turn (SN: 090000 - 129999) (1994-1996)
EXS-20KC-2 - Explorer Zero-Turn (SN: 060000 - 129999) (1993-1996)
EXS-20KO - Explorer Zero-Turn (SN: 060000 - 089999) (1991-1993)
FMD52 - 52" Turf Ranger Front Mount (SN: 000001 - 079999) (1990-1992)
FMD52 - 52" Turf Ranger Front Mount (SN: 080000 - 089999) (1993-1996)
FMD522 - 52" Turf Ranger Front Mount (SN: 115000 - 319999) (1996)
FMD60 - 60" Turf Ranger Front Mount (SN: 000001 - 079999) (1990-1992)
32-12.5K-5 / 32-8.5B-5 - 32", 36", 48" Walk-Behind (SN: 00001 - 49999 70000 - 79999) (1987-1989 1992)
Lazer Z CT
LCT4418KC (SN: 370,000-439,999) (2003-2004)
LCT4818KC, LCT4819KA, LCT5219KA (SN: 370,000-509,999) (2003-2004)
Metro Five Speed
M15KA362, M15KA483 (SN: 670,000 & Up) (2007)
M32-12.5K-5, M32-12.5KO-5 (SN: 102,000-129,999) (1995-1996)
M3213KA (SN: 190,000-599,999) (1999-2005)
M3213KC (SN: 130,000-160,000 ) (1997)
M32-8.5B-5 (SN: 102,000-129,999) (1995-1996)
M329B (SN: 130,000-160,000 ) (1997)
M36-12.5K-5, M36-12.5KO-5 (SN: 102,000-129,999) (1995-1996)
M3613KA, M3613KC, M3614KA (SN: 130,000-160,000 ) (1997)
M3613KA, M3613KC (SN: 190,000-599,999) (1999-2005)
M3614KA, M3615KC (SN: 190,000-219,999) (1999-2005)
Turf Tracer
TT-14K (SN: 60,000-89,999) (1991-1993)
TT-18KO (SN: 60,000-79,999) (1991-1992)
TT-20KO (SN: 60,000-89,999) (1991-1993)
Turf Ranger
FMD-52 Ranger (SN: 102,000-129,999 (1995)
FMD-52 Ranger (SN: 70,000-101,999) (1992-1994)
FMD524 Ranger (SN: 320,000-439,999) (2002-2003)
FMD-60 Ranger (SN: 102,000-114,999 (1995)
FMD-60 Ranger (SN: 70,000-101,999) (1992-1994)
FMD604 Ranger (SN: 320,000-439,999) (2002-2003)
Ranger (SN: 130,000-319,999) (1997-2001)
TR-18KC, TR-20KC (SN: 102,000-114,999 (1995)
TR-18KO, TR-20KO (SN: 60,000-101,999) (1991-1994)
TR22KC (SN: 130,000-219,999) (1997-1999)
TR23KC (SN: 220,000-439,999) (2000-2003)
TR23KC524 (SN: 320,000-369,999) (2002)
TR23KC524 (SN: 370,000-439,999) (2003)
Turf Tracer HP
THP16KA363, THP16KA483, THP18KA523 (SN: 850,000 & Up
THP15KA363, THP17KA483, THP17KA523 (SN: 670,000 & Up)
THP19KAE483, THP19KAE523 (SN: 670,000 & Up)
THP20KAE483, THP20KAE523 (SN: 850,000 & Up)
TT3614KA, TT3615KC (SN: 150,000-189,999) (1998)
TT4814KA, TT4815KC (SN: 150,000-219,999) (1998)
TT4815KA, TT4815KC (SN: 220,000-599,999) (2000-2005)
TT4816BV (SN: 150,000-189,999) (1998)
TT4817KA (SN: 150,000--219,999) (1998)
TT4817KA, TT4817KAE, TT5217KA (SN: 220,000-599,999) (2000-2005)
TT5216BV (SN: 130,000-149,999) (1997)
TT5217KA (SN: 190,000-219,999) (1999)
VH16KA362, VH16KA483 (SN: 920,000 & Up)
VH481KA362, VH481KA483 (SN: 312,000,000 & Up)
VHS481GKA36200, VHS481GKA48300 (SN: 315,000,000 & Up)
Viking Hydro
V36-12.5K-5 (SN: 70,000-89,999) (1992-1993)
V36-12.5KO-5 (SN: 60,000-89,999) (1991-1993)
V3613KA, V3613KC (SN: 130,000-149,999) (1997)
V36-14K-5 / V36-14KO-5 (SN: 60,000-129,999) (1991-1996)
V36-14K-H / V36-14KO-H (SN: 102,000-129,999) (1995-1996)
V36-14K-H / V36-14KO-H (SN: 80,000-89,999) (1993)
V48-12.5K-5 / V48-12.5KO-5 (SN: 60,000-89,999) (1991-1993)
V48-14K-5 (SN: 115,000-129,999) (1996)
V4814KA, V4815KC (SN: 130,000-149,999) (1997)
V48-14K-H / V48-14KO-H (SN: 80,000-101,999) (1993-1994)
V48-16BV-H (SN: 90,000-101,999 (1994)
V52-14K-H (SN: 90,000-114,999) (1994-1995)
VH15KA362, VH15KA483 (SN: 670,000 & Up) (2007)
VH16KA362, VH16KA483 (SN: 850,000 & Up)
VH3215KAC (SN: 440,000-509,999) (2004)
VH3215KCC (SN: 260,000-439,999) (2001-2003)
VH3614KA (SN: 150,000-219,999) (1998-2000)
VH3615KA (SN: 220,000-319,999) (2000-2001)
VH3615KAC (SN: 440,000-509,999) (2004)
VH3615KAC (SN: 510,000-599,999) (2005)
VH3615KC (SN: 130,000-439,999) (1997-2003)
VH4814KA (SN: 130,000-219,999) (1997-1999)
VH4815KA (SN: 220,000-439,999) (2000-2003)
VH4815KAC (SN: 440,000-509,999) (2004)
VH4815KAC (SN: 510,000-599,999) (2005)
VH4815KC (SN: 130,000-319,999) (1997-2001)
VH5216BV (SN: 130,000-149,999) (1997)
VH5217KAC (SN: 440,000-509,999) (2004)
VH5217KAC+B89 (SN: 510,000-599,999) (2005)
Metro HP
MG16KA322P, MG16KA362, MG16KA483 (SN: 920,000 & Up)
MG481KA322P (SN: 313,000,000 & Up)
MG481KA362, MG481KA483, MG481KA483P (SN: 312,000,000 & Up)
MGS481CKA36200, MGS481CKA48300 (SN: 315,000,000 & Up)
MGS481CKA36200, MGS481GKA322P0 (SN: 402,082,300 and Up)
MHP3615KA (SN: 220,000-259,999) (2000)
MHP3615KAC, MHP4815KAC (SN: 320,000-599,999) (2002-2005)
MHP3615KAC (SN: 540,000-599,999) (2005 Late)
MHP3615KC, MHP4816B (SN: 150,000-219,999) (1998-2000)
MHP4814KA, MHP4815KC, MHP4817KA (SN: 150,000-219,999 ) (1998-2000)
MHP3615KAC, MHP4815KAC, MHP4817KA (SN: 260,000-319,999) (2001)
MHP5217KA (SN: 190,000-219,999) (1999), (SN: 220,000-259,999) (2000)
Steerable Sulky (SN: 115,000-129,999) SN: 600,000-669,999)
TTS16KA363, TTS16KA483, TTS16KA523 (SN: 920,000 & Up)
TTS20KAE483, TTS20KAE523 (SN: 920,000 & Up)
TTS20PKAE483, TTS20PKAE523 (SN: 920,000 & Up)
TTS481CKA36300, TTS481GKA48300 (SN: 315,000,000 & Up)
TTS481CKA36300, TTX650EKC52400 (SN: 400,000,000 and Up)
TTS481CKA48300 (SN: 406,294,345 and Up)
TTS481GKA48300, TTS541CKA48300 (SN: 402,082,300 and Up)
TTS481KA363, TTS481KA483, TTS541KA523 (SN: 312,000,000 & Up)
TTS541CKA48300, TTS541GKA52300 (SN: 315,000,000 & Up)
TTS600CKA363E0, TTS600CKA483E0 (SN: 413,950,474 and Up)
TTS600GKA363E0 (SN: 417,930,746 and Up)
TTS600GKA483E0, TTS600GKA523E0, TTS680PKC48300 (SN: 315,000,000 & Up)
TTS600GKA523E0, TTS680PKC483E0 (SN: 402,082,300 and Up)
TTS600KAE483, TTS600KAE523, TTS600PKAE483 (SN: 312,000,000 & Up)
TTS600KAE483, TTS680PKCE483 (SN: 314,000,000 & Up)
TTS481KA363, TTS600KAE523, TTS600PKAE483 (SN: 313,000,000 & Up)
Order Includes:

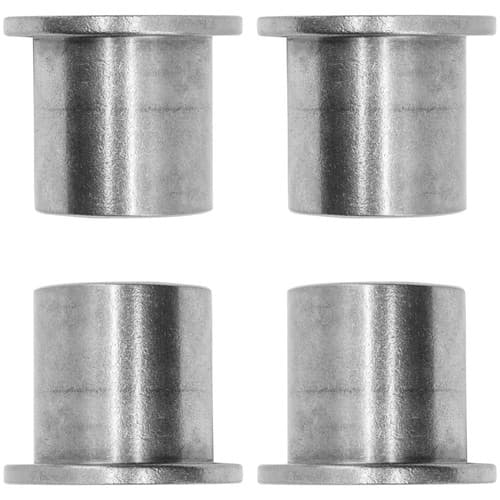

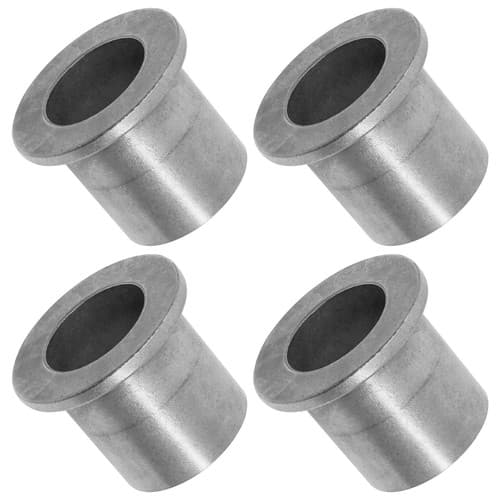

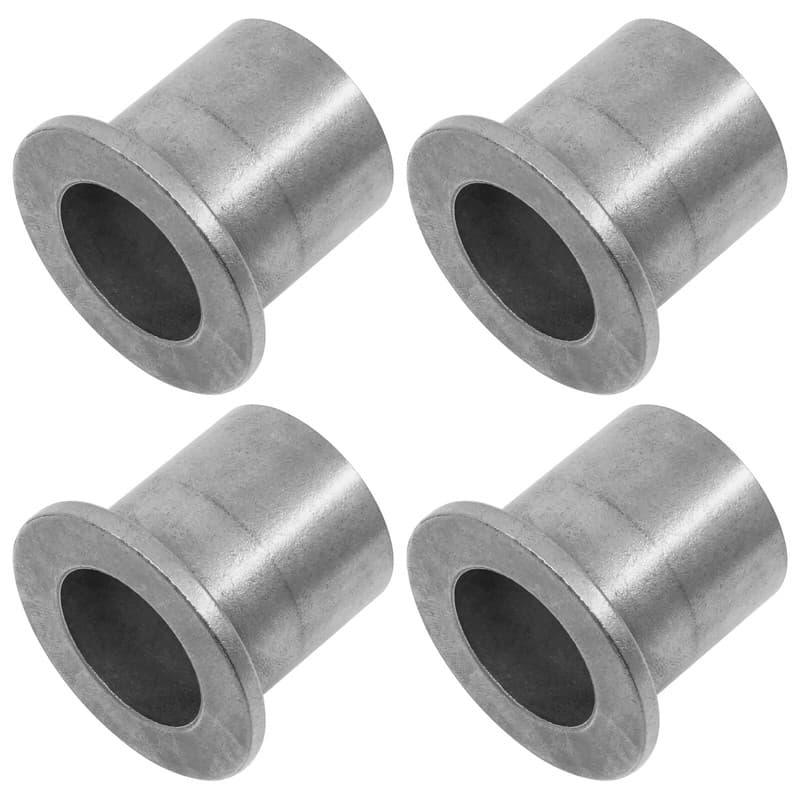

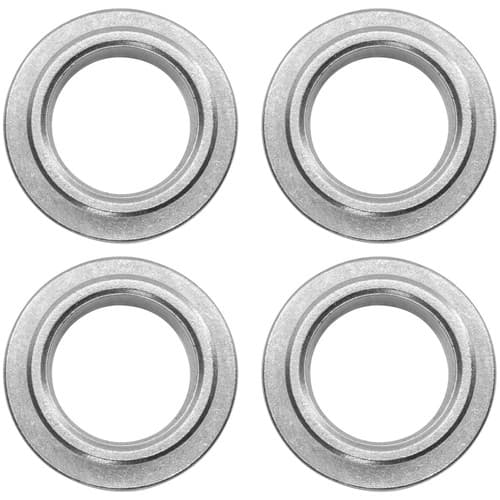

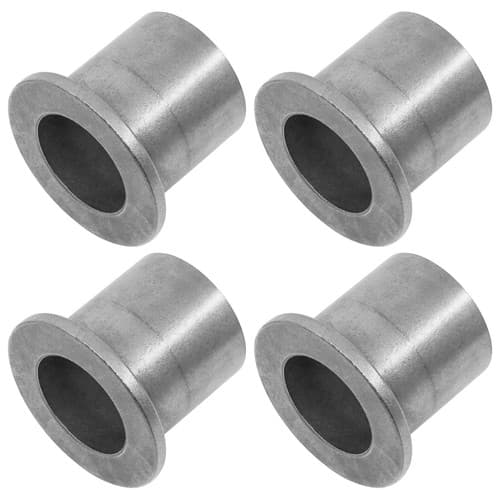

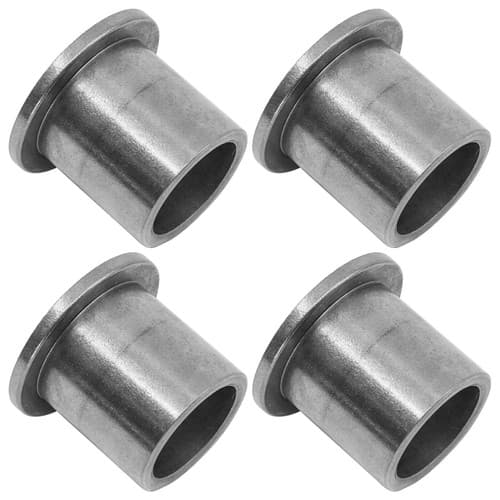

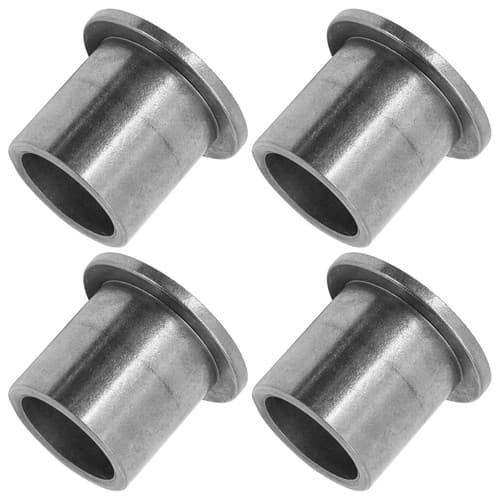

4x Flanged Bearing: 1-303514, 130-3514, E303514, 1-303044

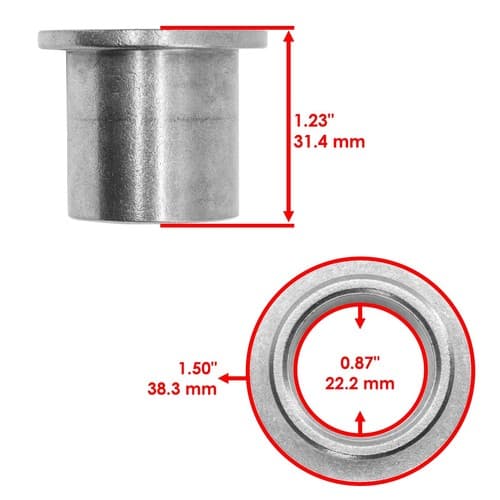

Inner Diameter: 22.2 mm - 0.87 in
Outer Diameter: 38.3 mm - 1.5 in
Height: 31.4 mm - 1.2 in
