Specifications
- MPN
- 810-CPT2364O
- Mpn
- 810-CPT2364O
- UPC
- 803467019055
- Type
- Clutch
- Brand
- 8TEN
- Color
- Gray
- Model
- 8TEN 810-CPT2364O
- Gtin13
- 803467019055
- Voltage
- N/A
- Material
- N/A
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Width
- 9.0
Description

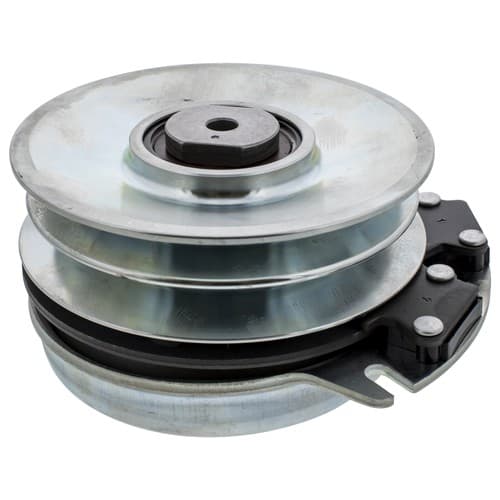

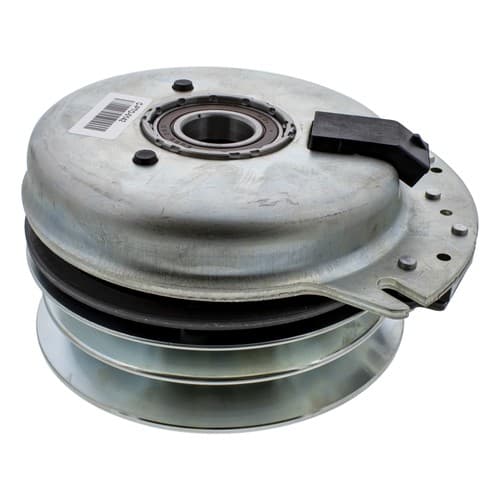

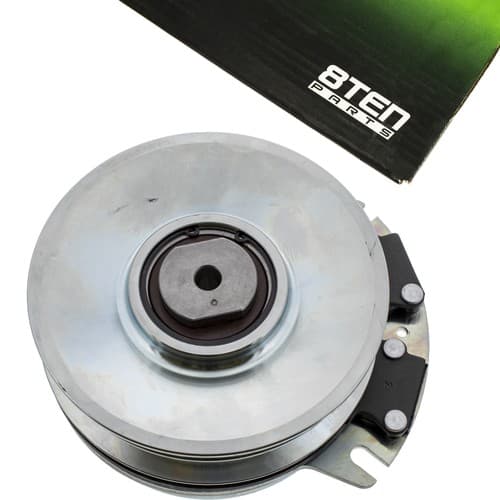

A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F
Unique Specs:
Torque: 280Nm (205ft-lb)
Resistance at 70F: 2.0+-0.1
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F
Unique Specs:
Torque: 280Nm (205ft-lb)
Resistance at 70F: 2.0+-0.1

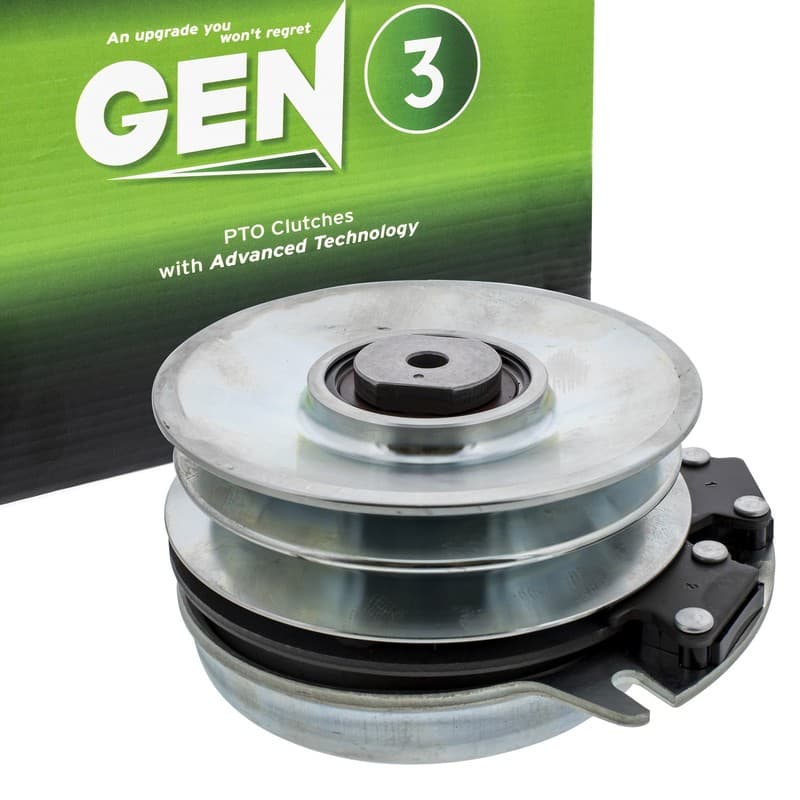

8TEN Electric PTO Clutch for Exmark Toro Lazer Z XP Z590-D Z597-D 109-6627 X0238
Description
Direct Replacement for the Following OEM Part Numbers:
103-0011, 109-6627, 103-0083, 109-6626
Fits The Following OEM Models:
Toro Z-Master Z597-D 72 inch Turbo Force, Toro Z-Master Z597-D 72 inch, Toro Z-Master Z597-D 62 inch, Toro Z-Master Z597-D 60 inch Turbo Force, Toro Z-Master Z590-D 72 inch Turbo Force, Toro Z-Master Z590-D 60 inch Turbo Force, Toro Z-Master 7000 72 inch Turbo Force, Toro Z-Master 7000 60 inch Turbo Force, Exmark Lazer Z XP 72 inch, Exmark Lazer Z XP 60 inch, Exmark Front Runner 31hp Air Cooled, Exmark Front Runner 27hp Air Cooled, Exmark Front Runner 25hp Diesel, Exmark Front Runner 25hp Air Cooled, Exmark Front Runner 23hp Air Cooled, Exmark Front Runner 20hp Air Cooled
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warranty
8TEN Parts have a 810-Day Limited Warranty. This 8TEN Parts 810-Day Limited Warranty is your sole remedy with respect to any 8TEN Part.
Please contact us for full warranty details, certain exclusions and restrictions may apply.
Shipping
All items are carefully packed and properly protected for shipment. We use several different carriers and choose the most economical for the item and destination based on the estimated handling and transit time.
This item is subject to a handling time of 1 Business Day(s) from the time of order until the item is expected to ship from our facility!!!
Please make every attempt possible to verify that part/product being purchased is correct for your application
In the event of shipping damage, improper fitment, or a desire to return the product, or any other questions related to a past or future order please feel to contact us.
About 8TEN
Forged directly from the belief that better products for Lawn Mowers, Chainsaws, and all other Outdoor Power Equipment is possible, 8TEN Parts combines attention to detail and a "Get The Job Done Right" attitude. Our high-quality control standards and premium OEM Specification manufacturing materials has created a new standard in the OPE Replacement Parts Industry.
