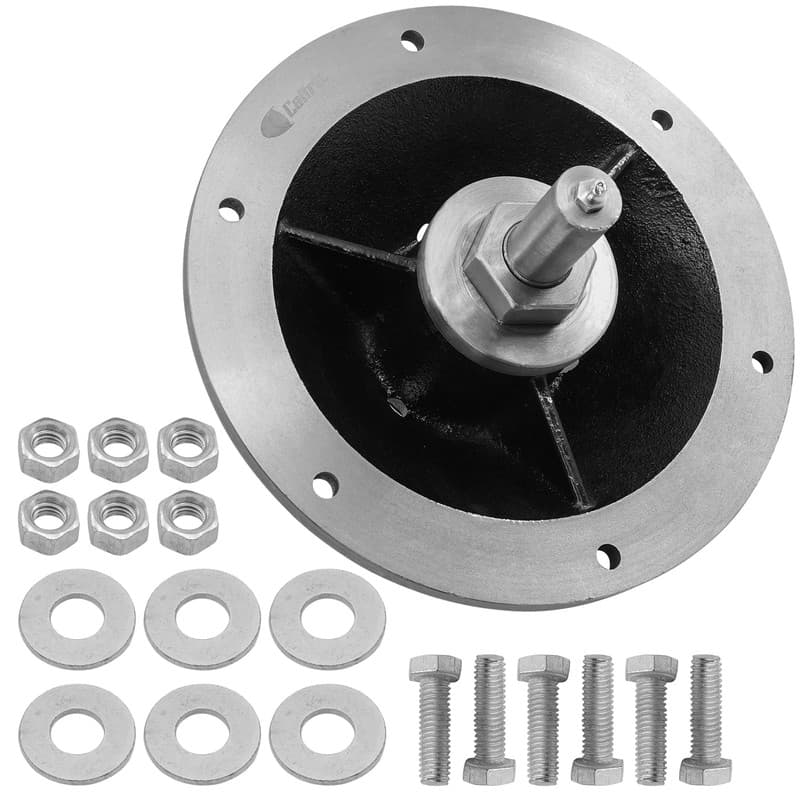

72" Deck Spindle for Snapper Pro S200XT S/N: 2016950123 to 2017458255 & Above

Premium Quality Replacement Part

Deck Spindle

Compatible With Snapper Models:

S200xt (5900505 , 5901286 , 5901287.0 , 5901287.1, 5901511, 5901667 ) - 72" (S/N: 2017458255 & Above)

Compatible With Simplicity Models:

3900 (5900598) - 72" (S/N: 2016950123 & Above)
5901798 - Cobalt Le 61"
5901799 - Cobalt Le 72"

Compatible With Ferris Models:

3100/72 (5900718, 5901184, 5900510, 5901221, 5901413, 5901572) - 72" (S/N: 2017458255 And Above)
3200z/61rdce (5901859, 5901917) - 61"
5000/61r , 5100/61rce (5900201, 5900202, 5900622, 5900726) - 61" (S/N: 2017458255 And Above)
5000/72 (5900203, 5900204, 5900205, 5900591, 5901167) - 72" (S/N: 2017458255 And Above)
5100/72ce , 5100/72r (5900724, 5901010, 5901171, 5901168, 5900725) - 72" (S/N: 2017458255 And Above)
5900159 - Is4500z W/ 61" (Is4500z) (2005)
5900160 - Is4500z W/ 61" (Is4500zc28d61) (2005)
5900161 - Is4500z (Is4500zc28d61ce) (2005) S/N: 2017162949 & Below
5900202 , 5900203 , 5900205 , 5900510 , 5900591 - 61" (5000/61rce) S/N: 2017162949 & Below
5900592 - 72" (5100/72rd) S/N: 2017162949 & Below
5900621 - 72" (4500/72) (2006) S/N: 2017162949 & Below
5900622 , 5900623 - 61" (510061r) S/N: 2017162949 & Below
5900626 - Is4500z 61" S/N: 2017162949 & Below
5900718 , 5900722 , 5900724 , 5900725 - 72" (3100/72 , 4500/72, 5100/72ce) S/N: 2017162949 & Below
5900857 , 5900997 - 61"
5900998 - 72" (5100/72rdce)
IS3100Z Series Models
5901221 - 72" (3100z/72)
5901284 - Is3100z Series W/ 72" (Is3100zbv3272)
IS5100Z Series Models
5900300 , 5900301 ,5900302 , 5900559 , 5900611 , 5900612 , 5900613 , 5900690 , 5900691 , 5900708
5900736 , 5900753 , 5900787 , 5900795 , 5900873 , 5900970 , 5900717
5900752 , 5900786 , 5900788 , 5900789 , 5900790 , 5900791 , 5900792 , 5900793 , 5900794 , 5900872
5900969 - Is3100z Series W/ 61" S/N: 2015182912 & Below
5901285 - Is3100z Series W/ 72" (Is3100zkav3772)
IS5100Z Series Models
5900507 , 5900602 , 5900617 , 5900723
5900618 , 5900934 , 5900944 , 5900979 , 5900944 , 5900979 , 5900996 - Is5100z Series 61"
5900620 , 5900721 - Is4500z Series (2005)
5901282 , 5901283 - Is5100z Series 72"
Is5000zc31d - Is5000z Series (S/N: 1226 & Above)
Is5000zc31d61ce - Is5000z Series W/ 61" (S/N: 1226 & Above)
Is5000zc31dce - Is5000z Series (S/N: 1226 & Above)
IS3200Z Series Models
5901350 , 5901351 , 5901354 , 5901356 , 5901358 - Is3200z Series W/ 61"
5901352 , 5901353 , 5901355 , 5901357 , 5901360 , 5901459 - Is3200z Series W/ 72"
5901359 , 5901412 , 5901414 , 5901458 , 5901533 - Is3200z Series W/61"
5901554 , 5901567 , 5901568 , 5901569 , 5901575 - Is3200z Series W/ 61"
5901570 , 5901571 , 5901572 , 5901573 . 5901574 , 5901576 - Is3200z Series W/ 72"
5901577 , 5901579 , 5901781 , 5901831 - Is3200z Series W/ 61"
5901832 , 5901833 , 84003242 , 5901841 , 5901859 - Is3200z W/ 61"
F320Z Series Models
5901522 , 5901525 , 5901645 , 5901646 , 5901712 - F320z Series W/ 72"
5901523 , 5901524 , 5901643 , 5901644 , 5901710 , 5901711 - F320z Series W/ 61"
IS6200 Series Model
5901849 , 5901850 , 5901851 , 5902162 , 5902163 - Is6200 Series 72"
ISX3300 Series Models
5901855 , 5901881 , 5901914 , 5901938 , 5901979 , 5901980 - Isx3300 Series W/ 61"
5901856 , 5901872 , 5901981 , 5901983 , 5902032 , 5901713 - Isx3300 Series W/ 72"
5901857 , 5901982 , 5902031 , 5902033 , 5902034 , 5902039 - Isx3300 W/ 61"
5902064 , 5902065 , 5902066 . 5902067 , 5902068 - Isx3300 Series W/ 60"
5902118 , 5902145 , 5902160 , 5902161 , 5902035 - Isx3300 Series 72"

Note:

This spindle shaft, where the pulley attaches, is non-threaded. Some serial number models use a threaded shaft.

Order Includes:

1 x Spindle:
Compatible With Ferris: 84003242, 5413009, 84007984, 5049438,
Compatible With Simplicity: 84003242, 5413009, 84007984, 5049438,
Compatible With Snapper: 84003242, 5413009, 84007984, 5049438

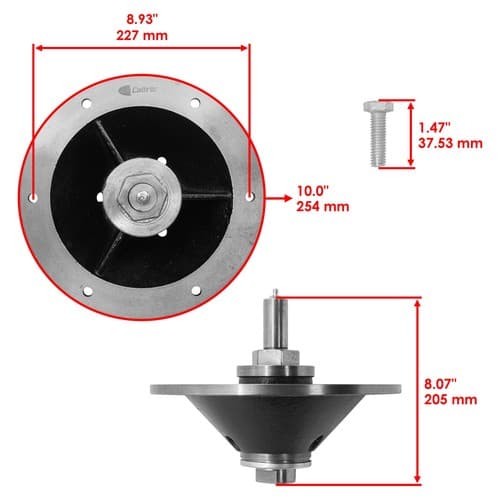

Outer Diameter: 254 mm - 10.0 in
Height: 208 mm - 8.18 in
Hole Distance: 226.7 mm - 8.92 in
Bolt Height: 37.53 mm - 1.47 in
