Specifications
- MPN
- 69219700, 59225700, 03253900, 07300026, 07329167, 07328867, 07300021, 59211500, 59211600, 07300022
- Mpn
- 69219700, 59225700, 03253900, 07300026, 07329167, 07328867, 07300021, 59211500, 59211600, 07300022
- Type
- Mowr Deck Spindle with Pulley and Blade Kit
- Brand
- Caltric
- Color
- Black
- Model
- For ZT2560 ZT2660 ZT2760 ZT60 Max-Zoom Zero-Turn Mower
- Voltage
- 12 V
- Material
- Steel, Cast Iron
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- For More Information Reffer to Description
- Horsepower
- 24 HP - 27 HP
Description
Premium Quality Replacement Part
Mower Deck Spindle Assembly with Pulley and Blade Kit
Compatible with Gravely Zero-Turn Mower:
991038 (ZT 2760 HD) 60" 27hp Kh Courage (SN: 000200 & Above)
991041 (ZT 2660 HD) 60" 26hp B & S (SN: 000200 & Above)
991055 (ZT 2560 HD) 60" 25hp Kh (SN: 000101 & Above)
991057 (ZT 2760 HD) 60" 27hp Kh (SN: 000101 & Above)
991070 (ZT 60 HD) 60" Kaw. (SN: 000101 & Above)
991084 (ZT 60 HD) 60" Kaw. (SN: 000101 - 060000 & Above)
991091 (ZT 60 HD) 60" Kaw. (SN: 000101 - 020000 & Above)
Compatible with Ariens Max-Zoom Zero-Turn Mower:
991075 Max-Zoom HD 60" 24hp Kaw. (SN: 000101 & Above)
991087 Max-Zoom 60" 24hp Kaw. (SN: 000101 - 059999)
Order Includes:

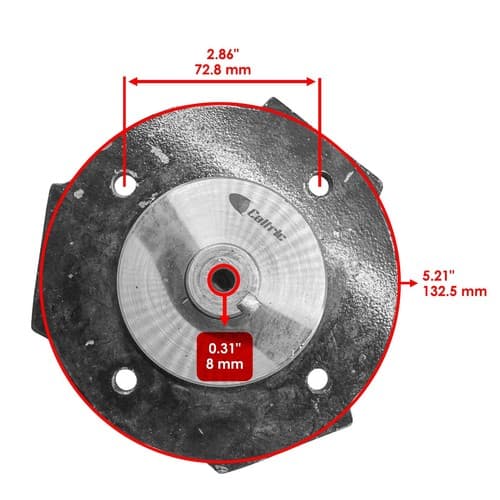

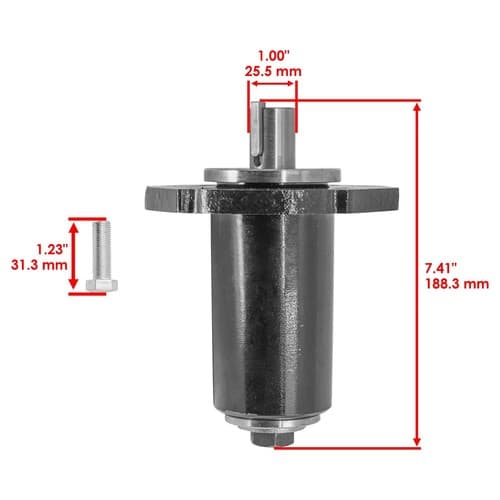

3 x Spindle: 69219700 59225700
Height: 7.41 in - 188.3 mm
Mouting Bolt Length: 1.23 in - 31.1 mm
Inner Diameter: 0.31 in - 8 mm
Outer Diameter: 2.86 in - 132.5 mm
Mouting Hole Distance: 2.86 in - 72.8 mm

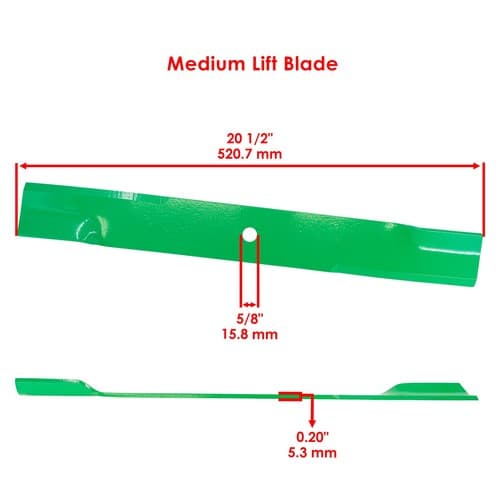

3 x Deck Medium-Lift Blade:
03253900, 8979600, 08979651, 46999
8979651, 046999, 89796, 08979600
Stens: 355-600
Length: 20.37 in - 517.5 mm
Width: 2.51 in - 64 mm
Thickness: 0.20 in - 5.3 mm
Hole Diameter: 0.64 in - 15.5 mm
Type: Medium-Lift
Powder Coated
1 x Double Spindle Sheave Pulley:
07300026, 07329167
Inner Diameter: 1.02 in - 26 mm
Outer Diameter: 6.73 in - 171 mm
Width: 1.85 in - 47 mm
1 x Double Spindle Sheave Pulley:
07328867, 07300021, 59211500
Inner Diameter: 1.0 in - 25.4 mm
Outer Diameter: 6.77 in - 172 mm
Width: 1.96 in - 50 mm
1 x Spindle Sheave Pulley:
59211600, 07300022
Inner Diameter: 1.0 in - 25.6 mm
Outer Diameter: 6.74 in - 171.4 mm
Width: 1.57 in - 40 mm
