Specifications
- MPN
- 58810800, 69219700, 59225700, 59109800
- Mpn
- 58810800, 69219700, 59225700, 59109800
- UPC
- Does not apply
- Type
- Spindle with Blade
- Brand
- Caltric
- Color
- Silver
- Model
- For Gravely ZT2760HD, ZT2660HD, ZT2560HD, ZT60HD, ZTHD60, PM200
- Gtin13
- Does not apply
- Voltage
- 12 V
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
Description
Premium Quality Replacement Part
NOTE: This is the NEW Design of the old version

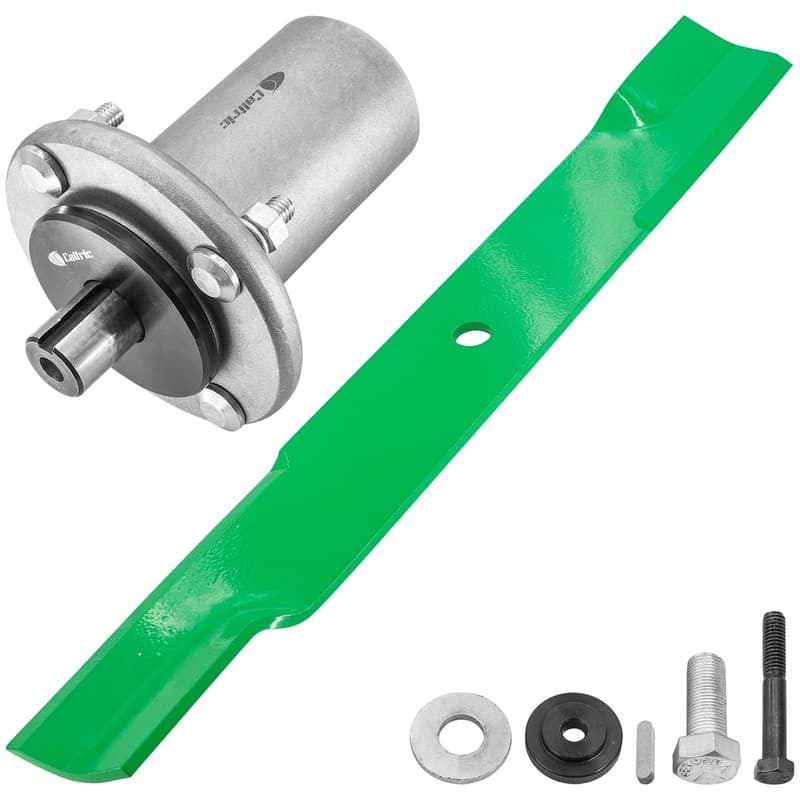

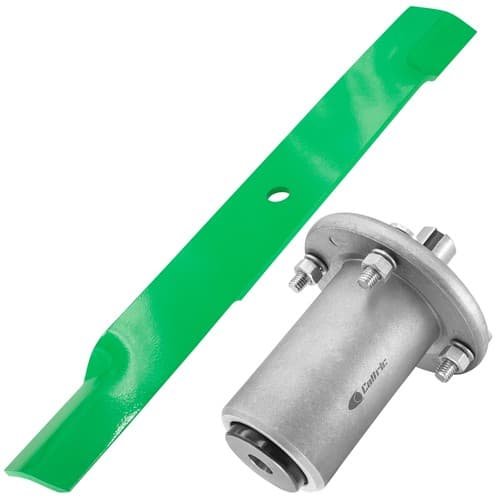

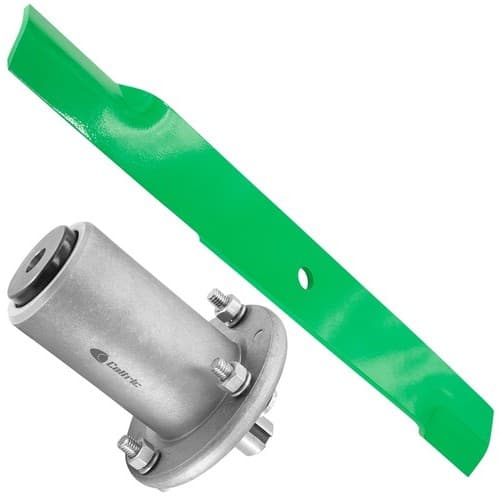

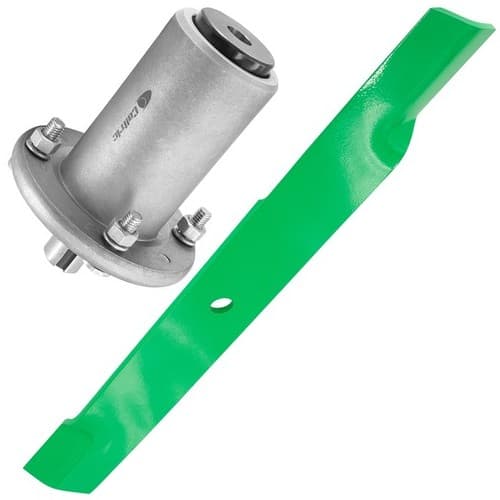

Deck Spindle Assembly with Blade
Compatible with Gravely Zero-Turn Mower:
991038 (ZT 2760 HD) 60" 27hp Kh Courage (SN: 000200 & Above)
991041 (ZT 2660 HD) 60" 26hp B & S (SN: 000200 & Above)
991055 (ZT 2560 HD) 60" 25hp Kh (SN: 000101 & Above)
991057 (ZT 2760 HD) 60" 27hp Kh (SN: 000101 & Above)
991070 (ZT 60 HD) 60" Kaw (SN: 000101 & Above)
991084 (ZT 60 HD) 60" Kaw (SN: 000101 & Above)
991091 (ZT 60 HD) 60" Kaw (SN: 000101 & Above)
992007 (PM 200) Pro-Master 25hp Kh (SN: 000101 & Above)
992008 (PM 200) Pro-Master 20hp Kh (SN: 000101 - 000200)
992010 (PM 200) Pro-Master 20hp Kaw (SN: 000101 - 000195)
992012 (PM 200) Pro-Master 22hp Kh (SN: 000101 - 000202)
992003 (PM 200) Pro-Master 60" 20hp Kh (SN: 000101 - 000700)
992005 (PM 200) Pro-Master 60" 18hp Kaw (SN: 000101 & Above)
992014 (PM 200) Pro-Master 50" 20hp Kaw (SN: 000101 & Above)
992016 (PM 200) Pro-Master 60" 20hp Kh (SN: 000101 & Above)
Zero-Turn Mower:
991186 (ZT HD 60) - 60", 24hp Kaw. FR, CARB (SN: 000101 - 014999)
991156 (ZT HD 60) - 60", 26hp Kh KT (SN: 000101 - 014999)
991166 (ZT HD 60) - 60", 24hp Kaw. FR (SN: 000101 - 014999)
Compatible with Ariens Zero-Turn Mower:
991040 (2660 HD) Zoom 60" 26hp B & S (SN: 000200 & Above)
991056 (2560) Max-Zoom 60" 25hp Kh (SN: 000101 & Above)
991075 Max-Zoom HD 60" 24hp Kaw (SN: 000101 & Above)
991087 Max-Zoom 60" 24hp Kaw (SN: 000101 & Above)
991151 Apex 60" Kaw FR (SN: 000101 & Above)
991157 Apex 60" Kh (SN: 000101 - 014999)
991177 - Apex 60", Kaw. FR, CARB (SN: 000101 - 014999)

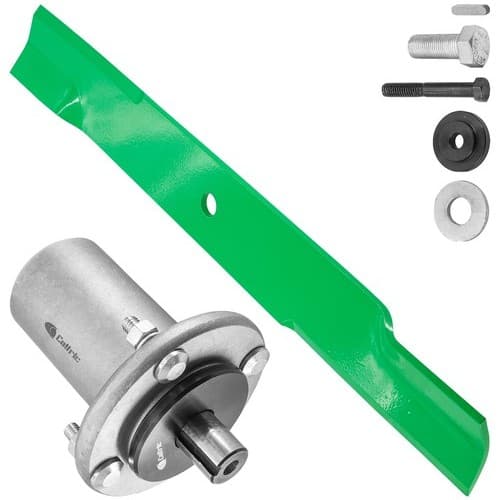

Order Includes:

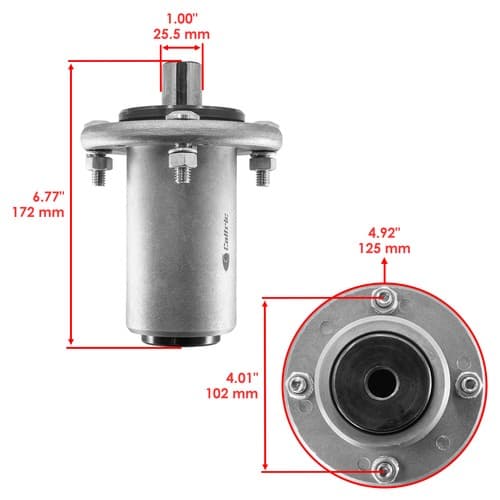

1x Spindle Assembly: 58810800, 69219700, 59225700, 59109800
Height: 172 mm - 6.77 in
Outer Diameter: 125 mm - 4.92 in
Mounting Hole Distance: 102 mm - 4.01 in

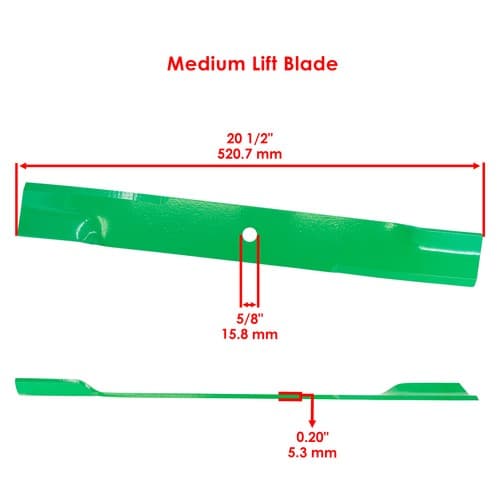

1x Blade: 03253900, 08979600, 8979651
Length: 520.7 mm - 20 1/2 in
Thickness: 5.3 mm - 0.20 in
Hole Diameter: 15.8 mm - 5/8 in
Type: Medium-Lift
Powder Coated
