Specifications
- MPN
- 602771, 793794X, 794685, 794685X, 93340, 1-613112, 103-0301-S, 1-603283, 1-633483, 103-2530-S, 1613112, 1030301S, 1603283, 1633483, 1032530S, 103-1026, 1-800848, 1031026, 1800848, 781872
- Mpn
- 602771, 793794X, 794685, 794685X, 93340, 1-613112, 103-0301-S, 1-603283, 1-633483, 103-2530-S, 1613112, 1030301S, 1603283, 1633483, 1032530S, 103-1026, 1-800848, 1031026, 1800848, 781872
- Type
- Blade with Bolt
- Brand
- Caltric
- Color
- Green
- Model
- For Hustler Diesel Z, Super Z, Super Z EX, X-ONE, Super SF
- Voltage
- 12 V
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Width
- 0.19 in
Description
Premium Quality Replacement Part
Deck Blade with Bolt
Compatible with Exmark Models:
Lazer Z Zero-Turn Mower:
Lz18kc523 - 60", 18hp Koh. (Sn: 130000 - 149999) (1997)
Lz18kc523 - 60", 18hp Koh. (Sn: 190000 - 219999) (1999)
Lz22kc523 - 60", 22hp Koh. (Sn: 130000 - 219999) (1997-1999)
Lz22kc604 - 60", 22hp Koh. (Sn: 190000 - 219999) (1999)
Lz22lka523 - 60", 22hp Kaw. (Sn: 190000 - 259999) (1999-2000)
Lz22lka604 - 60", 22hp Kaw. (Sn: 190000 - 259999) (1999-2000)
Lz23kc523 - 60", 23hp Koh. (Sn: 220000 - 259999) (2000)
Lz23kc604 - 60", 23hp Koh. (Sn: 220000 - 259999) (2000)
Turf Ranger Front Mount Mower:
Fmd523 - 60" (Sn: 130000 - 259999) (1997-2000)
Fmd603 - 60" (Sn: 130000 - 259999) (1997-2000)
Turf Tracer Hydro Walk-Behind Mower:
Fmd523 - 60" (Sn: 130000 - 259999) (1997-2000)
Fmd603 - 60" (Sn: 130000 - 259999) (1997-2000)
Compatible with Hustler Models:
Alpha Mp - 60"
Diesel Z - 60"
Fastrak - 60"
Fastrak Sd - 60"
Fastrak Sdx - 60"
Raptor Sd - 42", 60"
Raptor Sd Ex - (S/N 17019008 & Higher) (S/N Prior To 17019008) 42"
Raptor Sd Ex - 60"
Raptor Sdx - 60"
Raptor X - 42"
Raptor Xd - 42", 60"
Raptor Xdx - 60"
Raptor Xl - 42"
Rd Diesel Z - 60"
Rd X-One - 60"
Sport - Produced After S/N 1011 - 42"
Super S - 60"
Super S, Super Z - 60"
Super Sf - 60"
Super Z - 60"
Super Z - Produced After S/N 1210
Super Z Ex - 60"
Super Z Hd - 60"
Super Z W/Tweels - 60"
Trimstar - 60"
Vx4 Super Z - 60"
X-One - 60"
X-One W/Tweels - 60"
X-Ride - 60"

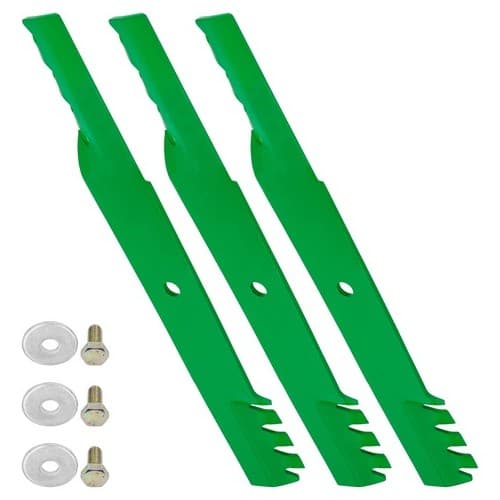

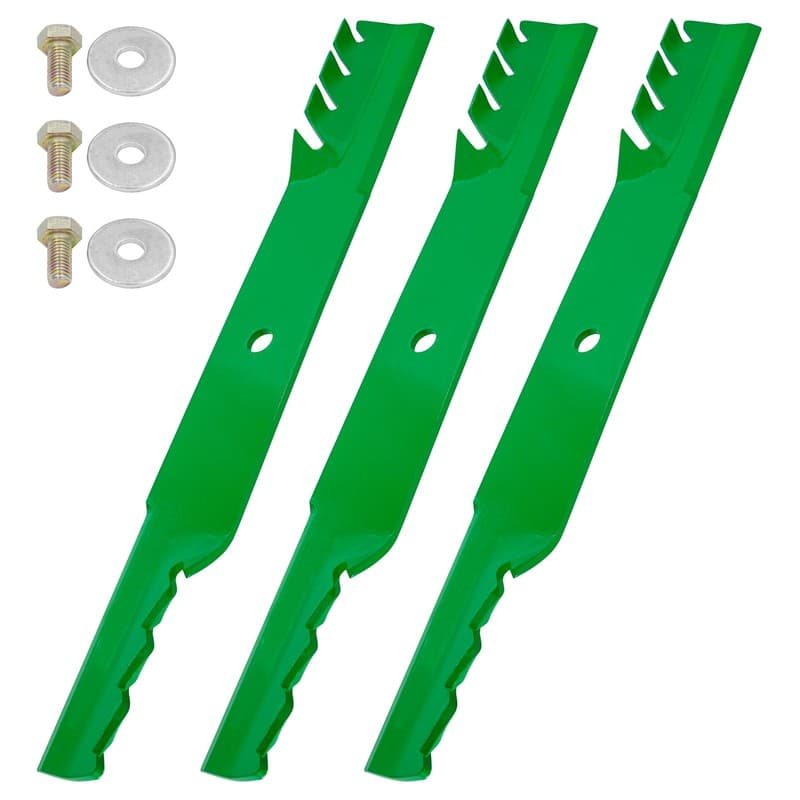

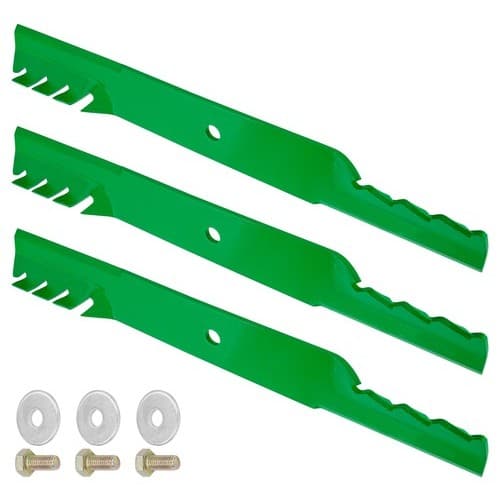

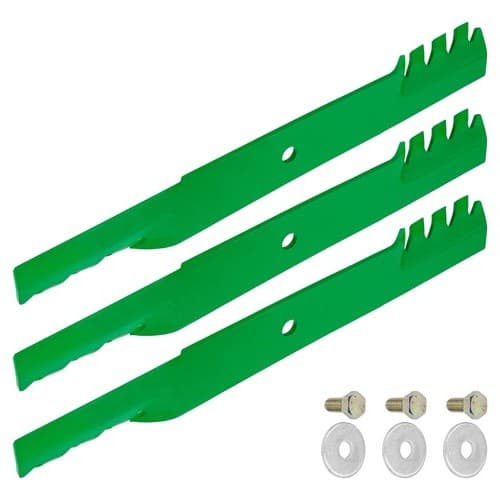

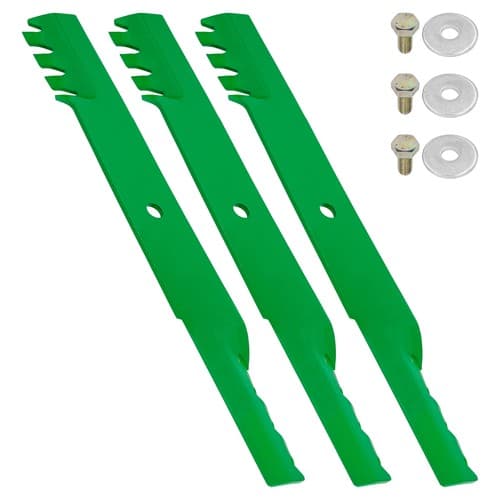

Order Includes:
3x Toothed Blade: Exmark: 103-0301, 103-0301-S, 103-1580, 103-1580-S,
103-2530, 103-2530-B, 103-2530-M, 103-2530-S, 103-3231, 103-3232, 103-3232-S,
103-3233, 103-3233-S, 103-6338-S, 116-5173-S, 1-603283, 1-603874,
1-613112, 1-613250, 1-633483, 603283, 613072, 613112, 613250, 633483,
Hustler: 794230, 602771, 793794X, 794685, 794685X, 93340, 600901,
602771X, 606253, 793794, 794214

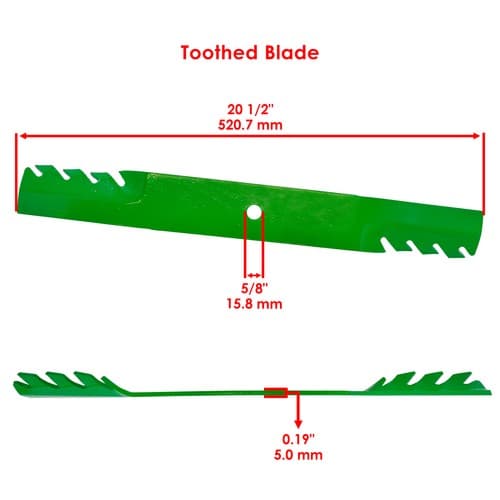

Length: 20 1/2 in - 520 mm
Width: 2.50 in - 63.5 mm
Thickness: 0.26 in - 6.5 mm
Mounting Hole Diameter: 5/8 in - 15.8 mm

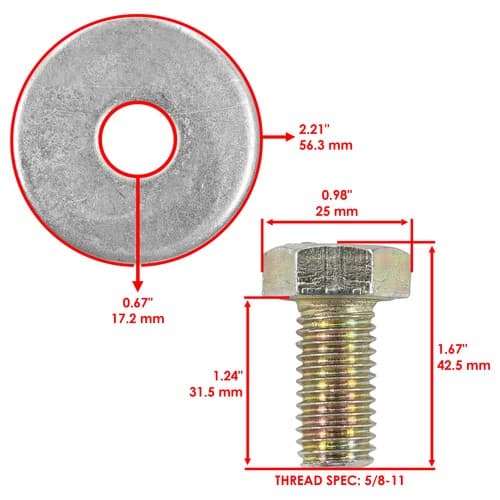

3x Bolt: Exmark: 103-1026, 1-800848, 1-800340 & 1-513208,
Hustler: 781872, 782474
Overall Length: 1.67 in - 42.5 mm
Thread Length: 1.24 in - 31.5 mm
Head Width: 0.98 in - 25mm
Thread Spec: 5/8-11
