54" Deck Spindle Blade Belt Pulley Rebuild Kit Fits Husqvarna LGT24K54 54" Deck

Premium Quality Replacement Part

SPINDLE BLADE MULCHING REBUILD KIT

Compatible with Following HUSQVARNA Models:

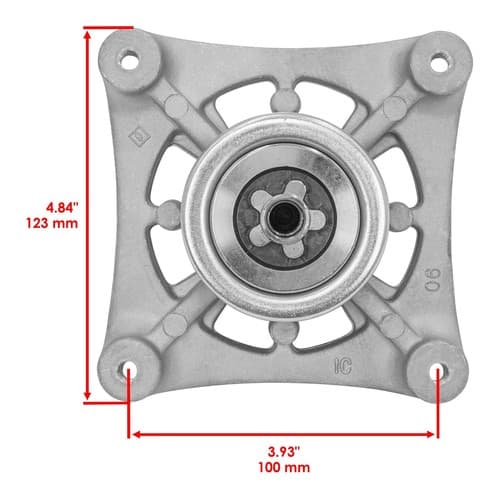

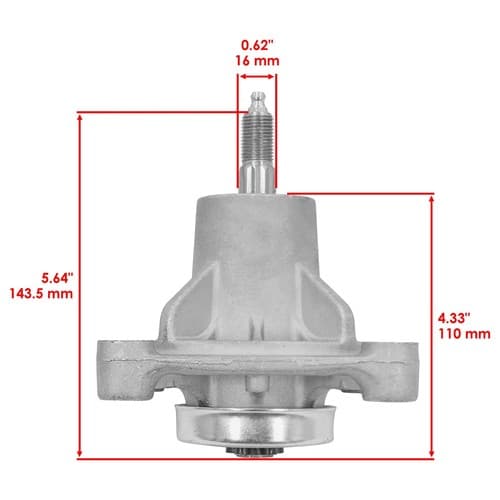

Spindle Spec:

NOTE:

Mounting holes do not have thread.Power gun

is needed to install the bolts.It is designed to withstand the vibration.

SPECS:

Height: 7 1/2 "

Blade mount is 5 pt. star shaped

Part numbers:

285585

187292

192870

532187292

532187281

532192870

539112057

587125401

587253301

587819701

587256401

21546238

21546299

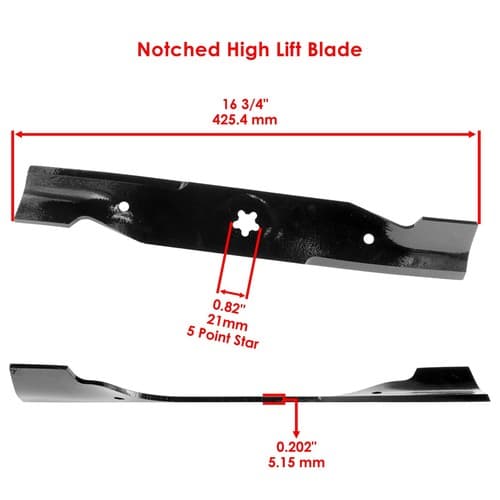

Blade Spec:

Width 2.5"

Length 18-1/2"

Center Hole 5 Point Star

Deck Size 54" Cut

Part numbers:

187254

187256

532187256

R14459

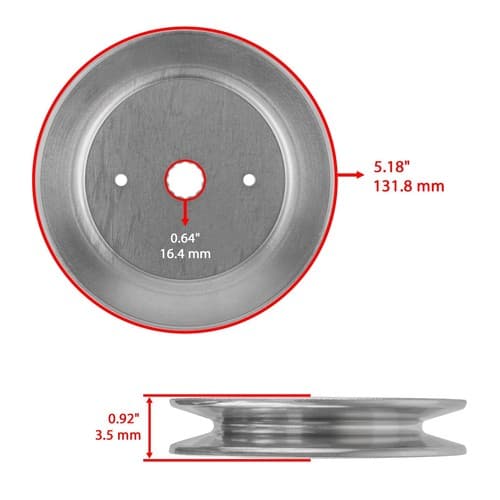

Spindle Pulley Spec:

ID: .640 " DOUBLE HEX

OD: 5 1/8 "

Double hex ID

Part numbers:

129861

153535

173436

177865

532173436

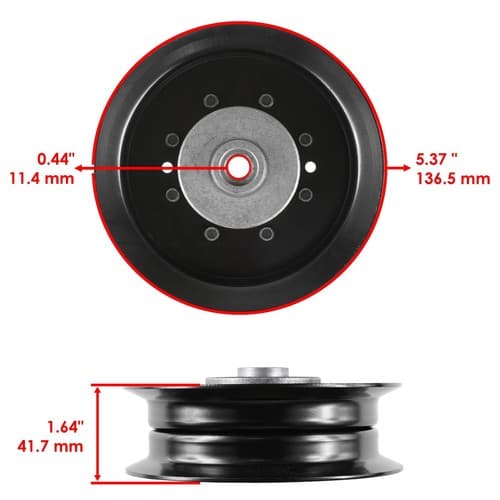

Idle Pulley Specs:

ID: 0.45"

OD: 5-3/8"

Height 1-11/16"

Part Numbers:

532196104

532197380

196104

197380

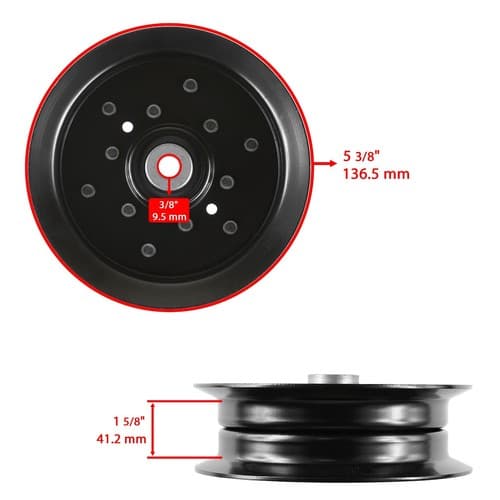

Idler Pulley Specs:

Inner diameter  3/8"

Outer diameter  5-3/8"

Height 1-5/8"

Part Numbers:

532196106

532197379

196106

197379

13175

 Belt Specs:

Size: (Width: 5/8" x Length: 147-3/4")

Belt Part Numbers:

196103

587686701

532196103

686701

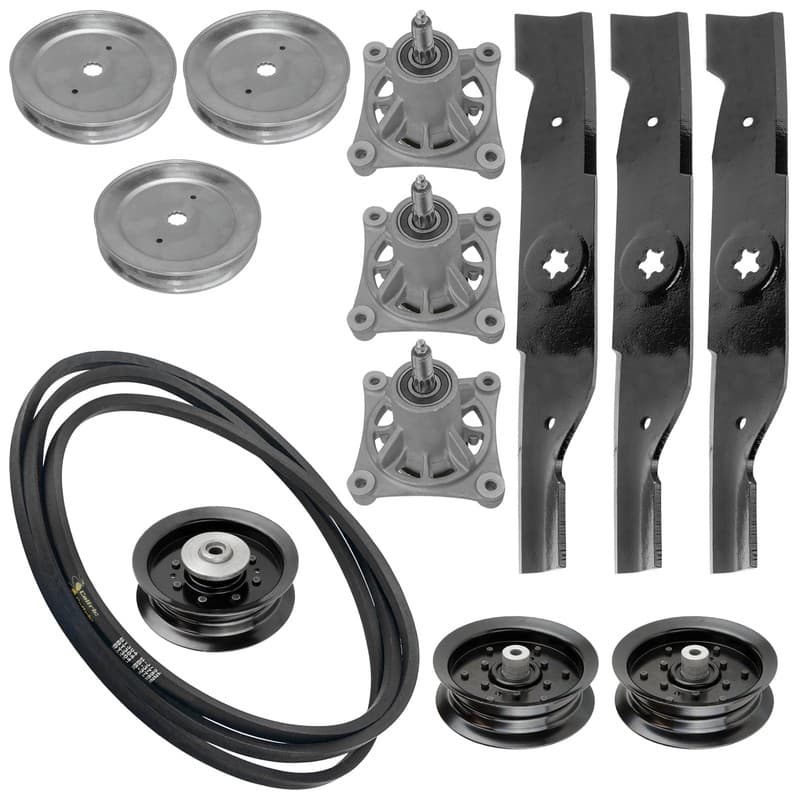

Order Includes:

3x Spindle Assemblies

3x Blades

3x Spindle Pully

3x Idler Pully

1x Belt
