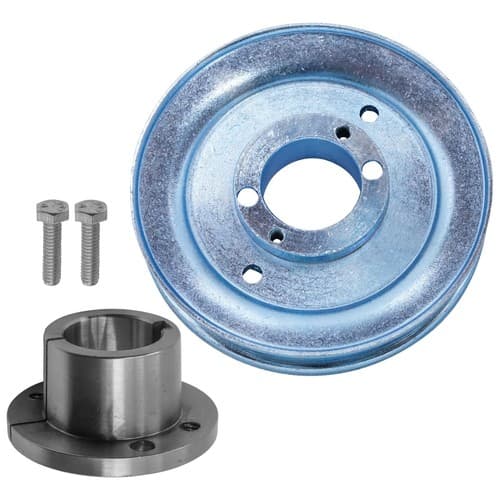

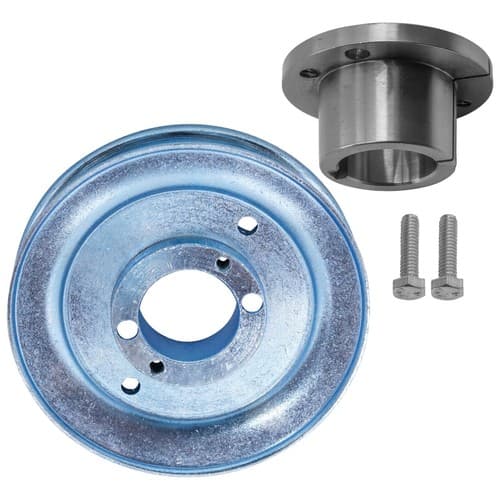

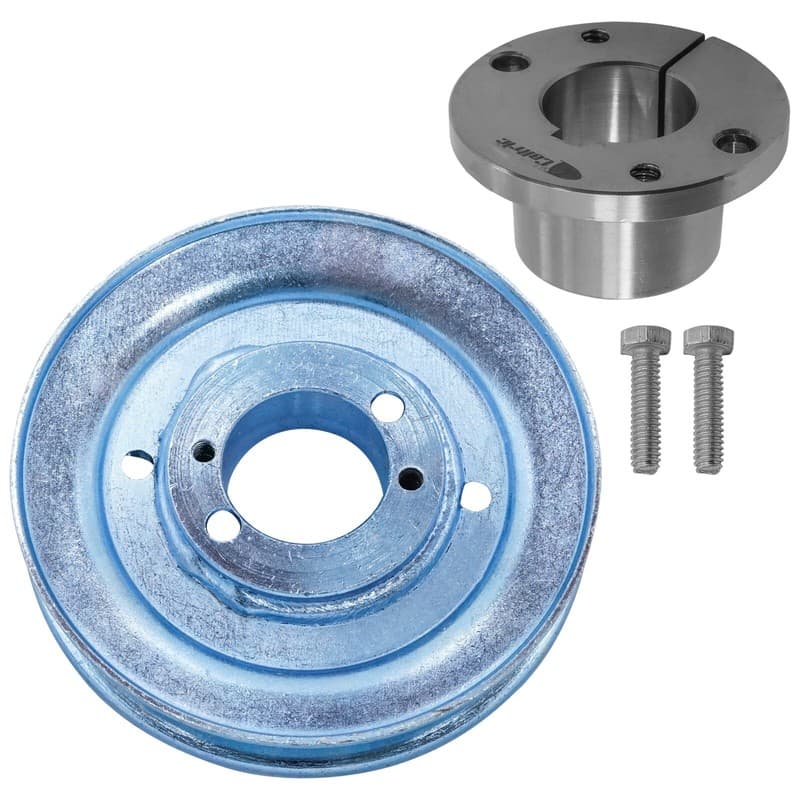

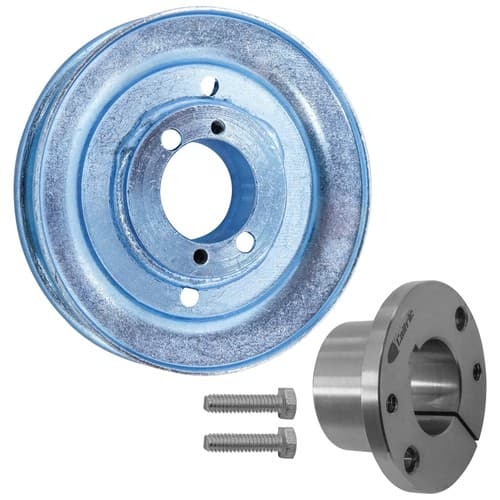

52" Spindle Pulley & Hub for Scag Tiger Cub STC52A-23 SMTC-52A SMWC-52A STC52A

Spindle Pulley

Compatible with Scag Models :

SCZ48V-22FX - Cheetah 48" Zero-Turn (SN: J9600001 - J9699999 L6100001 - L6199999)

SCZ48V-23CV-EFI - Cheetah 48" Zero-Turn (SN: L6200001 - L6299999)

SCZ48V-23CV - Cheetah 48" Zero-Turn (SN: J9700001 - J9799999)

SCZ48V-25CV - Cheetah 48" Zero-Turn (SN: H6800001 - H6899999)

SCZ48V-26BS - Cheetah 48" Zero-Turn (SN: K4400001 - K4499999)

SCZ48V-28BS - Cheetah 48" Zero-Turn (SN: H6900001 - H6999999)

SCZ48V-691FX - Cheetah 48" Zero-Turn 691FX (SN: H6700001 - H6799999)

SCZ52V-23FX - Cheetah 52" Zero-Turn (SN: J9900001 - J9999999 L6300001 - L6399999)

SCZ52V-25CV-EFI - Cheetah 52" Zero-Turn (SN: K0100001 - K0199999 L6400001 - L6499999)

SCZ52V-25CV - Cheetah 52" Zero-Turn (SN: K0000001 - K0099999)

SCZ52V-26BS - Cheetah 52" Zero-Turn (SN: K0200001 - K0299999)

SCZ52V-27CV - Cheetah 52" Zero-Turn (SN: H7100001 - H7199999)

SCZ52V-28BS - Cheetah 52" Zero-Turn (SN: H7200001 - H7299999)

SCZ52V-730FX - Cheetah 52" Zero-Turn 730FX (SN: H7000001 - H7099999)

SMTC-48V - Tiger Cat 48" Mower Deck (SN: D9100001 - D9199999  C7000001 - C7099999)

SMVR-36A - Advantage 36" Mower Deck (SN: E8500001 - E8599999)

SMVR-48V - Velocity Plus 48" Mower Deck (SN: E8600001 - E8699999)

SMVR-52V - Velocity Plus 52" Mower Deck (SN: E8700001 - E8799999)

SMWC-52V - Tiger Cat 52" Mower Deck (SN: D9200001 - D9299999)

SMTC-52A - Tiger Cub 52" Mower Deck (SN: 6660000 - 6669999  7690001 - 7699999  8460000 - 8469999)

STC52A-23KA - Tiger Cub 52" Zero-Turn (SN: 5910000 - 8439999

STC52A-23LV - Tiger Cub 52" Zero-Turn (SN: 6630000 - 6639999)

SMTC-52A - Scag Tiger Cub 52" (SN: 9330001 - 9339999  A5500001 - A5599999)

SMWC-52A - Scag Wildcat 52" (SN: A5500001 - A5599999)

STC52A-23KA - Tiger Cub 52" Zero-Turn (SN: 9290001 - 9299999  A5200001 - A5299999)

STC52A-24HN - Tiger Cub 52" Zero-Turn (SN: 9300001 - 9309999  A5300001 - A5399999)

STWC52A-25KA - Wildcat 52" Zero-Turn (SN: A8700001 - A8799999)

SCR42-25CH - Cougar 42" Zero-Turn (SN: 6430001 - 6439999  7530001 - 7539999)

STC52A-21KA - Tiger Cub 52" Zero-Turn (SN: 5900000 - 5909999  6610000 - 6619999  7660001 - 7669999)

STC52A-24HN - Tiger Cub 52" Zero-Turn (SN: 8750000 - 8759999)

STC48V-25CV (SN : F3900001-F3999999 G2700001-G2799999 H5700001-H5799999)

STC48V-26BS (SN : F4000001-F4199999 G2800001-G2899999)

STC48V-27BS (Tiger Cat) (SN : J3600001-J3699999)

STC48V-651FS (Tiger Cat) (SN : G2600001-G2699999 H5600001-H5699999)

STC52V-22FX (Tiger Cat) (SN : J9000001-J9099999)

STC52V-23BV Tiger Cub (SN : D1400001-D1499999)

STC52V-24FX (SN : F4100001-F4199999)

STC52V-25CV (Tiger Cat) (SN : J9100001-J9199999)

STC52V-25CV-EFI (Tiger Cat) (SN : K4300001-K4399999)

STC52V-27CV (Tiger Cat) (SN : G3000001-G3099999  H6000001-H6099999)

STC52V-691FX (Tiger Cat) (SN : G2900001-G2999999)

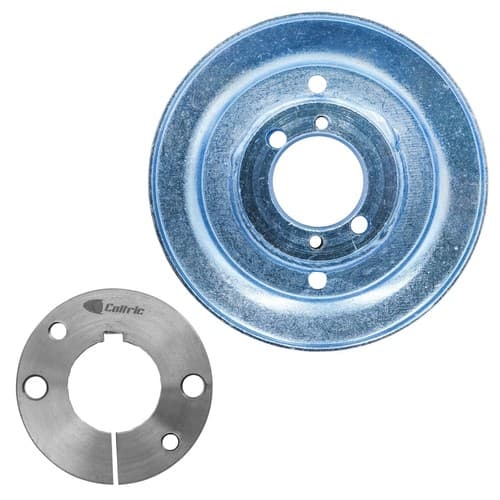

Order Includes :

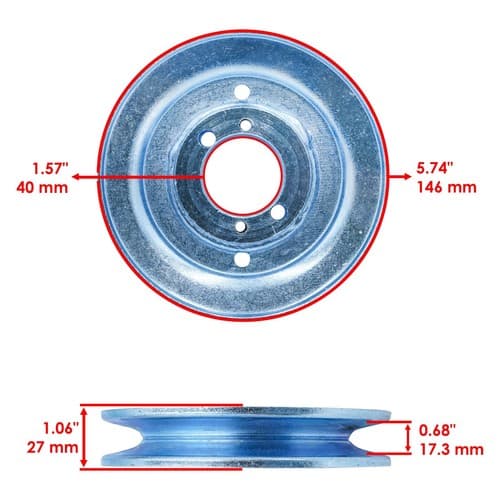

1 x Pulley : 483284 , 481233 , 481435 , 482647

Width : 27 mm - 1.06 in

Inner Diameter : 40 mm - 1.57 in

Outer Diameter : 146 mm - 5.74 in

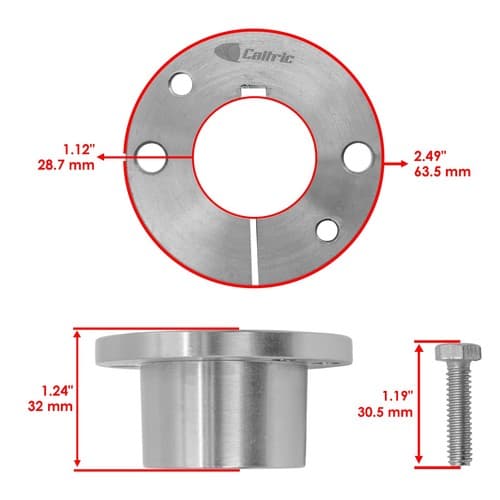

1 x Hub : 48926

Width : 31.7mm - 1.24 in

Inner Diameter : 28.7mm - 1.12 in

Outer Diameter : 63.43mm - 2.49 in

Bolt Height : 30.45mm - 1.19 in

Spindle Part Numbers : 461663 , 46631, 41001, 41007,

41008, 43644, 43294 ,  7041007YP, 303630
