Specifications
- MPN
- 483284, 481233, 481435, 482647, 43294, 43644, 41008, 41007, 41001, 46631, 461663, 7041007YP, 303630, SCZ48V-28BS
- Mpn
- 483284, 481233, 481435, 482647, 43294, 43644, 41008, 41007, 41001, 46631, 461663, 7041007YP, 303630, SCZ48V-28BS
- Type
- Spindle
- Brand
- Caltric
- Color
- Black
- Model
- Tiger Cub
- Voltage
- 12 V
- Material
- Cast Iron
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 20 HP
- Item Width
- 1.06 in
Description

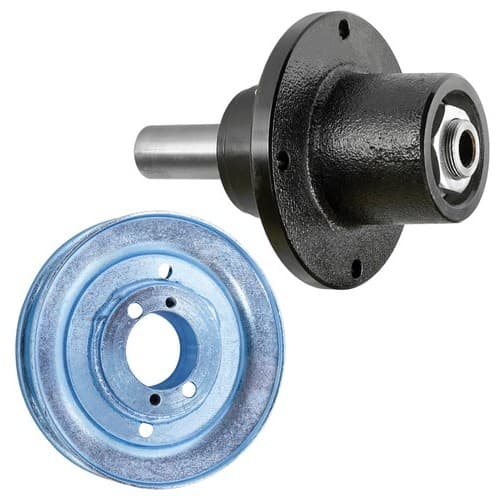

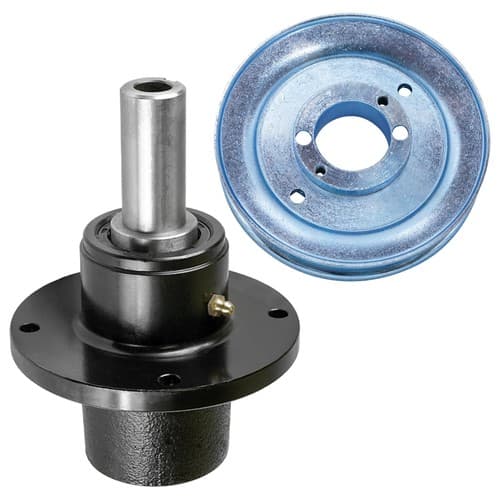

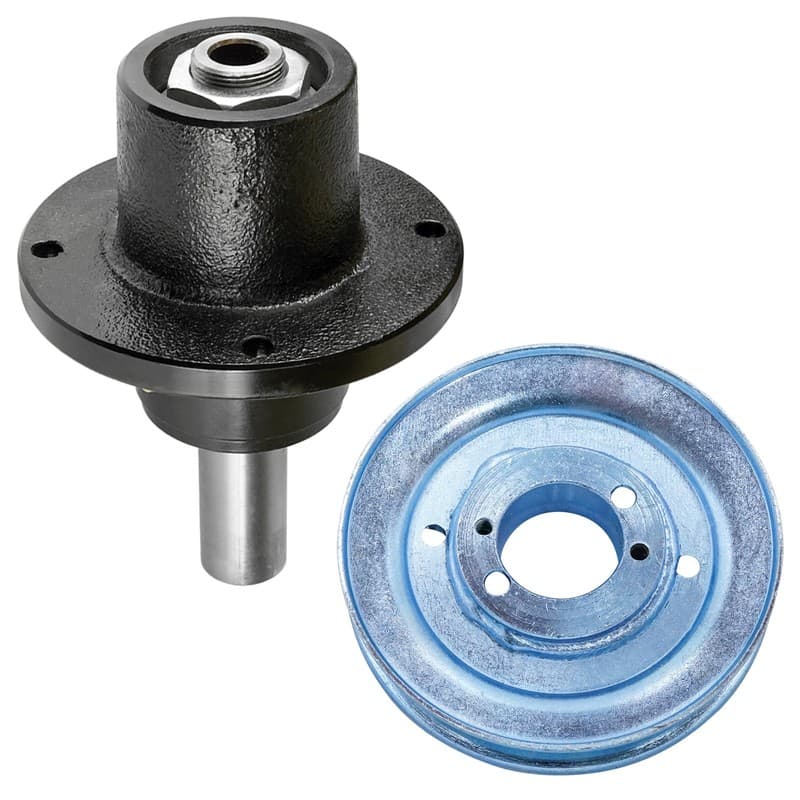

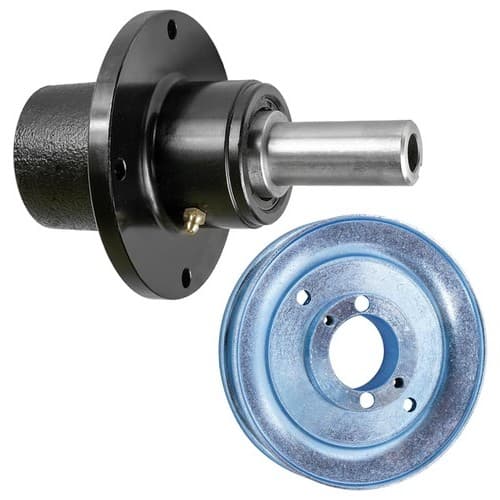

Premium Quality Replacement Part
Deck Spindle and Pulley
Compatible with Scag Models:
Scz48v-22fx - Cheetah 48" Zero-Turn (Sn: J9600001 - J9699999 L6100001 - L6199999)
Scz48v-23cv - Cheetah 48" Zero-Turn (Sn: J9700001 - J9799999)
Scz48v-23cv-Efi - Cheetah 48" Zero-Turn (Sn: L6200001 - L6299999)
Scz48v-25cv - Cheetah 48" Zero-Turn (Sn: H6800001 - H6899999)
Scz48v-26bs - Cheetah 48" Zero-Turn (Sn: K4400001 - K4499999)
Scz48v-28bs - Cheetah 48" Zero-Turn (Sn: H6900001 - H6999999)
Scz48v-691fx - Cheetah 48" Zero-Turn 691fx (Sn: H6700001 - H6799999)
Scz52v-23fx - Cheetah 52" Zero-Turn (Sn: J9900001 - J9999999 L6300001 - L6399999)
Scz52v-25cv - Cheetah 52" Zero-Turn (Sn: K0000001 - K0099999)
Scz52v-25cv-Efi - Cheetah 52" Zero-Turn (Sn: K0100001 - K0199999 L6400001 - L6499999)
Scz52v-26bs - Cheetah 52" Zero-Turn (Sn: K0200001 - K0299999)
Scz52v-27cv - Cheetah 52" Zero-Turn (Sn: H7100001 - H7199999)
Scz52v-28bs - Cheetah 52" Zero-Turn (Sn: H7200001 - H7299999)
Scz52v-730fx - Cheetah 52" Zero-Turn 730fx (Sn: H7000001 - H7099999)
Smtc-52a - Tiger Cub 52" (Sn: 6660000 - 6669999)
Smtc-52a - Tiger Cub 52" (Sn: 9330001 - 9339999)
Smtc-52a - Tiger Cub 52" (Sn: A5500001 - A5599999)
Smwc-52a - Wildcat 52" (Sn: A5500001 - A5599999)
Stc52a-21ka - Tiger Cub 52" Zero-Turn (Sn: 5900000 - 7669999)
Stc52a-23ka - Tiger Cub 52" Zero-Turn (Sn: 5910000 - 6629999)
Stc52a-23ka - Tiger Cub 52" Zero-Turn (Sn: 9290001 - 9299999 A5200001 - A5299999)
Stc52a-23lv - Tiger Cub 52" Zero-Turn (Sn: 6630000 - 6639999)
Stc52a-24hn - Tiger Cub 52" Zero-Turn (Sn: 9300001 - 9309999 A5300001 - A5399999)
Stwc52a-25ka - Wildcat 52" Zero-Turn (Sn: A8700001 - A8799999)
Order Includes:
1x Spindle Pulley: 461663, 46631, 41001, 41007, 41008, 43644, 43294
Length: 7.25 in - 184 mm
Height: 5.25 in - 132.3 mm
Mounting Hole Distance: 4.45 in - 115 mm
1x Engine Pulley: 483284, 481233, 481435, 482647
Inner Diameter: 1.57 in - 40 mm
Outer Diameter: 5.74 in - 146 mm
Width: 1.06 mm - 27 mm
