Specifications
- MPN
- 00273100, 00450300, 03253800, 04916400, 4916400, GDU10231, 03399704, 04916400, 04917900, 3399704, 05901822, 05978900
- Mpn
- 00273100, 00450300, 03253800, 04916400, 4916400, GDU10231, 03399704, 04916400, 04917900, 3399704, 05901822, 05978900
- Type
- Blade with Bolt
- Brand
- Caltric
- Color
- Green
- Model
- For Gravely ZT1540, ZT2048, ZT2348, ZT2252, ZT2552HD, ZT52HD
- Voltage
- 12 V
- Material
- Deck Blade, Powder Coated
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 23 HP
- Item Width
Description
Premium
Quality Replacement Part

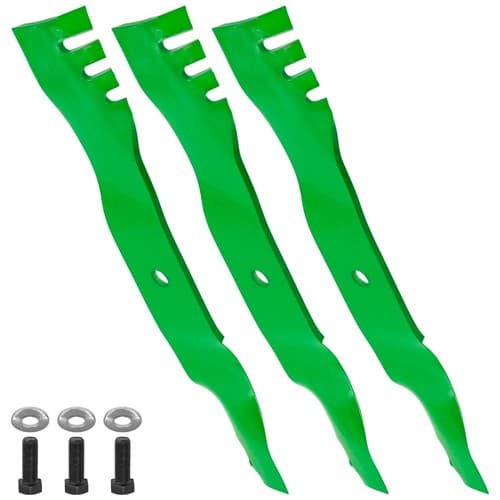

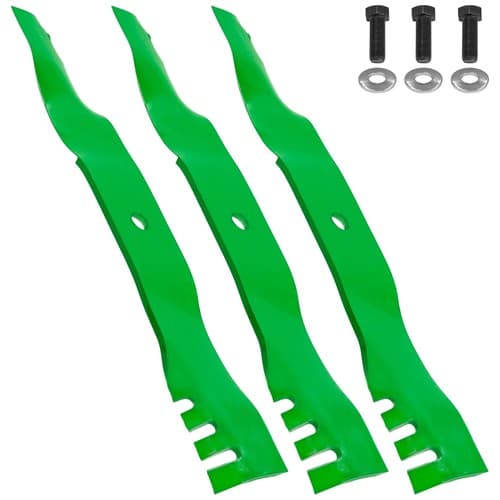

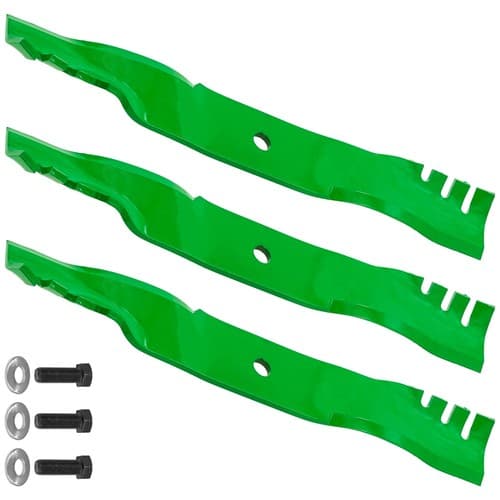

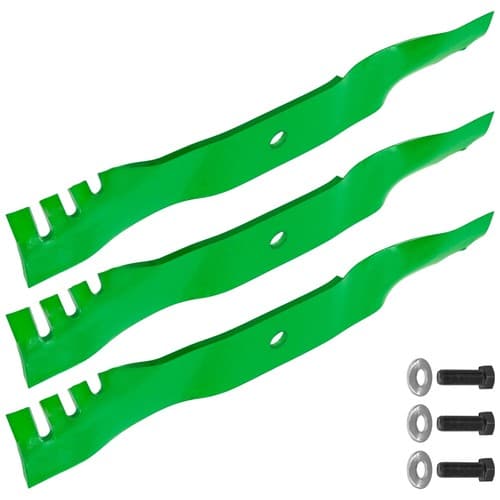

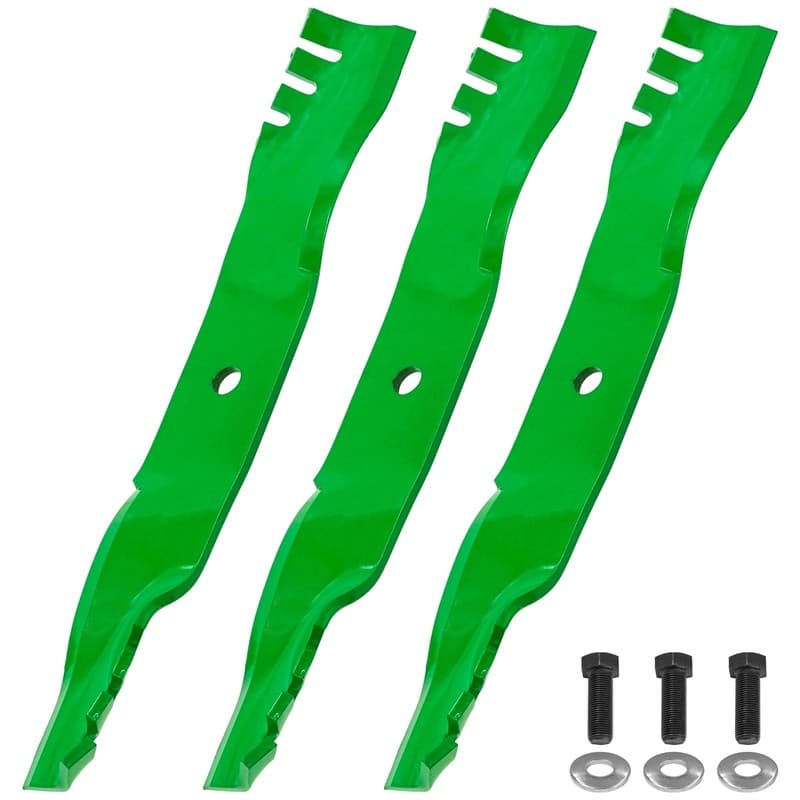

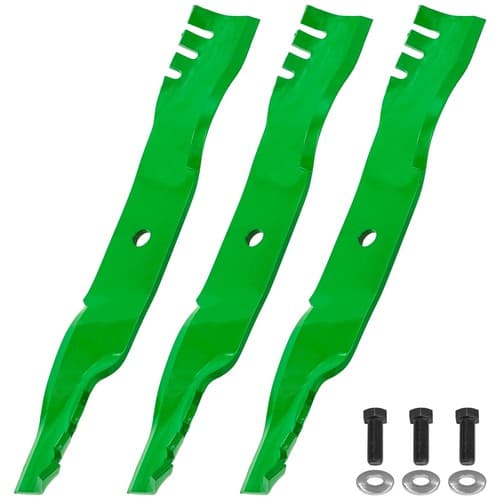

Deck Blade with Bolt
Compatible with Ariens Models:
Zoom 52" Zero-Turn Mower:
915035 (1640) - 16hp B&S (Sn: 000101 & Above)
915037 (1844) - 18hp B&S (Sn: 000101 & Above)
915039 (2048) - 20hp B&S (Sn: 000101 & Above)
915041 (2252) - 22hp B&S (Sn: 000101 & Above)
915051 (1640) - 16hp B&S (Sn: 000101 & Above)
915055 (1944) - 19hp Koh. (Sn: 000101 & Above)
915057 (2148) - 21hp Koh. (Sn: 000101 & Above)
915059 (2352) - 23hp Koh. (Sn: 000101 & Above)
915065 (1540) - 15hp Koh. (Sn: 010000 & Above)
915067 (1740) - 17hp Koh. (Sn: 010000 & Above)
915075 (1640) - 16hp Koh. (Sn: 020000 & Above)
915077 (1840) - 18hp Koh. (Sn: 020000 & Above)
915079 (2044) - 20hp Koh. (Sn: 020000 & Above)
915081 (2348) - 23hp Koh. (Sn: 020000 & Above)
991039 (2452 Hd) - 24hp B&S (Sn: 000200 & Above)
991040 (2660 Hd) - 26hp B&S (Sn: 000200 & Above
992062 (2552 Xl) - 25hp Koh. (Sn: 000101 & Above)
992063 (2560 Xl) - 25hp Koh. (Sn: 000101 & Above)
Pro-Master 52" Zero-Turn Mower:
991056 (2560) - Max-Zoom 52", 25hp Koh. (Sn: 000101 & Above)
991065 (2552) - Max-Zoom 52", 25hp Koh. (Sn: 000101 & Above)
991074 - Max-Zoom Hd 52", 24hp Kaw. (Sn: 000101 & Above)
991075 - Max-Zoom Hd 52", 24hp Kaw. (Sn: 000101 & Above)
991086 - Max-Zoom 52", 24hp Kaw. (Sn: 000101 & Above)
991087 - Max-Zoom 52", 24hp Kaw. (Sn: 000101 & Above)
991155 - Apex 52", Koh. (Sn: 000101 & Above)
991159 - Apex 52", 23hp Kaw. Fr (Sn: 040000 - 049999)
992316 (Pm 260 H) - 27hp Daihatsu Diesel (Sn: 003000 - 005999)
992316 (Pm 260 Z) - 27hp Daihatsu Diesel (Sn: 002001 - 002999)
992317 (Pm 260 H) - 21hp Daihatsu Diesel (Sn: 003000 & Above)
992317 (Pm 260 Z) - 21hp Daihatsu Diesel (Sn: 002001 - 002999)
Compatible With Gravely Models:
52" Zero-Turn Mower:
890100 - 52" Deck For Rapid Xz Side Discharge Mower (Sn: 000101 & Above)
890101 - 52" Deck For Rapid Xz Side Discharge Mower (Sn: 000101 & Above)
915036 (Zt 1844) - 18hp B&S (Sn: 000101 & Above)
915038 (Zt 2048) - 20hp B&S (Sn: 000101 & Above)
915040 (Zt 2252) - 22hp B&S (Sn: 000101 & Above)
915042 (Zt 1540) - 15hp Koh. (Sn: 010000 & Above)
915046 (Zt 1944) - 19hp Koh. (Sn: 000101 & Above)
915048 (Zt 2148) - 21hp Koh. (Sn: 000101 & Above)
915050 (Zt 2352) - 23hp Koh. (Sn: 000101 & Above)
915078 (Zt 2044) - 20hp Koh. (Sn: 020000 & Above)
915080 (Zt 2348) - 23hp Koh. (Sn: 020000 & Above)
915082 (Zt 2552) - 25hp Koh. (Sn: 020000 - 034999)
991037 (Zt 2552 Hd) - 25hp Koh. Courage (Sn: 000200 & Above)
991038 (Zt 2760 Hd) - 27hp Koh. Courage (Sn: 000200 & Above)
991041 (Zt 2660 Hd) - 26hp B&S (Sn: 000200 & Above)
991054 (Zt 2552 Hd) - 25hp Koh. (Sn: 000101 & Above)
991055 (Zt 2560 Hd) - 25hp Koh. (Sn: 000101 & Above)
991057 (Zt 2760 Hd) - 27hp Koh. (Sn: 000101 & Above)
991066 (Zt 2552 Hd) - 25hp Koh. (Sn: 000101 & Above)
991069 (Zt 52 Hd) - Kaw. (Sn: 000101 & Above)
991070 (Zt 60 Hd) - Kaw. (Sn: 000101 & Above)
991083 (Zt 52 Hd) - Kaw. (Sn: 000101 & Above)
991084 (Zt 60 Hd) - Kaw. (Sn: 000101 - 044999)
991091 (Zt 60 Hd) - Kaw. (Sn: 000101 & Above)
991100 (Zt 52 Hd) - Kaw., Carb (Sn: 020000 - 029999)
Pro-Master 52" Zero-Turn Mower:
991009 (Pm 144 Xdz) - 21hp Kaw. (Sn: 000101 & Above)
991010 (Pm 148 Xdz) - 21hp Kaw. (Sn: 000101 & Above)
991011 (Pm 152 Xdz) - 23hp Kaw. (Sn: 000101 & Above)
991013 (Pm 160 Xdz) - 25hp Kaw. (Sn: 000101 & Above)
991015 (Pm 144m) - 21hp Kaw. (Sn: 000101 & Above)
991016 (Pm 148m) - 21hp Kaw. (Sn: 000101 & Above)
991017 (Pm 152m) - 23hp Kaw. (Sn: 000101 & Above)
991018 (Pm 152m) - 25hp Koh. (Sn: 000101 & Above)
991019 (Pm 160m) - 23hp Kaw. (Sn: 000101 & Above)
991020 (Pm 160m) - 25hp Koh. (Sn: 000101 & Above)
991021 (Pm 148h) - 21hp Kaw. (Sn: 000101 & Above)
991024 (Pm 152m) - 23hp Koh. (Sn: 000101 & Above)
991026 (Pm 144m Xdz) - 21hp Kaw. (Sn: 000101 & Above)
991027 (Pm 148m Xdz) - 21hp Kaw. (Sn: 000101 & Above)
Pro-Walk 52" Walk-Behind Mower:
988173 - Kaw. Fs (Sn: 000101 & Above)
Pro-Hydro 52" Walk-Behind Mower:
988106 (Hr 1548 Fx) - Fixed Deck, 15hp Kaw. (Sn: 000101 - 002999)
988107 (He 1748 Fl) - 17hp Kaw., Elect. Start (Sn: 000101 - 002999)
988108 (He 1748 Fl) - 17hp Kaw., Elect. Start (Sn: 000101 - 002999)
988109 (He 1752 Fl) - 17hp Kaw., Elect. Start (Sn: 000101 - 002999)
Order Includes:
3x Deck Blade: Ariens: 00273100, 03399704, 04916400, 04917900, 3399704,
Gravely: 00273100, 00450300, 03253800, 04916400, 4916400, GDU10231
Length: 18 in - 457 mm
Width: 2.5 in - 63.5 mm
Thickness: 0.20 in - 5.1 mm
Mounting Hole Diameter: 5/8 in - 15.8 mm
3x Bolt: Ariens, Gravely: 05901822, 05978900, 06445700
Overall Length: 2.18 in - 55.5 mm
Thread Length: 1.68 in - 42.8 mm
Head Width: 1.05 in - 26.8 mm
Thread Spec: M16x1.5
