Caltric
5141292 5452233 5452271 1543611 7521024 Rear Control Arm Bushing Kit For Polaris
No reviews yet
$37.02
NEWOut of Stock
SKU: APH-285979917581
MPN: ZP143+ZA136*2+ZA144+ZG104*2+ZG131*2+ZE146*2+ZE181
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (11)
- Polaris Scrambler XP 1000 S — 2020-2024
- Polaris Sportsman XP 1000 -- — 2021
- Polaris Sportsman XP 1000 S — 2020-2024
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Plastic, Steel, Iron
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (A) & (B) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- Universal Fitment
- No
- OE/OEM Part Number
- 5141292, 5452233, 1543611, 5139968, 7556153, 7547333, 7521024, 5452271, 1543922, 7710869, 7519306
- Placement on Vehicle
- Left, Rear, Right, Upper, Inner
Description
Premium Quality Replacement Part
Rear Upper Left or Right Control Arm Bushing Kit
Rear Upper Left or Right Control Arm Bushing Kit
Compatible with Polaris Models:
Scrambler XP 1000 55" 2020-2024
Scrambler 1000 55" 2022-2024
Sportsman XP 1000 55" 2020-2024
Sportsman 1000 55" 2023-2024

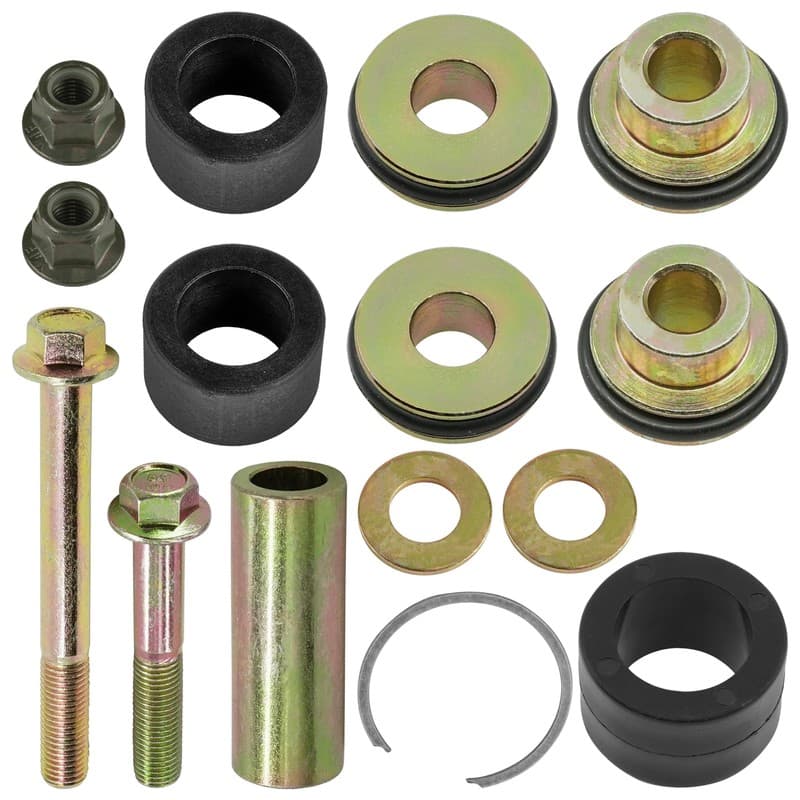

Order Includes:
1 x Pivot Shaft: 5141292
Length: 43.3 mm - 1.7 in
Inner Diameter: 10mm - 0.39 in
Outer Diameter: 16mm - 0.62 in
2 x Bushing: 5452233
Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic

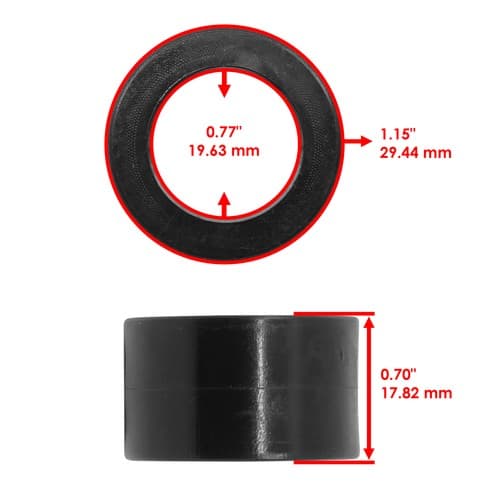

1 x Long Bushing: 5452271
Width: 17․82mm - 0․7 in
Inner Diameter: 19․63mm - 0․77 in
Outer Diameter: 29․44mm - 1․15 in
Material: Plastic
2 x Sealed Pivot Cap: 1543611, 5139968
Width : 10.1mm - 0.39 in
Inner Diameter : 10.4mm - 0.41 in
Outer Diameter : 26.4mm - 1.04 in

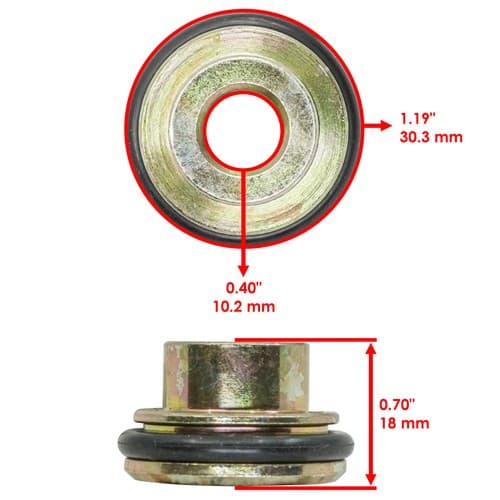

2 x Pivot Cap: 1543922
Width: 18 mm - 0.7 in
Inner Diameter: 10.2 mm - 0.4 in
Outer Diameter: 30.3 mm - 1.19 in
Material: Steel

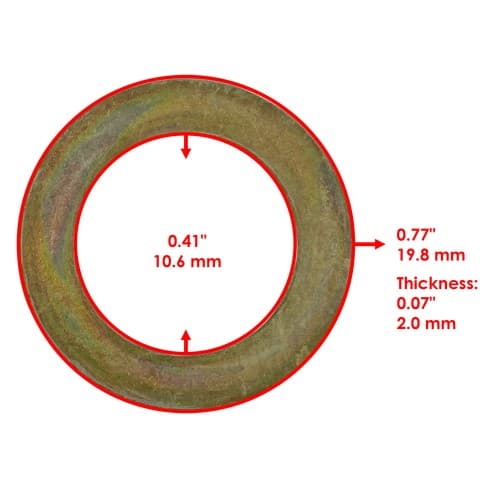

2 x Flange Washer: 7556153
Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal
1 x Spiral Ring: 7710869
Outer Diameter: 32 mm - 1.25 in
Thickness: 0.79mm
Material: Steel

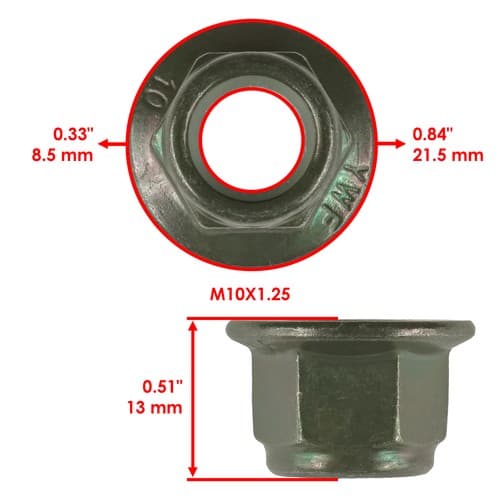

2 x Nut: 7547333
Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron
1 x Bolt: 7519306
Length: 69 mm - 2.71 in
Head Diameter: 19.3 mm - 0.75 in
Thread Size: M10x1.25
1 x Bolt: 7521024
Length: 99․8 mm - 3․92 in
Stud Diameter: 9․7 mm - 0․38 in
Threads Size: M10-1․25
Material: Iron

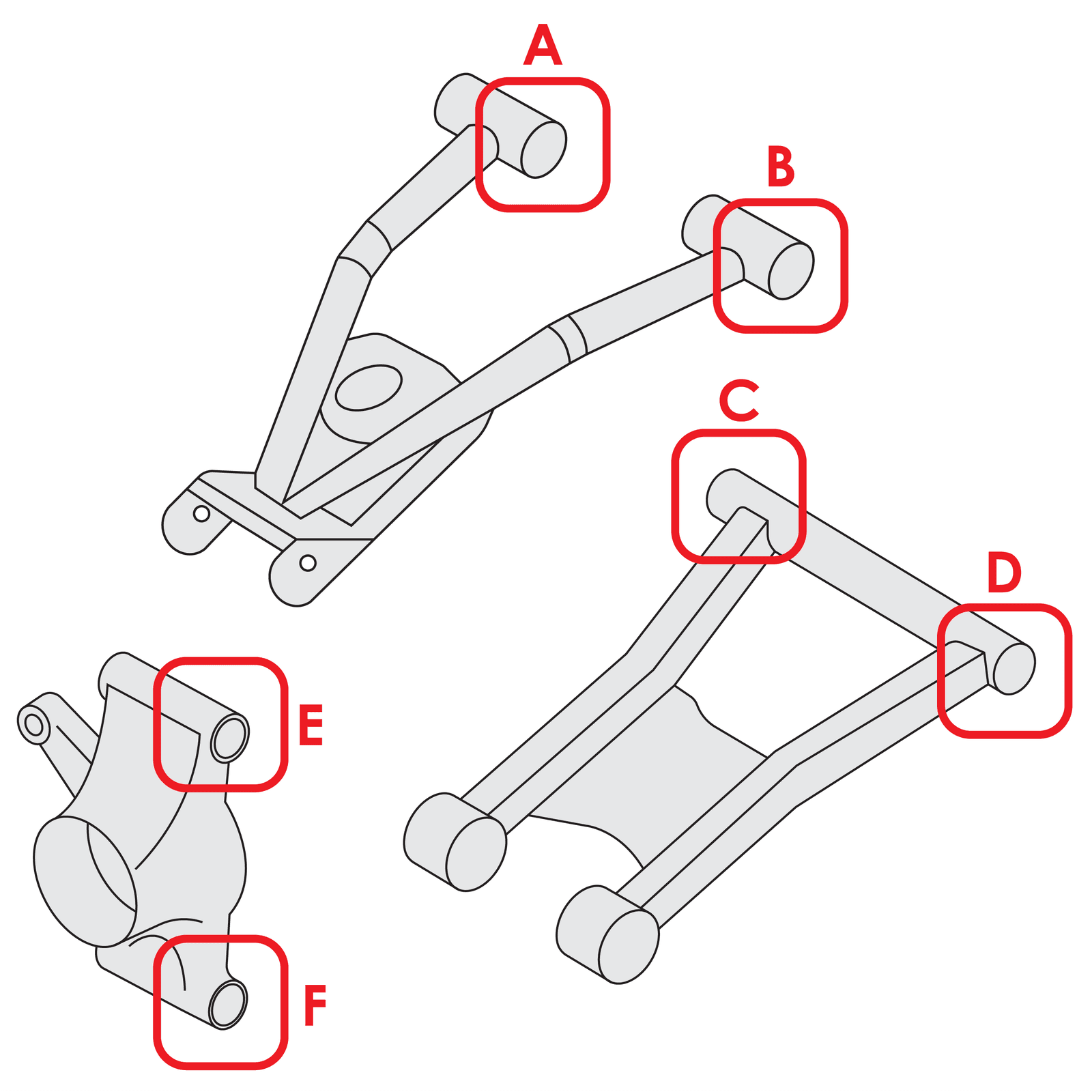

Note: Installs On Location (A) & (B) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1023393-589, 1023393-630, 1023393-293
Right: 1023393-589, 1023393-458, 1023393-293
Rear Lower Control Arm Part Number:
Left: 1023395-589, 1023395-458, 1023395-630, 1023395-293
Right: 1023396-589, 1023396-458, 1023396-630, 1023396-293
Knuckle Part Number:
Left: 5142695
Right: 5142696
