Caltric
5138797 5138798 5439874 7547333 7519897 Rear Control Arm Bushing Kit For Polaris
No reviews yet
$43.44
NEWOut of Stock
SKU: APH-286046028560
MPN: ZP106+ZP107+ZA109*4+ZE146*3+NU113*2+BL172+BL251 - VS
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (8)
- Polaris RZR 4 900 EPS — 2015-2016
- Polaris RZR 900 EPS — 2015
- Polaris RZR 900 Trail EPS — 2016
- Polaris RZR S 1000 EPS — 2016
- Polaris RZR S 900 -- — 2016
- Polaris RZR S 900 EPS — 2015-2016
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (B) & (C) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 5138798, 5136101, 5439874, 5436832, 5436505, 7556153, 7547333, 7519897, 5138797, 7519043, 7518560
- Placement on Vehicle
- Left, Lower, Rear, Right, Inner
- Manufacturer Warranty
- 3 Months
Description
Premium Quality Replacement Part
Rear Lower Left or Right Control Arm Bushing Kit
Compatible with Polaris Models:
RZR 900 EPS 2015-2016
RZR S 900 EPS 2015-2016
RZR 4 900 EPS 2015-2016
RZR S 1000 2016

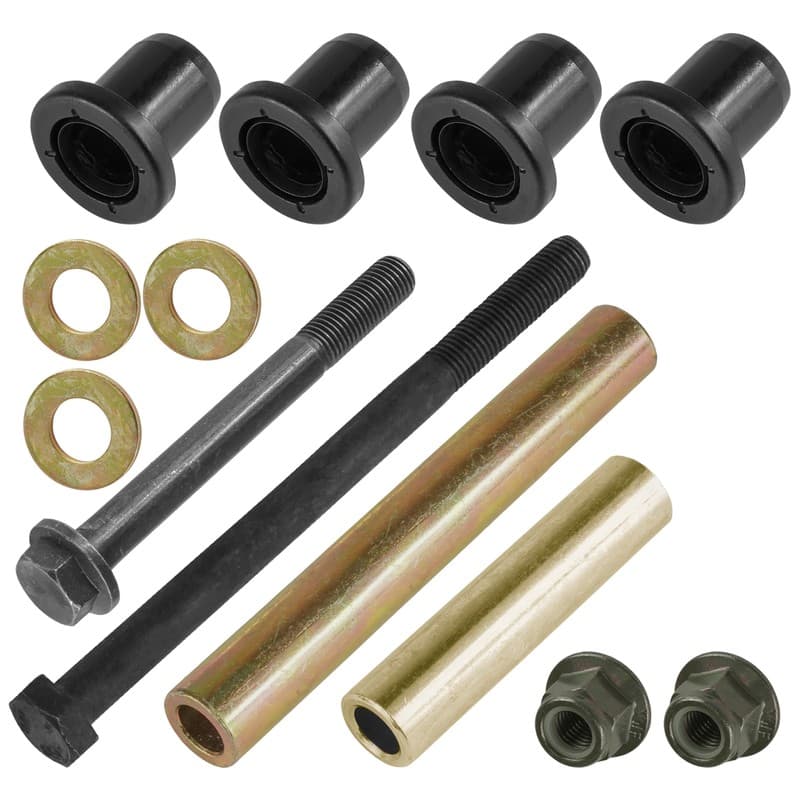

Order Includes:
1 x Short Pivot Shaft: 5138797
Length: 70․99mm - 2․79 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 15․88mm - 0․62 in
Material: Steel

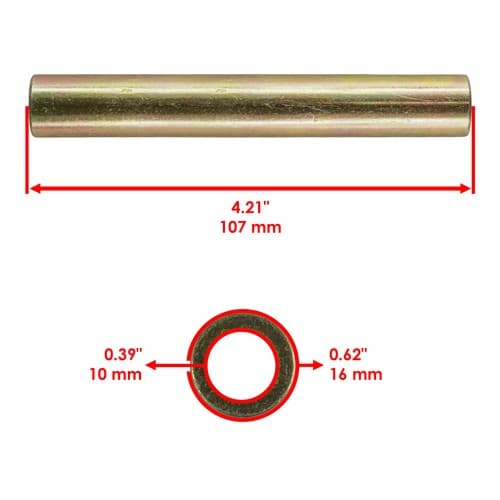

1 x Long Pivot Shaft: 5138798, 5136101
Length: 107mm - 4․21 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

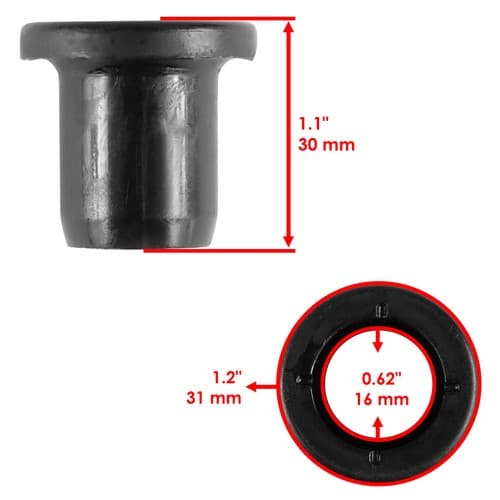

4 x Bushing: 5439874, 5436832, 5436505
Length: 30mm - 1․1 in
Inner Diameter: 16mm - 0․62 in
Outer Diameter: 31mm - 1․2 in
Material: Plastic

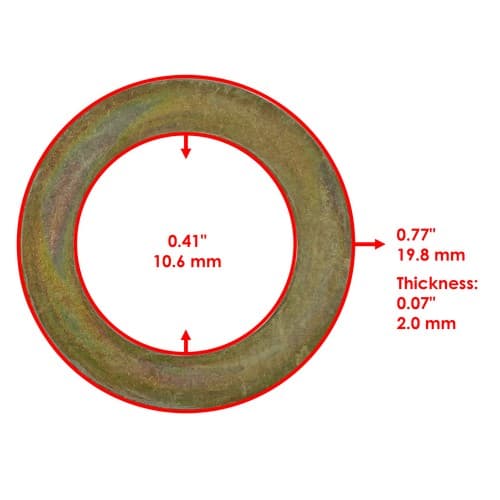

3 x Flange Washer: 7556153
Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

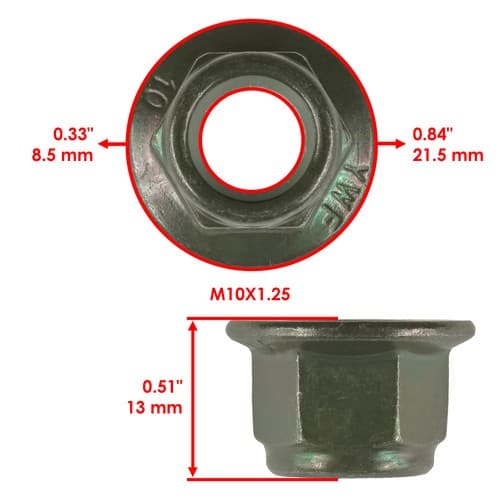

2 x Nut: 7547333
Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron
1 x Bolt: 7519043, 7518560
Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron
1 x Bolt: 7519897
Length: 146mm - 5.74 in
Stud Length: 39.5mm - 1.55 in
Head Diameter: 17.7mm - 0.69 in
Thread Size:M10x1.25

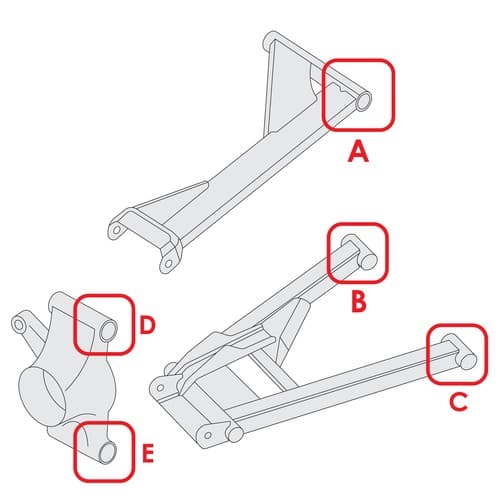

Note: Installs On Location (B) & (C) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1018820-385, 1018820-293, 1018820-458
1019945-458, 1019945-385
Right: 1018821-385, 1018821-293, 1018821-458
1019946-458, 1019946-385
Rear Lower Control Arm Part Number:
Left: 1021287-385, 1021287-293, 1021287-458
1021968-458, 1021968-385
Right: 1021288-385, 1021288-293, 1021288-458
1021968-385, 1021969-385
Rear Knuckle Part Number:
Left: 5139953
Right: 5139954 1522609
Left: 5139953
Right: 5139954 1522609
