5021227ASM 5021227 770136 5025320X14SM 52" Deck Blade 18.25" For Simplicity

Mower Deck Notched Air-Lift Blade with Bolts and Washer

Compatible with Ferris Models:

52" Zero-Turn Mower:

(5902084), (5902085) 27hp B&S

(5902089), (5902090) 26hp Kw.

1000z (5901002) 23hp Koh.

1000z (5901005) 23hp Kw.

Isx 2200 (5902088) 28hp B&S

Isx 800 (5902083) 24hp Kw.

Compatible with Simplicity Models:

52" Zero-Turn Mower:

3000 (5900509), (5900530)

Citation 52" Zero-Turn Mower:

1694771, 1696537 52"

5900522 26hp B&S, 5900523 23hp Kw.

5900820 25hp Kw., 5900954 26hp Kw.

Citation 52" Zero-Turn Mower 23hp B&S:

2690370, 2690445

2691339 Conquest 52" Garden Tractor, 25hp

Compatible with Snapper Models:

52" Zero-Turn Mower

(5901374), (5901630), (5901787) 25hp B&S

(5901375), (5901629), (5901785) 23hp Kw.

(5901867), (5901994), (5902114) 25hp B&S

S 120 (5901865) 24hp Kw.

S 125xt (5901246) 25hp B&S

S 125xt (5901247) 23hp Kw.

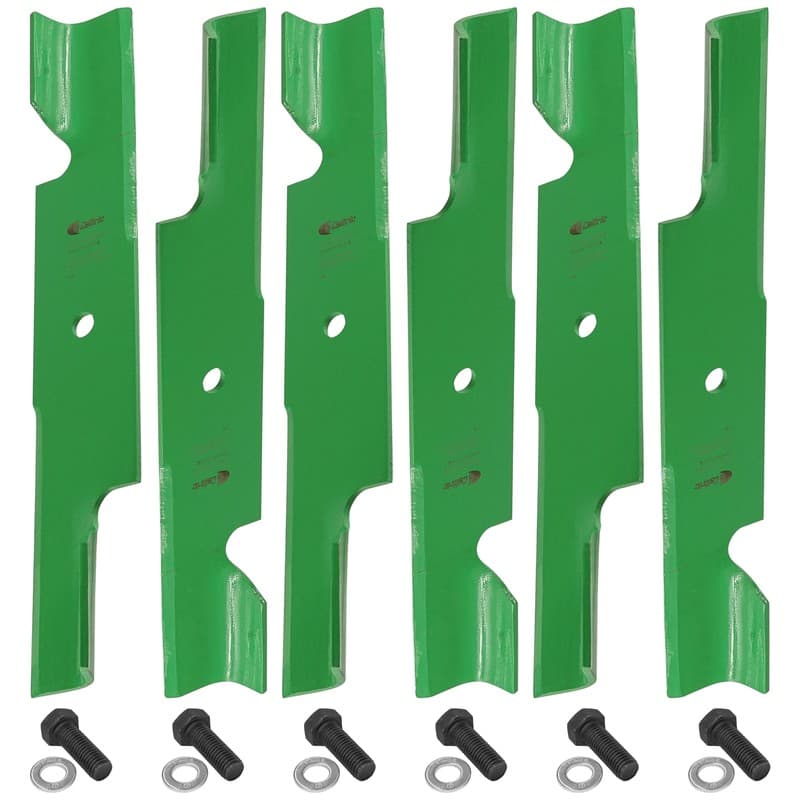

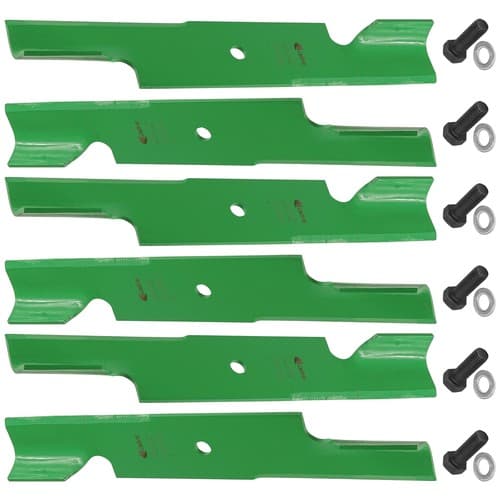

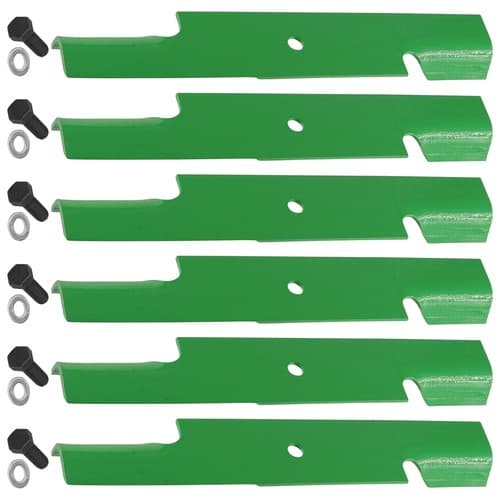

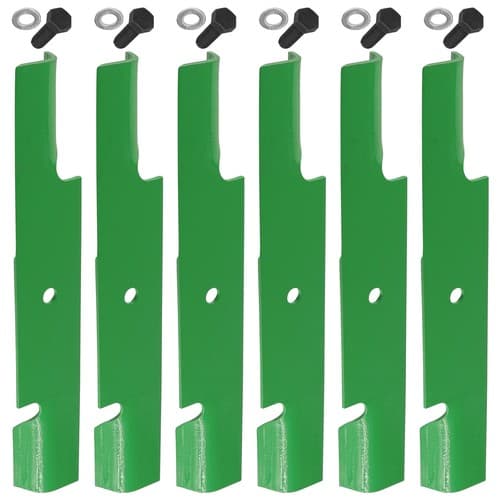

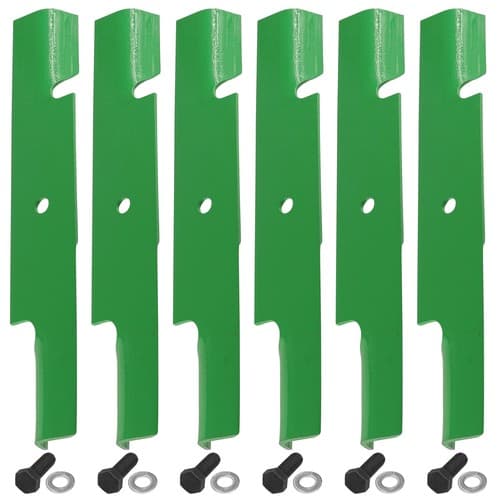

Order Includes:

6x Deck Blade: Snapper: 100341, 101485, 12111-02, 1-7037, 1-7344,

32022A, 32022HD, 363055, 7017037, 7075751, 7075751BMA,

7075751BZ, 7075751BZYP, 7076450, 7077344, 75751, 7-6450, 7-7344:

Simplicity: 5021227, 5021227A, 5021227ASM, 5021227SM,

A48185, A48185SM,

Ferris: 1521227, 1521227S, 5021227, 5101756, 5101756S, A48185

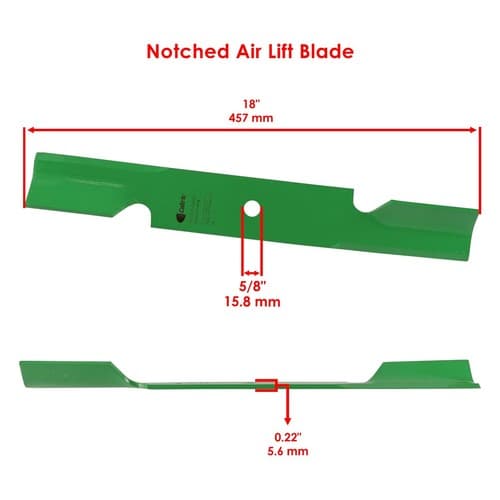

Length: 18 in - 457.2 mm

Width: 2.48 in - 63 mm

Thickness: 0.20 in - 5 mm

Mounting Hole Diameter: 5/8 in - 15.8 mm

6x Bolt: Simplicity: 770136, 502532014, 5025320X14, 5025320X14SM,

5025320, 502532014SM, 5025477, 5025320X14FS,

 Ferris: 770136, 502532014, 5025320X14, 5025320X14SM,

5025320, 502532014SM, 5025477

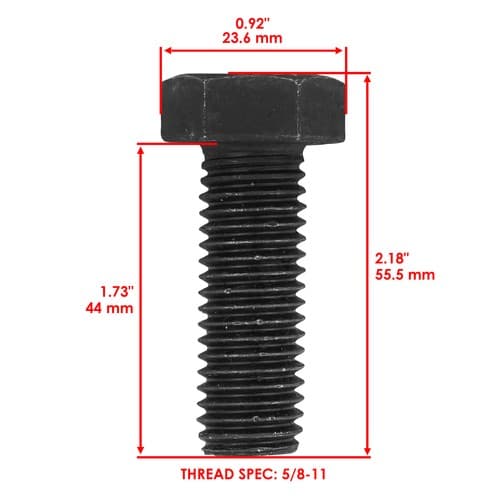

Overall Length: 2.18 in - 55.5 mm

Thread Length: 1.73 in - 44 mm

Head Width: 0.92 in - 23.6 mm

Thread Spec: 5/8-11
