Specifications
- MPN
- 46631, 461663, 483239, 483241, 482877, 0400141, 04001-41, 04001-158
- Mpn
- 46631, 461663, 483239, 483241, 482877, 0400141, 04001-41, 04001-158
- Type
- Spindle
- Brand
- Caltric
- Color
- Black
- Model
- For Cheetah, Tiger Cub, Wildcat, Tiger Cat
- Voltage
- 12 V
- Material
- Steel, Polyester, Cast Iron
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 22 HP - 25 HP
- Item Width
- 5.20 in
Description
Premium Quality Replacement Part
Mower Deck Spindle with Blade / Bolt and Belt Kit
Compatible with Scag Models:
SCZ48V-22FX (Cheetah) (S/N J9600001-J9699999) 48V"
SCZ48V-22FX (Cheetah) (S/N L6100001-L6199999) 48V"
SCZ48V-23CV (Cheetah) (S/N J9700001-J9799999) 48V"
SCZ48V-23CV-EFI (Cheetah) (S/N L6200001-L6299999) 48V"
SCZ48V-25CV (Cheetah) (S/N H6800001-H6899999) 48V"
SCZ48V-26BS (Cheetah) (S/N K4400001-K4499999) 48V"
SCZ48V-28BS (Cheetah) (S/N H6900001-H6999999) 48V"
SCZ48V-691FX (Cheetah) (S/N H6700001-H6799999) 48V"
SMTC-48V (S/N B5900001-B5999999) 48V"
SMTC-48V (S/N D9100001-D9199999) 48V"
SMTC-48V (Tiger Cub) (S/N D9100001-D9199999) 48V
SMTC-48V (Wildcat) (S/N D9100001-D9199999) (Rev. 2) 48V"
SMTC-48V Tiger Cat (S/N D9100001-D9199999) 48V"
SMTC-48V Tiger Cub (S/N B5900001-B5999999) 48V"
SMTC-48V Tiger Cub (S/N C7000001-C7099999) 48V"
STC48V-19KAI Tiger Cub (S/N C1600001-C1699999) 48V"
STC48V-21KA Tiger Cub (S/N B5100001-B5199999) 48V"
STC48V-22FS (S/N F7400001-F7499999) 48V"
STC48V-22FS (Tiger Cat) (S/N J8700001-J8799999) 48V"
STC48V-22FS-LE (S/N F7600001-F7699999)48V"
STC48V-23CV (Tiger Cat) (S/N J8800001-J8899999) 48V"
STC48V-23CV Tiger Cub (S/N C2000001-C2099999) 48V"
STC48V-25CV (S/N F3900001-F3999999) 48V"
STC48V-25CV (Tiger Cat) (S/N G2700001-G2799999) 48V"
STC48V-25CV (Tiger Cat) (S/N H5700001-H5799999) 48V"
STC48V-26BS (S/N F4000001-F4199999) 48V"
STC48V-26BS (Tiger Cat) (S/N G2800001-G2899999) 48V"
STC48V-26BS Tiger Cub (S/N D1300001-D1399999) 48"
STC48V-27BS (Tiger Cat) (S/N J3600001-J3699999) 48V"
STC48V-651FS (Tiger Cat) (S/N G2600001-G2699999) 48V"
STC48V-651FS (Tiger Cat) (S/N H5600001-H5699999) 48V"
STCII-48V-22FS (Tiger Cat II) (S/N L8800001-L8899999) 48V"
STCII-48V-22FX Tiger Cat II (S/N M6200001-M6299999) 48V"
STWC48V-25CV (S/N F4400001-F4499999) 48V"
STWC48V-26KA-LC (S/N F4500001-F4599999) 48V"
Order Includes:
3 x Deck Spindle ։ 46631, 461663
Height: 7.25 in - 184 mm
Width: 5.20 in - 132.3 mm
Mounting Hole Distance: 4.45 in - 115 mm
3 x Notched High Lift Blade (16.5") ։ 482877
Length: 16 1/2 in - 419 mm
Thickness: 0.2 in - 5.1 mm
Center Hole Diameter: 5/8 in - 15.8 mm

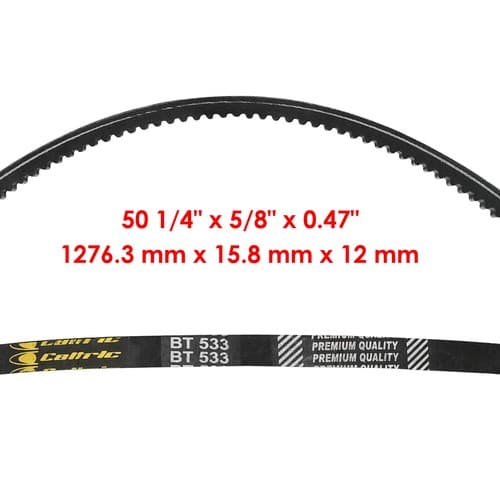

1 x Deck RH Belt ։ 483239
50 1/4 x 5/8 x 0.47 inch
1276.3 x 15.8 x 12 mm
1 x Deck Belt ։ 483241
Overall Lenght : 117 1/4 in - 2978 mm
Width : 5/8 in - 15.8 mm
Thickness : 0.46 in - 11.7 mm
3 x Blade Bolt and Nut : 04001-41, 04001-158
Length: 9.87 in - 250.82 mm
5/8 -11
