Specifications
- MPN
- 483284, 481233, 481435, 48926
- Mpn
- 483284, 481233, 481435, 48926
- Type
- Pulley
- Brand
- Caltric
- Color
- Silver
- Model
- Tiger Cub
- Voltage
- 12V
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 20 HP
- Item Width
- 1.06 in
- Item Height
- 5.74 in
Description
Premium Quality Replacement Part
Spindle Pulley and Hub
Compatible with Scag Models:
Scr42-25ch - Cougar 42" Zero-Turn (Sn: 6430001 - 6439999 7530001 - 7539999)
Scz48v-22fx - Cheetah 48" Zero-Turn (Sn: J9600001 - J9699999 L6100001 - L6199999)
Scz48v-23cv - Cheetah 48" Zero-Turn (Sn: J9700001 - J9799999)
Scz48v-23cv-Efi - Cheetah 48" Zero-Turn (Sn: L6200001 - L6299999)
Scz48v-25cv - Cheetah 48" Zero-Turn (Sn: H6800001 - H6899999)
Scz48v-26bs - Cheetah 48" Zero-Turn (Sn: K4400001 - K4499999)
Scz48v-28bs - Cheetah 48" Zero-Turn (Sn: H6900001 - H6999999)
Scz48v-691fx - Cheetah 48" Zero-Turn 691fx (Sn: H6700001 - H6799999)
Scz52v-23fx - Cheetah 52" Zero-Turn (Sn: J9900001 - J9999999 L6300001 - L6399999)
Scz52v-25cv - Cheetah 52" Zero-Turn (Sn: K0000001 - K0099999)
Scz52v-25cv-Efi - Cheetah 52" Zero-Turn (Sn: K0100001 - K0199999 L6400001 - L6499999)
Scz52v-26bs - Cheetah 52" Zero-Turn (Sn: K0200001 - K0299999)
Scz52v-27cv - Cheetah 52" Zero-Turn (Sn: H7100001 - H7199999)
Scz52v-28bs - Cheetah 52" Zero-Turn (Sn: H7200001 - H7299999)
Scz52v-730fx - Cheetah 52" Zero-Turn 730fx (Sn: H7000001 - H7099999)
Smtc-48v - Tiger Cat 48" Mower Deck (Sn: D9100001 - D9199999 C7000001 - C7099999)
Smtc-52a - Tiger Cub 52" (Sn: 9330001 - 9339999 A5500001 - A5599999)
Smtc-52a - Tiger Cub 52" Mower Deck (Sn: 6660000 - 6669999 7690001 - 7699999 8460000 - 8469999)
Smvr-36a - Advantage 36" Mower Deck (Sn: E8500001 - E8599999)
Smvr-48v - Velocity Plus 48" Mower Deck (Sn: E8600001 - E8699999)
Smvr-52v - Velocity Plus 52" Mower Deck (Sn: E8700001 - E8799999)
Smwc-52a - Wildcat 52" (Sn: A5500001 - A5599999)
Smwc-52v - Tiger Cat 52" Mower Deck (Sn: D9200001 - D9299999)
Stc48v-25cv (Sn : F3900001-F3999999 G2700001-G2799999 H5700001-H5799999)
Stc48v-26bs (Sn : F4000001-F4199999 G2800001-G2899999)
Stc48v-27bs (Tiger Cat) (Sn : J3600001-J3699999)
Stc48v-651fs (Tiger Cat) (Sn : G2600001-G2699999 H5600001-H5699999)
Stc52a-21ka - Tiger Cub 52" Zero-Turn (Sn: 5900000 - 5909999 6610000 - 6619999 7660001 - 7669999)
Stc52a-23ka - Tiger Cub 52" Zero-Turn (Sn: 5910000 - 8439999
Stc52a-23ka - Tiger Cub 52" Zero-Turn (Sn: 9290001 - 9299999 A5200001 - A5299999)
Stc52a-23lv - Tiger Cub 52" Zero-Turn (Sn: 6630000 - 6639999)
Stc52a-24hn - Tiger Cub 52" Zero-Turn (Sn: 8750000 - 8759999)
Stc52a-24hn - Tiger Cub 52" Zero-Turn (Sn: 9300001 - 9309999 A5300001 - A5399999)
Stc52v-22fx (Tiger Cat) (Sn : J9000001-J9099999)
Stc52v-23bv Tiger Cub (Sn : D1400001-D1499999)
Stc52v-24fx (Sn : F4100001-F4199999)
Stc52v-25cv (Tiger Cat) (Sn : J9100001-J9199999)
Stc52v-25cv-Efi (Tiger Cat) (Sn : K4300001-K4399999)
Stc52v-27cv (Tiger Cat) (Sn : G3000001-G3099999 H6000001-H6099999)
Stc52v-691fx (Tiger Cat) (Sn : G2900001-G2999999)
Stwc52a-25ka - Wildcat 52" Zero-Turn (Sn: A8700001 - A8799999)

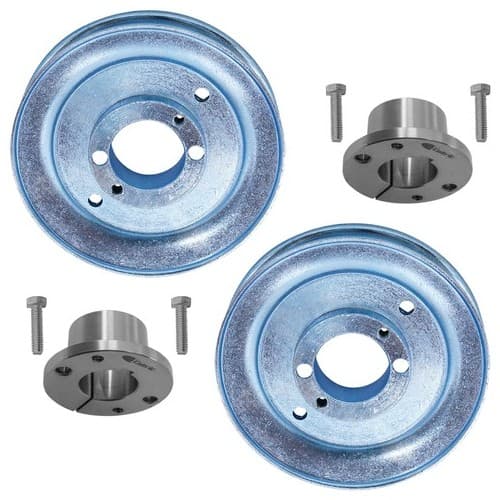

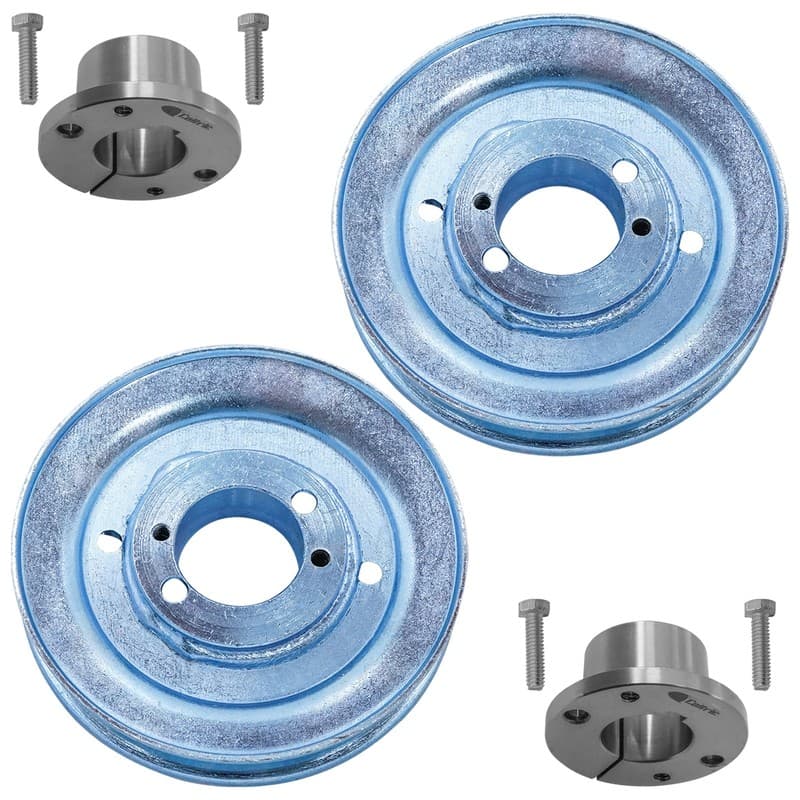

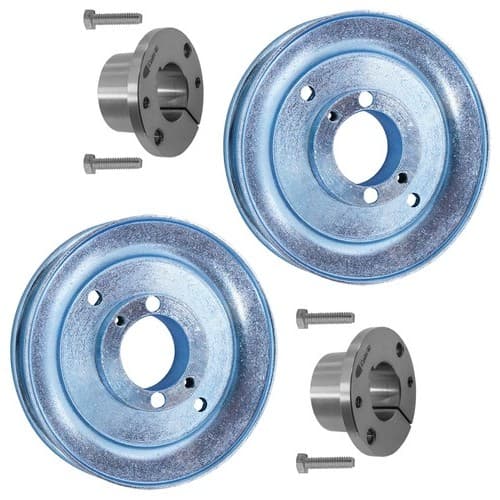

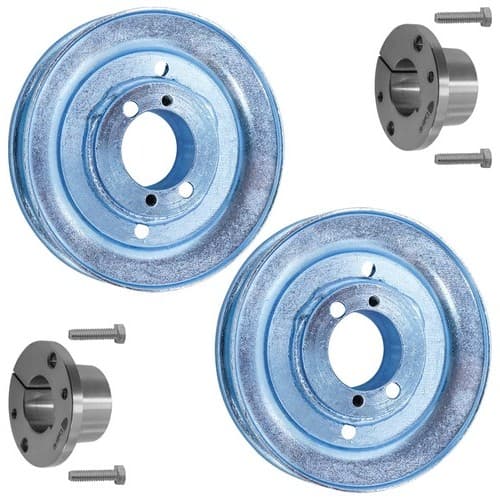

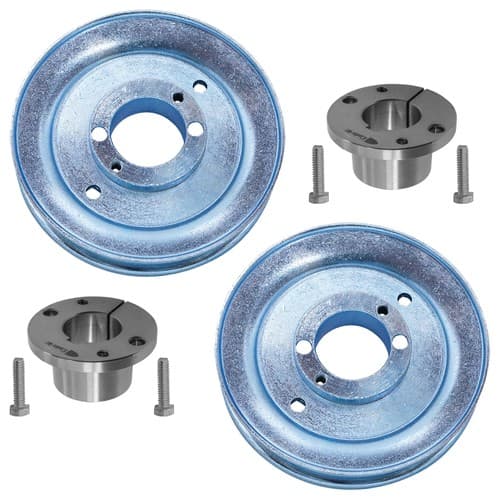

Order Includes:

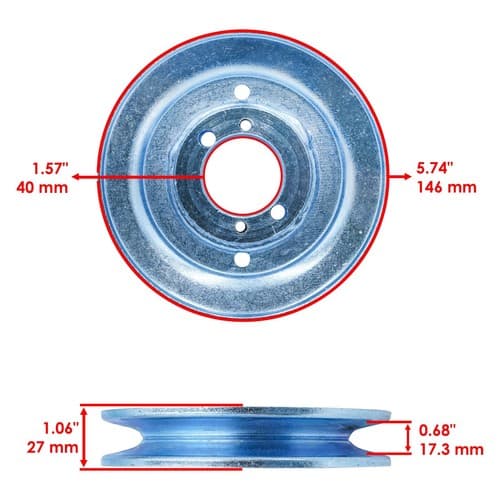

2x Spindle Pulley: 483284, 481233, 481435, 482647
Outer Diameter: 146 mm - 5.74 in
Inner Diameter: 40 mm - 1.57 in
Pulley Flat Width: 17.3 mm - 0.68 in
Height: 27 mm - 1.06 in

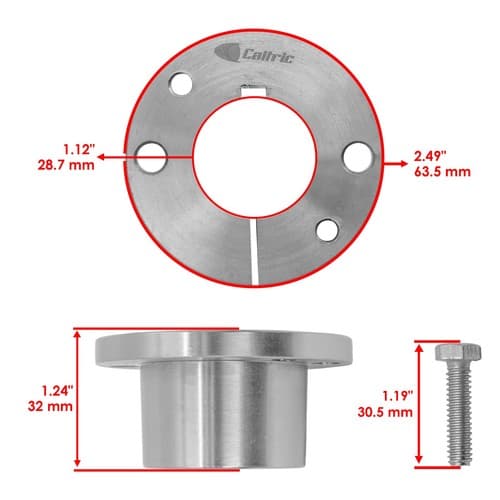

2x Tapered Hub: 48926. 48378-03, 48141
Inner Diameter: 28.7 mm - 1.12 in
Outer Diameter: 63.5 mm - 2.49 in
Height: 32 mm - 1.24 in
