Name: 48" Deck Spindle with Pulley Blade & Belt For Dixon Ram 48 ZT/ Jonsered Z48F
Brand: Caltric
SKU: APH-296409984534
Price: 251.56 USD
Availability: OutOfStock

Specifications

MPN: 539112170, 539131898, 285-927, 285927, 21546127, 129861, 153535, 173436, 532173436, 29861, 173436, 153535, 177865, 532129861, 539110318, 532153535, 275-284 275284, 539113425, 575296401, 539132728, 589766101, 589766102, 589766102, 539112196, 539131148, 280-733, 280733, 539109243, 265-786, 265786
Mpn: 539112170, 539131898, 285-927, 285927, 21546127, 129861, 153535, 173436, 532173436, 29861, 173436, 153535, 177865, 532129861, 539110318, 532153535, 275-284 275284, 539113425, 575296401, 539132728, 589766101, 589766102, 589766102, 539112196, 539131148, 280-733, 280733, 539109243, 265-786, 265786
Type: Spindle with Pulleys Blade & Belt
Brand: Caltric
Voltage: 12 V
Material: Aluminum
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
Item Width: 3․5 mm - 0․92"
Item Height: 177․8 mm - 7"

Description

Premium Quality Replacement Part

Spindle Assembly with Pulleys, Blade, Belt, Nut & Bolt

For Husqvarna Models:
966659801 - Husqvarna Mower Deck Assembly (2012-01)

Dixon
Ram 48 ZT (965882601) - Dixon 48" Ram Zero-Turn Mower (2008-12)

Jonsered
Z 48 F (967327901) - Jonsered Zero-Turn Mower (2015-01)

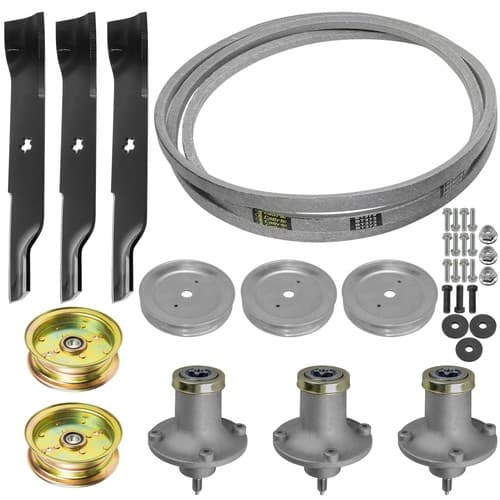

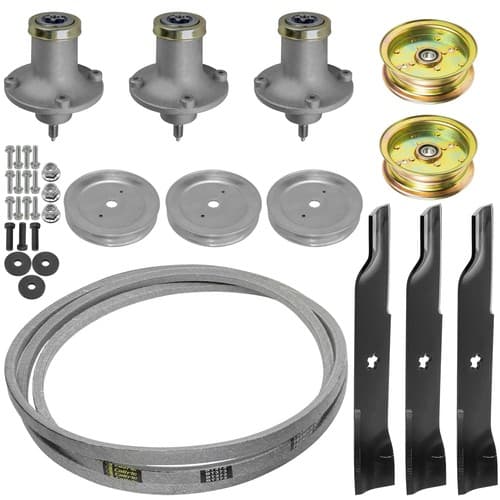

Order Includes:

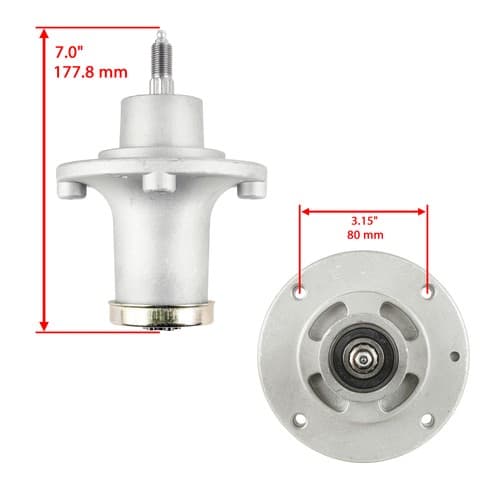

3 x Spindle Assembly: 539112170, 539131898, 285-927, 285927

Height: 177․8 mm - 7"
Mounting Hole Distance: 80 mm - 3.15"
Material: Aluminium
Thread Size: 1/2-20
Weight: 3 lbs 13 oz

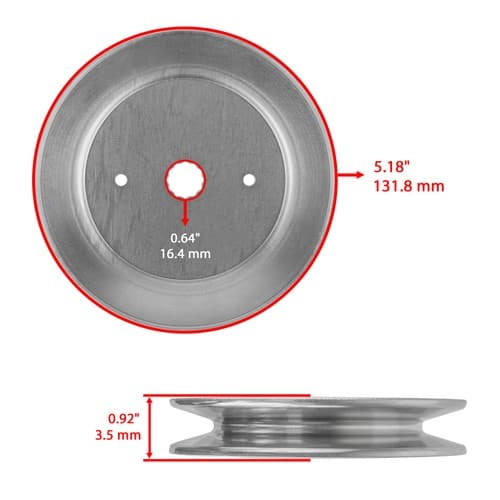

3 x Mandrel Pulley - 21546127, 129861, 153535, 173436, 532173436, 29861, 173436, 153535, 177865, 532129861, 539110318, 532153535, 275-284 275284

Width: 3․5 mm - 0․92"
Inner Diameter: 16․4mm - 0.64"
Outer Diameter: 131․8mm - 5.18"
Shaft Size: 16
Material: Steel

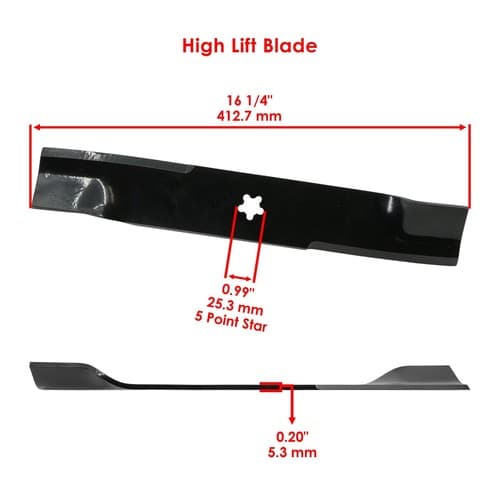

3 x Deck Blade: 539113425, 575296401

Length: 406․4 mm - 16"
Width: 66․6 mm - 2․62"
Thickness: 5․3 mm - 0.2"
Center Hole 5 Point Star
Hole Diameter: 25․3 mm - 0․99"
Material: Steel

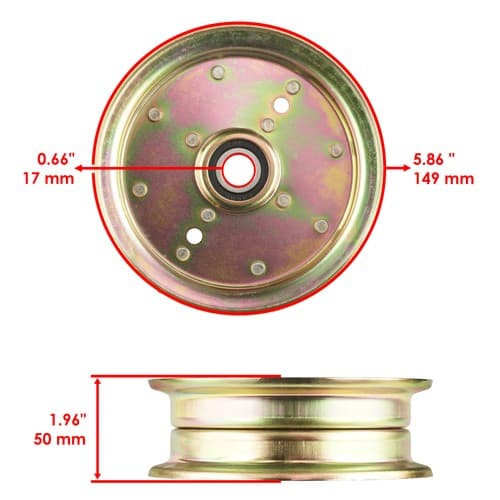

2 x Idler Pulley - 539132728, 589766101, 589766102, 539112196, 539131148, 280-733, 280733

Width: 50 mm - 1․96"
Inner Diameter: 17mm - 0.66"
Outer Diameter: 149mm - 5.86"
Shaft Size: 16․4
Material: Steel

1 x Belt : 539109243, 265-786, 265786

Width : 15․8 mm - 0․625"
Thikness: 11․74mm - 0․46"
Overall Length : 3441․7 mm - 135․5"
Material: Polyester
