Specifications
- MPN
- 1-403183, 1403183, E303558, E403183, 1-303558, 107-4065, 103-2533, 103-2547, 103-2548, 103-7975, 103-8280, 1-323532, 1-634619
- Mpn
- 1-403183, 1403183, E303558, E403183, 1-303558, 107-4065, 103-2533, 103-2547, 103-2548, 103-7975, 103-8280, 1-323532, 1-634619
- Type
- Pulley
- Brand
- Caltric
- Color
- Silver
- Model
- ProLine Walk-Behind Mower
- Voltage
- 12 V
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 11 HP
- Item Width
- 43.3 mm - 1.70 in
- Item Length
- 160 mm - 6.29 in
Description
Premium Quality Replacement Part

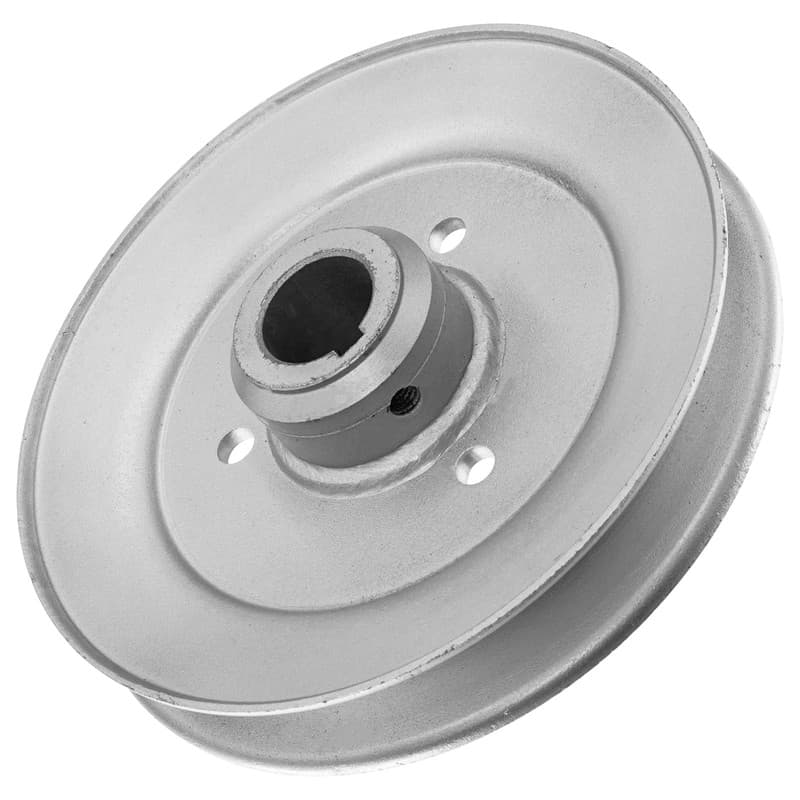

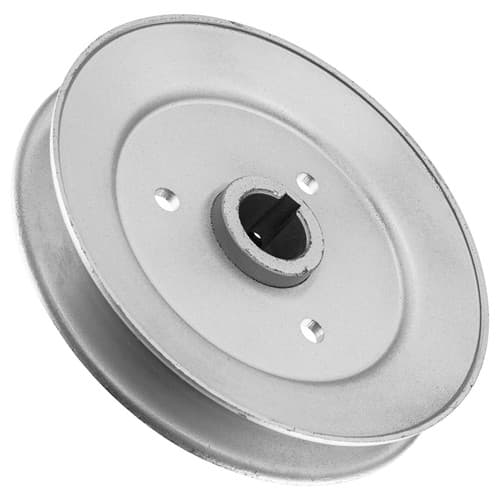

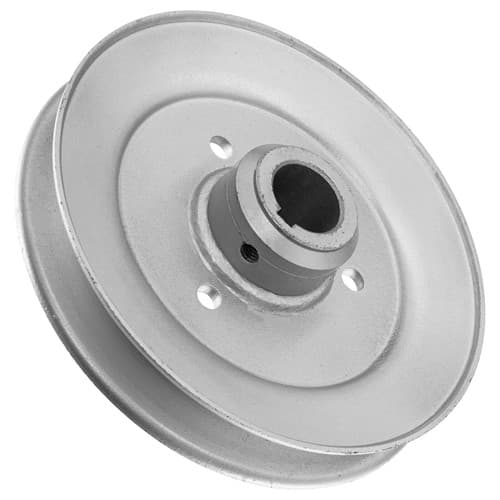

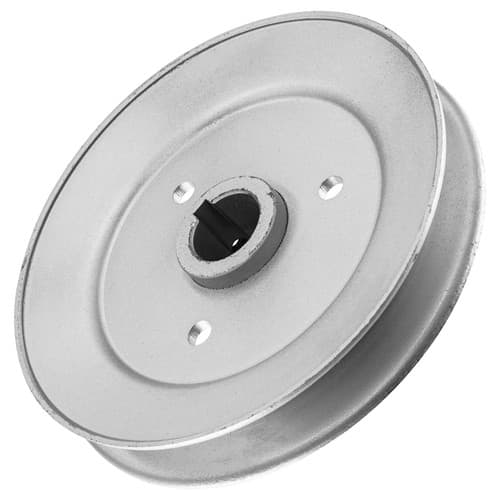

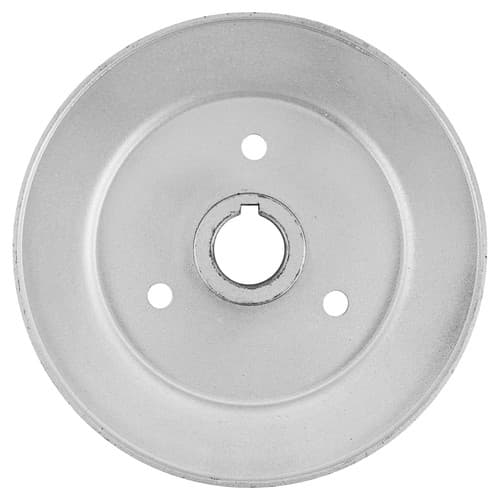

Spindle Pulley
Compatible with Toro Models:
ProLine Walk-Behind Mower:
02710 - 32" (Sn: 410000000 - 999999999)
02711 - 36" (Sn: 410000000 - 999999999)
02712 - 48" (Sn: 410000000 - 999999999)
30140 - 48" (Sn: 240000001 - 250999999) (2004-2005)
30140 - 48" 2004-2005 (Sn 240000001-250999999)
30150 - 32" 2004-2005 (Sn 240000001-250999999)
30150 - 32" (Sn: 240000001 - 250999999) (2004-2005)
30161 - 36" (Sn: 240000001 - 250999999) (2004-2005)
30161 - 36" 2004-2005 (Sn 240000001-250999999)
30164 - 32" (Sn: 220000001 - 220999999) (2002)
30164 - 32" 2000-2002 (Sn 200000001-220999999)
30171 - 32" (Sn: 220000001 - 230005000) (2002-2003)
30171 - 32" 2000-2003 (Sn 200000001-230999999)
30178 - 36" (Sn: 230000001 - 250999999) (2003-2005)
30178 - 36" 2003-2005 (Sn 230000001-250999999)
30184 - 36" (Sn 890001-999999 200000001-200999999) 1998-2000
30184 - 36" 1998-2000 (Sn 890001-899999 200000001-200999999)
30193 - 36" (Sn: 890001-899999 200000001- 230999999) 1989-2003
30193 - 36" 1998-2003 (Sn 890001-999999 200000001-230999999)
30194 - 36" (Sn: 890001-999999 200000001- 220999999) (1998-2002)
30194 - 36" 1998-1999 (Sn 890001-999999 200000001-220999999)
30195 - 48" (Sn: 230000001 - 230999999) (2003)
30195 - 48" 2003 (Sn 230000001-230999999)
30196 - 48" (Sn 890001-999999 200000001- 220999999) (1998-2002)
30196 - 48" 1998-2002 (Sn 890001-999999 200000001-220999999)
30197 - 48" (Sn: 890001-999999 200000001- 250999999) (1998-2005)
30197 - 48" 1998-2004 (Sn 890001-999999 200000001-240999999)
Compatible with Exmark Models:
Metro Walk-Behind Mower:
M14815kc (320000-369999)(2002)
M15ka322p - 32" (Sn: 670000 - 849999) (2007-2009)
M15ka362 - 36" (Sn: 670000 - 849999) (2007-2009)
M15ka362p - 36" (Sn: 670000 - 849999) (2007-2009)
M15ka483 - 48" (Sn: 670000 - 849999) (2007-2009) - 36"
M15ka483p - 48" (Sn: 670000 - 849999) (2007-2009)- 36"
M16ka322p - 32" (Sn: 850000 - 919999) (2010)
M16ka362 - 36" (Sn: 850000 - 919999) (2010)
M16ka362p - 36" (Sn: 850000 - 919999) (2010)
M16ka483 - 48" (Sn: 850000 - 919999) (2010) - 36"
M16ka483p - 48" (Sn: 850000 - 919999) (2010)- 36"
M3211b - 32" (Sn: 260000 - 319999) (2001)
M3211b - 32" (Sn: 190000 - 219999) (1999)
M3213ka - 32" (Sn: 160000 - 219999) (1998-1999)
M3213ka - 32" (Sn: 220000 - 259999) (2000)
M3213ka - 32" (Sn: 220000 - 369999)
M3213kc - 32" (Sn: 160000 - 189999) (1998)
M329b - 32" (Sn: 160000 - 189999) (1998)
M3613ka, M3613kc, M3614ka, M3615kc - 36" (Sn: 160000 - 219999) (1998-1999)
M4814ka, M4815kc - 48" (Sn: 160000 - 189999) (1998)
M4814ka, M4815kc - 48" (Sn: 190000 - 219999) (1999)
Mg481ka322p (Sn : 312,000,000 & Up ) - 32"
Mg481ka362 (Sn : 312,000,000 & Up ) - 36"
Mg481ka362ca (Sn : 312,000,000 & Up ) - 36"
Mg481ka483 (Sn : 312,000,000 & Up ) - 48"
Mg481ka483ca (Sn : 312,000,000 & Up ) - 48"
Mg481ka483p (Sn : 312,000,000 & Up ) - 48"
Mgs481cka36200 (Sn : 315,000,000 & Up ) - 36"
Mgs481cka48300 (Sn : 315,000,000 & Up ) - 48"
Mgs481gka322p0 ( N : 315,000,000 & Up ) - 32"
V36-14ko-H (Sn : 102,000-129,999 (1995-1996) - 36"
V48-14ko-H , V48-14k-H (Sn : 102,000-129,999 (1995-1996) - 48"
V48-16bv-H (Sn : 115,000-129,999 (1996)) - 48"
V52-14k-H (Sn : 102,000-129,999 (1995-1996) - 52"
V52-14ko-H (Sn : 102,000-114,999 (1996) - 52"
Vh16ka362 (Sn : 920,000 & Up ) - 36"
Vh16ka362ca (Sn : 920,000 & Up ) - 36"
Vh3614ka - 36" (Sn: 150000 - 219999) (1998-1999)
Vh3615kc - 36" (Sn: 150000 - 189999) (1998)
Vh4814ka - 36" (Sn: 150000 - 219999) (1998-1999)
Vh4814ka (Sn : 150,000-189,999 (1998)) - 48"
Vh4815kc - 36" (Sn: 150000 - 189999) (1998)
Vh4815kc (Sn : 150,000-189,999 (1998)
Vh481ka362 (Sn : 312,000,000 & Up ) - 36"
Vh481ka362ca (Sn : 312,000,000 & Up ) - 36"
Vh481ka483 (Sn : 312,000,000 & Up ) - 48"
Vh481ka483ca (Sn : 312,000,000 & Up ) - 36"
Vhs481gka36200 (Sn : 315,000,000 & Up ) - 36"
Vhs481gka48300 (Sn : 315,000,000 & Up ) - 48"
Viking Hydro (Sn : 670,000 & Up Vh15ka362 (Sn : 670,000 & Up (2007) ) - 48"
Viking Hydro (Sn : 850,000 & Up Vh16ka362 (Sn : 850,000 & Up) - 48"
Order Includes:
1x Spindle Pulley: Toro: 1-403183,
Exmark: 1-403183, E303558, E403183, 1-303558

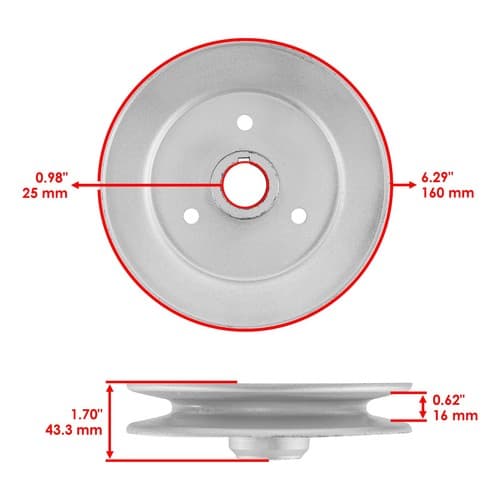

Outer Diameter: 160 mm - 6.29 in
Inner Diameter: 25 mm - 0.98 in
Pulley Flat Width:16 mm - 0.62 in
Height: 43.3 mm - 1.70 in
