48" Deck Spindle Blade Pulley Belt Rebuild Kit For Craftsman GT5000 Lawn Mower

Premium Quality Replacement Part

SPINDLE BLADE MULCHING PULLEY BELT REBUILD KIT

Compatible with Following CRAFTSMAN Models:

GT5000 48"

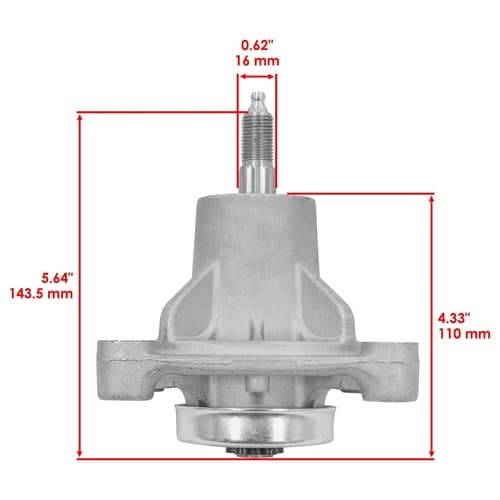

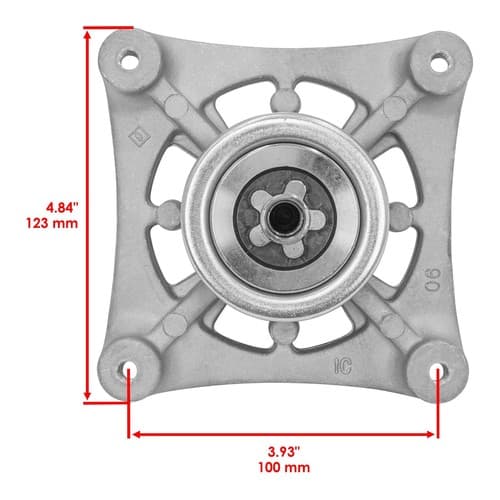

Spindle Specs:

5-29/32" overall

Grease fitting on thread end.

NOTE:

Mounting holes do not have thread.Power tool

is needed to install the bolts.It is designed to withstand the vibration.

Spindle Part Numbers:

174356

174358

532174358

587125201

532174356

587125201

539107515

285-108

82-015

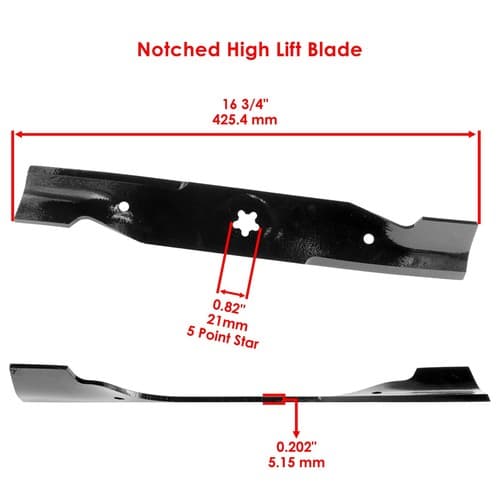

Blade Specs:

Width 2.5"

Length 16-3/8"

Thickness 0.203"

Center Hole 5 Point Star

Deck Size 48" Cut

Blade Part Numbers:

532180054

532173920

539107519

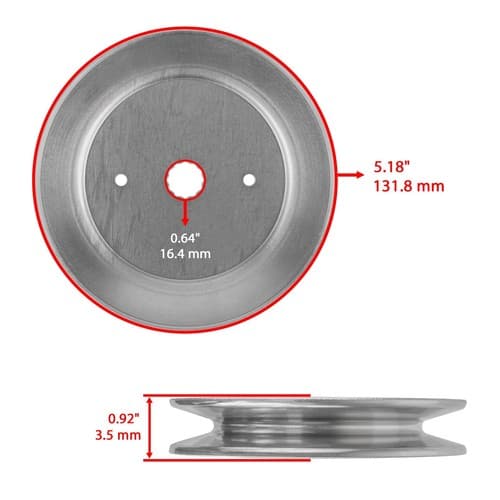

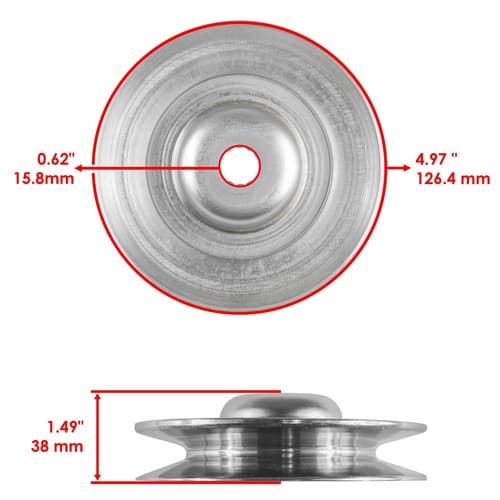

Spindle Pulley Specs:

ID: 5/8"

OD: 4 7/8 "

HEIGHT 1 1/2"

Spindle Pulley Part Numbers:

532174375

539107521

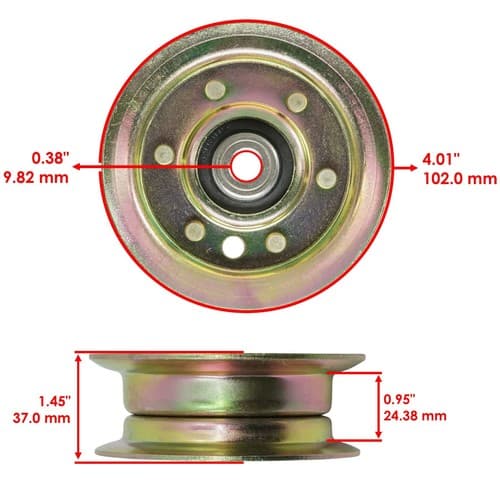

Idler Pulley Specs:

OD 4"

ID 3/8"

Height 1 7/16"

Idler Pulley Part Numbers:

532177968

532193197

177968

193197

280240

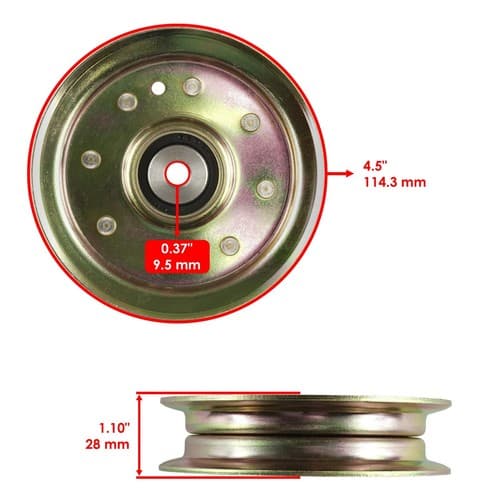

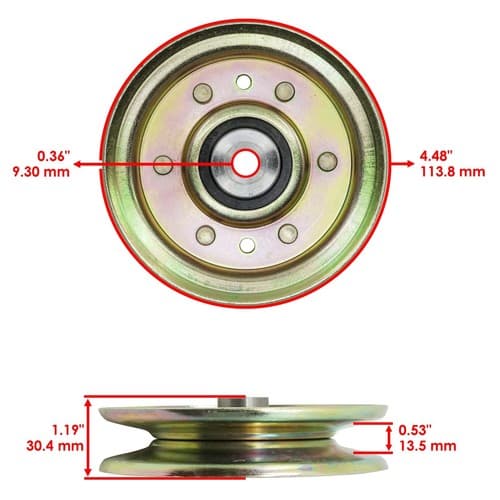

Idler Pulley Specs:

OD 4-1/2"

ID 3/8"

Idler Pulley Part Numbers:

532175820

539107620

175820

107620

280239

Secondary Belt Specs:

Width 5/8"

Length 89"

Secondary Deck Belt Part NUmbers:

33908

532180808

Primary Drive Belt Specs:

Width 5/8"

Length 91"

Primary Drive Belt Part Numbers:

532174368

174368

33907

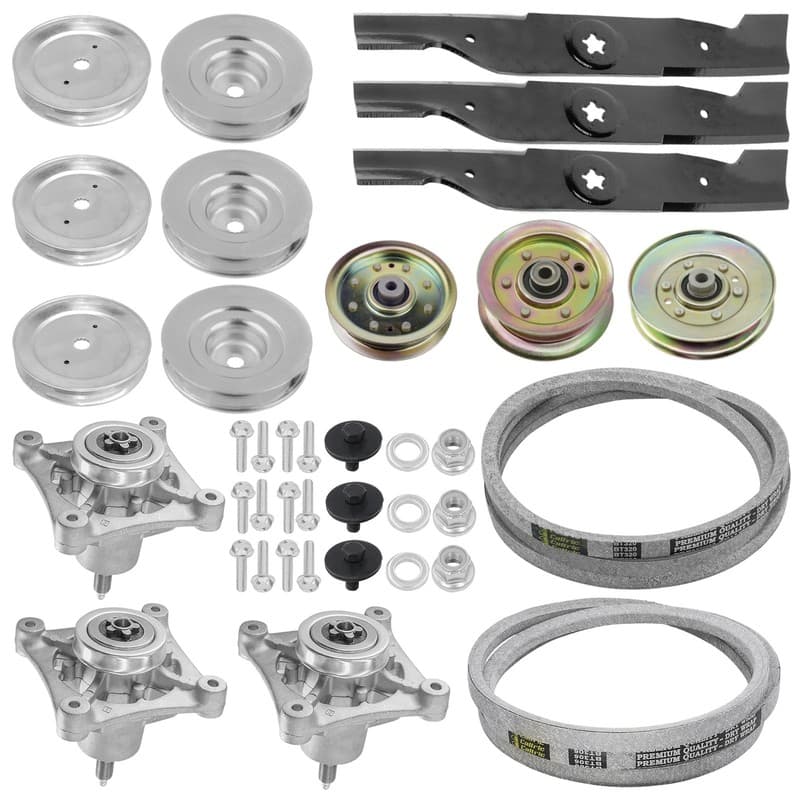

Order Includes:

3x Spindle Assemblies

3x Spindle Pulleys

3x Blades

2x Idler Pulleys

2 x Belts
