Name: 42" Deck Spindle Blade Belt Pulley Rebuild Kit For Craftsman DYT4000
Brand: Caltric
SKU: APH-284259123876
Price: 166.5 USD
Availability: InStock

Specifications

MPN: 130794, 532130794, 532183170, 539110158 128774, 532137646, 129861, 173436, 153535, 177865, 532129861, 532173436, 532134149, 594892701, 777134149, 532139775, 594893101, 532138498, 532138971, 532127843, 539110460, 173437, 532173437, 165888, 532165888, 104360X, 131494, 173438, 532173438, 597025001, 24690, 24102, 144959, 144959D, 130801, 138255, 160855, 531300766, 532144959, 532130801, 532138255, 532160855, 577203116, 583271401
Mpn: 130794, 532130794, 532183170, 539110158 128774, 532137646, 129861, 173436, 153535, 177865, 532129861, 532173436, 532134149, 594892701, 777134149, 532139775, 594893101, 532138498, 532138971, 532127843, 539110460, 173437, 532173437, 165888, 532165888, 104360X, 131494, 173438, 532173438, 597025001, 24690, 24102, 144959, 144959D, 130801, 138255, 160855, 531300766, 532144959, 532130801, 532138255, 532160855, 577203116, 583271401
Type: Spindle
Brand: Caltric
Color: Black
Model: For Craftsman DYT4000
Material: Aluminum, Steel, Polyester
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab

Description

Premium Quality Replacement Part

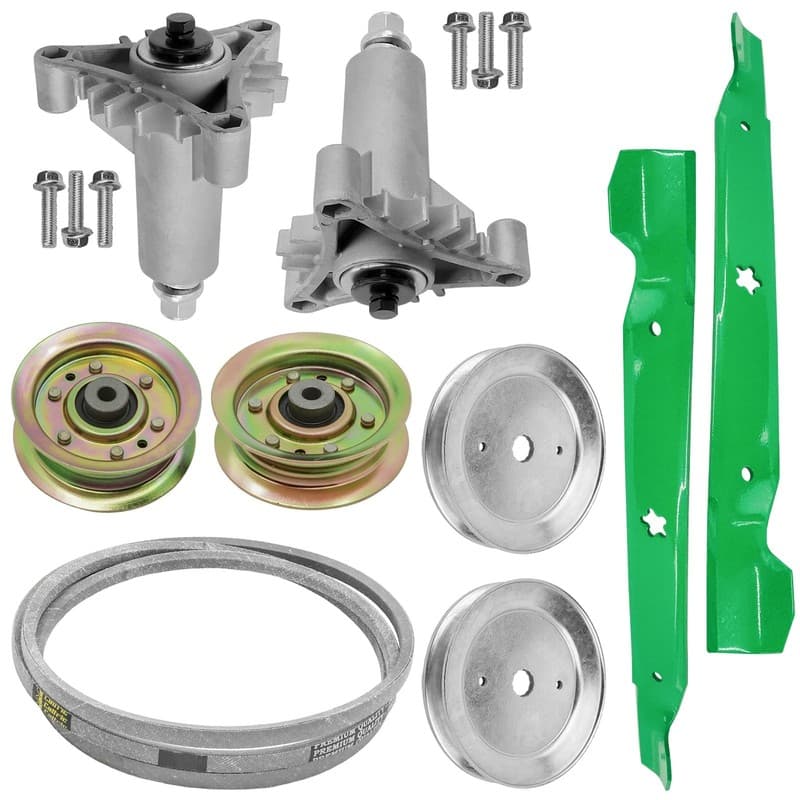

42" Deck Spindle Assembly with Pulleys Blade & Belt

Compatible with Craftsman Models:

42" Lawn Tractor
DYT4000

Order Includes:

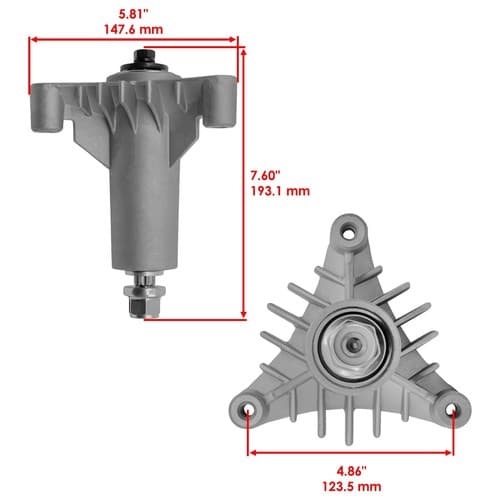

2 x Spindle Assembly: 130794, 532130794, 532183170
539110158 128774, 532137646

Length: 193.1 mm - 7.6 in
Mounting Hole Distance: 123.5 mm - 4.86 in

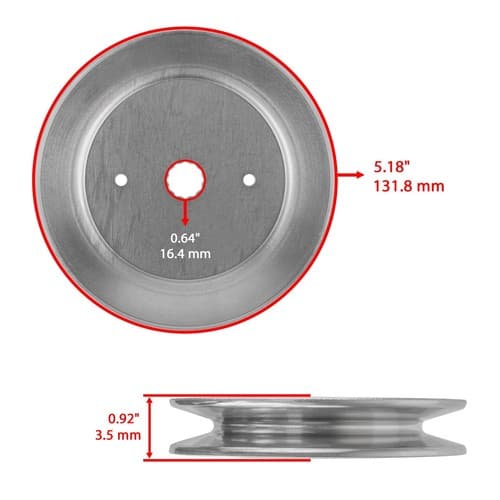

2 x Spindle Pulley: 129861, 173436, 153535, 177865, 532129861, 532173436

Width: 3.5mm - 0.92 in
Inner DIameter: 16.4mm - 0.64 in
Outer Diameter: 131.8 mm 5.18 in

2 x Notched High Lift Blade: 532134149, 594892701, 777134149
532139775, 594893101, 532138498, 532138971, 532127843, 539110460

Length: 533.4 mm - 21 in
Width: 56 mm - 2.2 in
Thickness: 4 mm - 0.157 in
Center Hole Diameter: 21mm - 0.82 in
Point Star: 5

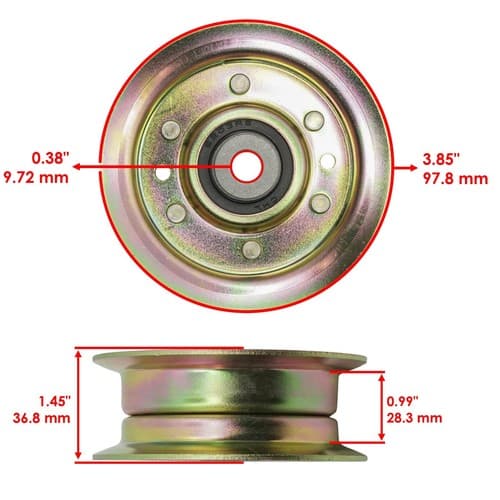

1 x Flat Idler Pulley: 173437, 532173437, 165888, 532165888

Width: 36.8 mm - 1.45 in
Inner DIameter: 9.72mm - 0.38 in
Outer Diameter: 97.8 mm 3.85 in

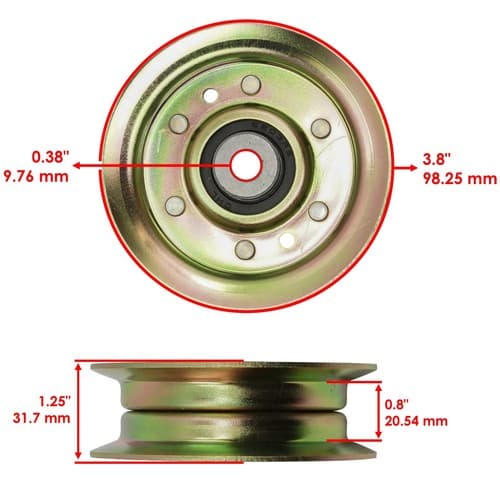

1 x Flat Idler Pulley:104360X, 131494, 173438, 532173438, 597025001

Width: 31.7 mm - 1.25 in
Inner DIameter: 9.76 mm - 0.38 in
Outer Diameter: 98.25 mm 3.8 in

1 x Belt: 24690, 24102, 144959, 144959D, 130801, 138255, 160855
531300766, 532144959, 532130801, 532138255, 532160855
577203116, 583271401

Overall Length: 2425.7 mm - 95.5 in
Width: 12.7 - 0.5 in
Thickness: 8.6 mm - 0.33 in

NOTE:

Mounting holes do not have thread.Power gun
is needed to install the bolts.It is designed to withstand the vibration.
