Specifications
- MPN
- 01593800, 51510000, 61527600, 61543800
- Mpn
- 01593800, 51510000, 61527600, 61543800
- Type
- Deck Spindle & Pulley
- Brand
- Caltric
- Color
- Black & Gray
- Model
- For Gravely ZT 1540 1740 1640 1844 1944 2048 2252 2148
- Voltage
- 12 V
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 24 HP
- Item Width
- 0.81 in
Description
Premium
Quality Replacement Part

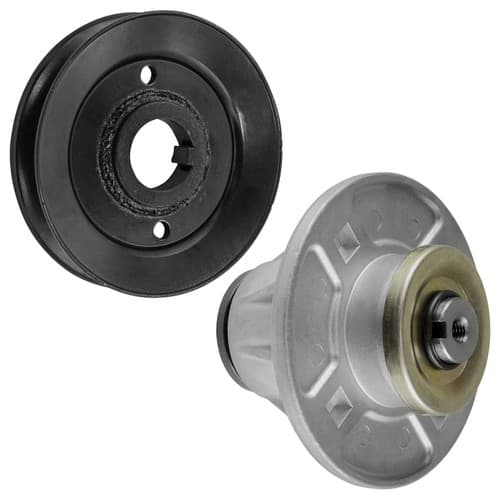

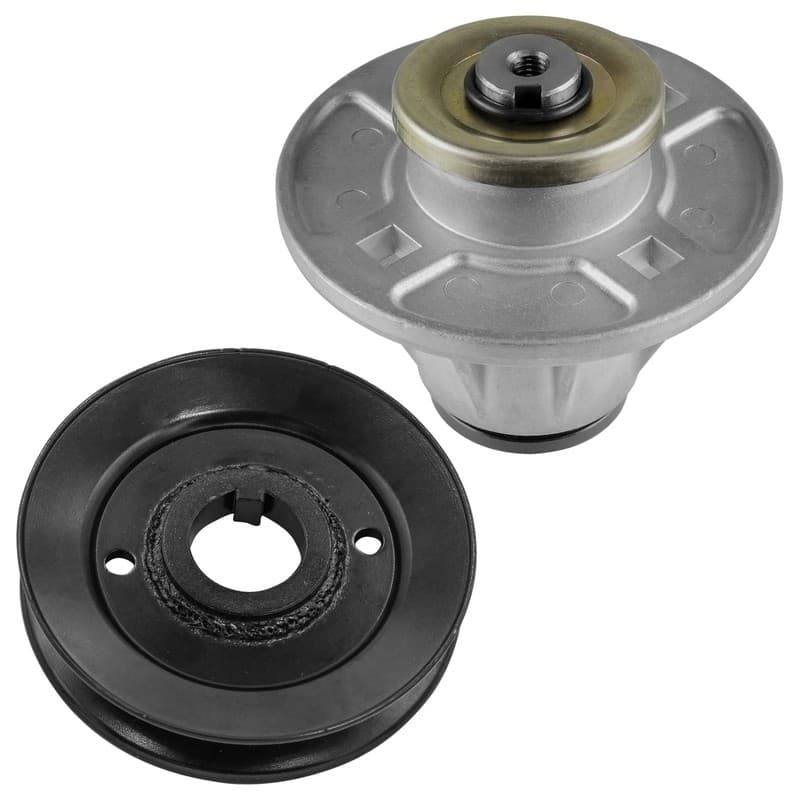

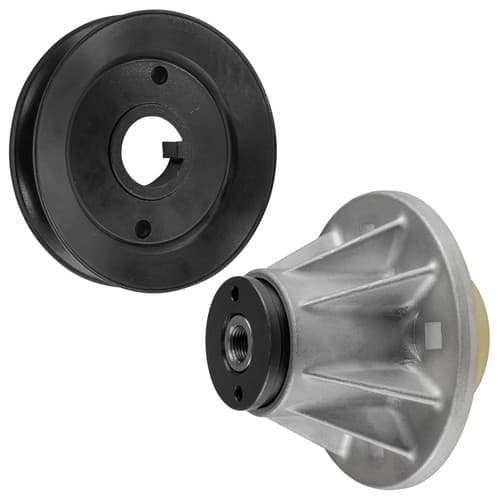

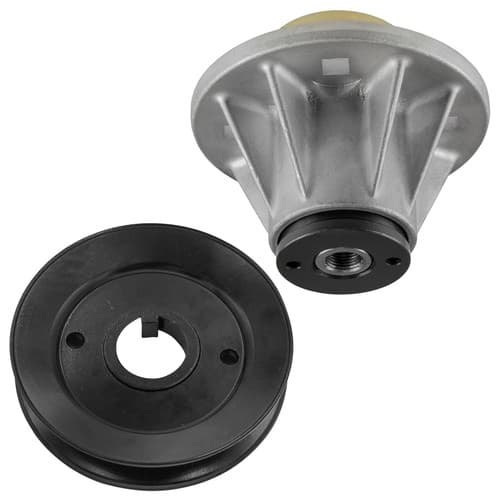

Deck Spindle and Pulley
Deck Spindle and Pulley
Compatible with Gravely Models:
15048 (Zt 2148) - 48", 21hp Koh. (Sn: 005000 - 009999)
915034 (Zt 1640) - 40", 16hp B&S (Sn: 000101 & Above)
915036 (Zt 1844) - 44", 18hp B&S (Sn: 000101 & Above)
915038 (Zt 2048) - 48", 20hp B&S (Sn: 000101 & Above)
915040 (Zt 2252) - 52", 22hp B&S (Sn: 000101 & Above)
915042 (Zt 1540) - 40", 15hp Koh. (Sn: 000101 - 004999)
915042 (Zt 1540) - 40", 15hp Koh. (Sn: 005000 - 009999)
915042 (Zt 1540) - 40", 15hp Koh. (Sn: 010000 & Above)
915044 (Zt 1740) - 40", 17hp Koh. (Sn: 000101 - 004999)
915044 (Zt 1740) - 40", 17hp Koh. (Sn: 005000 - 009999)
915044 (Zt 1740) - 40", 17hp Koh. (Sn: 010000 & Above)
915046 (Zt 1944) - 44", 19hp Koh. (Sn: 000101 - 004999)
915046 (Zt 1944) - 44", 19hp Koh. (Sn: 005000 - 009999)
915046 (Zt 1944) - 44", 19hp Koh. (Sn: 010000 & Above)
915048 (Zt 2148) - 48", 21hp Koh. (Sn: 000101 - 004999)
915048 (Zt 2148) - 48", 21hp Koh. (Sn: 005000 - 009999)
915048 (Zt 2148) - 48", 21hp Koh. (Sn: 010000 & Above)
915050 (Zt 2352) - 52", 23hp Koh. (Sn: 000101 - 004999)
915050 (Zt 2352) - 52", 23hp Koh. (Sn: 005000 - 009999)
915050 (Zt 2352) - 52", 23hp Koh. (Sn: 010000 & Above)
915054 (Mini-Zt 1540) - 40", 15hp Koh. (Sn: 000101 - 004999)
915054 (Mini-Zt 1540) - 40", 15hp Koh. (Sn: 005000 - 019999)
915054 (Mini-Zt 1540) - 40", 15hp Koh. (Sn: 020000 & Above)
Compatible with Ariens Models:
915035 (1640) - 16hp B&S (Sn: 000101 & Above)
915037 (1844) - 18hp B&S (Sn: 000101 & Above)
915039 (2048) - 20hp B&S (Sn: 000101 & Above)
915041 (2252) - 22hp B&S (Sn: 000101 & Above)
915043 (1540) - 15hp B&S (Sn: 000101 - 004999)
915043 (1540) - 15hp B&S (Sn: 005000 & Above)
915051 (1640) - 16hp B&S (Sn: 000101 - 004999)
915051 (1640) - 16hp B&S (Sn: 005000 & Above)
915055 (1944) - 19hp Koh. (Sn: 000101 - 004999)
915055 (1944) - 19hp Koh. (Sn: 005000 - 009999)
915055 (1944) - 19hp Koh. (Sn: 010000 & Above)
915057 (2148) - 21hp Koh. (Sn: 000101 - 004999)
915057 (2148) - 21hp Koh. (Sn: 005000 - 009999)
915057 (2148) - 21hp Koh. (Sn: 010000 & Above)
915059 (2352) - 23hp Koh. (Sn: 000101 - 004999)
915059 (2352) - 23hp Koh. (Sn: 005000 - 009999)
915059 (2352) - 23hp Koh. (Sn: 010000 & Above)
915063 (1540) - 15hp Koh. (Sn: 000101 - 004999)
915063 (1540) - 15hp Koh. (Sn: 005000 - 019999)
915063 (1540) - 15hp Koh. (Sn: 020000 & Above)
915065 (1540) - 15hp Kohl. (Sn: 010000 & Above)
915067 (1740) - 17hp Koh. (Sn: 010000 & Above)
915502 (1540) - 15hp Kaw. (Sn: 005000 - 009999)
Order Includes:
1x Spindle: Ariens: 51510000, 61527600, 61543800
Gravely: 51510000, 61527600, 61543800

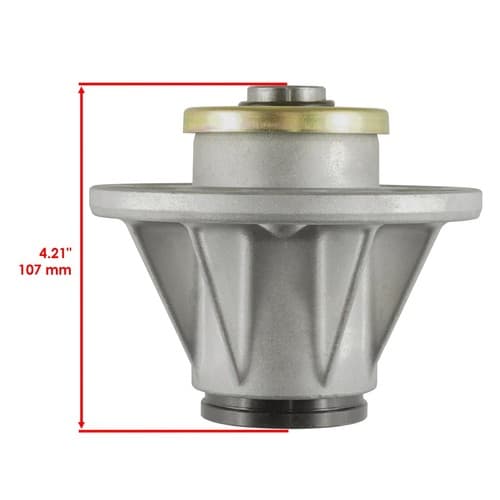

Height: 107 mm - 4.21 in

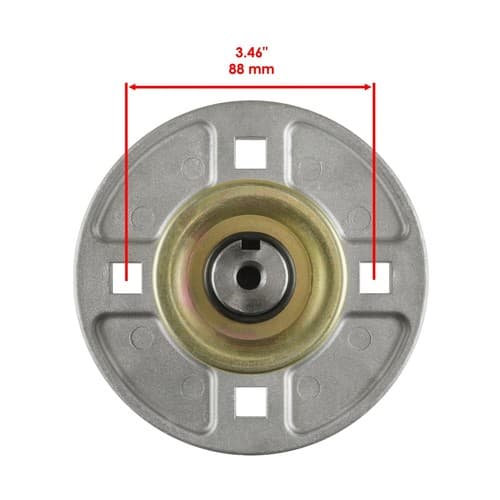

Mounting Hole Distance: 88 mm - 3.46 in
1x Pulley: Ariens: 01593800
Gravely: 01593800

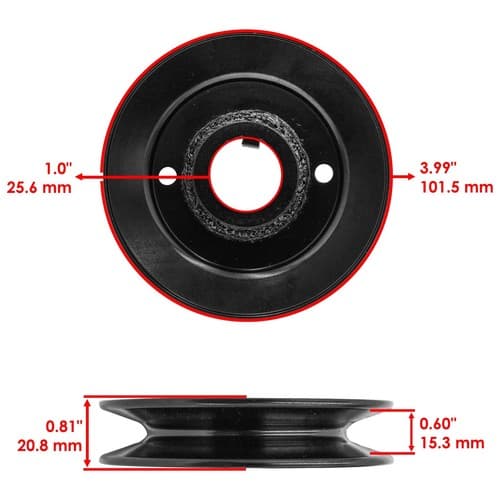

Outer Diameter: 101.5 mm - 3.99 in
Inner Diameter: 25.6 mm - 1.0 in
Width: 20.8 mm - 0.81 in
