Specifications
- MPN
- 03498400, 014668, 03498451, 08899800, 14668, 00173800, 05901822, 05978900
- Mpn
- 03498400, 014668, 03498451, 08899800, 14668, 00173800, 05901822, 05978900
- Type
- Blade
- Brand
- Caltric
- Color
- Green
- Model
- For Gravely ZT1540 ZT1640 ZT1840 ZT2040
- Voltage
- 12 V
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
- 24 HP
- Item Width
- 0.19 in
- Item Length
- 13 7/8 in
Description
Premium Quality Replacement Part
Deck Blade High-Lift with Bolts
Deck Blade High-Lift with Bolts
Compatible with Ariens Models:
Zoom 40" Zero-Turn Mower:
915035 (1640) - 16hp B&S (SN: 000101 & Above)
915043 (1540) - 15hp B&S (SN: 000101 - 004999)
915043 (1540) - 15hp B&S (SN: 005000 & Above)
915051 (1640) - 16hp B&S (SN: 000101 - 004999)
915051 (1640) - 16hp B&S (SN: 005000 & Above)
915065 (1540) - 15hp Kohl. (SN: 010000 & Above)
915067 (1740) - 17hp Kohl. (SN: 010000 & Above)
915075 (1640) - 16hp Kohl. (SN: 020000 - 024999)
915075 (1640) - 16hp Kohl. (SN: 025000 & Above)
915077 (1840) - 18hp Kohl. (SN: 020000 - 024999)
915043 (1540) - 15hp B&S (SN: 005000 & Above)
915502 (1540) - 15hp Kaw. (SN: 005000 - 009999)
Mini-Zoom 40" Zero-Turn Mower:
915063 (1540) - 15hp Kohl. (SN: 000101 - 004999) (SN: 005000 - 019999)
(SN: 020000 & Above)
Compatible with Gravely Models:
Zero-Turn Mower:
915054 (Mini-ZT 1540) - 40", 15hp Kohl. (SN: 000101 - 004999)
915054 (Mini-ZT 1540) - 40", 15hp Kohl. (SN: 005000 - 019999)
915054 (Mini-ZT 1540) - 40", 15hp Kohl. (SN: 020000 & Above)
915076 (ZT 1840) - 40", 18hp Kohl. (SN: 035000 & Above)
915078 (ZT 2044) - 44", 20hp Kohl. (SN: 035000 & Above)
915080 (ZT 2348) - 40", 23hp Kohl. (SN: 035000 & Above)
915082 (ZT 2552) - 40", 25hp Kohl. (SN: 035000 & Above)
915084 (ZT 2350) - 40", 23hp Kohl. (SN: 000101 - 000999)
915086 (HVZ 1840) - 40", 18hp Kohl. (SN: 000101 & Above)
915094 (ZT 2350) - 40", 23hp Kohl. (SN: 000101 & Above)
915096 (ZT 2250) - 40", 22hp Kohl. (SN: 000101 & Above)
915098 (ZT 1840) - 40", 18hp Kohl. (SN: 000101 & Above)
915102 (ZT 2040) - 40", 20hp Kohl. (SN: 000102 & Above)
915104 (ZT 2250) - 40", 22hp Kohl. (SN: 000101 & Above)
915106 (ZT 2350) - 40", 23hp Kohl. (SN: 000101 & Above)
915116 (ZT 2450) - 40", 24hp B&S (SN: 000101 & Above)
915132 (ZT 2350) - 40" (SN: 000101 & Above)
915034 (ZT 1640) - 40", 16hp B&S (SN: 000101 & Above)
915400 (YJ 40) - 40" (SN: 000101 & Above)
915401 (YJ 44) - 44" (SN: 000101 & Above)
915402 (YJ 40) - 40" (SN: 000101 & Above)
915403 (YJ 40) - 40", 20hp Kohl. (SN: 000101 & Above)
915404 (YJ 50) - 40", 25hp Kohl. Courage (SN: 000101 & Above)

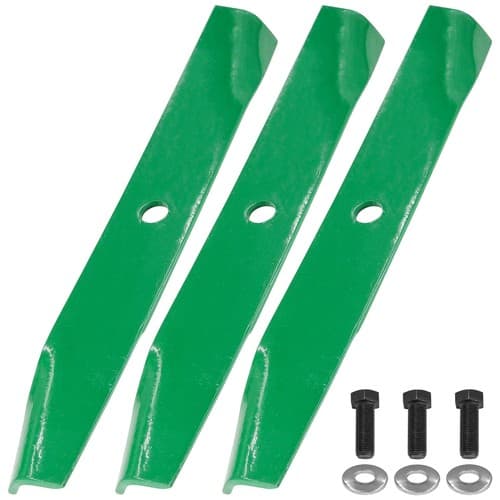

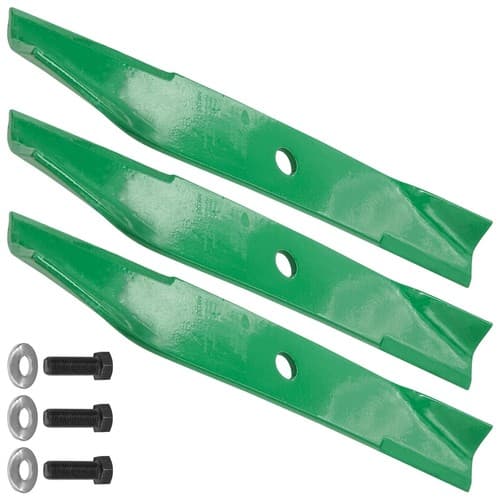

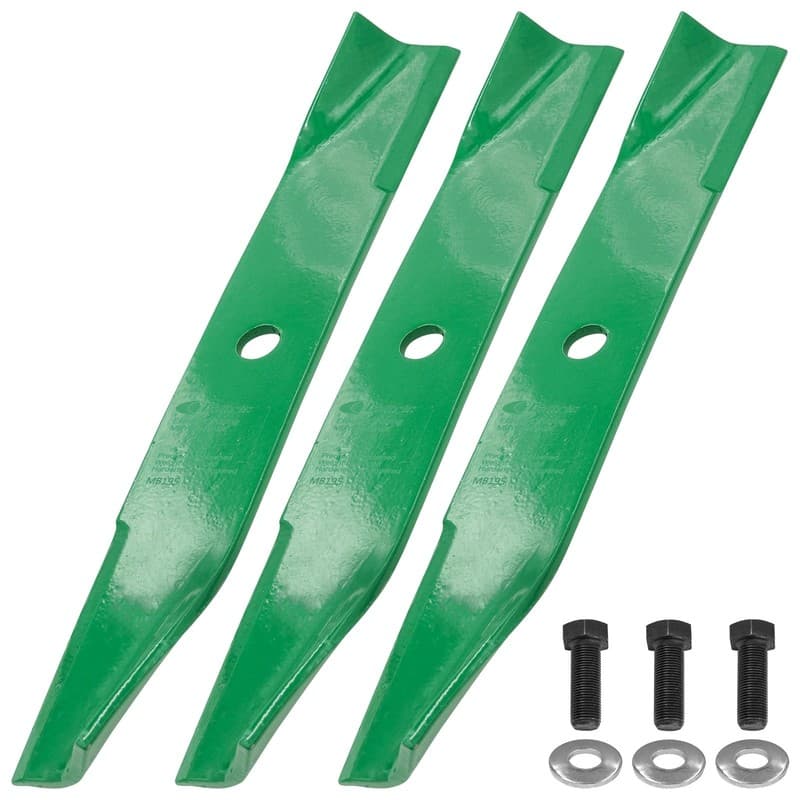

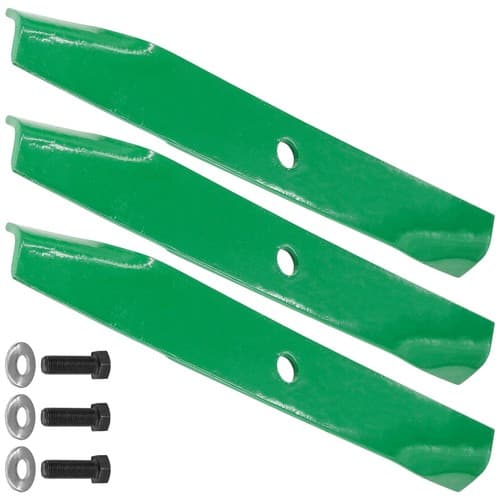

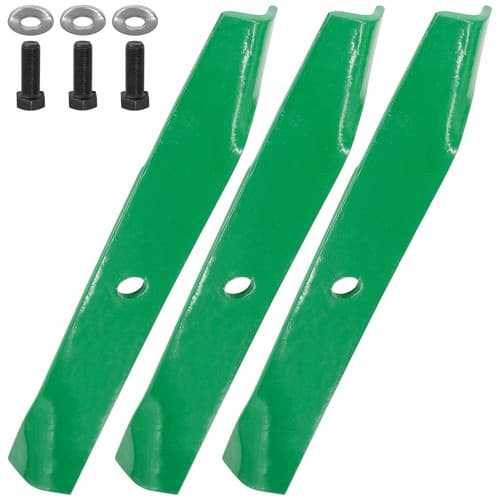

Order Includes:
3x Blade: Ariens: 03498400, 00173800,
03498451
Gravely: 03498400, 014668,
03498451, 08899800, 14668

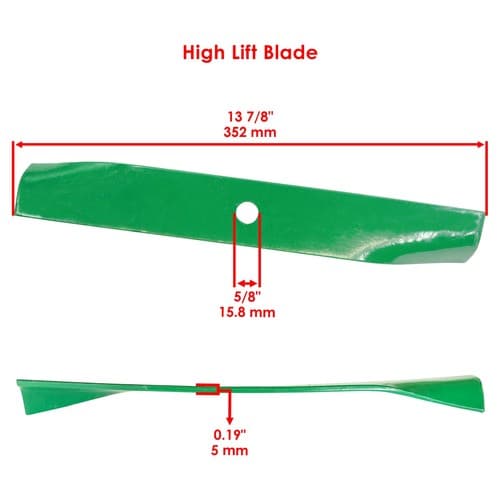

Length: 13 7/8 in - 352.4 mm
Width: 1.97 in - 50 mm
Thickness: 0.20 in - 5 mm
Mounting Hole Diameter: 0.63 in - 16 mm
3x Bolt: Ariens/Gravely: 05901822,
05978900, 06445700
Length: 2.18 in - 55.5 mm
Stud Length: 1.68 in - 42.8 mm
Thread Size: M16 - 1.5
