Specifications
- MPN
- 51519500, 61559900, 03746500, 03971900, 3971900, 06500920, 06500630, 06445700
- Mpn
- 51519500, 61559900, 03746500, 03971900, 3971900, 06500920, 06500630, 06445700
- Type
- Spindle
- Brand
- Caltric
- Color
- Black
- Model
- For Ariens: 51519500, 61559900, 03746500, 03971900, 3971900
- Voltage
- 12 V
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Height
- 5.31 in
- Item Length
- 17.35 in
- Item Weight
- 11 lb 14 oz
Description
Premium Quality Replacement Part
Mower Deck Spindle Assembly with Blade and Nut
Compatible with Ariens Models:
34" Walk-Behind Mower
911410 13.5hp B&S (Sn: 000101 & Above)
911413 14.5hp B&S (Sn: 000101 & Above)
Zoom 34" Zero-Turn Mower
915131 13hp B&S (Sn: 000101 & Above)
915151 13hp B&S (Sn: 000101 & Above)
915157 14hp B&S (Sn: 000101 & Above)
915169 14hp B&S (Sn: 000101 - 009999)
Zoom 50" Zero-Turn Mower
915143 22hp Kw. (Sn: 000101 & Above)
915161 25hp Koh. (Sn: 000101 & Above)
Compatible with Gravely Models:
34" Wide-Area Walk-Behind Mower
911411 (Waw 34) 13.5hp B&S (Sn: 000101 & Above)
911412 (Waw 34) 14.5hp B&S (Sn: 000101 & Above)
34" Zero-Turn Mower
915130 (Zt 1334) 13hp B&S (Sn: 000101 & Above)
915146 (Zt 34) (Sn: 000101 & Above)
915168 (Zt 34) (Sn: 000101 & Above)
50" Zero-Turn Mower
915144 (Zt 50) B&S (Sn: 000101 & Above)
915150 (Zt 50) (Sn: 000101 & Above)
915180 (Zt 50) Koh. (Sn: 035000 & Above)
915192 (Zt 50) Koh. (Sn: 000101 & Above)

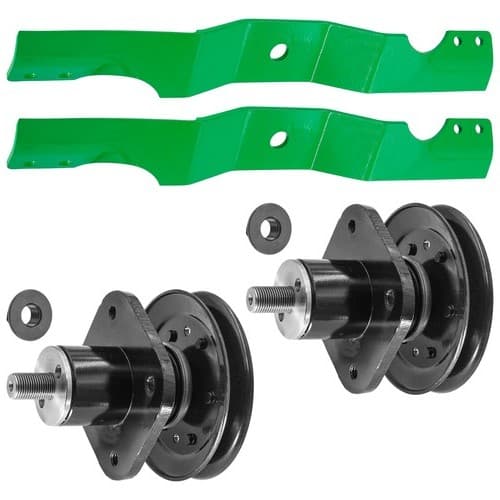

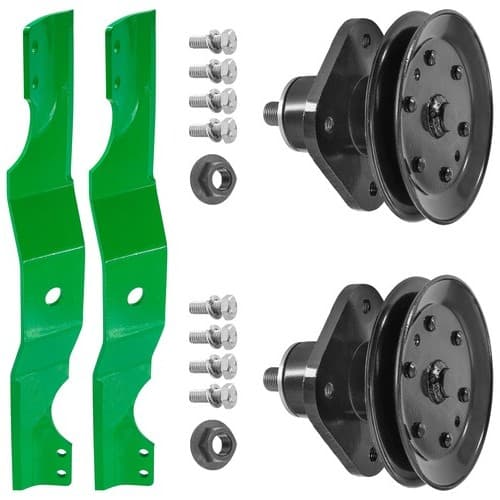

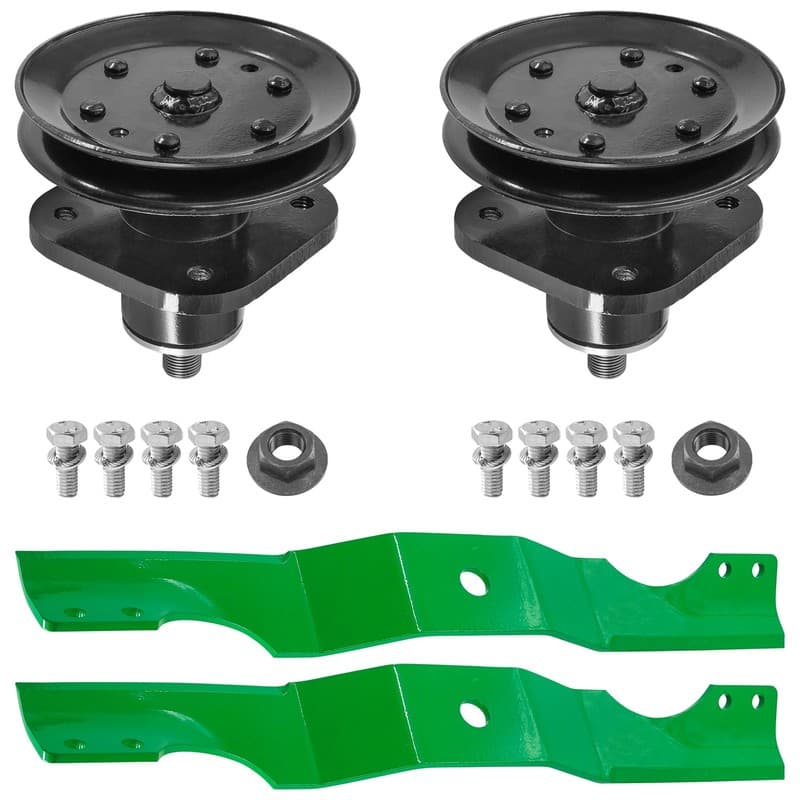

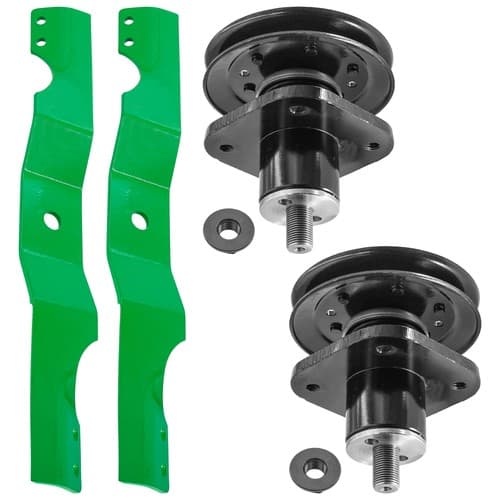

Order Includes:

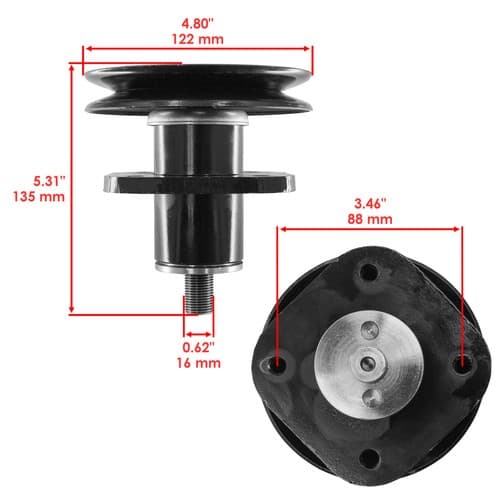

2x Spindle Assembly: 51519500, 61559900
Length: 135 mm - 5.31 in,
Stud Diameter: 16 mm - 0.62 in,
Mounting Hole Distance: 88 mm - 3.46 in,
Pulley Diameter: 122 mm - 4.8 in

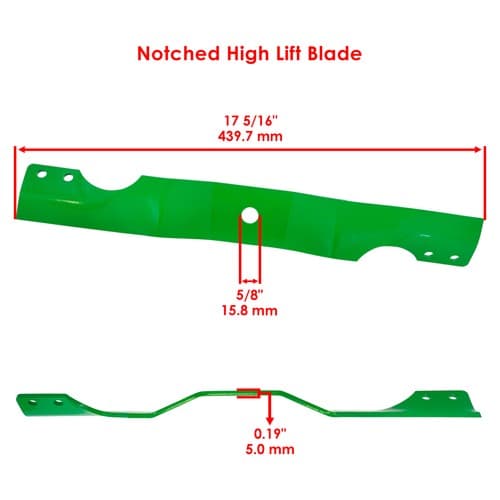

2x Notched High Lift Blade: 03746500, 03971900, 3971900
Length: 17.35 in - 439 mm,
Width: 2.24 in - 57 mm,
Thickness: 0.20 in - 5.1 mm,
Mounting Hole Diameter: 5/8 in - 15.8 mm

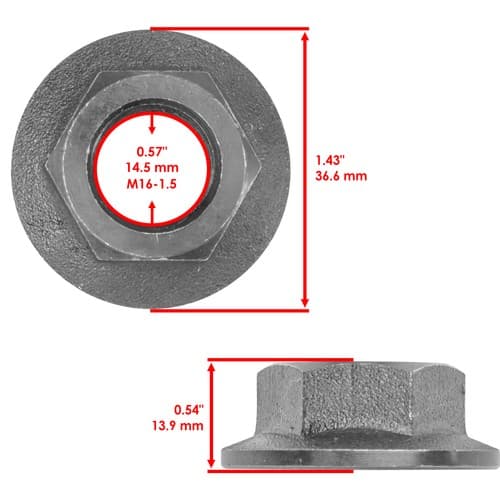

2x Flange Nut: 06500920, 06500630, 06445700
Thread Size: M16-1.5,
Inner Diameter: 14.5 mm - 0.57 in,
Outer Diameter: 36 mm - 1.43 in,
Height: 13.7 mm - 0.54 in
