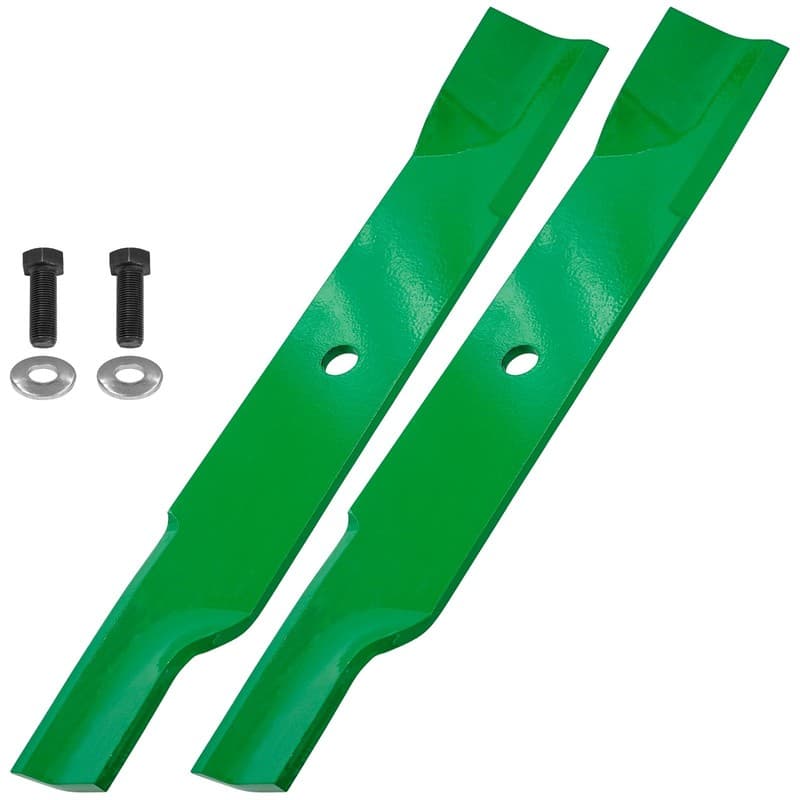

High Lifter Blade with Bolt
Compatible with Ariens Models:
992028 (2050) 50" 20hp B & S (Sn: 000101 - 030000 & Above)
992040 (2250) 50" 22hp B & S (Sn: 031000 & Above)
Compatible with Gravely Models:
988121 (Gr 1334 Fx) 34" 13hp Kaw. (Sn: 000101 - 006000 & Above)
988122 (Gr 1334 Fxp) 34" 13hp Kaw. (Sn: 000101 - 006000 & Above)
988134 (Gr 1334 Fx) 34" 13hp Kaw. (Sn: 000101 & Above)
991022 (Pm 34m) 34" 17hp Kaw. (Sn: 000101 - Sn: 003000 & Above)
991043 (Pm 34m) 34" 17hp Kaw. (Sn: 000101 - 003000 & Above)
991071 34" 17hp Kaw. (Sn: 000101 & Above)
991088 34" 17hp Kaw. (Sn: 000101 - 059999)
991105 34" Kaw. (Sn: 020000 - 059999)
992056 (Pm 34z) 34" 15hp Kaw. (Sn: 000101 - Sn: 005000 & Above)
992314 (Pm 34z) 34" 15hp Kaw. (Sn: 000101 - 001499)

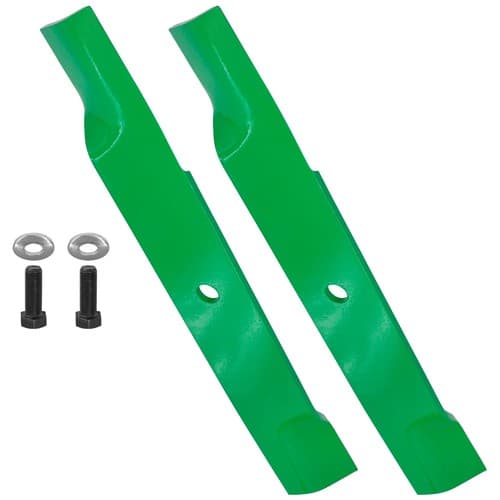

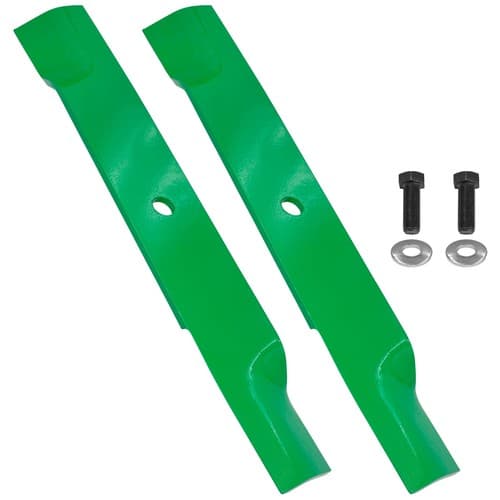

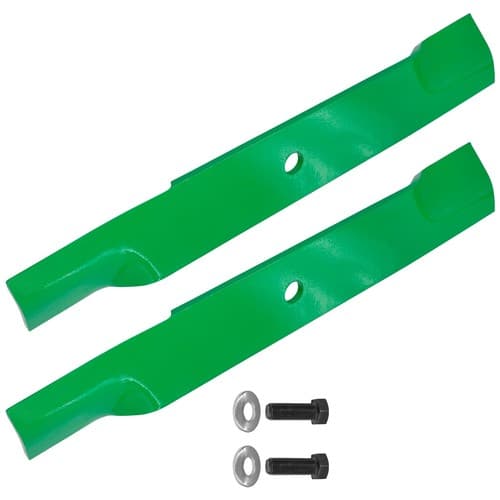

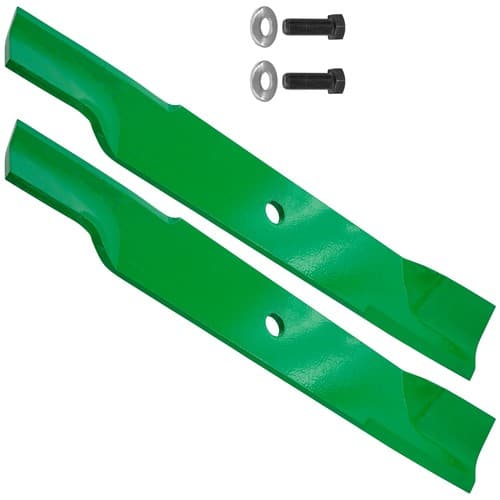

Order Includes:

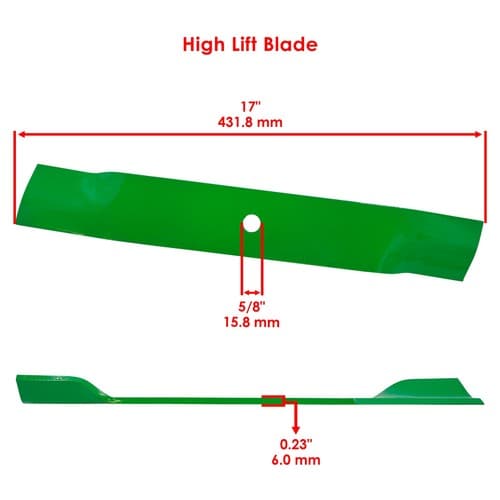

2x Toothed Blade: Ariens: 08779200, 09082400, 09246700, 21285000, 8779200,
Gravely: 046998, 08779200, 08899600, 09082400, 09246700, 11234,
21285051, 46998, 8779200, 8779251, 8861651, 88993300
Length: 17 in - 431 mm
Width: 2.50 in - 63.5 mm
Thickness: 0.24 in - 6 mm
Mounting Hole Diameter: 5/8 in - 15.8 mm

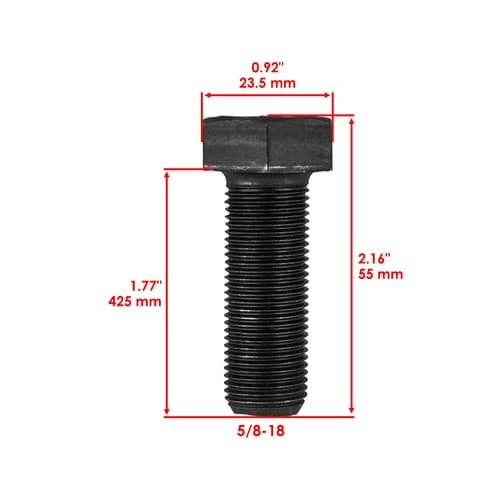

2x Bolt: Ariens, Gravely: 05901822, 05978900, 06445700
Overall Length: 2.18 in - 55.5 mm
Thread Length: 1.68 in - 42.8 mm
Head Width: 1.05 in - 26.8 mm
Thread Spec: M16x1.5
